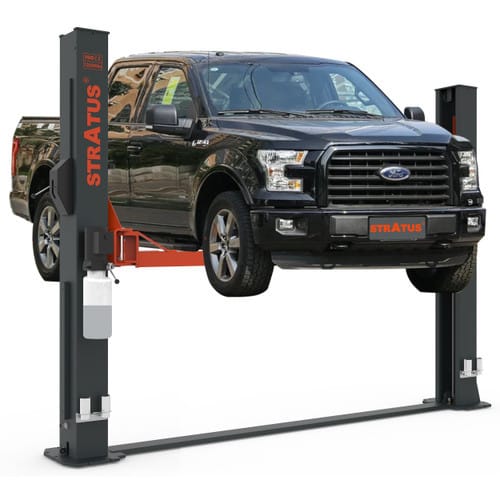

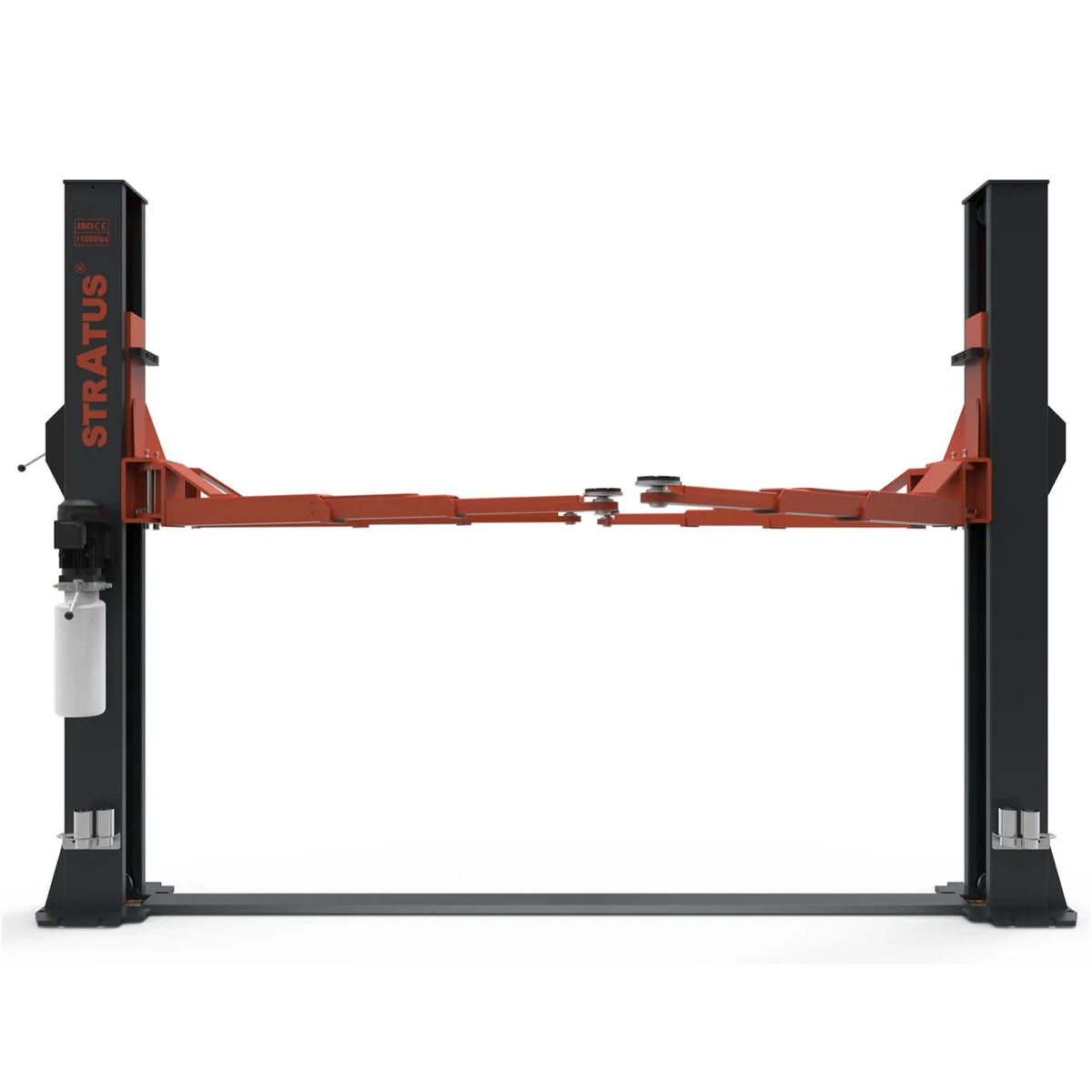

The Stratus SAE-F12X is a 12,000-lb extra-wide two-post floor plate lift built for shops that service full-size trucks, vans, and SUVs alongside everyday cars. Its open-top columns and floor-mounted base plate leave the entire underside of the vehicle clear, while extra-wide column spacing — 116 3/16" of drive-thru clearance and 129 15/16" between the columns — gives wide-body pickups and dual-rear-wheel trucks room to load square.
Two direct-drive hydraulic cylinders, synchronized by dual multi-strand equalizer cables, raise the vehicle to a 74 13/16" lifting height (78 13/16" with the screw-up adapters) in about 60 seconds. A single-point manual release lets one technician disengage both column safety locks from one lever, and triple-telescoping symmetric arms reach from 35 1/16" to 74 13/16" to spot the pads on a short hatchback or a long-wheelbase pickup.
Every F12X is proof-tested to 115% of rated capacity dynamically and 150% statically, runs on automatic spring-loaded arm restraints and a top limiter switch, and is backed by a 5-year structural warranty.
Features

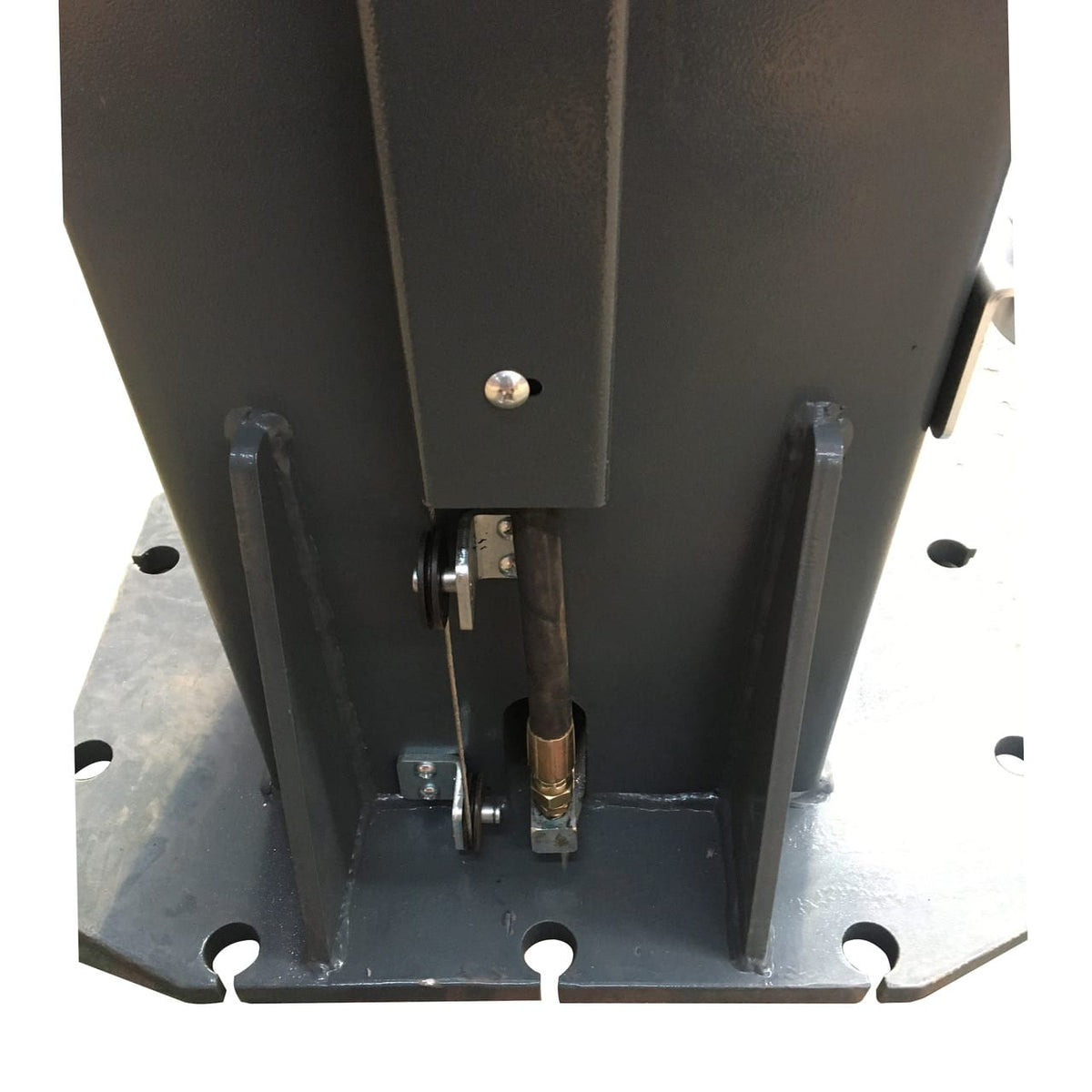

Floor plate (base plate) design with open top — the cross member sits on the floor instead of overhead, so there is full, unobstructed access to the vehicle’s underside.
Single-point manual release — one lever on the main column releases the safety locks in both columns at the same time.

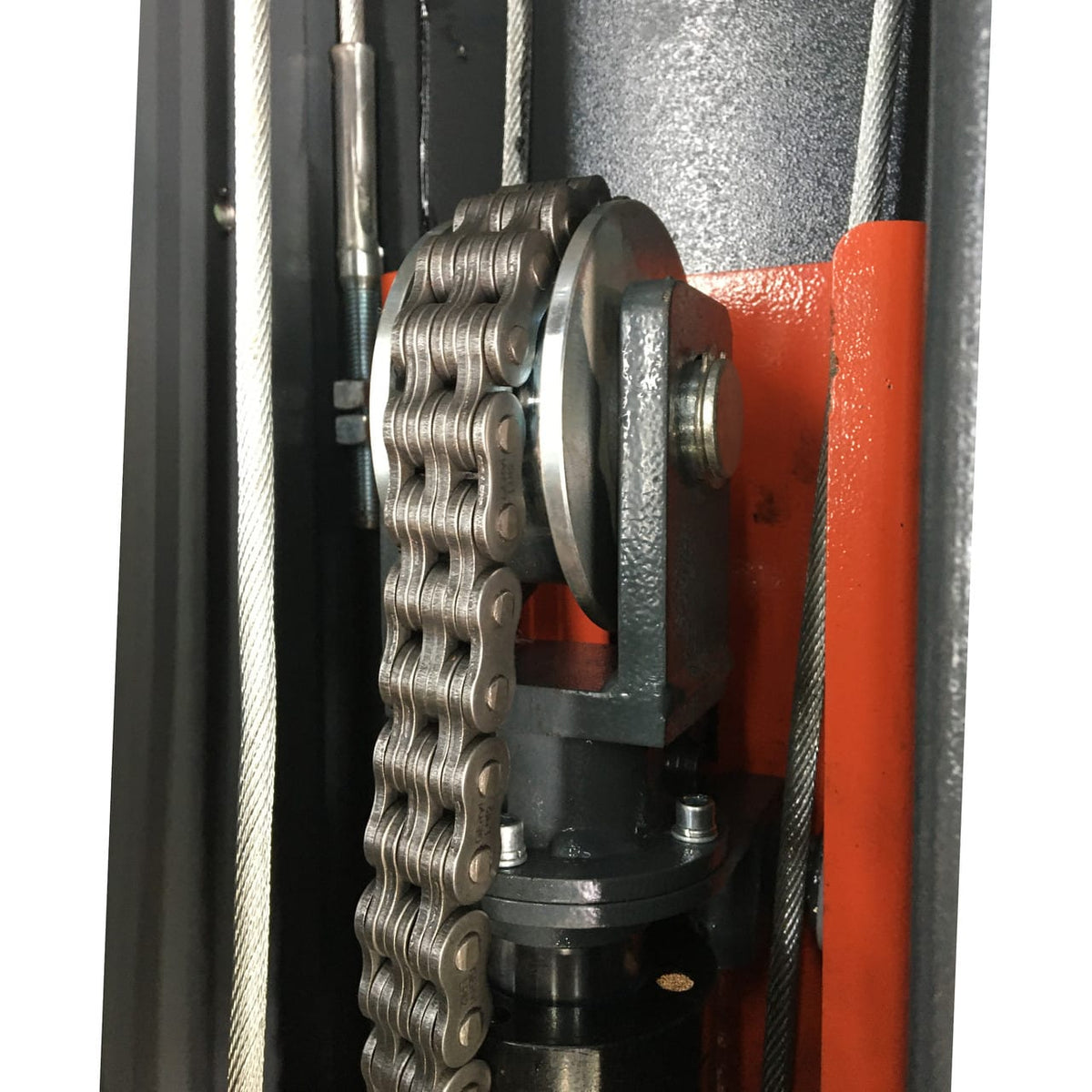

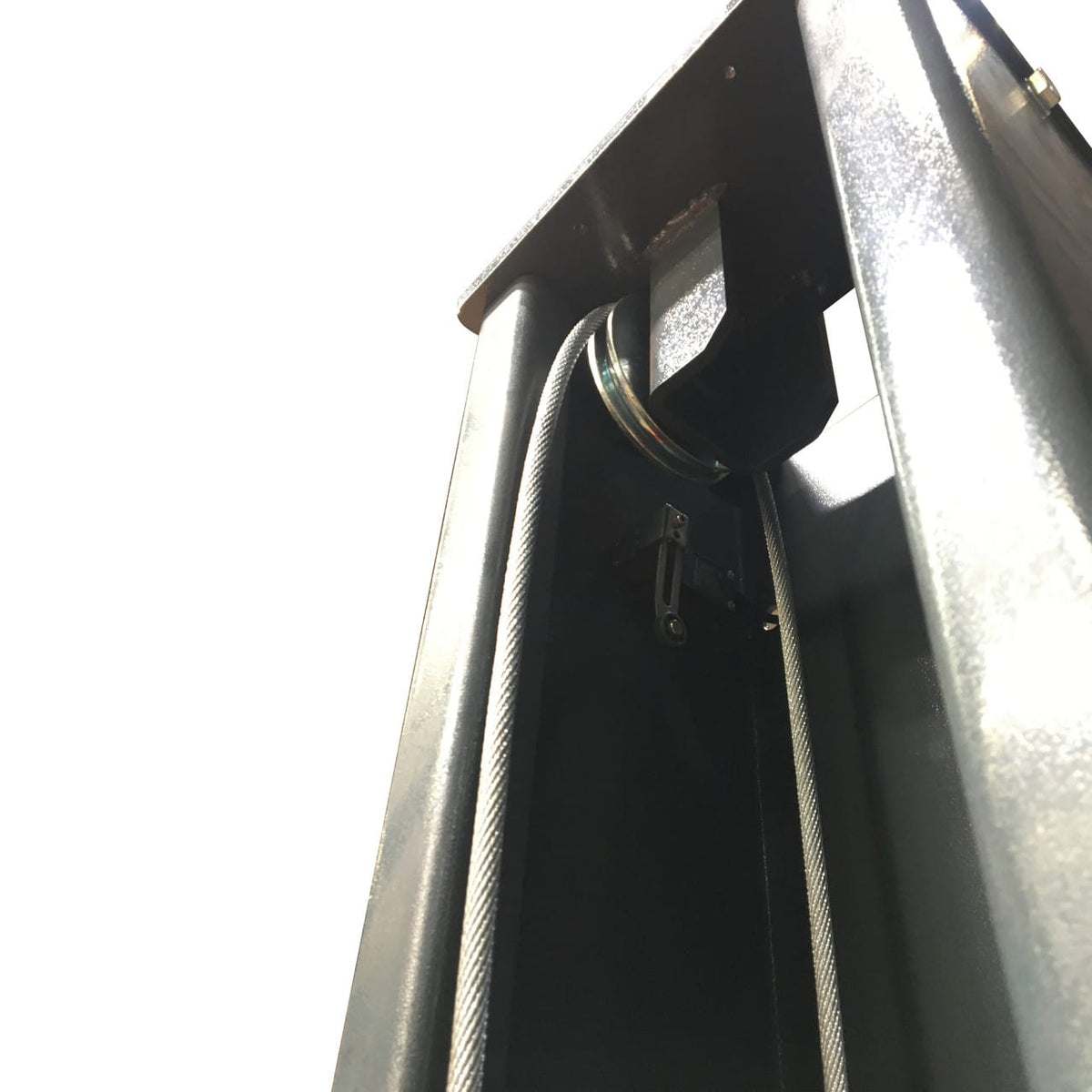

Dual direct-drive hydraulic cylinders synchronized by two multi-strand, non-rotary, non-stretch equalizer cables (9 mm) for level, balanced lifting.
Triple-telescoping symmetric swing arms with reach from 35 1/16" to 74 13/16" and screw-up rubber contact pads.

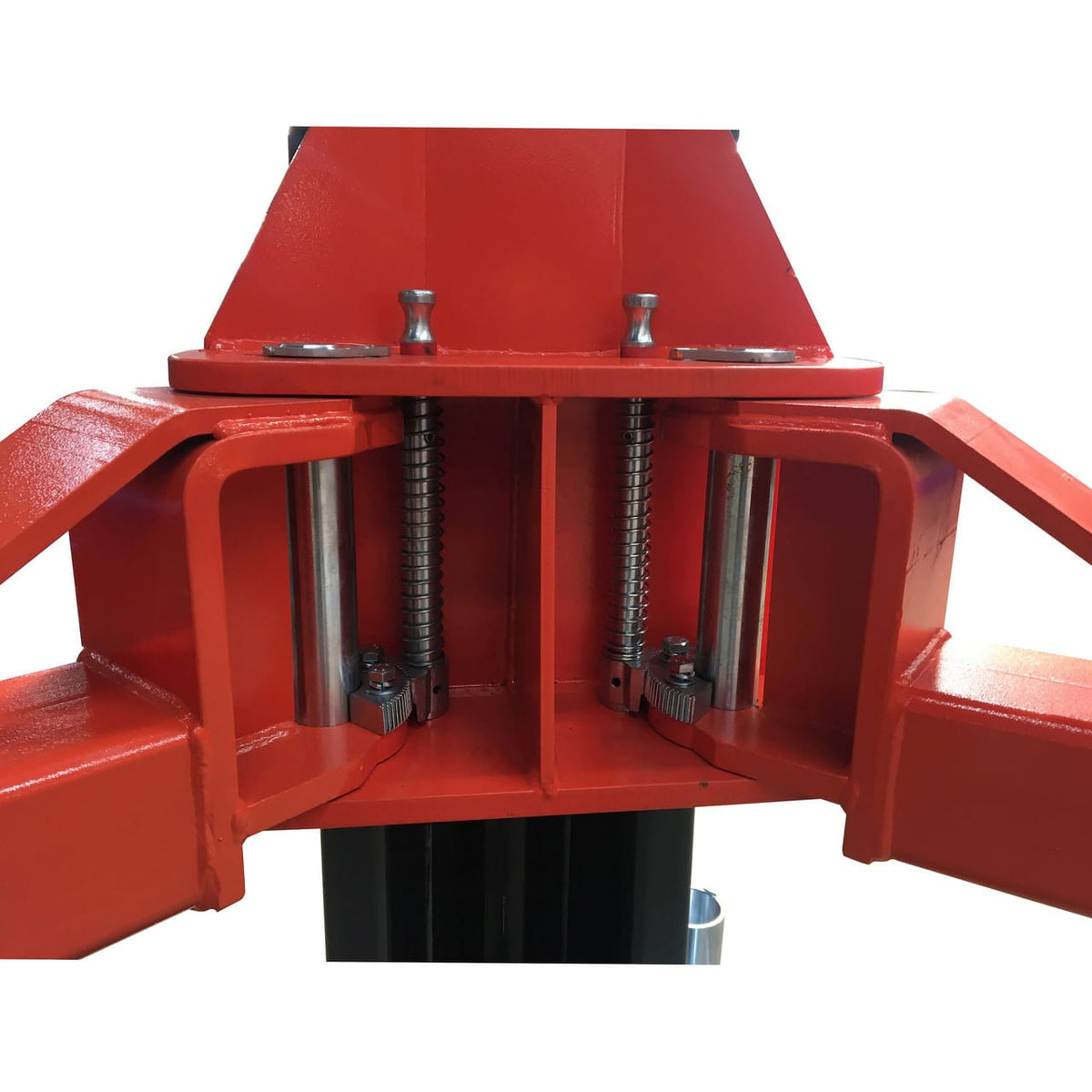

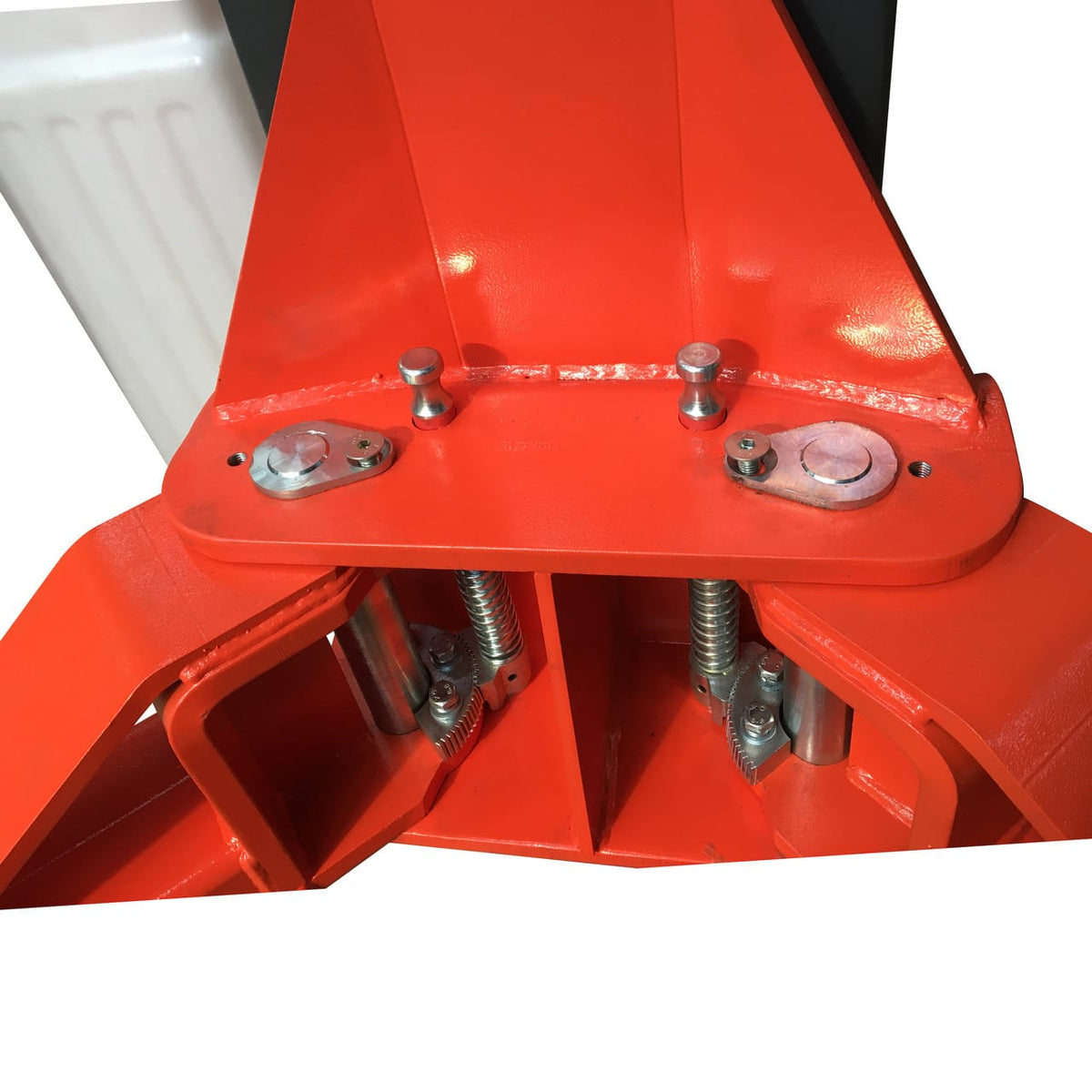

Automatic spring-loaded arm restraints that lock the arms against rotation once the vehicle is loaded.

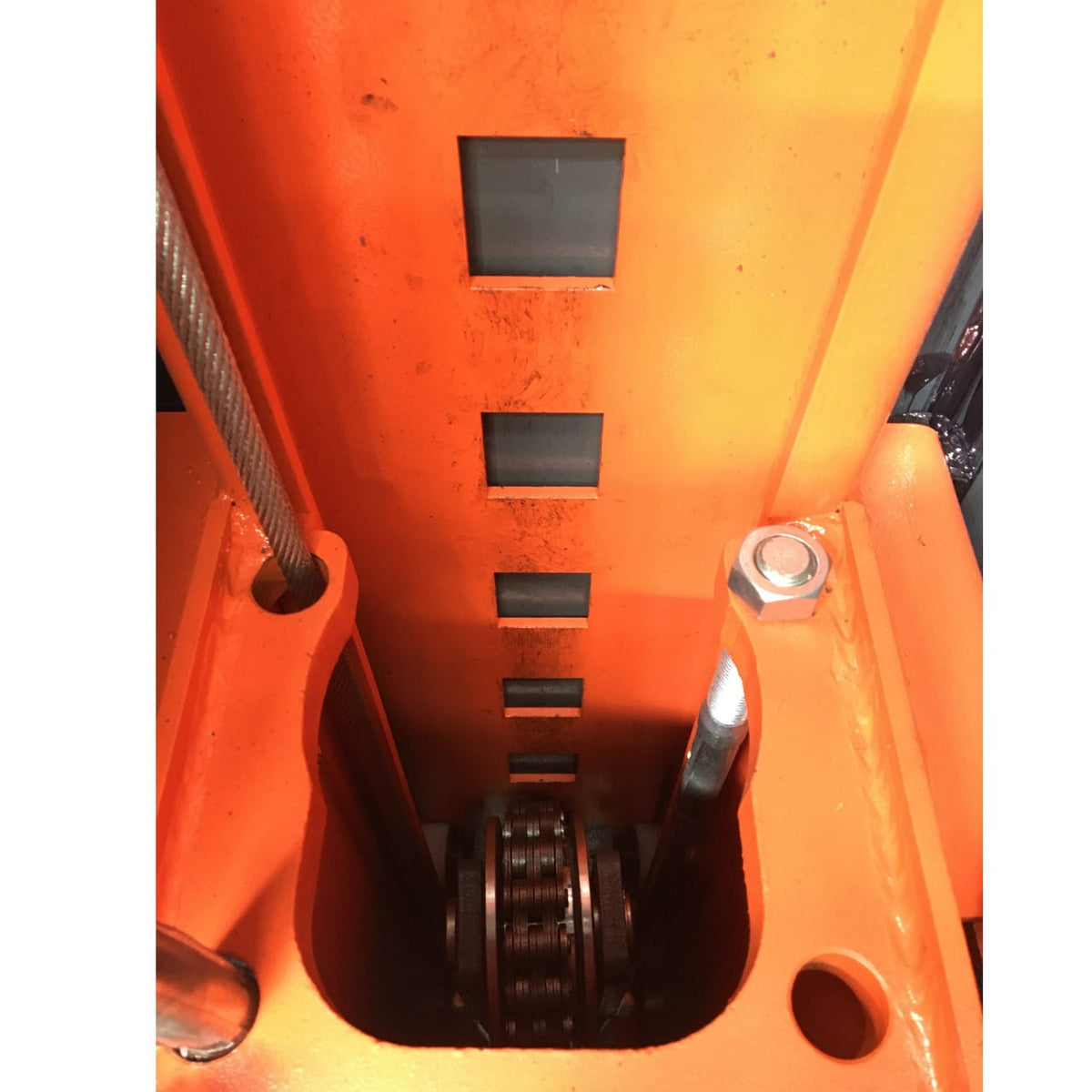

Multi-position mechanical safety locks that engage automatically as the lift rises.
Top limiter switch stops the motor automatically at full rise.
Nylon slide blocks for smooth, low-maintenance carriage travel.
Heavy-gauge steel: 6 mm columns and carriages, 8 mm arms.
Proof-tested by dynamic test at 115% and static test at 150% of rated capacity.
Durable powder-coat finish in Granite Gray (RAL 7026) with Rein Orange (RAL 2004) arms.
CE marked.

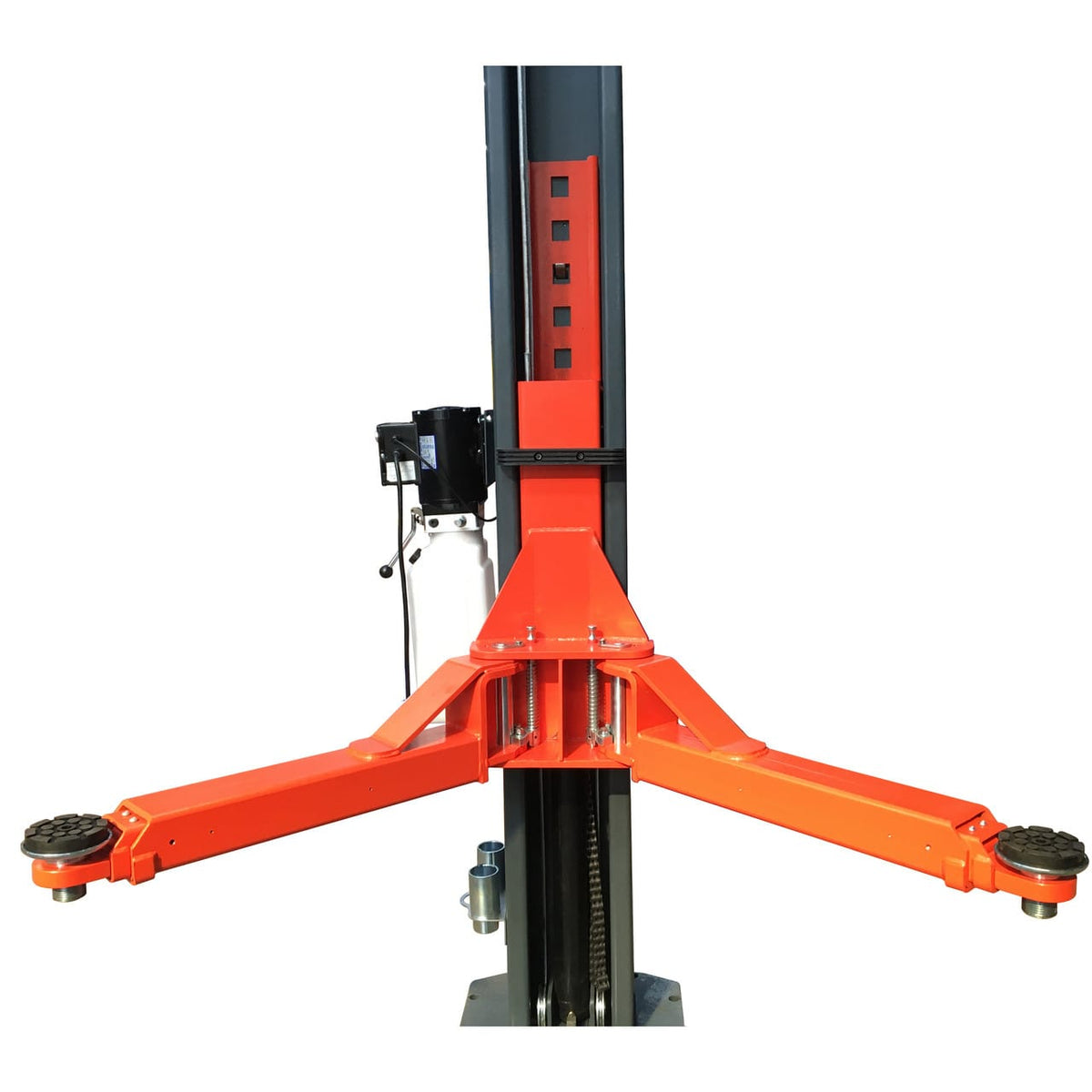

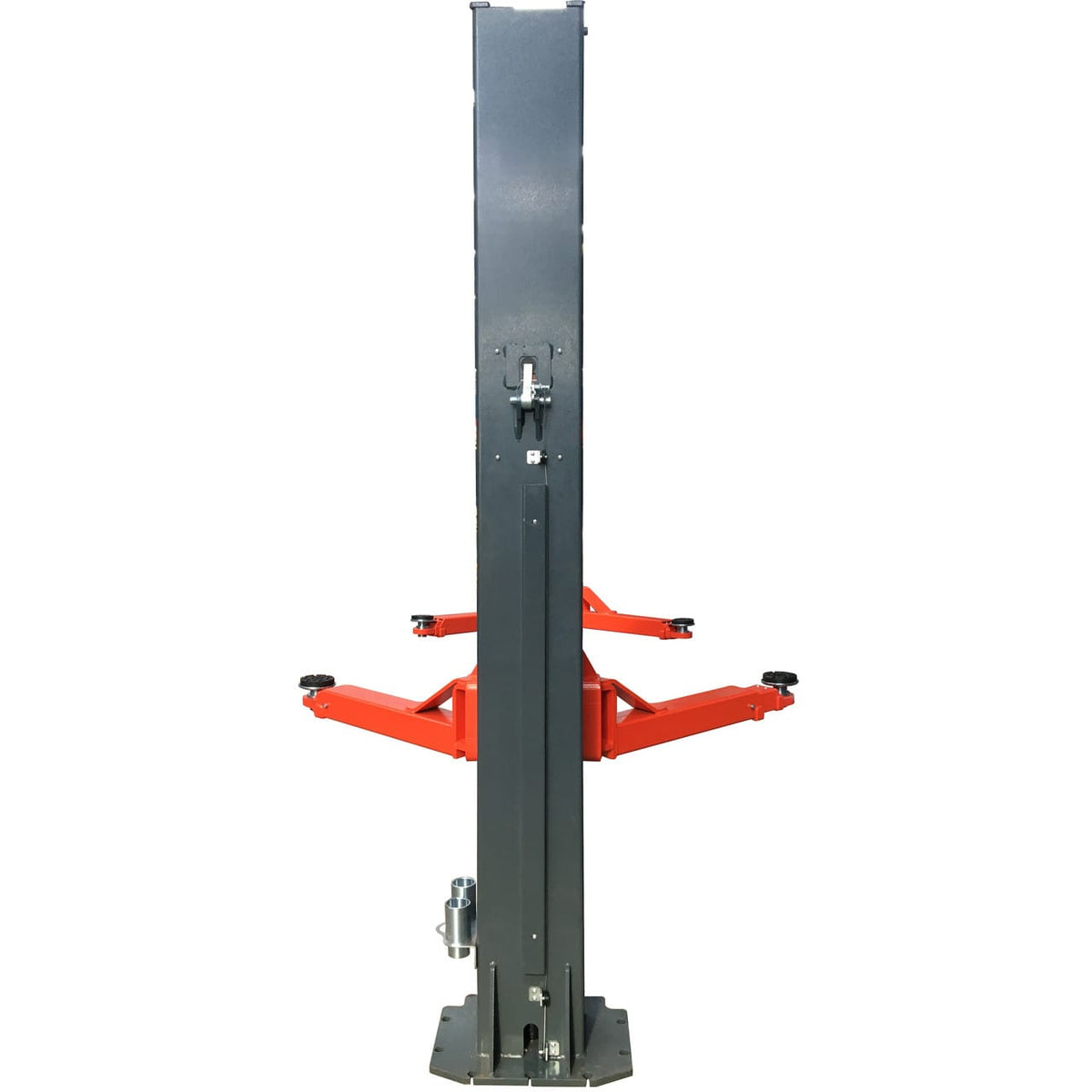

Triple-telescoping symmetric arms with screw-up rubber pads.
What’s Included

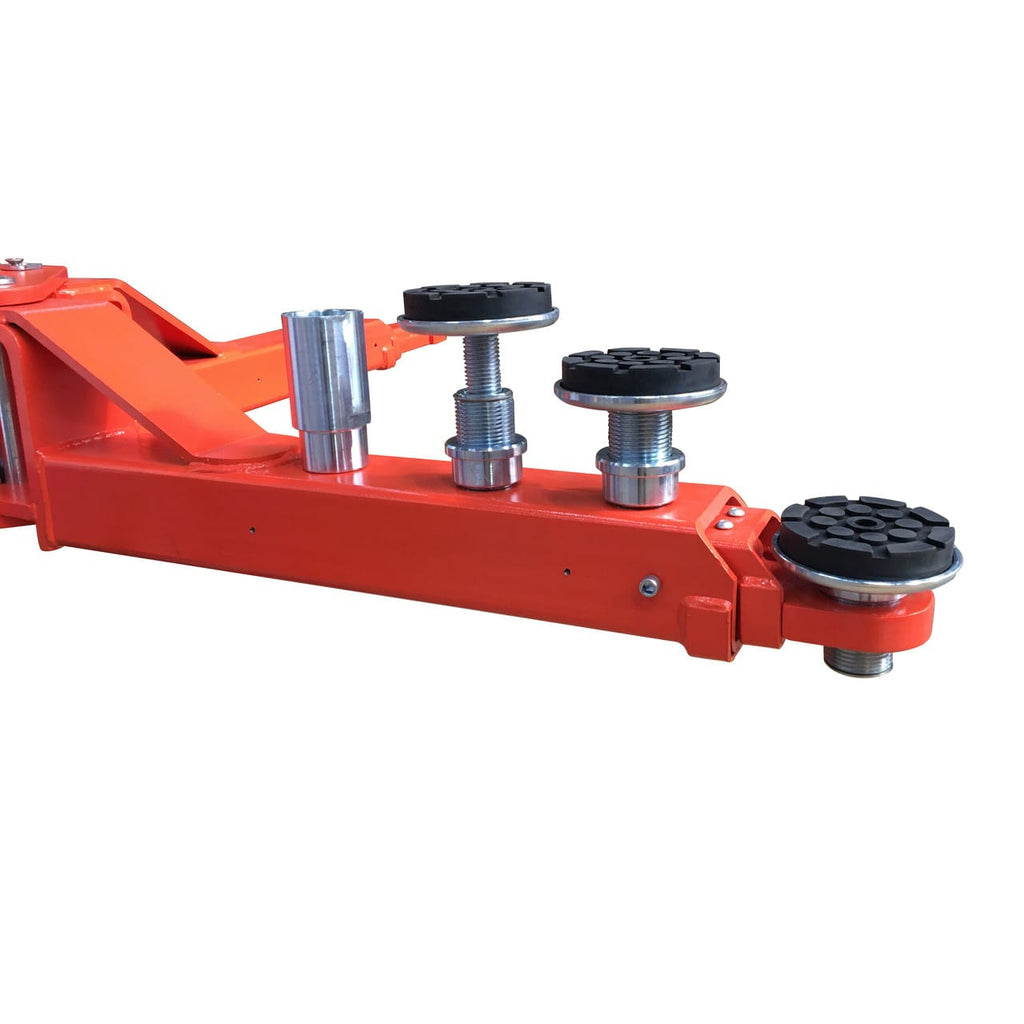

4 screw-up rubber pads — 60 mm (2 5/16") peg
4 truck adapters — 4", 60 mm (2 5/16") peg
14 concrete anchors (M20 × 160 mm) and assembly hardware
Owner’s manual
Optional accessories, sold separately: cradle pads (60 mm peg) and a tripod jack stand.
Specifications
Stratus SAE-F12X Specifications
Lifting capacity
12,000 lb
Lifting height (with adapters)
78 13/16" (2,002 mm)
Min. pad height (with adapters)
8 1/8" (207 mm)
Lifting height (without adapters)
74 13/16" (1,900 mm)
Min. pad height (without adapters)
4 15/16" (125 mm)
Rise time
~60 sec
Overall height
122 1/2" (3,112 mm)
Overall width (outside of columns)
155 1/8" (3,940 mm)
Overall base length
160 1/4" (4,070 mm)
Inside the columns
129 15/16" (3,300 mm)
Drive-thru clearance
116 3/16" (2,951 mm)
Arm reach (front and rear)
35 1/16" – 74 13/16" (890 – 1,900 mm)
Column / carriage steel
6 mm (0.236")
Arm steel
8 mm (0.315")
Equalizer cable
9 mm (0.354")
Motor
4 HP, 220V, 60 Hz, single-phase
Recommended breaker
30 A
Hydraulic oil
AW32 (cold weather) / AW46 (warm weather)
Concrete requirement
8" (200 mm) min. thickness, 3,500 PSI min., fully cured
Shipping dimensions
112" L × 41" W × 29" H
Shipping weight
1,980 lb
Electrical hook-up must be done by a licensed electrician; the lift ships without a power plug.
SAE-F12X dimensions and clearances.
Warranty
Stratus backs the SAE-F12X with a 5-year warranty on the lifting structure, 3 years on hydraulic components, and 2 years on electrical components.
FAQ
What concrete does the F12X need?
The installation manual specifies a level slab of at least 200 mm (about 8 inches) of 3,500 PSI concrete, fully cured and free of cracks or holes, before the lift is installed.
What are the anchor and torque specs?
The lift includes fourteen M20 × 160 mm concrete anchors (about 3/4" by 6"), torqued to a minimum of 90 ft-lb.
What electrical service does it require?
The motor is 220V single-phase on a 30 A breaker and must be wired by a licensed electrician (two hot leads plus ground). It ships without a power plug.
Can I adjust the lifting speed?
Yes. Lift speed is set at the power unit’s hydraulic oil-flow valve; follow the adjustment direction given in the manual.
Will a wide truck fit between the columns?
The F12X is the extra-wide F-series model: 116 3/16" of drive-thru clearance and 129 15/16" inside the columns give wide-body and dual-rear-wheel trucks room to load.
Is the F12X ALI certified?
The F12X is CE marked. Stratus does not publish ANSI/ALI ALCTV (ALI) certification for this model; if ALI certification is required in your jurisdiction, confirm the current status with the manufacturer before purchase.
The F12X ships by freight to a commercial address, installer, or freight terminal. Residential delivery, remote-area destinations, and liftgate service can add freight charges, and the receiver is responsible for unloading the lift from the truck. Call MGS at 307-381-1810 or email sales@mygaragesupplies.com to confirm freight to your address before ordering.
