Part Number: SS20016

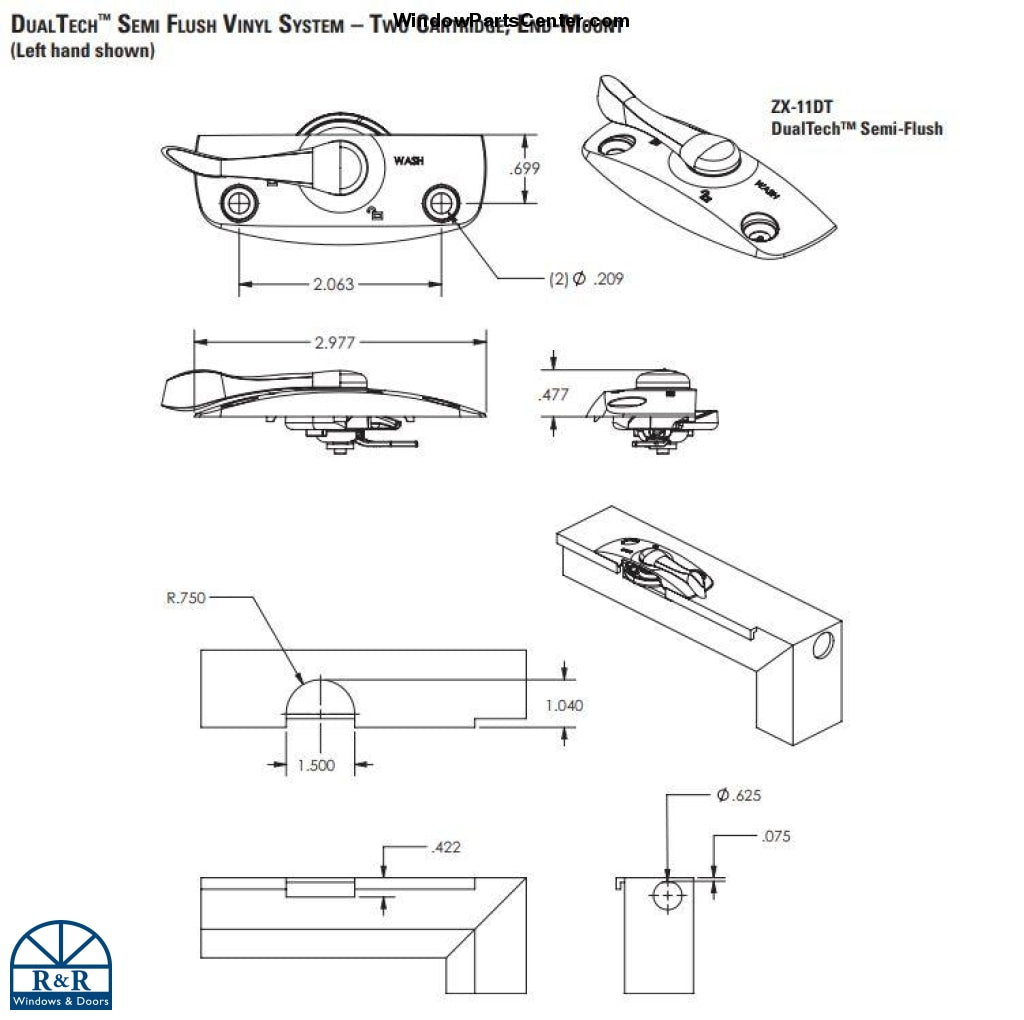

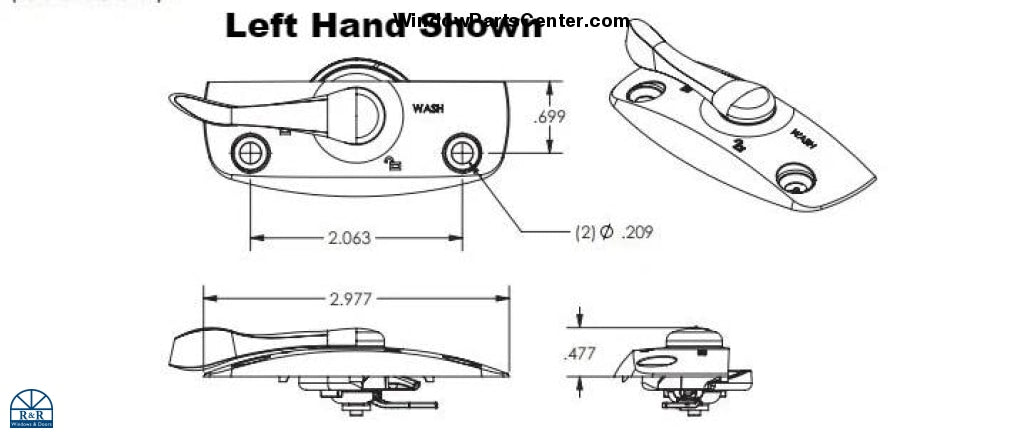

7900 Flush Mount Tilt and Lock Sash Lock - with wash feature. Ashland Hardware Systems ZX-11DT DualTech

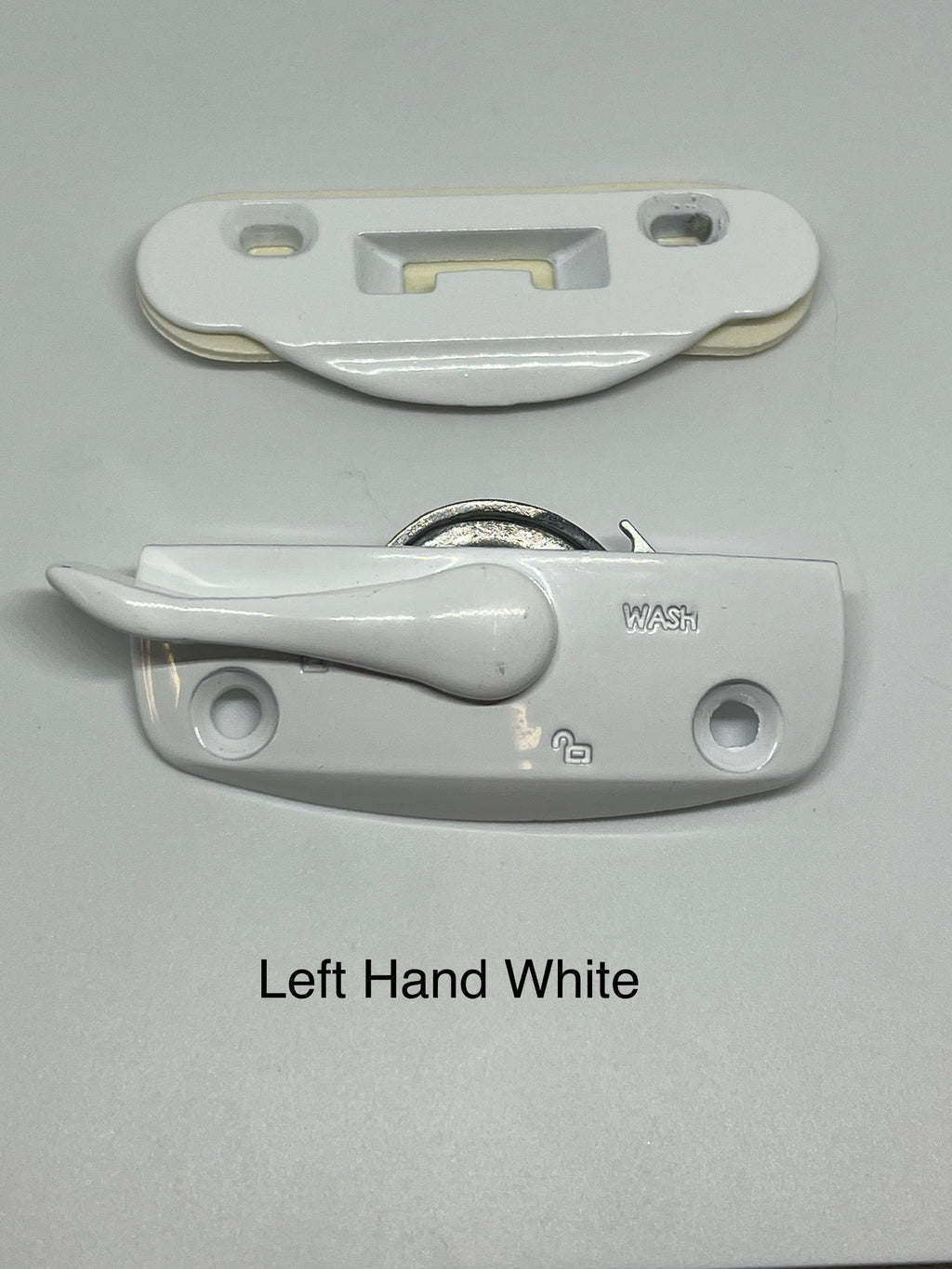

Color: White or Beige (aka Almond)

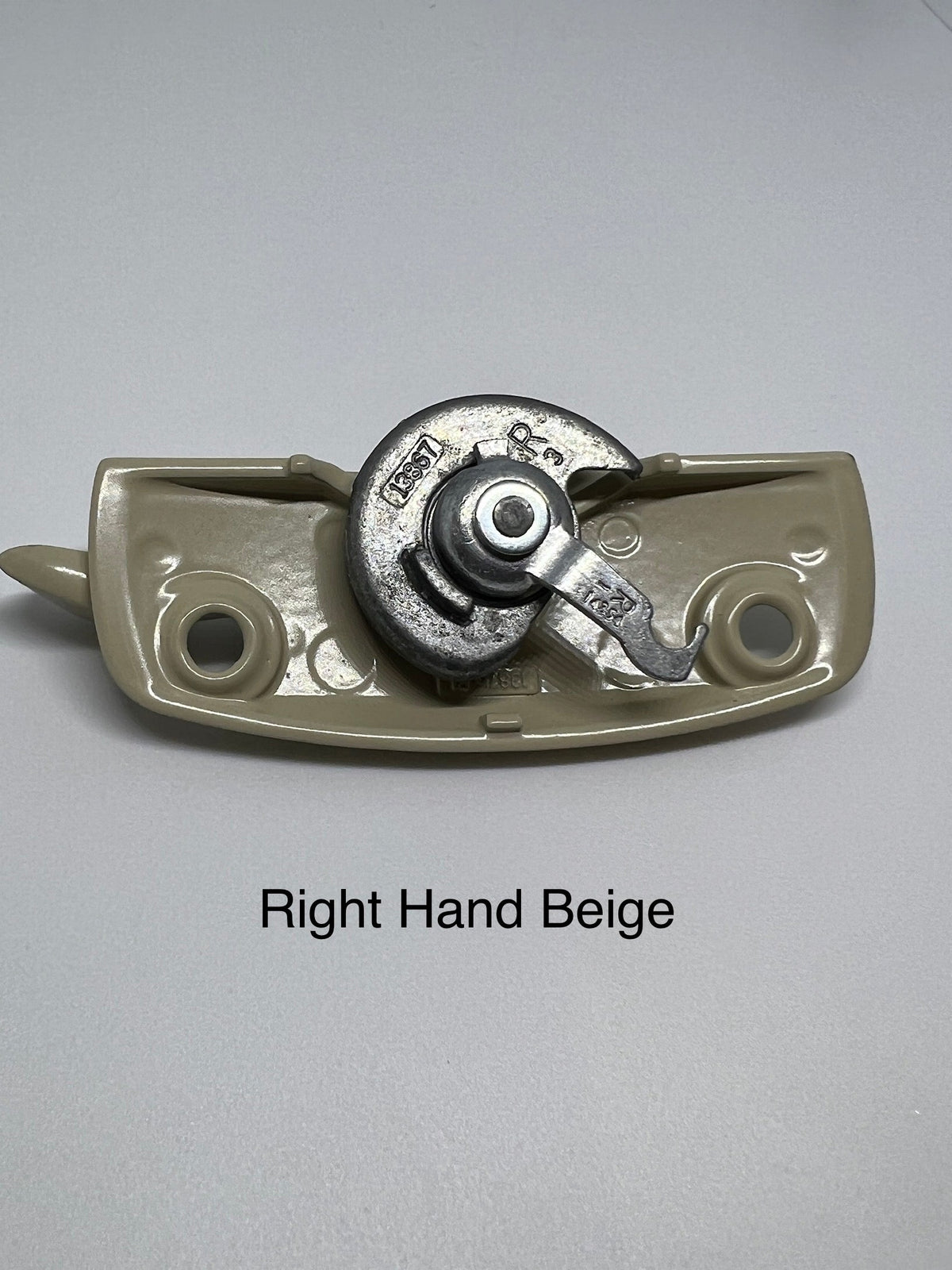

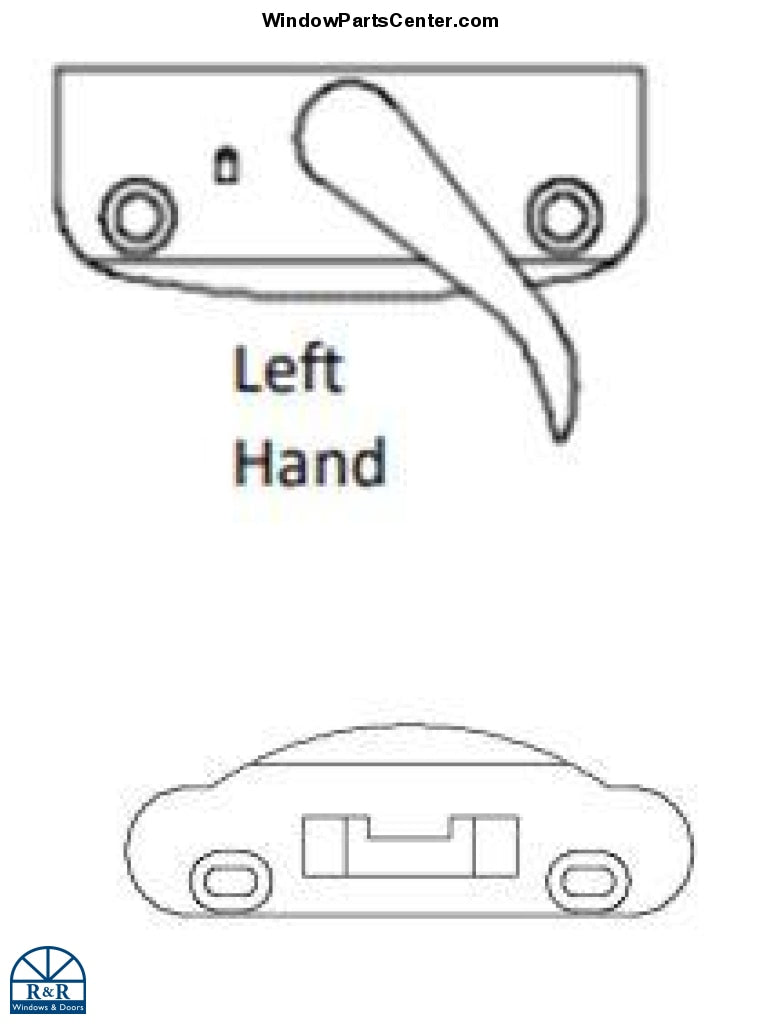

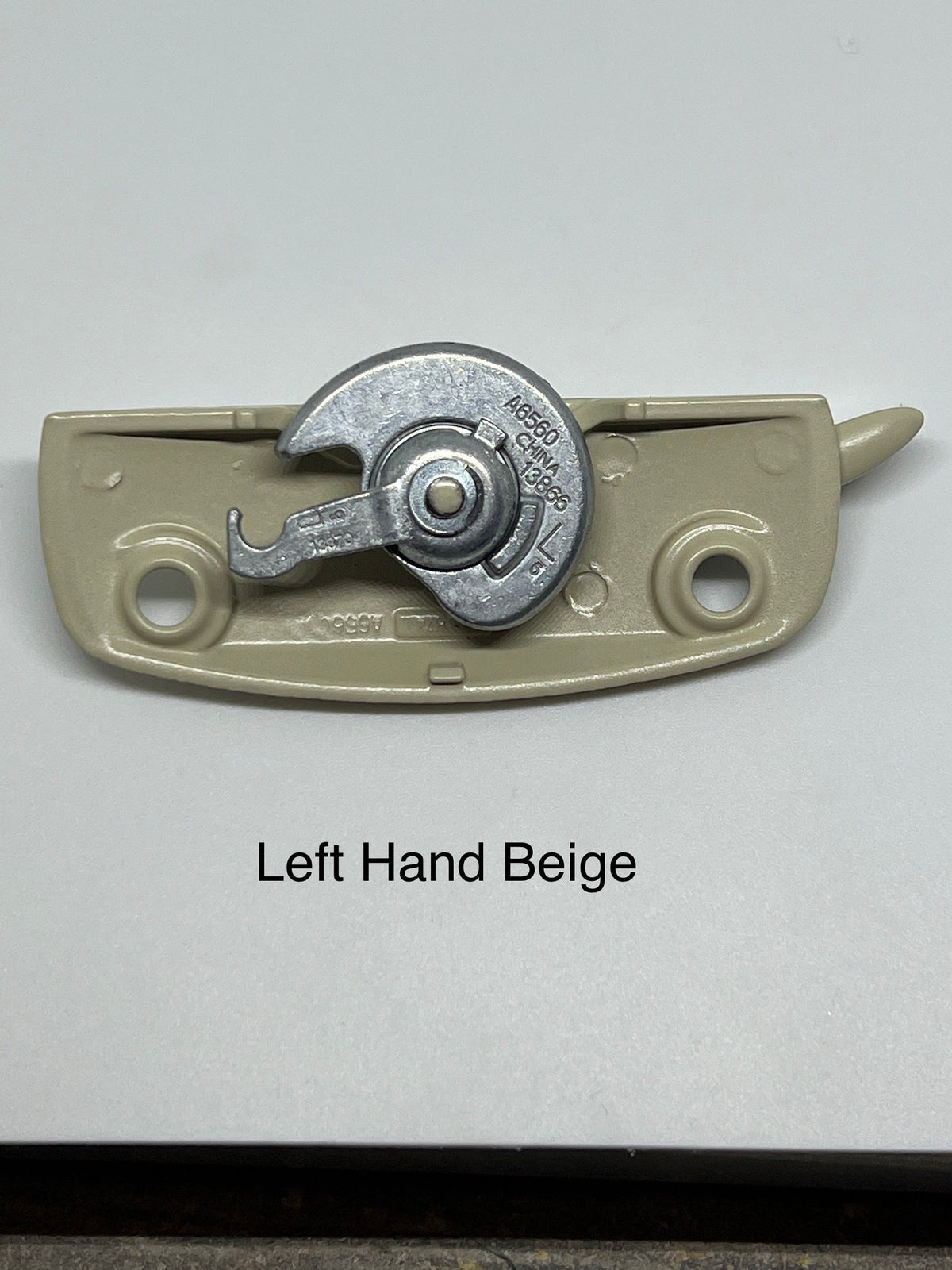

Handing: Left Hand Or Right Hand - Locks are handed the under side of the lock is stamped with a L or R see pictures.

Kit comes with: 1 Lock (Left hand or right hand), 1 Face Mount Keeper and screws

Allows double hung or single hung windows to lock but also to tilt to wash outside of window or remove sash.

Engineered for Performance

• All zinc die-cast sash lock construction for maximum strength

• Sash weld is not compromised to significantly increase corner strength

• Helps your window system meet the highest industry standards: – ASTM F588 (Grade 10) forced entry resistance test – California CAWM 301 forced entry resistance test – Tested to DP-50 performance levels

• Intuitive functionality allows latch to operate with a swing of the lock lever

• Positive detent in both the lock and unlock positions

Used on: SuperSeal Preminum Vinyl , Hurd and Sierra pacific VINYL 8000/8500 SERIES PREMIUM DOUBLE HUNG, MI Windows Restoration Series V5500

Associated Parts Sold Separately:

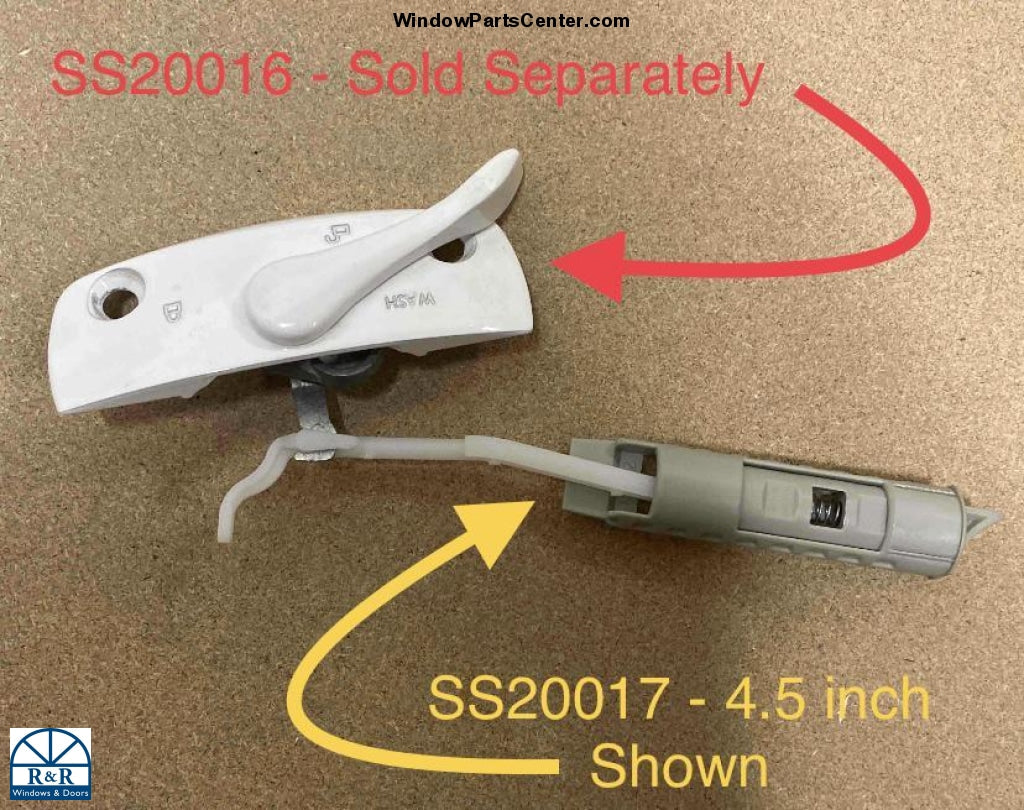

• SS20017 Tilt Latch Assembly (that attaches to part number SS20016)

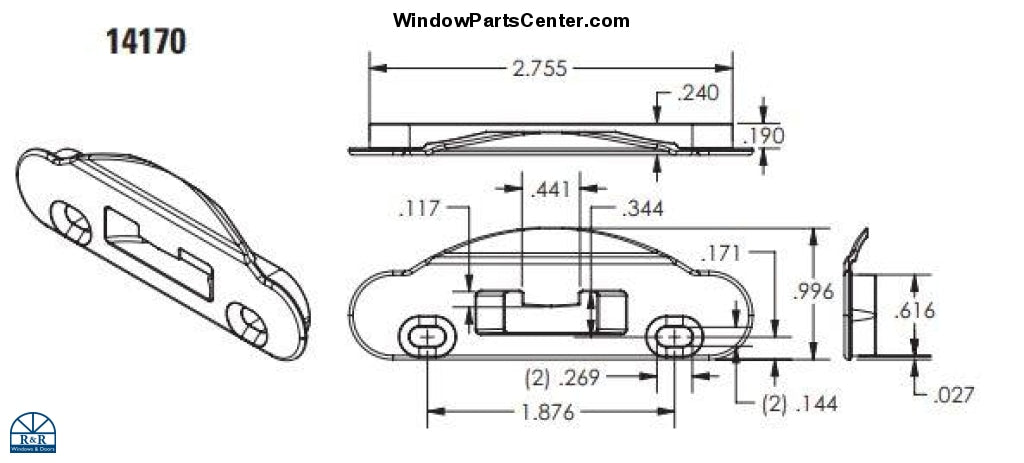

Known Component Part Number: ZX-11DT,  Part number stamped on back of keeper: ID14170, 13867, 13875, 14354, A6560, 13866, 13970, 13874, 14353
