Description

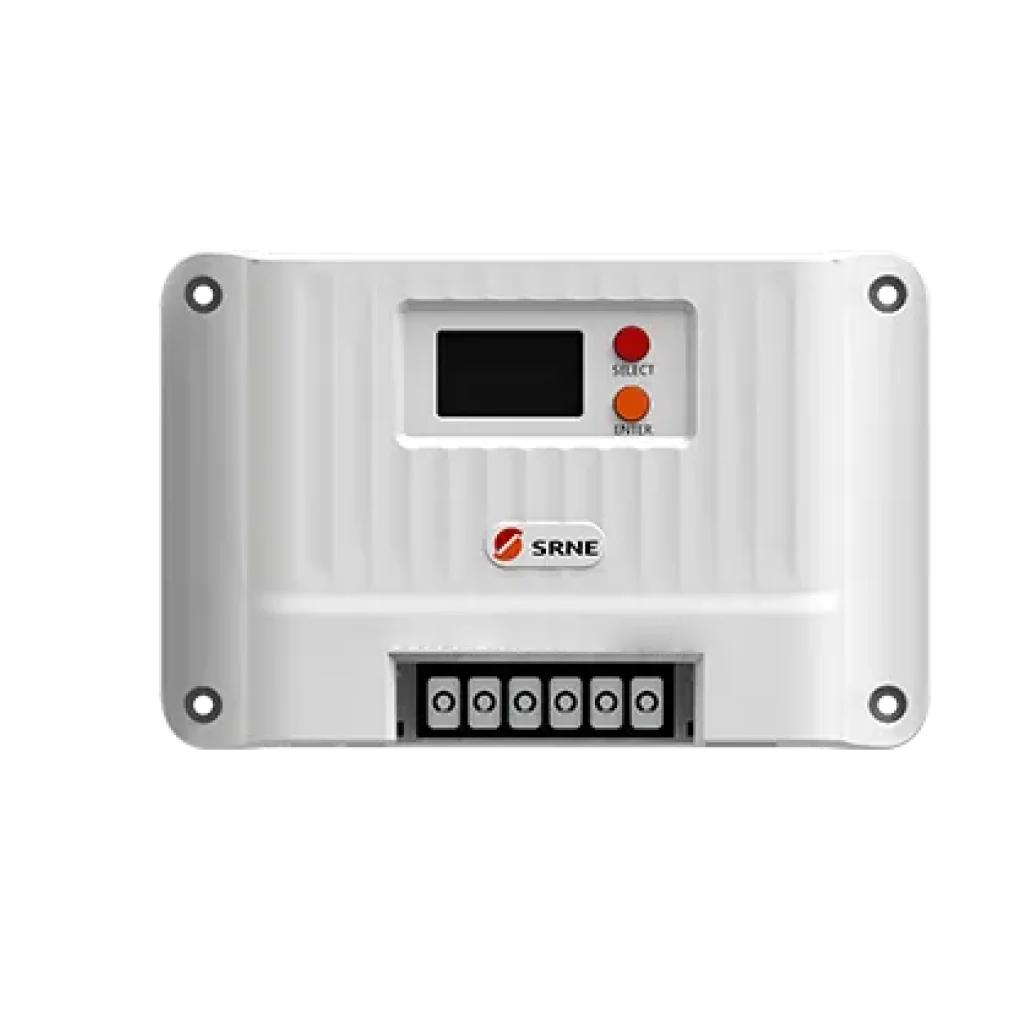

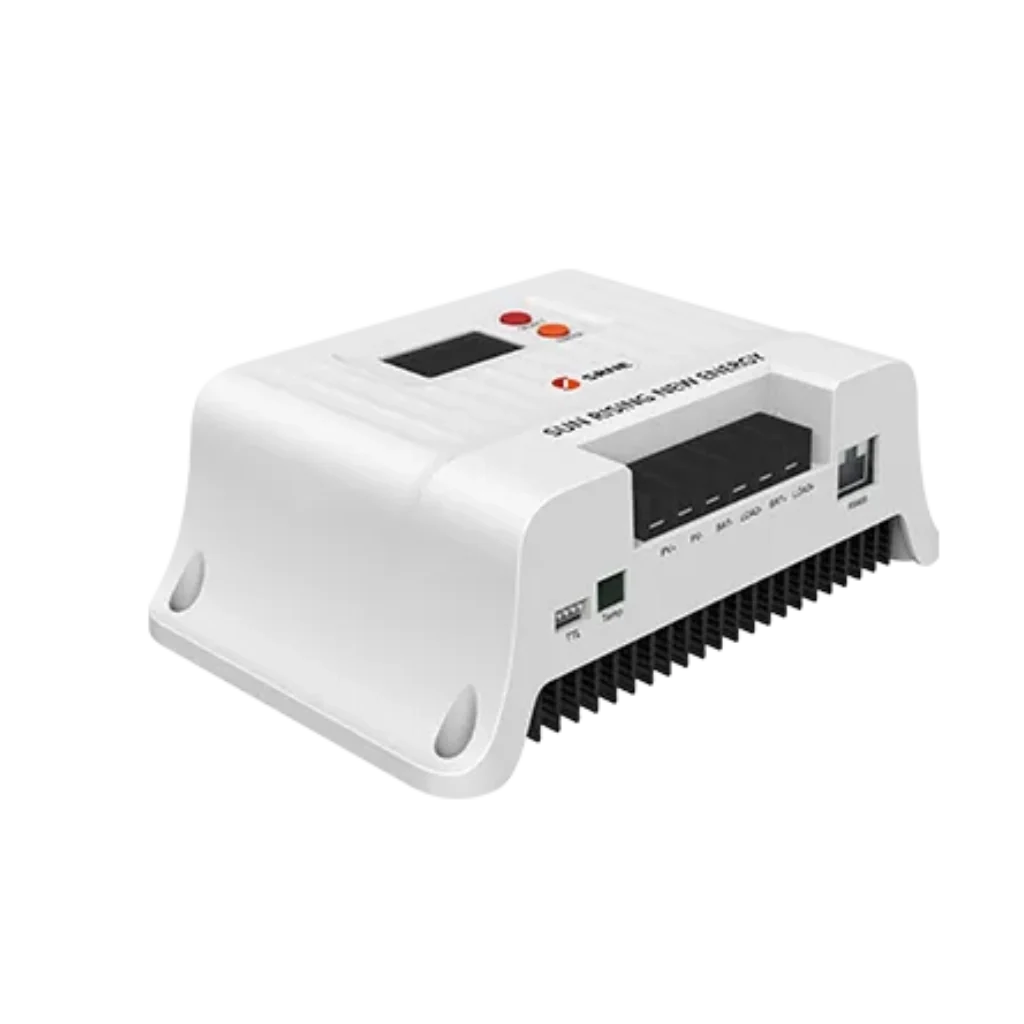

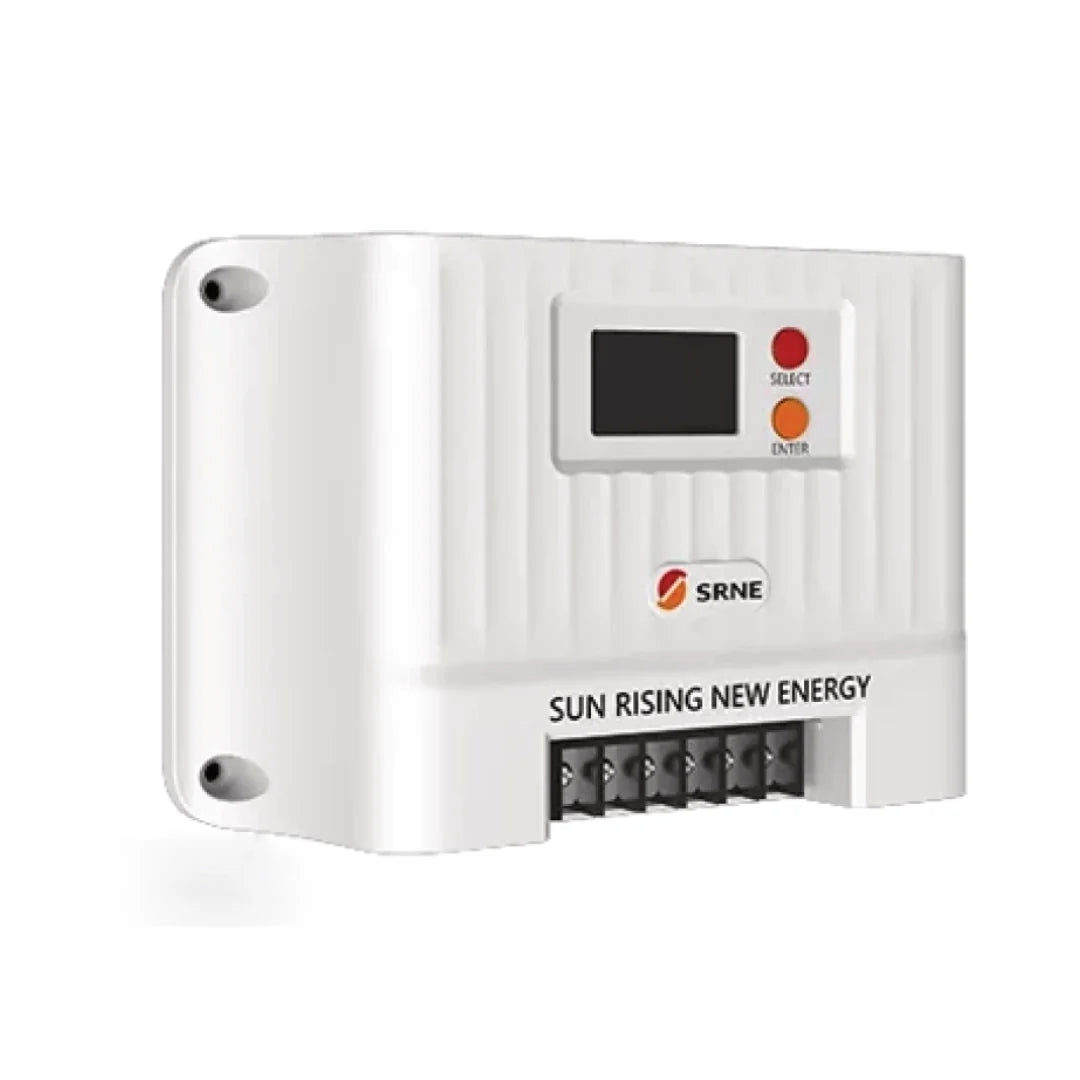

SRNE Shiner 2430 MPPT Solar Charge Controller

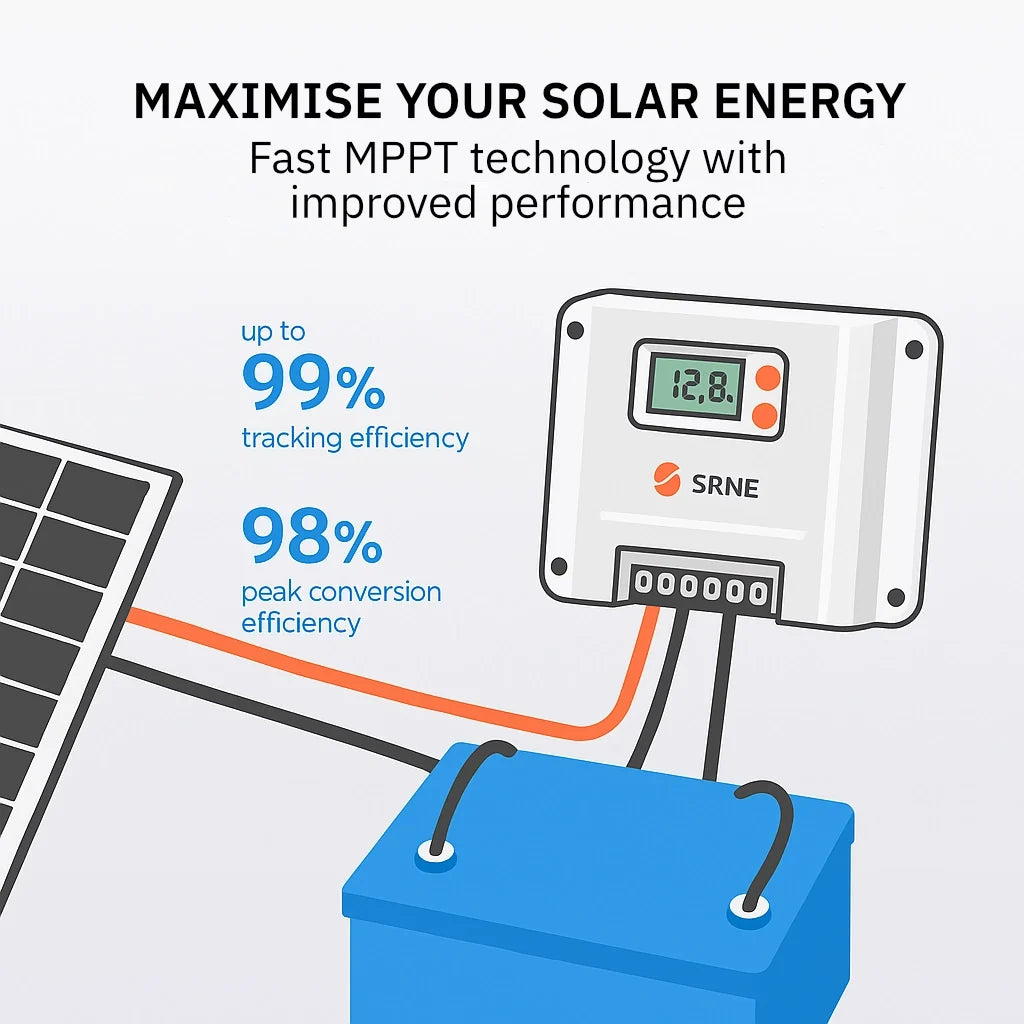

The SRNE Shiner 2430 is a high-performance MPPT solar charge controller designed for 12V and 24V battery systems. Using advanced Maximum Power Point Tracking technology, it captures and converts solar energy with over 99% tracking efficiency, ensuring maximum power harvest from your solar panels.
Engineered for reliability, the Shiner 2430 supports multiple battery chemistries including lead-acid, gel, AGM, and lithium. It intelligently adjusts charging parameters to suit the battery type, extending battery life and improving system performance.

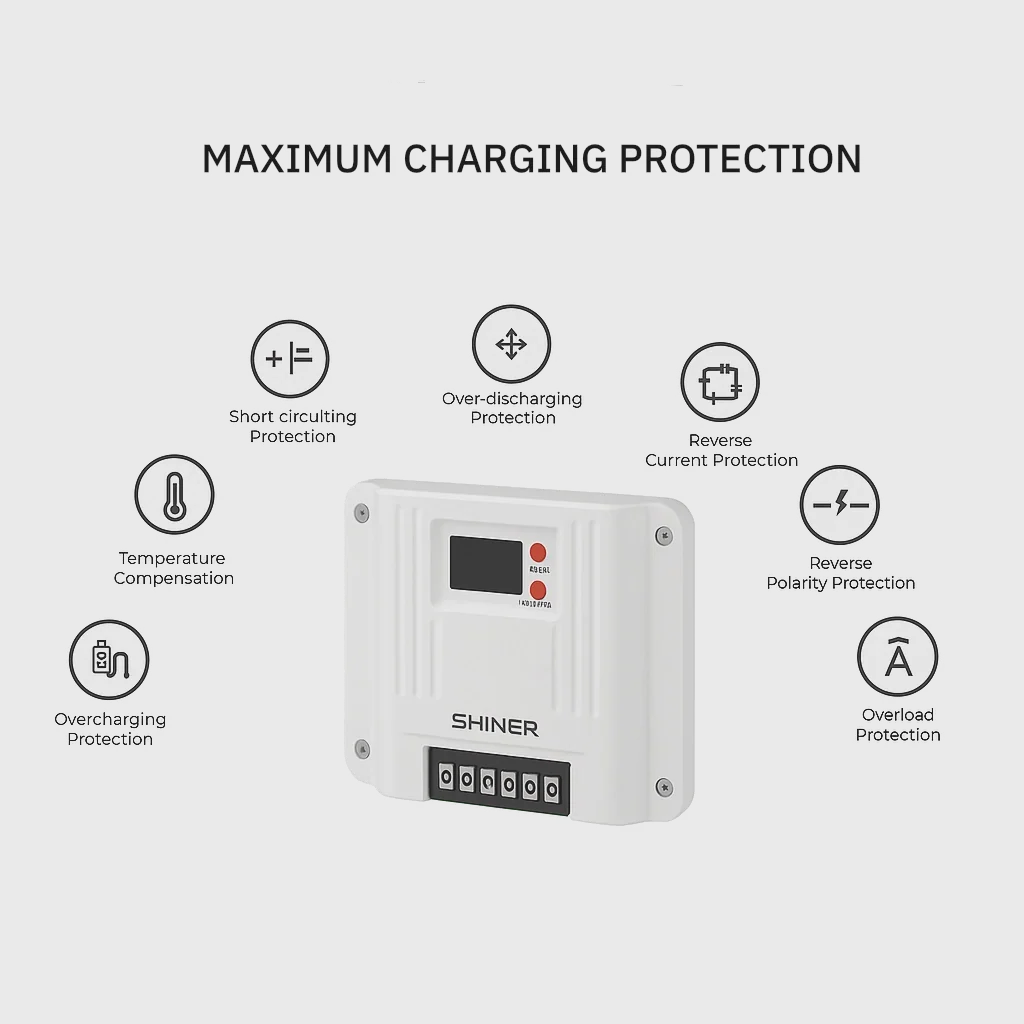

Compact, efficient, and durable, this controller features a natural cooling design with comprehensive protection functions such as over-temperature, reverse-connection, short-circuit, and over-voltage safeguards.
Ideal for campervans, motorhomes, boats, cabins, and off-grid solar installations, the SRNE Shiner 2430 delivers dependable and efficient energy conversion in any environment.
Warranty: 3 Years
The SRNE Shiner 2430 MPPT has built in bluetooth technology for connection to the SRNE iPhone and Android App. In addition the system is expandable to connect to the all in one control system SRNE CU2 which can monitor and control your complete AC and DC power Eco system.
Specifications
| Parameter | Specification |
|---|---|
| Model | Shiner 2430 |
| System Voltage | 12 V / 24 V Auto Recognition |
| Rated Charging Current | 30 A |
| Rated Load Current | 20 A |
| Max PV Open-Circuit Voltage | 100 V DC |
| MPPT Operating Voltage Range | Battery Voltage + 2 V to 72 V DC |
| Max PV Input Power | 400 W (12 V) / 800 W (24 V) |
| MPPT Tracking Efficiency | > 99% |
| Conversion Efficiency | Up to 98% |
| Battery Types | Sealed, Gel, Flooded, Lithium, User-Defined |
| Load Control Modes | Light Control, Time Control, Manual, Debugging, Normally Open |
| Communication Options | RS485 (Standard), CAN / Bluetooth |
| Cooling Method | Natural Convection (No Fan) |
| Protection Features | Over-Temperature, Over-Current, Reverse Polarity, Short-Circuit, Over-Voltage |
| Protection Rating | IP32 |
| Operating Temperature | -35 °C ~ +65 °C |
| Dimensions (L × W × H) | 187 × 133 × 72 mm |
| Weight | Approx. 1.2 kg |
