Secure Glazing Between Framing Bays

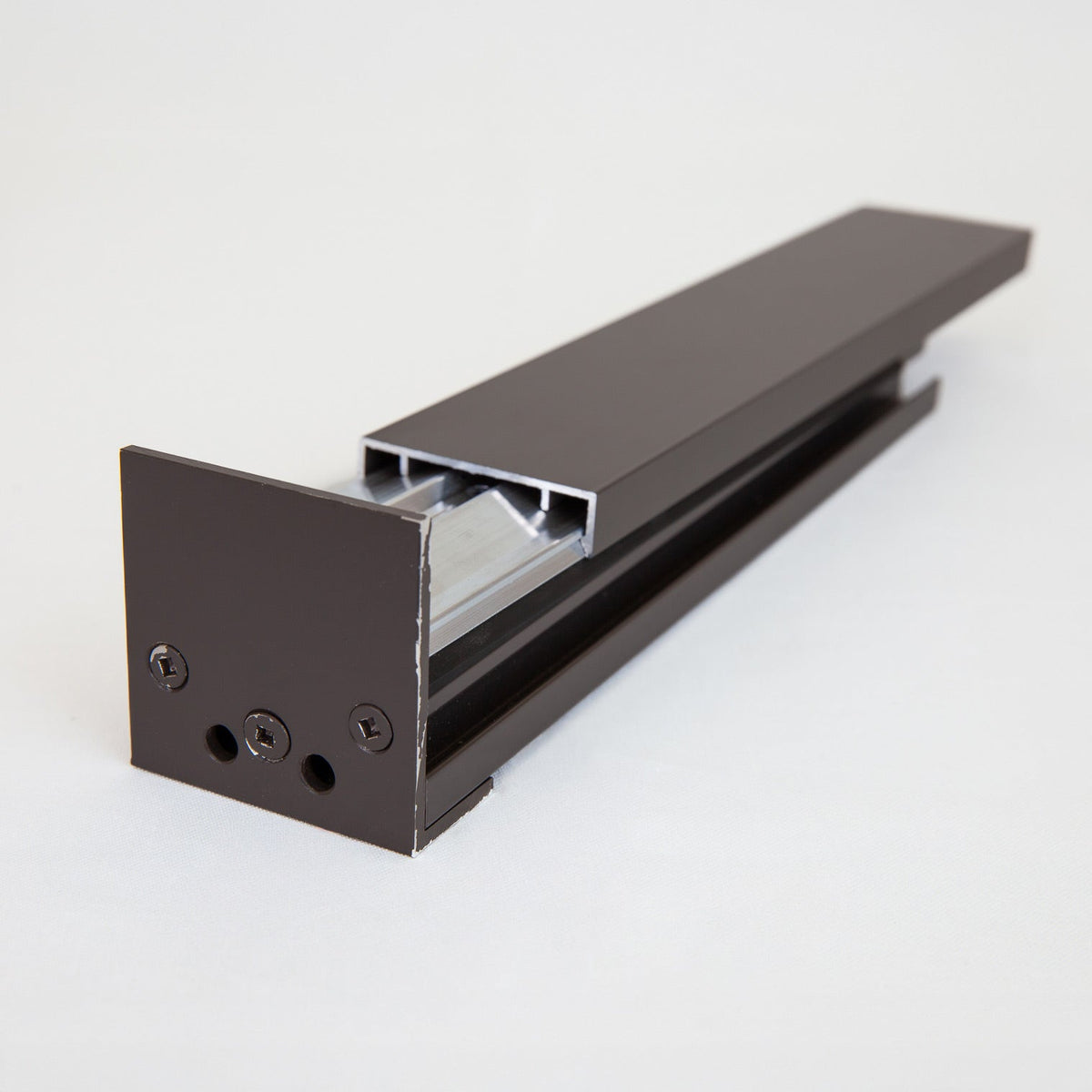

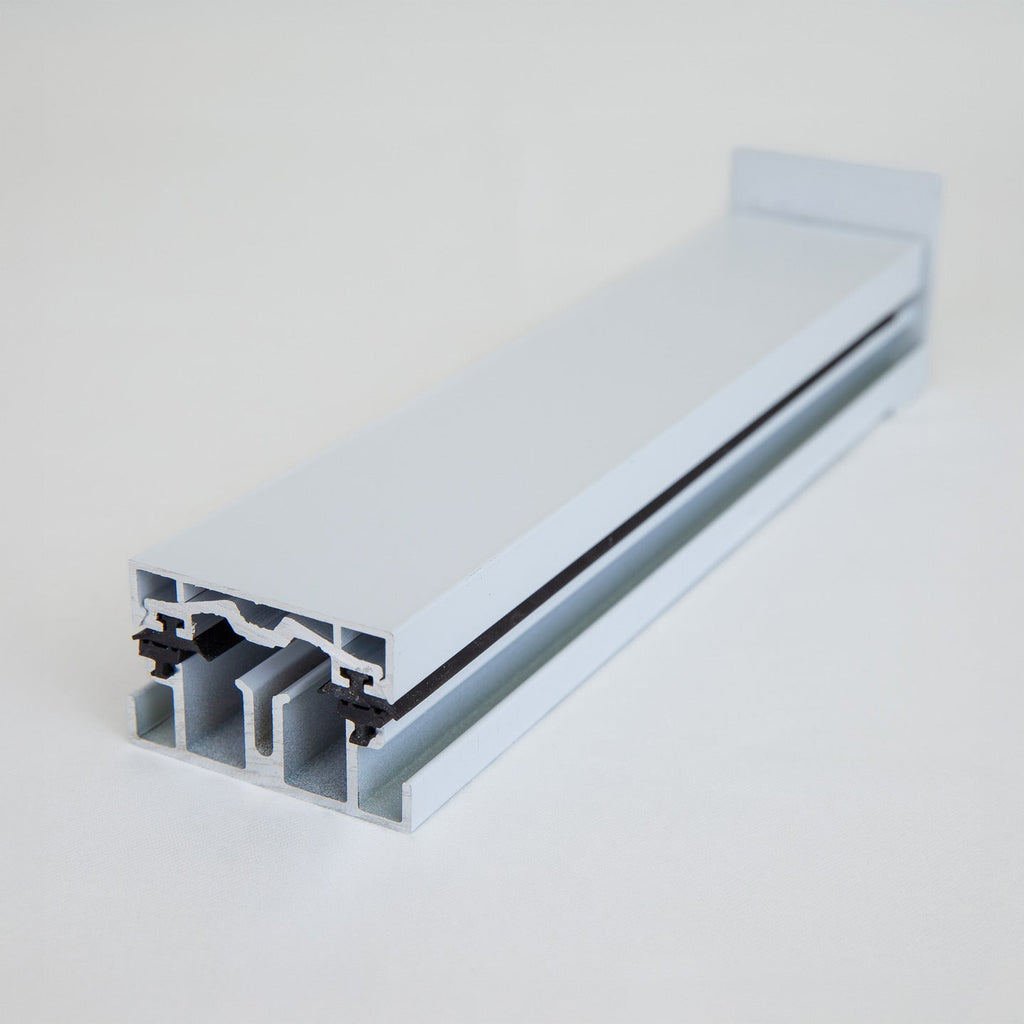

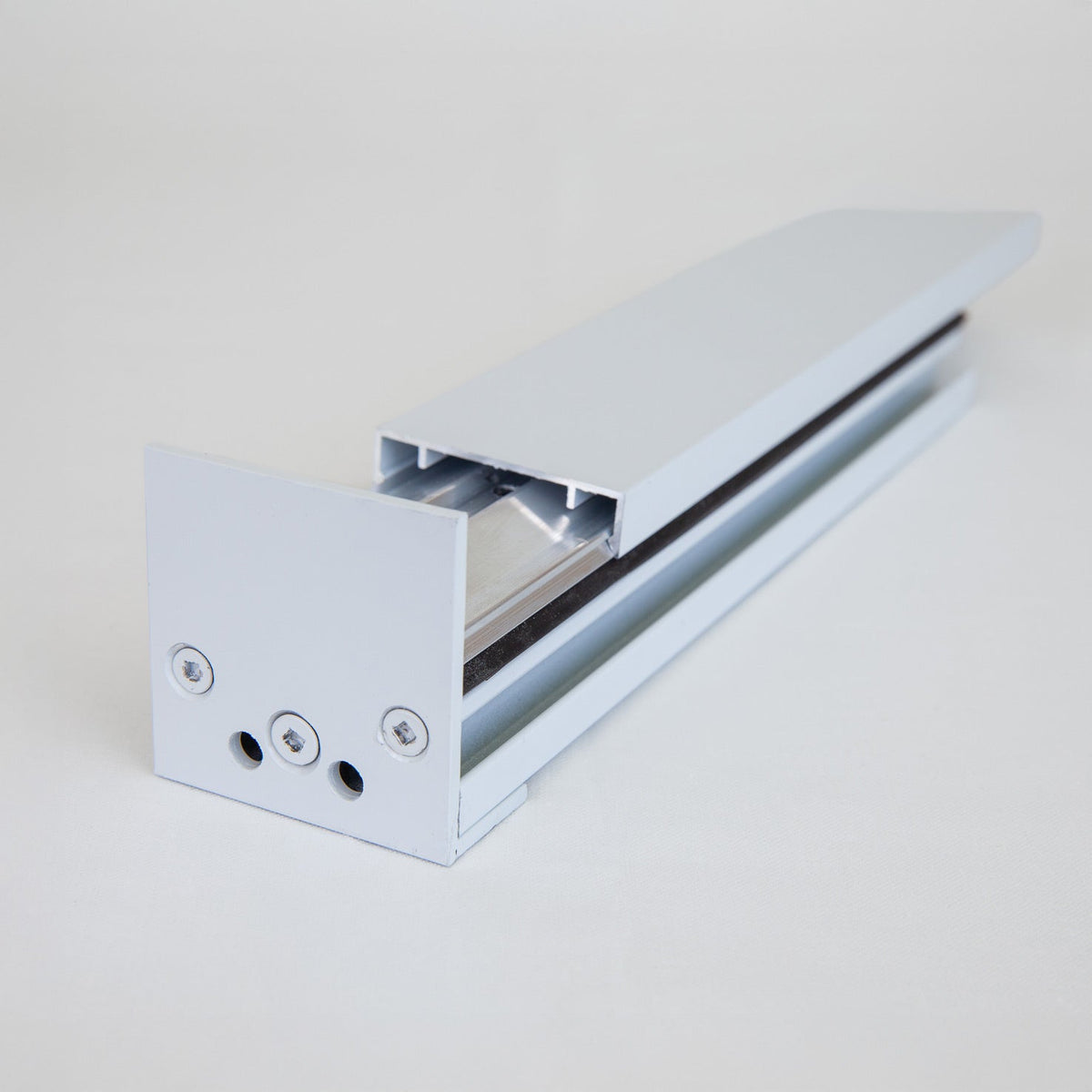

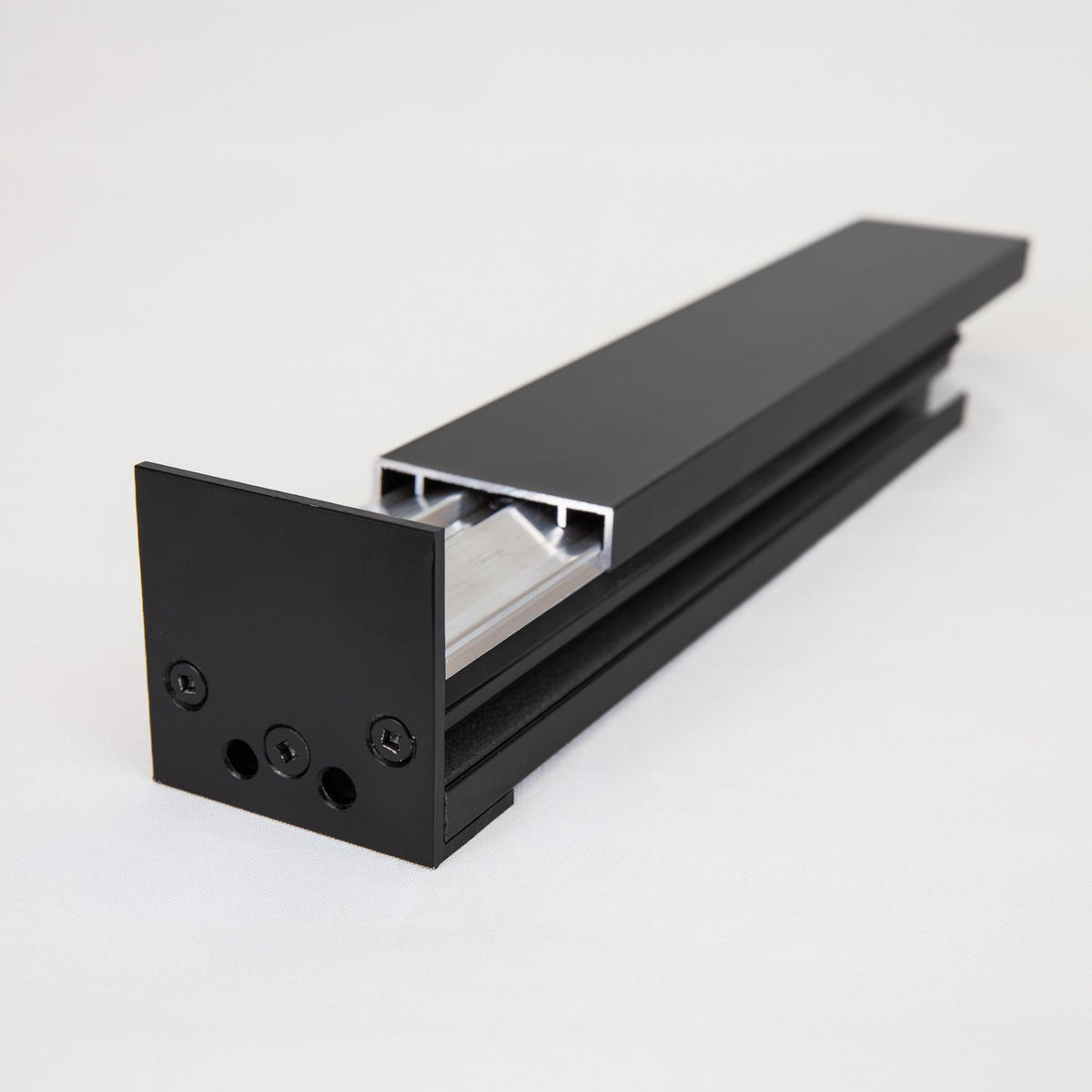

Solvera Pro Interior Rafters are used between glazing panels to secure and retain glazing across roof and wall assemblies.

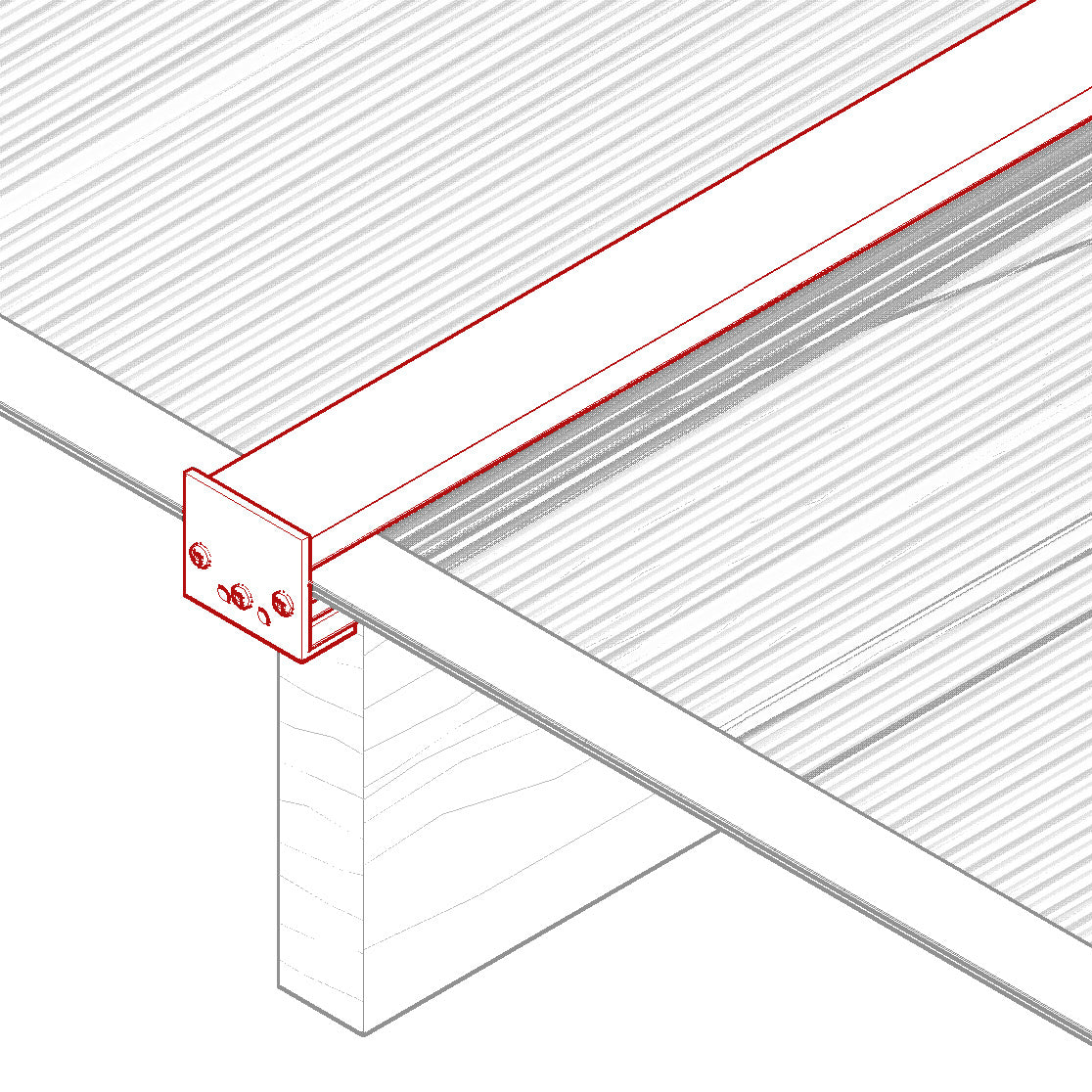

Designed to install directly onto an existing framed structure, Interior Rafters use rubber gaskets and a concealed pressure cap assembly instead of exposed screw-through-panel fastening methods.

Use Interior Rafters anywhere glazing panels meet over a supporting framing member.

Suitable for both roof and vertical wall applications.

Compatible With Polycarbonate and Glass

Solvera Pro Interior Rafters are designed to retain 6mm Polycarbonate - 16mm Polycarbonate or Glass up to 16mm thick.

Not compatible with glazing thicker than 16mm.

Built for Multi-Panel Installations

Each Interior Rafter includes the major components required to secure glazing between panel bays within the Solvera Pro Glazing System.

Most projects will require multiple Interior Rafters depending on panel count and overall structure width.

Common applications include:

• Greenhouses
• Patio Covers
• Conservatories
• Breezeways
• Timber Frame Structures
• Commercial Outdoor Enclosures

Intended as Part of a Complete Solvera Pro Glazing System

Interior Rafters are designed to be installed as part of the complete Solvera Pro Glazing System and are not intended to be used as a standalone product.

For a complete installation, you will also need:

• Solvera Pro Exterior End Rafters

• Solvera Pro Polycarbonate Panel & Sealant Kit


Interior Rafters are typically used between glazing bays throughout the project.

Specs

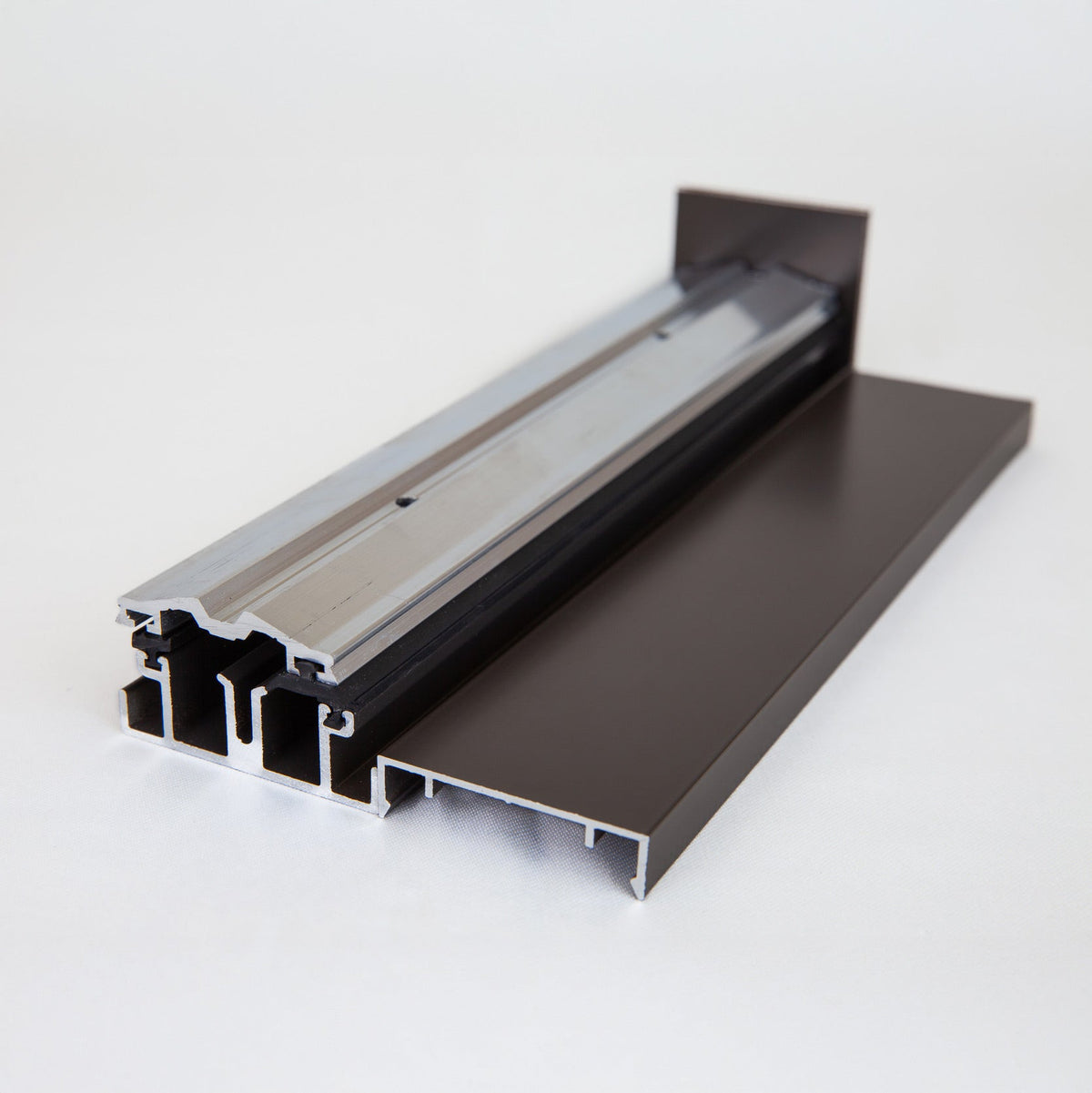

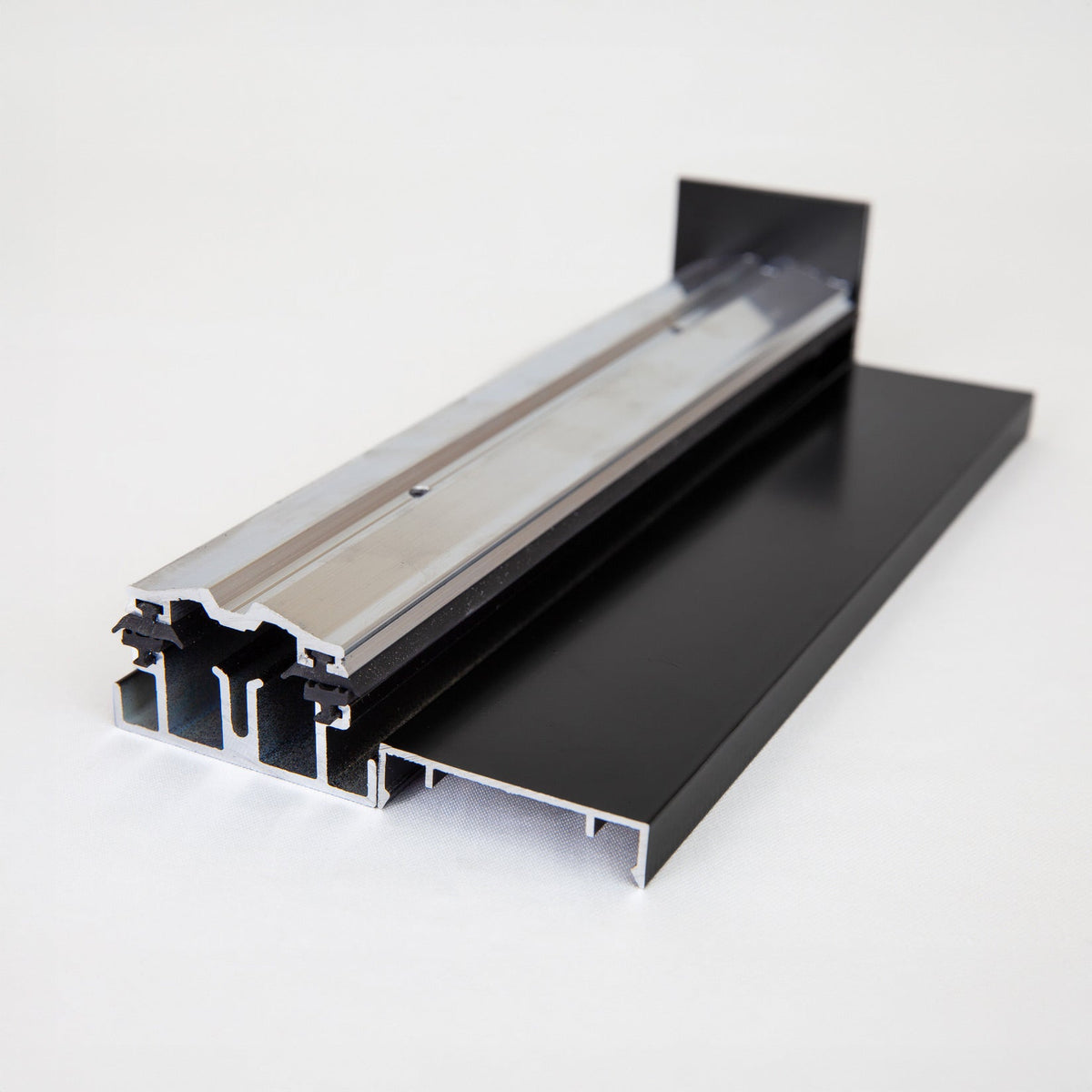

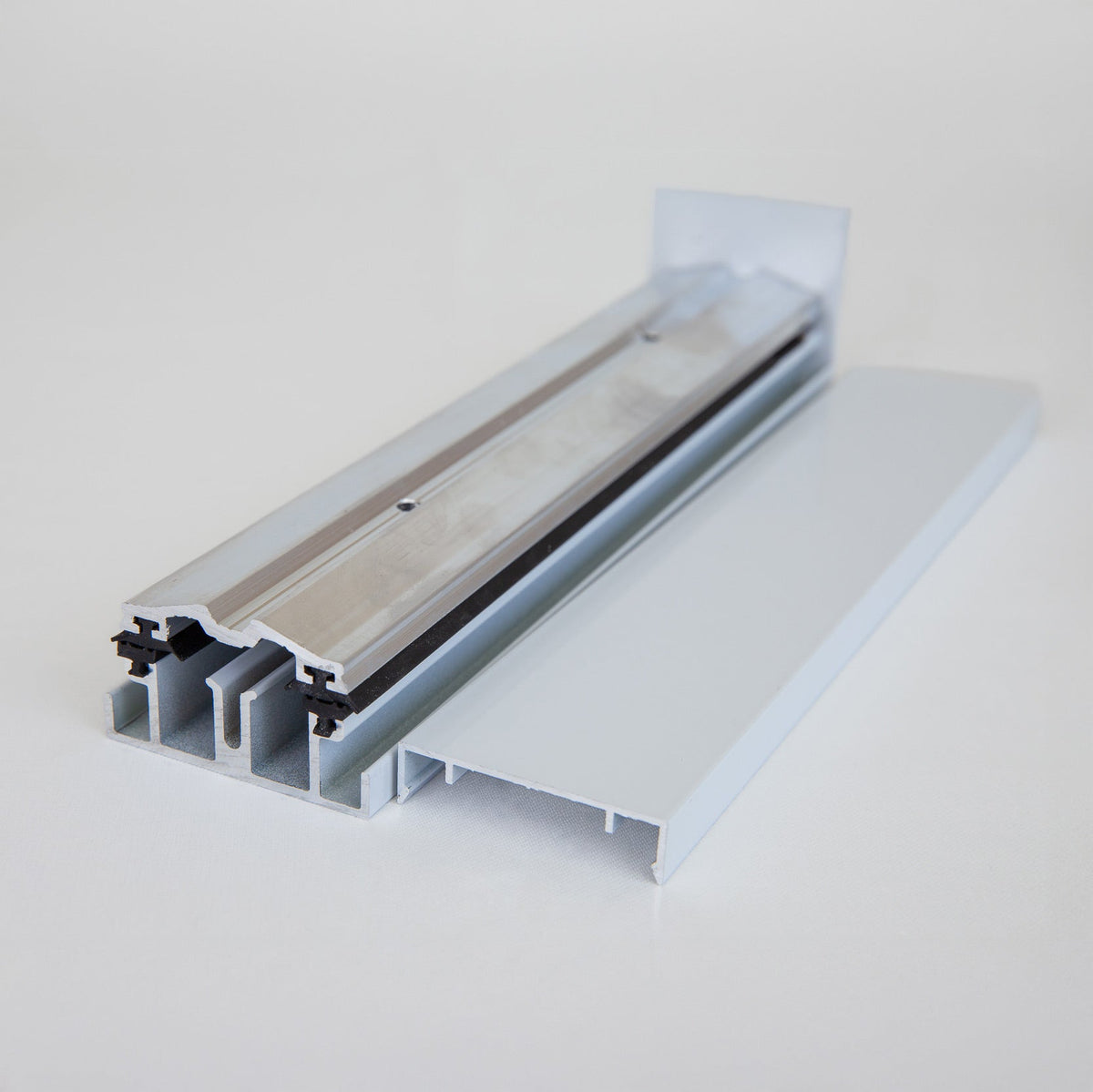

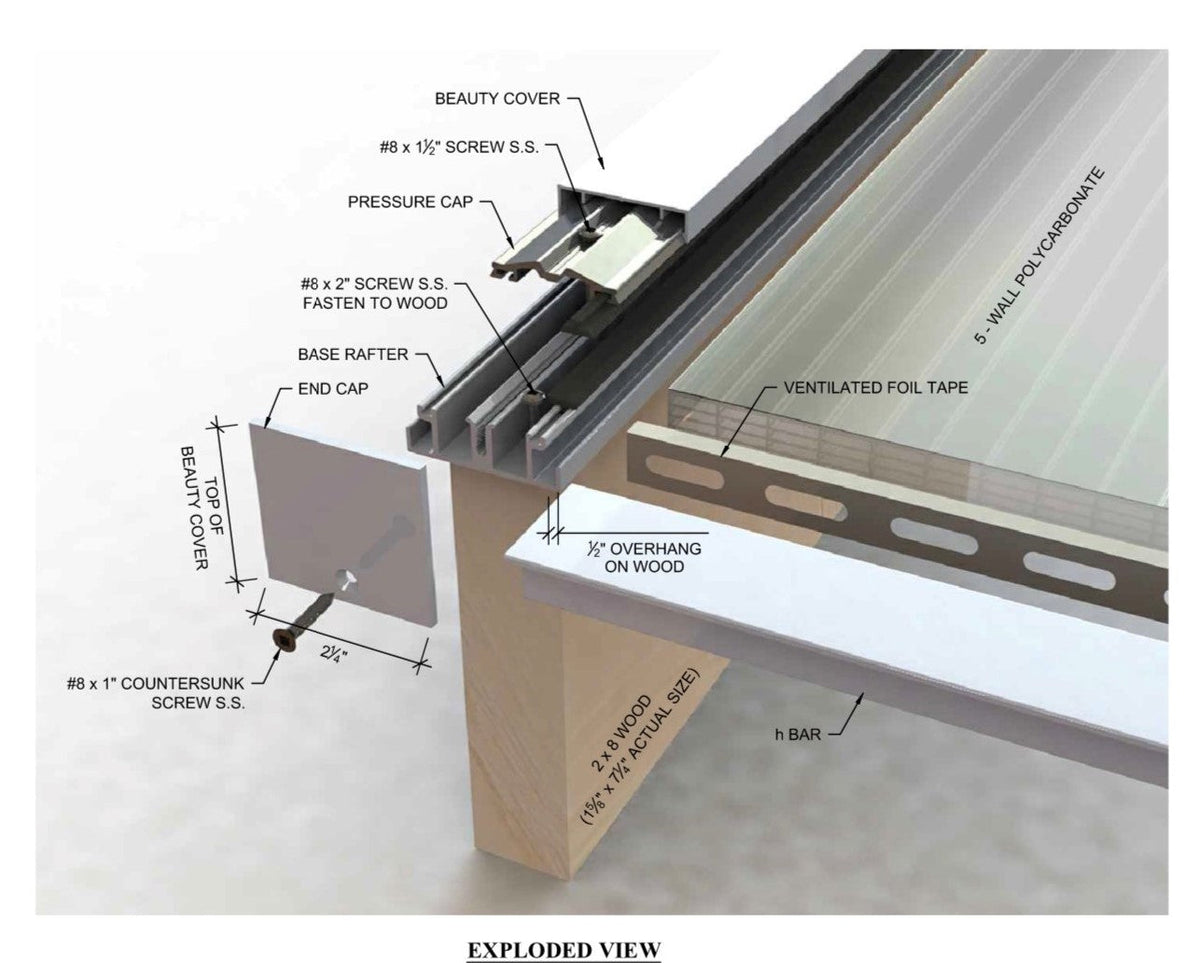

Included Components

• Painted Base Rafter
• Base Rafter Rubber Gaskets
• Pressure Cap (Mill Finish)
• Pressure Cap Gaskets
• Painted Beauty Cover
• Painted End Cleat for Base Rafter
• Stainless Steel Fasteners (#2 Robertson Drive)

Materials & Finish

• Rafter Material: 6063 Aluminum
• Beauty Cover Material: 6063 Aluminum
• Finish: Wet Baked Enamel
• Pressure Cap Finish: Mill Finish Aluminum
• Fasteners: Stainless Steel
