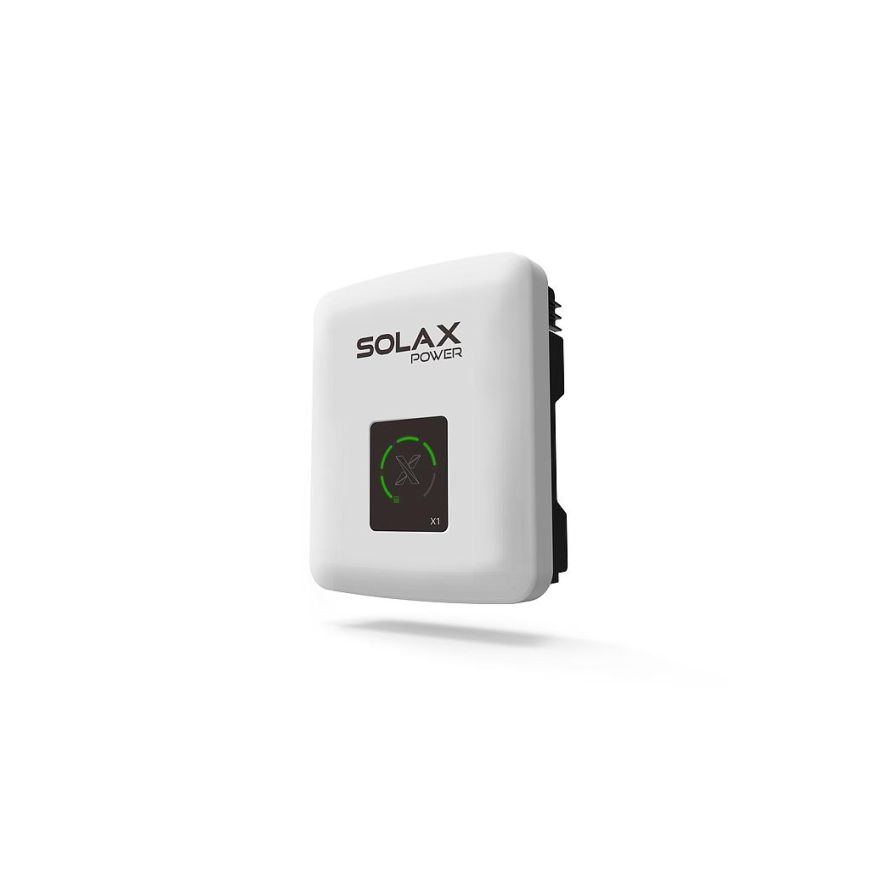

SolaX X1-BOOST 5.0kW Single Phase Grid-tie PV Inverter
£201.00
Sale price
£201.00
Regular price
Skip to product information
SolaX X1-BOOST 5.0kW Single Phase Grid-tie PV Inverter
£201.00
Sale price
£201.00
Regular price
Shipping calculated at checkout.
X1-5.0T
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Powering Your Rooftop Revolution with SolaX X1-BOOST 5.0kW Grid-tie Inverter
Experience superior performance with the X1-BOOST G3 inverter, featuring 150% oversizing and a built-in global MPP scan. Stay connected with user-friendly monitoring via Wi-Fi and app. Elevate your local solar journey with the exceptional X1-BOOST G3.
User-Friendly:
- 24H monitoring and maintenance (Optional)
-
Easy to install and set up
Superiop Performance:
- 150% oversizing and 110% overloading
-
Max. DC input 14A per string
Assured Safety Reliabiliaty:
- AC/DC built-in Type III SPD (Optional)
- Over-temperature protection
-
Export control function integrated
Detailed specifications:
| Model: X1-5.0T |
| INPUT PV |
| Max. Input Power: 7500W |
| Max. Input Voltage: 600V |
| Start-up Input Voltage: 100V |
| Nominal Input Voltage: 360V |
| No. of Independent MPP Trackers/No of Strings per MPP Tracker: 2/1 |
| MPP tracker voltage range: 70-580V |
| Max. Input Current: 14A/14A |
| Max. Short-circuit Current: 18A/18A |
| AC OUTPUT (GRID) |
| Rated Output Power: 5000W |
| Max. Output Apparent Power: 5500VA |
| Rated Grid Output Current: 21.7A |
| Nominal AC voltage / AC voltage range: 220/230/240; 180--280VAC |
| Nominal AC frequency / AC frequency range: 50/60;±5Hz |
| Power Factor: Adjustable from 0.8 leading to 0.8 lagging |
| THD: <3% |
| EFFICIENCY |
| Max. Efficiency: 97.8% |
| Operating Temperature: -25 ~ +60°C |
| Protection Degree: IP66 |
| Size: 341.5 × 430 × 143mm |
| Net Weight: 15kg |
In the Box:
- 1 X SolaX X1-BOOST 5.0kW Single Phase Grid-tie PV Inverter,
- 1 X SolaX X1-BOOST 5.0kW Single Phase Grid-tie PV Inverter User's Manual.
