Description
Key Features
-
Engineered for 8 Type‑24 Modules
Designed to securely mount eight solar panels sized 41″ × 81″ using the factory bolt holes, for clean fit and simplified installation. -
Adjustable Tilt, Seasonally Optimized
Tilt range from 0° to 60°, in 10° increments—allows adjustment with the seasons to maximize solar exposure. -
Durable, High‑Grade Materials
Gimbals are powder‑coated steel; strongbacks are galvanized steel; module rails are 6061‑T6 structural aluminum angle. -
Wind Rated & Heavy‑Duty Variant Available
Standard racks are rated for about 90 mph winds; heavy‑duty versions (≈ 130 mph) are offered for more demanding sites.
Product Description

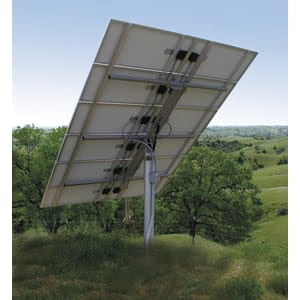

The Solar Rackworks Top-of-Pole Mount for 8 Type‑24 Modules (41″ × 81″) is a robust and precise pole‑mount racking system built for large‑format solar arrays. It’s ideal for commercial, agricultural, or remote installations where you want high capacity, elevated mounting, and a system that lasts.
This rack is module‑specific: it uses the panels’ factory bolt holes for mounting, avoiding the need for special adapters or custom drilling. The structural frame includes powder‑coated steel gimbals that allow for seasonal tilt adjustment, galvanized steel strongbacks that give strength and rigidity, and 6061‑T6 structural aluminum rails that secure the panels without excess weight.
Tilt can be adjusted between 0° and 60°, in 10° increments, enabling you to align the panels for maximum sun capture during different times of the year. The standard version handles the typical wind loads for moderate conditions; a heavy‑duty version is available when expecting more severe wind exposure.
The mounting pole (steel pipe, Schedule 40 or 80) is not included and must be supplied by the installer. The correct pole size will depend on site‑specific factors such as height, wind loads, soil or foundation stability.
This rack is a solid choice when you want large module capacity, seasonal flexibility, strong construction, and a pole‑based mounting that gives both height and performance.
Technical Specifications
| Specification | Details |
|---|---|
| Module Compatibility | 8 × Type‑24 (41″ × 81″) |
| Tilt Adjustment Range | 0° to 60°, adjustable in 10° increments |
| Gimbal Material | Powder‑coated steel |
| Strongback Material | Galvanized steel |
| Module Rails Material | 6061‑T6 structural aluminum |
| Standard Wind Load Rating | Approx. 90 mph |
| Option for Heavy‑Duty Version | ~130 mph wind rating value possible |
| Mounting Method | Bottom‑bolt using factory bolt holes |
| Mounting Pole Requirement | Installer‑supplied galvanized steel pipe (Schedule 40 or 80) |
