Key Features

• Seasonal Tilt Adjustment (0°–60°)
  Adjust your array in 10° increments to match sun angles throughout the year and maximize energy production.

• Heavy-Duty All-Metal Construction
  Built with powder-coated steel gimbals, galvanized steel strongbacks, and 6061‑T6 structural aluminum module rails.

• Module-Specific Fit
  Engineered for exactly three Type‑14 solar modules (32" × 62") using factory bolt holes for seamless, modification-free mounting.

• Wind-Resistant Design
  Standard configuration rated for 90 mph wind loads; heavy-duty 130 mph version available for extreme environments.

Product Description

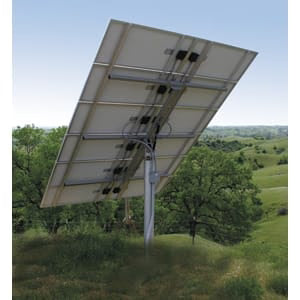

The Solar Rackworks Top-of-Pole Mount for 3 Type-14 Modules is a purpose-built, rugged racking system that ensures stable, long-term mounting of your solar panels in a compact pole-mount format. Designed for three full-sized modules (32" × 62"), it offers unmatched structural integrity, ease of adjustment, and longevity for both off-grid and grid-tied installations.

This model features a smart, balanced design using powder-coated steel gimbals that allow for smooth rotational tilt, galvanized steel strongbacks that provide rigidity and alignment, and 6061-T6 structural aluminum rails that anchor your modules while withstanding years of outdoor exposure.

Tilt adjustability is built directly into the mount, offering a full range from 0° to 60° in 10° increments. Whether you're in a winter or summer-heavy location, this feature enables year-round optimization of solar input. Adjustments are straightforward, making seasonal repositioning easy for any installer or system owner.

This configuration is specifically designed to hold three Type‑14 modules, securely bottom-mounted through their factory bolt holes. This ensures a snug, interference-free fit that simplifies installation and reduces labor time—no custom drilling, clamps, or adapters required.

The system is designed with weather extremes in mind. In its standard configuration, the mount withstands wind speeds up to 90 mph. For installations in storm-prone or high-elevation areas, an upgraded version rated for 130 mph wind loading is available, providing additional safety and structural security.

Note: This rack is designed to be installed on a Schedule 40 or 80 galvanized steel pole, which is not included and must be supplied by the installer. This allows flexibility in adapting pole height and anchoring methods to your specific site and soil conditions.

Whether you're powering a small business, cabin, agricultural operation, or remote site, this Solar Rackworks Top-of-Pole Mount delivers industry-proven durability, fast setup, and long-term energy reliability in a compact 3-panel configuration.
