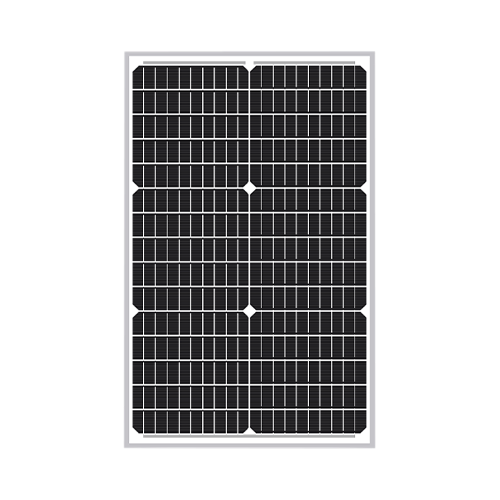

SLD Tech (Solarland) 30w 12v Monocrystalline Solar Panel Kit - ST-30R-12-R
£50.00
Sale price
£50.00
Regular price
Skip to product information
SLD Tech (Solarland) 30w 12v Monocrystalline Solar Panel Kit - ST-30R-12-R
£50.00
Sale price
£50.00
Regular price
Shipping calculated at checkout.
ST-30R-12-R
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The SLD Tech ST-30R-12-R is a 30-watt, 33-cell monocrystalline solar panel delivering 21% module efficiency for reliable 12V DC power in off-grid and small-scale renewable energy applications.
Key Features:
- High-Efficiency Monocrystalline Cells: Advanced cell technology and manufacturing capabilities achieve a 21% module efficiency rating with a 3% positive power tolerance.
- High PID Resistance: Qualified materials and advanced cell engineering deliver strong resistance to Potential Induced Degradation for sustained long-term output stability.
- Heavy-Duty Weather-Resistant Construction: Anodized aluminum frame withstands 5,400 Pa positive load and 2,400 Pa negative load, with salt mist resistance per IEC 61701.
- High-Transparency Tempered Glass: Low-iron tempered glass maximizes light transmission while providing outstanding protection against hail, wind pressure, and heavy snow.
- 10-Year Power Warranty: Backed by a 10-year power output warranty and a 5-year product workmanship warranty for reliable long-term performance assurance.
The ST-30R-12-R is designed for nominal 12V DC output, making it a versatile solution for battery charging, small off-grid systems, and remote power applications. Its outstanding low-light performance ensures consistent energy generation even under reduced irradiance conditions.
Built with 33 monocrystalline silicon cells in a 3x11 configuration, this panel delivers proven efficiency and structural durability in demanding outdoor environments. The lightweight 5.61 lb design and slim 1.18-inch profile make mounting and installation practical across a wide range of fixed and portable applications.
With an operating temperature range of -40°C to 85°C and a maximum system voltage of 1000V DC, the ST-30R-12-R is engineered to perform reliably across virtually all climates and system configurations. Its quality aesthetic appearance and anodized frame finish make it a clean, professional addition to any renewable energy installation.
Technical Specifications
| Specification | Details |
|---|---|
| Weight | 5.61 lbs (2.54 kg) |
| Maximum Power (Pmax) | 30W |
| Module Efficiency | 21% |
| Voltage at Pmax (Vmp) | 18.85V |
| Current at Pmax (Imp) | 1.60A |
| Open-Circuit Voltage (Voc) | 22.28V |
| Short-Circuit Current (Isc) | 1.68A |
| Power Tolerance | ±3% (0~±3%) |
| Temperature Coefficient of Voc | -(80±10) mV/°C |
| Temperature Coefficient of Isc | (0.065±0.015) %/°C |
| Temperature Coefficient of Power | -(0.5±0.05) %/°C |
| NOCT | 47±2°C |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Cell Type | Monocrystalline Silicon |
| Number of Cells | 33 (3 x 11) |
| Module Dimensions | 22.44 x 14.17 x 1.18 in (570 x 360 x 30 mm) |
| Wind Load | 2,400 Pa |
| Snow Load | 5,400 Pa |
| Product Warranty | 5 Years |
| Power Warranty | 10 Years |
