Description

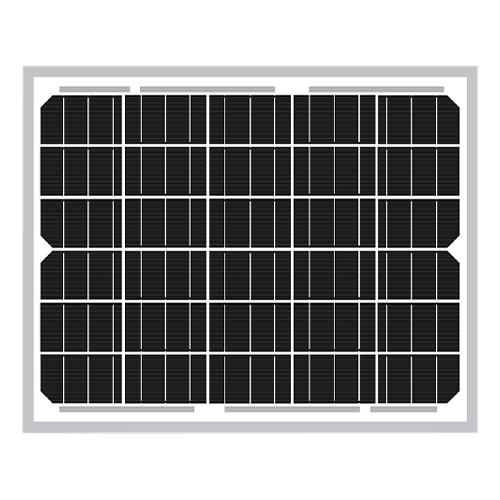

The SLD Tech (Solarland) ST-10R-12-R is a 10-watt, 30-cell monocrystalline solar panel kit delivering 20% module efficiency for reliable 12V DC power in off-grid and small-scale renewable energy applications.
Key Features:
- High-Efficiency Monocrystalline Cells: Advanced cell technology and manufacturing capabilities achieve a 20% module efficiency rating with a 5% positive power tolerance.
- High PID Resistance: Qualified materials and advanced cell engineering deliver strong resistance to Potential Induced Degradation for sustained long-term output stability.
- Heavy-Duty Weather-Resistant Construction: Anodized aluminum frame withstands 5,400 Pa positive load and 2,400 Pa negative load, with salt mist resistance per IEC 61701.
- High-Transparency Tempered Glass: Low-iron tempered glass maximizes light transmission while providing outstanding protection against hail, wind pressure, and heavy snow.
- Ready-to-Connect Cable Assembly Included: Kit includes a pre-wired 10ft 18/2 AWG cable with an integrated 3A inline blocking diode and 3/8" ring terminal connectors for direct battery connection.
The ST-10R-12-R kit is designed for nominal 12V DC output, making it an ideal solution for battery maintenance, small off-grid systems, and remote low-power applications. The included cable assembly with inline blocking diode prevents reverse current drain at night, allowing direct connection to a battery without a charge controller.
Built with 30 monocrystalline silicon cells in a 5x6 configuration, this compact panel delivers proven efficiency in a lightweight, easily mountable form factor. The 2.41 lb design and slim 1.18-inch profile make installation practical across a wide range of fixed and portable applications.
With an operating temperature range of -40°C to 85°C and a maximum system voltage of 1000V DC, the ST-10R-12-R is engineered to perform reliably across virtually all climates and system configurations. Its quality aesthetic appearance and anodized frame finish make it a clean, professional addition to any renewable energy installation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | 010P3003A |
| Weight | 2.41 lbs (1.09 kg) |
| Maximum Power (Pmax) | 10W |
| Module Efficiency | 20% |
| Voltage at Pmax (Vmp) | 17.37V |
| Current at Pmax (Imp) | 0.58A |
| Open-Circuit Voltage (Voc) | 20.04V |
| Short-Circuit Current (Isc) | 0.61A |
| Power Tolerance | ±5% (0~+5W) |
| Temperature Coefficient of Voc | -(80±10) mV/°C |
| Temperature Coefficient of Isc | (0.065±0.015) %/°C |
| Temperature Coefficient of Power | -(0.5±0.05) %/°C |
| NOCT | 47±2°C |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Cell Type | Monocrystalline Silicon |
| Number of Cells | 30 (5 x 6) |
| Module Dimensions | 9.84 x 12.20 x 1.18 in (250 x 310 x 30 mm) |
| Cable Length | 10 ft |
| Cable Gauge | 18/2 AWG |
| Inline Blocking Diode | 3A |
| Terminal Connectors | 3/8" Ring Terminals |
| Wind Load | 2,400 Pa |
| Snow Load | 5,400 Pa |
| Product Warranty | 2 Years |
| Power Warranty | 25 Years |
