Advanced Water Tank Pressure Sensor for Marine and RV Applications

The Enerdrive 0-1m (0-10Kpa) Water Tank Level Pressure Sensor delivers exceptional accuracy and reliability for monitoring water tank levels in caravans, camper trailers, and marine vessels. Relying on basic float switches or generic tank sensors often leads to false readings or mechanical failures. This liquid pressure sensor solves that problem by utilising advanced internal components to provide precise, real-time data on your water supply, ensuring you always know exactly how much water you have left while living off-grid.

Robust Ceramic Capacitive Technology

At the core of this sensor is a dry ceramic capacitive pressure element paired with an integrated ASIC signal conditioning chip. This technology combination delivers highly stable positive and negative gauge pressure readings with a 0.5 percent accuracy rate. Unlike traditional mechanical senders that rely on moving parts, the solid-state design provides superior resistance to wear, shock, and the constant vibrations experienced during travel on corrugated Australian outback roads or choppy marine waters.

Durable Stainless Steel Construction

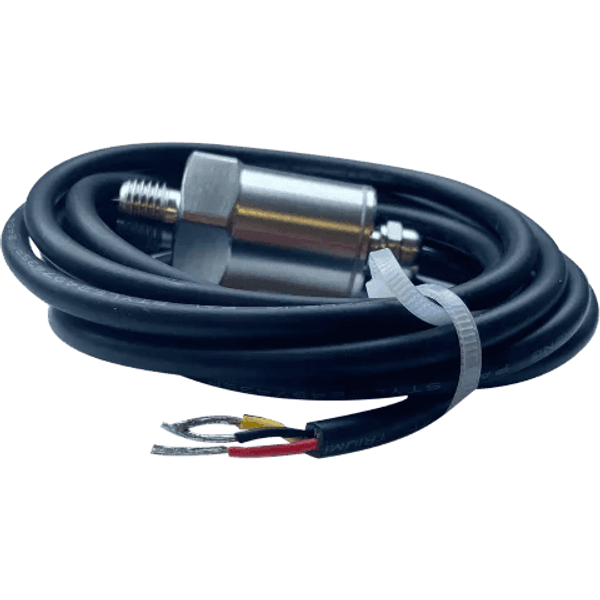

Built to endure the most demanding environments, the housing is constructed from high-grade 304 stainless steel. Combined with an IP67 ingress protection rating, the unit is entirely sealed against dust and highly resistant to moisture and water immersion. This rugged design reduces the risk of corrosion and internal damage, extending the operational lifespan of your tank monitoring system.

Seamless Simarine Compatibility

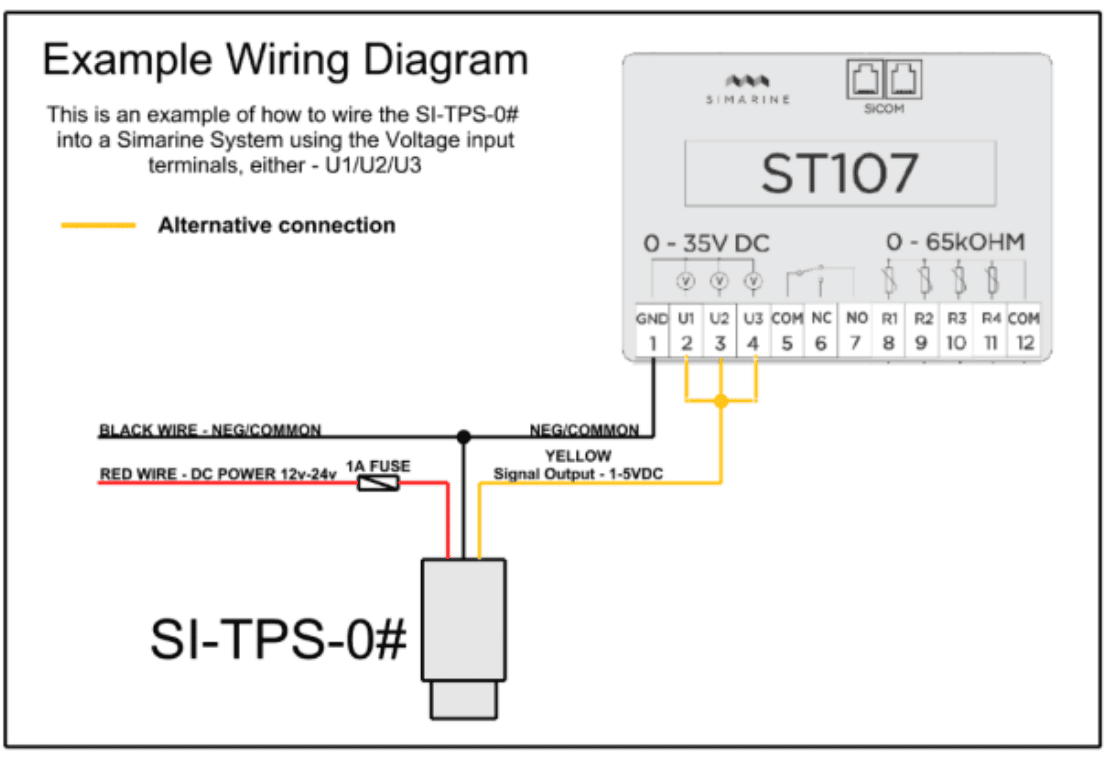

Integrating into your existing 12V or 24V electrical setup is straightforward. The unit operates efficiently on a 9V to 32V input power supply and outputs a dependable 0V to 5.0V signal. It comes pre-wired with a flexible 2-meter cable for easy routing. This sensor is natively compatible with premium monitoring displays, including the Simarine SI-SCQ25T and SI-ST107, making it a perfect upgrade for users seeking professional-grade system integration.

Optimised Installation

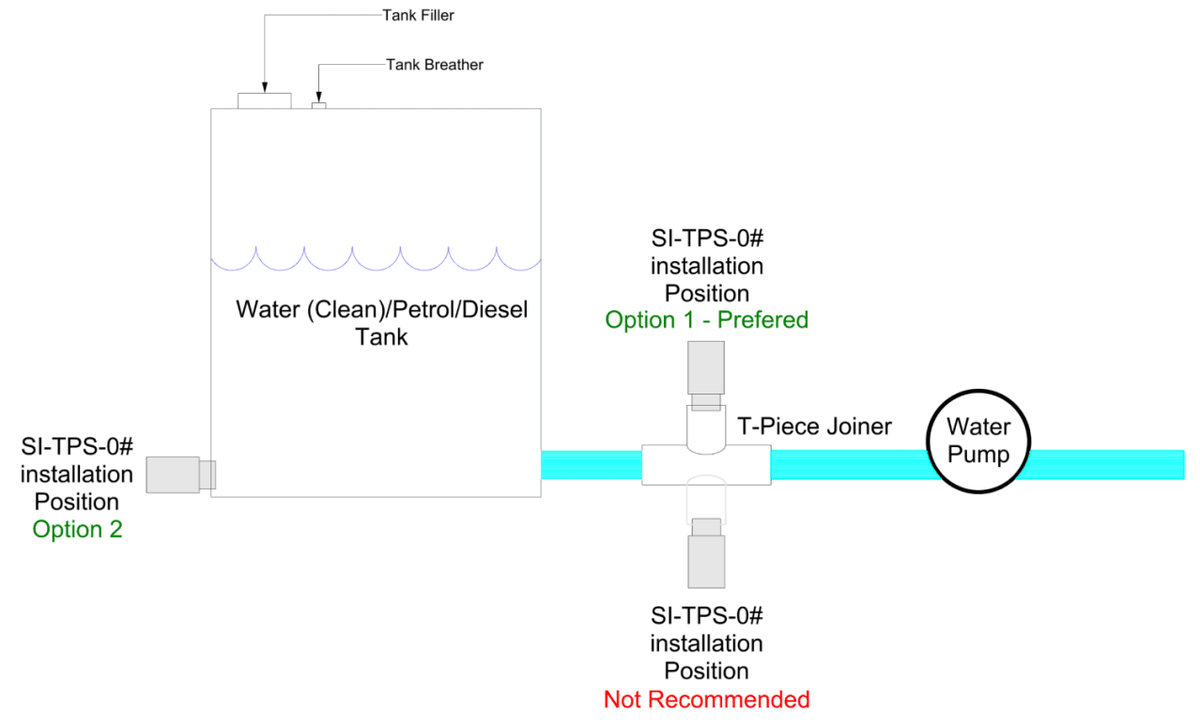

Mounting the sensor is simple thanks to the standard 1/4 BSP threaded connection with a 25mm hexagon base. For optimal performance and to prevent sediment buildup from affecting the readings, it is recommended to mount the unit horizontally on the lower side of the tank or vertically in the outlet pipe before the water pump. It should never be mounted directly on the bottom of the tank. This sensor is engineered to measure tank depths up to 1000mm (0-10kPa), ensuring accurate level tracking for mid-sized water storage.

Key Features

• Solid-state ceramic capacitive sensor for exceptional reliability
• ASIC signal conditioning chip ensures highly accurate 0.5 percent precision
• Constructed with a heavy-duty 304 stainless steel housing
• IP67 rated for superior protection against water and dust
• Compatible with Simarine ST107 and SCQ25T monitoring systems
• Operates on 9V to 32V DC, suitable for 12V and 24V electrical networks

Upgrade Your Tank Monitoring Today

Maintain complete confidence in your off-grid water supply with a sensor designed for precision and longevity. Order the Enerdrive 0-1m (0-10Kpa) Water Tank Level Pressure Sensor today and experience professional-grade liquid level monitoring for your next adventure.
