Sheng 50A Anderson Style Connector Plug | SB50 Compatible
50A / Grey
£6.00
Sale price
£6.00
Regular price
Skip to product information
Sheng 50A Anderson Style Connector Plug | SB50 Compatible
£6.00
Sale price
£6.00
Regular price
Shipping calculated at checkout.
CIAP50
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Projecta IS1400 12V 1400A Intelli-Start Professional Lithium Jump Starter and Power Bank
£170.00
Add to Basket
Description

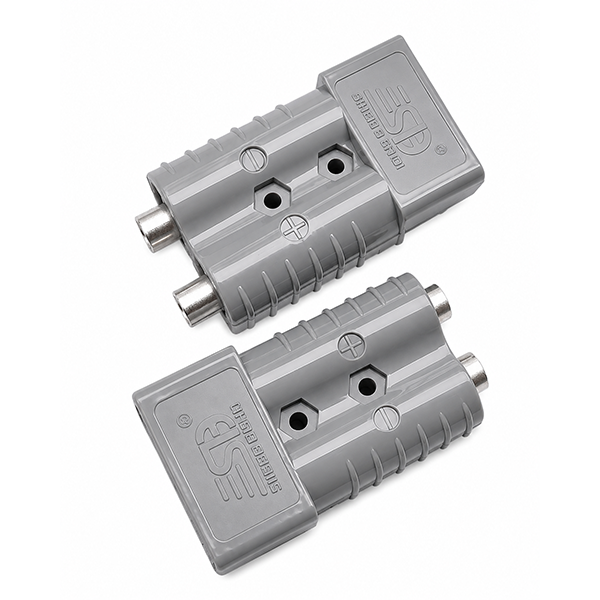

Sheng 50A Anderson Style Connectors
Sheng 50A Anderson Style Connectors provide a secure, reliable and high-performance connection for 12V and 24V DC power systems. Manufactured to the industry-standard SB50 format, these connectors are compatible with other SB50-style connectors, making them ideal for caravans, 4WDs, camper trailers, marine applications, solar installations and battery charging systems.
Designed for durability, Sheng connectors feature a heavy-duty polycarbonate housing that resists impact, vibration and harsh Australian conditions. Their genderless design allows quick and simple connection while maintaining a secure electrical connection for dependable power transfer.
Available in Grey, Red, Blue, Yellow and Black, these connectors make it easy to colour-code different circuits, voltages or battery systems, helping prevent incorrect connections and simplifying installation.
Key Features
- 50A continuous current rating
- Industry-standard SB50 Anderson-style connector
- Compatible with most SB50-style connectors
- Suitable for 12V and 24V DC systems
- Heavy-duty impact-resistant housing
- Genderless design for quick connection
- Silver-plated copper terminals for excellent conductivity
- Resistant to vibration, dust and harsh operating environments
- Available in Grey, Red, Blue, Yellow and Black
Ideal Applications
- Caravan and camper trailer power systems
- 4WD auxiliary battery installations
- DC-DC battery chargers
- Battery-to-battery connections
- Solar panel and battery systems
- Portable power stations
- Marine electrical systems
- Industrial and commercial DC power applications
- Winch and accessory power connections
Specifications
| Specification | Details |
|---|---|
| Brand | Sheng Connectors |
| Product Type | Anderson Style Connector |
| Series | SB50 Compatible |
| Current Rating | 50A Continuous |
| Voltage Rating | Up to 600V DC |
| Connector Type | Genderless, Two Pole |
| Housing Material | High-Impact Polycarbonate |
| Housing Colour | Grey, Red, Blue, Yellow, Black (subject to selection) |
| Contact Material | Silver-Plated Copper |
| Contact Style | Crimp Contacts |
| Wire Size Compatibility | 6-12 AWG (Approx. 3.3-13.3mm2) Depending on contact supplied |
| Contact Retention | Stainless Steel Spring |
| Connection Method | Crimp Termination |
| Operating Temperature | -20C to +105C |
| Flammability Rating | UL94 V-0 Equivalent* |
| Polarity | Colour-Keyed Housing |
| Mating Cycles | 10,000+ Typical |
| Housing Design | Impact Resistant |
| Connector Format | SB50 Anderson Style Compatible |
| Suitable Voltage Systems | 12V, 24V, 36V & 48V DC |
| Compliance | RoHS Compliant* |
| Warranty | Manufacturer Warranty |
*Always verify wire size compatibility with your specific installation requirements.
Dimensions
| Dimension | Measurement |
|---|---|
| Overall Length | 48mm |
| Overall Width | 36mm |
| Overall Height | 16mm |
| Contact Barrel Diameter | Approx. 7mm |
| Contact Length | Approx. 25mm |
| Weight | Approx. 18g (Housing & Contacts) |
Why Choose Sheng Connectors?
Sheng connectors are manufactured to the widely recognised SB50 connector design, offering dependable performance and broad compatibility with many Anderson-style connectors. They provide a cost-effective solution without compromising on durability, making them suitable for both professional installers and DIY enthusiasts.
Whether you're wiring a dual battery system, connecting a DC-DC charger, installing solar panels or powering accessories, Sheng 50A Anderson Style Connectors deliver a secure and reliable connection you can depend on.
