Revolutionise Your Solar Installation with Adhesive-Mounted Solar Mounting System Kit

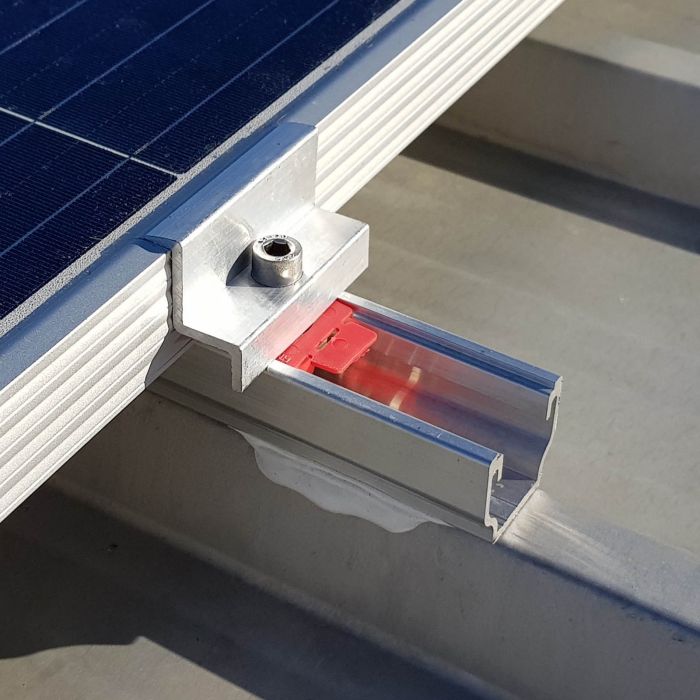

The solar mounting system kit offers a ground breaking approach to installation, featuring a short (195mm) aluminium rail. Instead of conventional screws, this system utilises 3M double-sided adhesive tape for attachment, coupled with a universal solar panel clamping module. The adhesive bonding ensures the necessary mechanical resistance and durability for the aluminium rails that securely hold your solar panels. Achieve more efficient use of space by installing PV modules in a landscape orientation.

Key Features:

• Short (195mm) aluminium rail with 3M double-sided adhesive tape for attachment.
• Universal solar panel clamping module for versatile application.
• Distance between rails up to 1m.
• Currently, only landscape layouts possible.

Installation Tips:

• To enhance adhesion, use 3M Tape Primer 94 Pen for a few panels or 3M Tape Primer 94 236ml can for up to 100 panels.

Suitable for Roofs Made of:

• Box Profile Metal Roof Sheets;
• Trapezoidal Metal Roof Sheets;
• Metal Sandwich Panels;
• TPO Membrane Roofing; and
• PVC Membrane Roofing.

Benefits:

• DIY-friendly installation with an easy assembly structure that eliminates the need for drilling or cutting.
• Universal clamping modules accommodate all types of rigid solar panels.
• Suitable for various roofing types, including metal roof sheets, roof sandwich panels, TPO, and PVC membrane roofing.
• Durable and reliable system.

Warranty and Quality:

• 15 years' Manufacturer's Warranty.
• Rail made of extruded aluminium (EN AW 6060) with thermal treatments (EN 573 3 and EN 755 2).
• 3M double-sided adhesive tape for application on the flat part of metal roof sheets.
• Fixation warranty up to 25 years.
• Snow load: 1 kN/m² for locations under 1,000m above sea level.
• Wind load: For a maximum height of 9m and in type II exposure, in compliance with the Eurocode, with maximum wind speeds according to structure calculations.
• Suitable for up to a 45º rooftop angle.
