Scanstrut Ventura SAE Solar Input Socket: Seamless Off-Grid Connectivity

The Scanstrut Ventura SAE Solar Input Socket delivers a highly robust and weatherproof solution for integrating external solar panels into your 12V or 24V power system. Designed specifically for off-grid enthusiasts, overland explorers, and marine applications, this flush-mount connection point ensures that connecting your portable solar blankets or fixed panels is efficient and secure. By upgrading to a premium exterior socket, you eliminate the need to route messy cables through doors or windows, maintaining the integrity and climate control of your vehicle or vessel.

Engineered for Extreme Environments

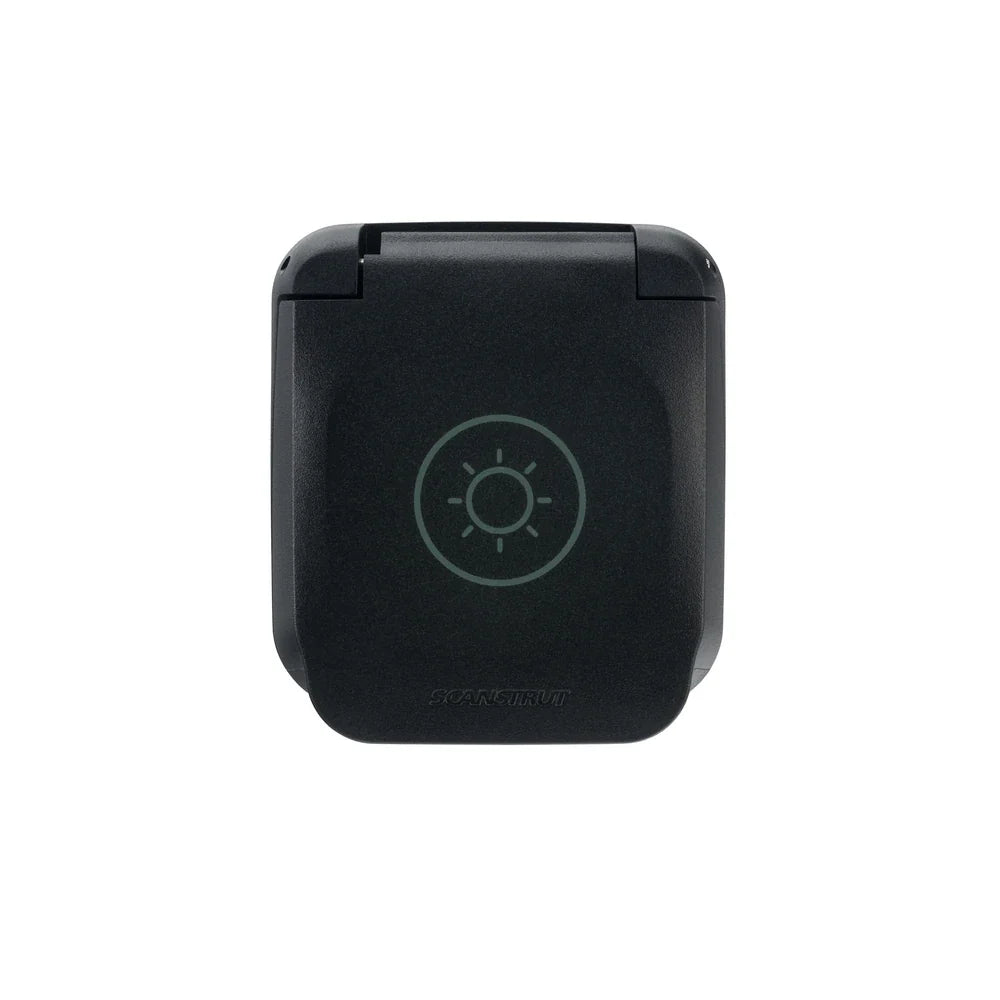

Outdoor power connections are highly susceptible to dust, moisture, and UV degradation. Unlike standard grade plastic fittings that become brittle and fail over time, the Ventura series is engineered to withstand severe conditions. When the spring-loaded lid is closed, the unit boasts an impressive IP68 and IP69K waterproof rating, completely sealing out dust, driving rain, and high-pressure water jets. Furthermore, the internal spring mechanism and hardware are manufactured from marine-grade 316 stainless steel, providing exceptional corrosion resistance in coastal environments and ensuring long-term reliability.

High-Capacity Electrical Performance

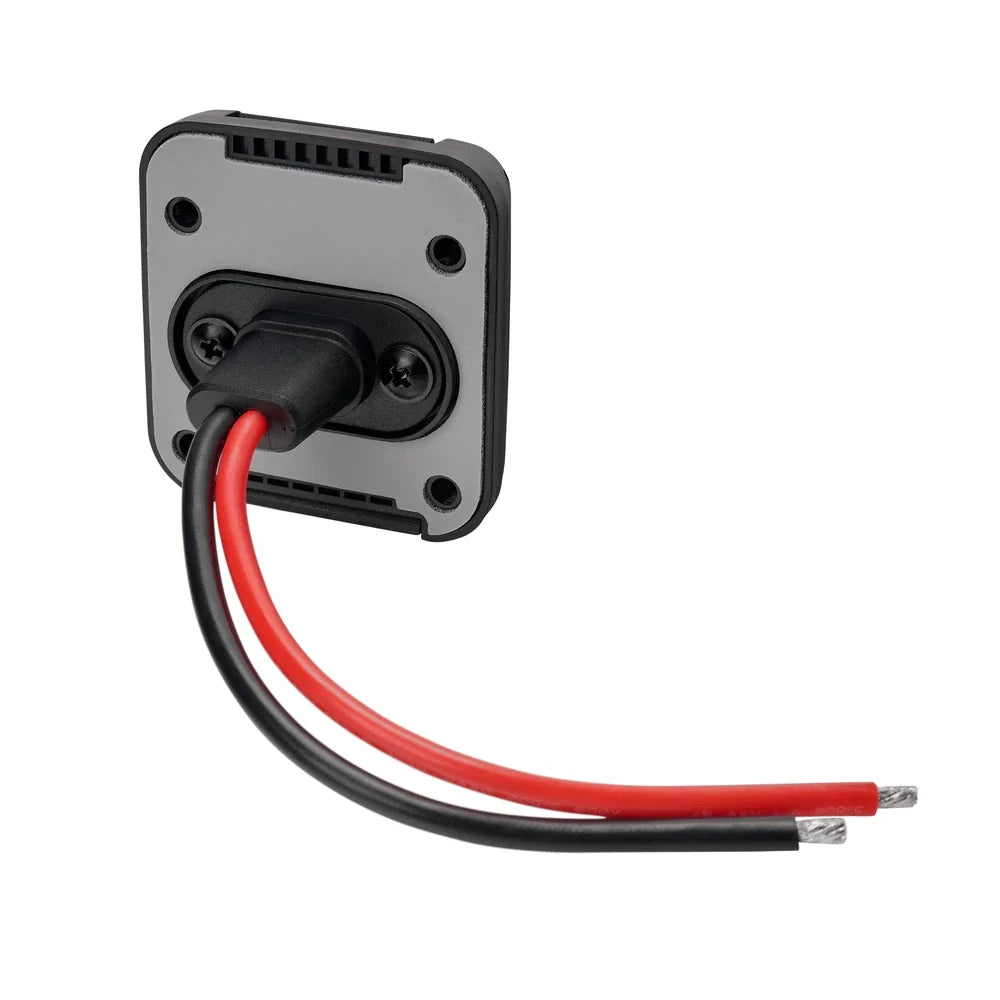

To safely handle the output of modern high-efficiency solar arrays, this socket is rated for a maximum current of 20A and a maximum DC voltage of 24V (*note typical de-rating factors apply to maximum current capacities). This capacity enables safe power delivery of up to 240W in a 12V system or 480W in a 24V setup. The rear of the socket comes pre-wired with 150mm (Approx. 6") of 4mm2 (12AWG) tinned copper wire. This premium cabling prevents oxidisation over time while ensuring low resistance and minimal voltage drop, so your batteries receive maximum charging efficiency.

Streamlined Installation Process

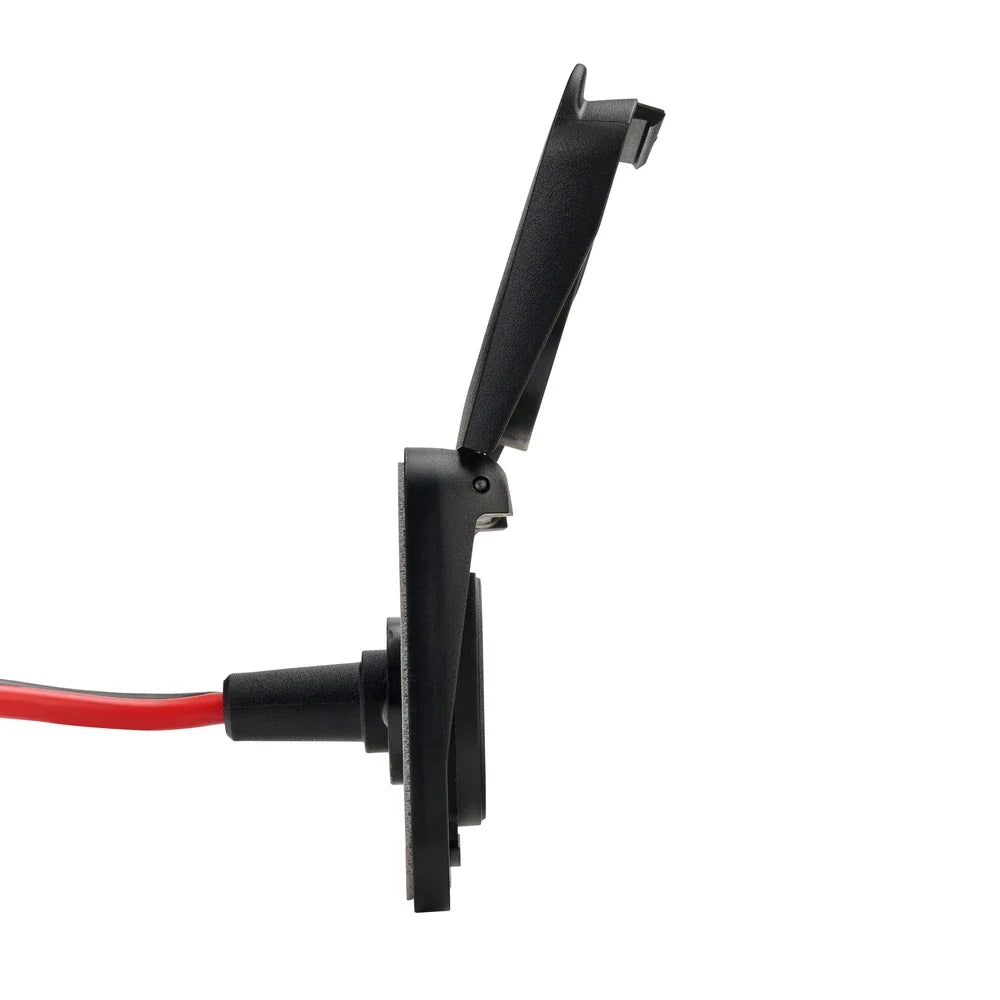

Fitting external components to your caravan or boat requires careful attention to sealing and structural integrity. The Scanstrut SAE socket requires only a standard 25mm (Approx. 1") holesaw for installation, allowing for a neat, flush-mounted finish. The unit includes a built-in, full-surface adhesive foam gasket that provides a watertight seal against the mounting surface without the need for messy liquid sealants. Additionally, the weatherproof flip lid features a smart 90-degree holding bump feature, keeping the cover out of the way while you connect or disconnect your solar panels.

Key Features

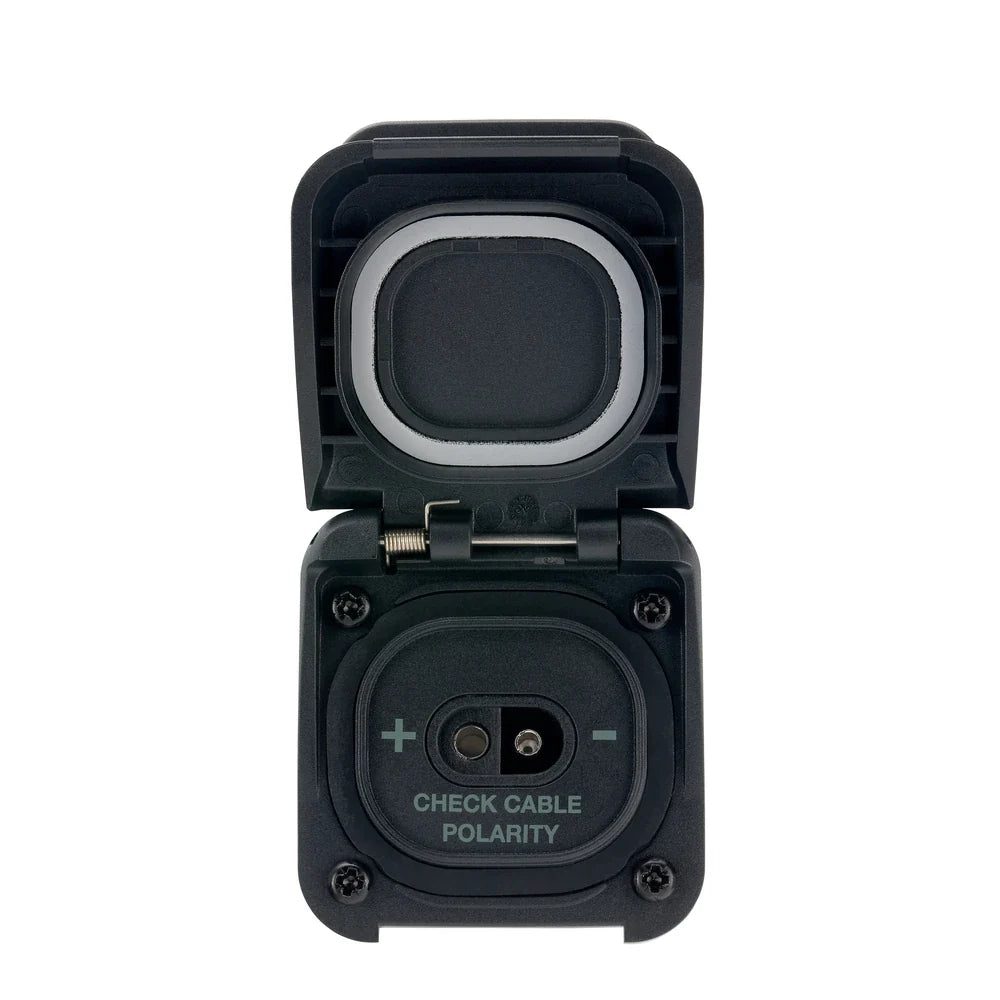

• Industry-Standard SAE Connection: Ensures compatibility with a wide range of portable solar panels and battery maintainers.
• High-Current Capacity: Safely handles up to 20A, supporting up to 240W (12V) or 480W (24V) of solar input.
• Premium Weatherproofing: Achieves IP68 and IP69K ratings (front only, when lid is closed) to block out dust and moisture.
• Corrosion-Resistant Hardware: Features a durable spring-loaded lid with 316 stainless steel components.
• Pre-Wired Pigtail: Includes 150mm (Approx. 6") of 4mm2 (12AWG) tinned copper cable for reliable, low-resistance integration.
• Simple Flush Mount: Installs easily with a standard 25mm (Approx. 1") holesaw and includes a built-in sealing gasket.

Power Up Your Next Adventure

Ensure your battery bank stays charged and ready for action with a connection point you can rely on. Add the Scanstrut Ventura SAE Solar Input Socket to your marine or overland setup today and enjoy consistent, weather-protected power delivery wherever your journey takes you.
