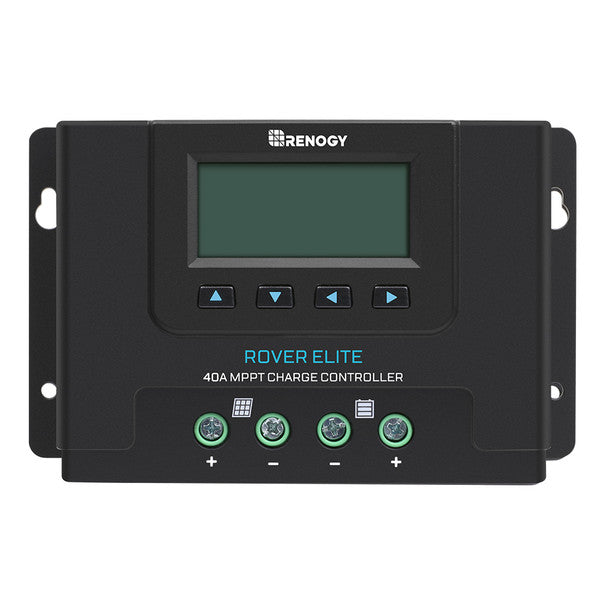

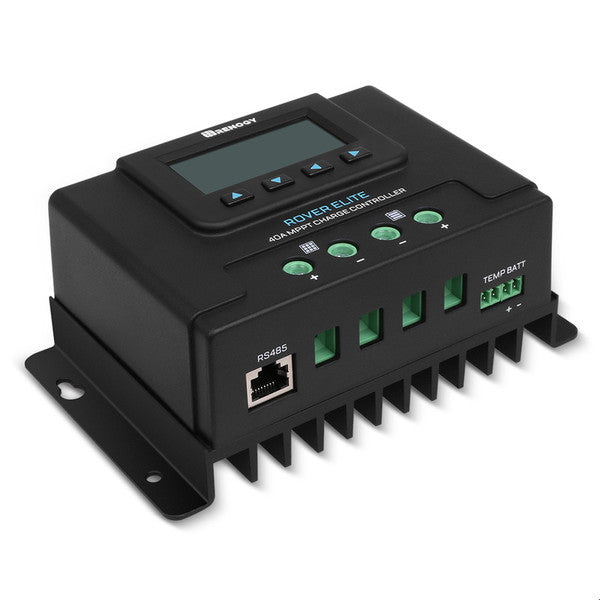

Solar Controller | Renogy | Rover Elite 40A MPPT Solar Charge Controller
None
£101.00
Sale price
£101.00
Regular price
Skip to product information
Solar Controller | Renogy | Rover Elite 40A MPPT Solar Charge Controller
£101.00
Sale price
£101.00
Regular price
Shipping calculated at checkout.
RCC40RVRE-AU
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
DESCRIPTION
The Rover Elite series of MPPT charge controllers give you the most efficient charging for countless 12V or 24V off-grid solar applications. Compatible with an assortment of batteries, including Lithium, the Rover Elite MPPT utilizes powerfully smart tracking technology to maximize solar charging energy to your battery. Additionally, the Rover Elite MPPT is equipped with multiple battery, controller, and solar protections giving you peace of mind and an optimized system you can trust.
Please Note: The Rover Elite is not compatible with the Renogy BT-1 Bluetooth Module but it's compatible with the Renogy BT-2 Bluetooth Module.
KEY FEATURES
- 12V /24V Automatic System Recognition.

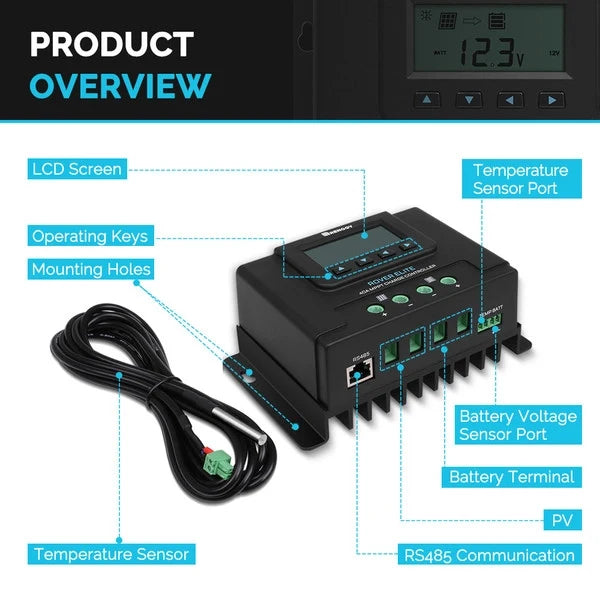

- Backlit LCD displays system information and identifying error codes.

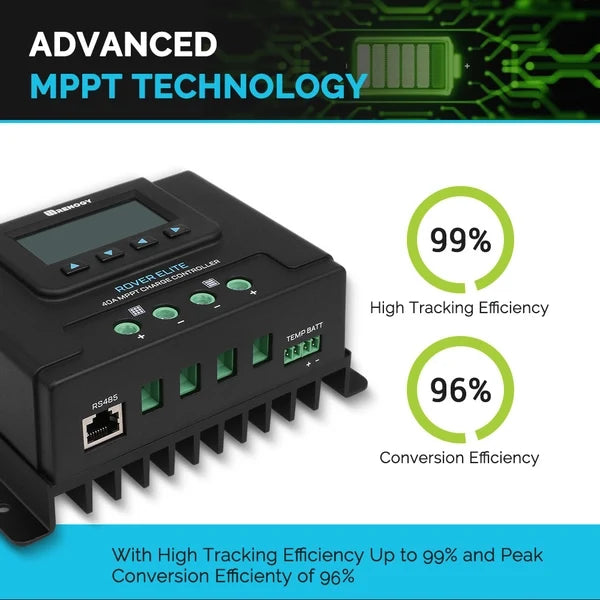

- Advanced MPPT Technology with up to 99% high tracking efficiency, 96% conversion efficiency, and Lithium-reawakening feature.

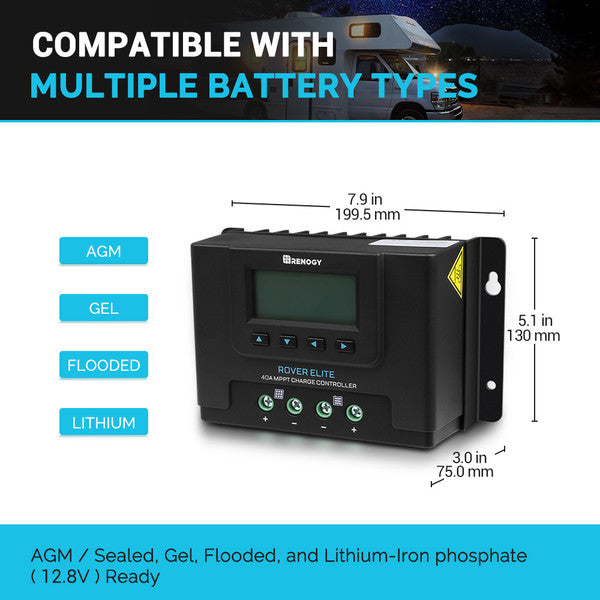

- 4 Deep Cycle Battery Pre-Sets: Gel, Flooded, Lithium-Iron Phosphate (12.8V), and Sealed/AGM.

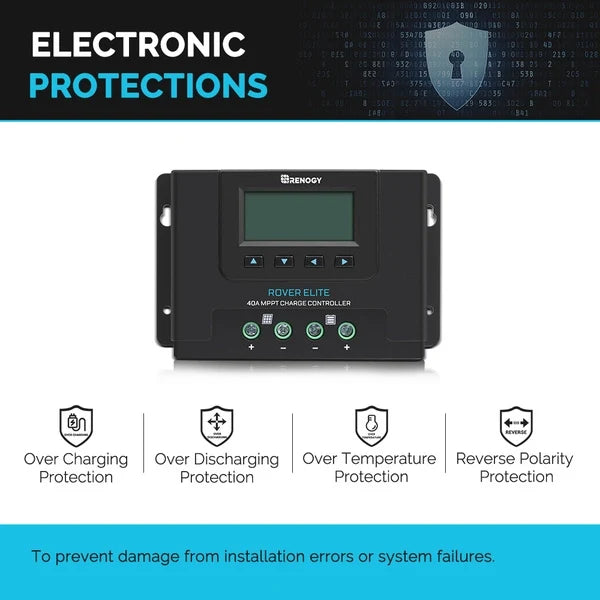

- Multiple Electronic Protection Features, including over-charging, over-discharging, reverse polarity, over-load, and over-temperature.
DOWNLOAD LINKS
PACKAGE INCLUDES
| Rover Elite 40 Amp MPPT Charge Controller
1 x
| Remote Temperature Sensor
1 x
|
| Options1: BT-2 Bluetooth Module
1 x
|
1 x
|
SPECIFICATION
| ROVER ELITE 40 AMP MPPT SOLAR CHARGE CONTROLLER | |
|---|---|
| System Voltage : 12V/24V Auto Recognition | Battery Rated Current : 40A |
| Max Battery Voltage : 32V | PV Input Voltage Range : 15V – 100V VOC |
| Max Power Input : 12V @ 520W 24V @ 1040W | Self Consumption: ≤0.6W @12V;≤0.8W @24V |
| Grounding Type : Negative | Controller Terminals : 20-6 AWG |
| Temperature Compensation: -3mV/℃/2V, excludes LI | Operating Temperature: -35°C~ 65°C/ -31°F ~ 113°F |
| Storage Temperature: -40°C~ 80°C/ -40°F ~ 176°F | Operating/Storage Humidity: < 90%, No Condensation |
| Dimensions: 199.5 x 130 x 76.7 mm/ 7.85 x 5.12 x 3.02 in | Weight: 1.36 kg/ 3 lbs |
| Enclosure: IP32 | Communication: RS485 |
| Certification : FCC Part 15 Class B; CE; RoHS; RCM | |
| OPTIONS: BT-2 BLUETOOTH MODULE | |
| Communication Protocol: RS485 | Port Type: RJ45 |
| Input Voltage: 5V or 12V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤82ft | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in） | Operation Temperature: -20℃~85℃（-4°F to 185°F） |
| Weight: 130g (4.58oz) | |
| Certifications： | |
| CE | YES |
| ROHS | YES |
| FCC | YES |
WARRANTY INFORMATION
| Accessories | 1-year material warranty |
