Description

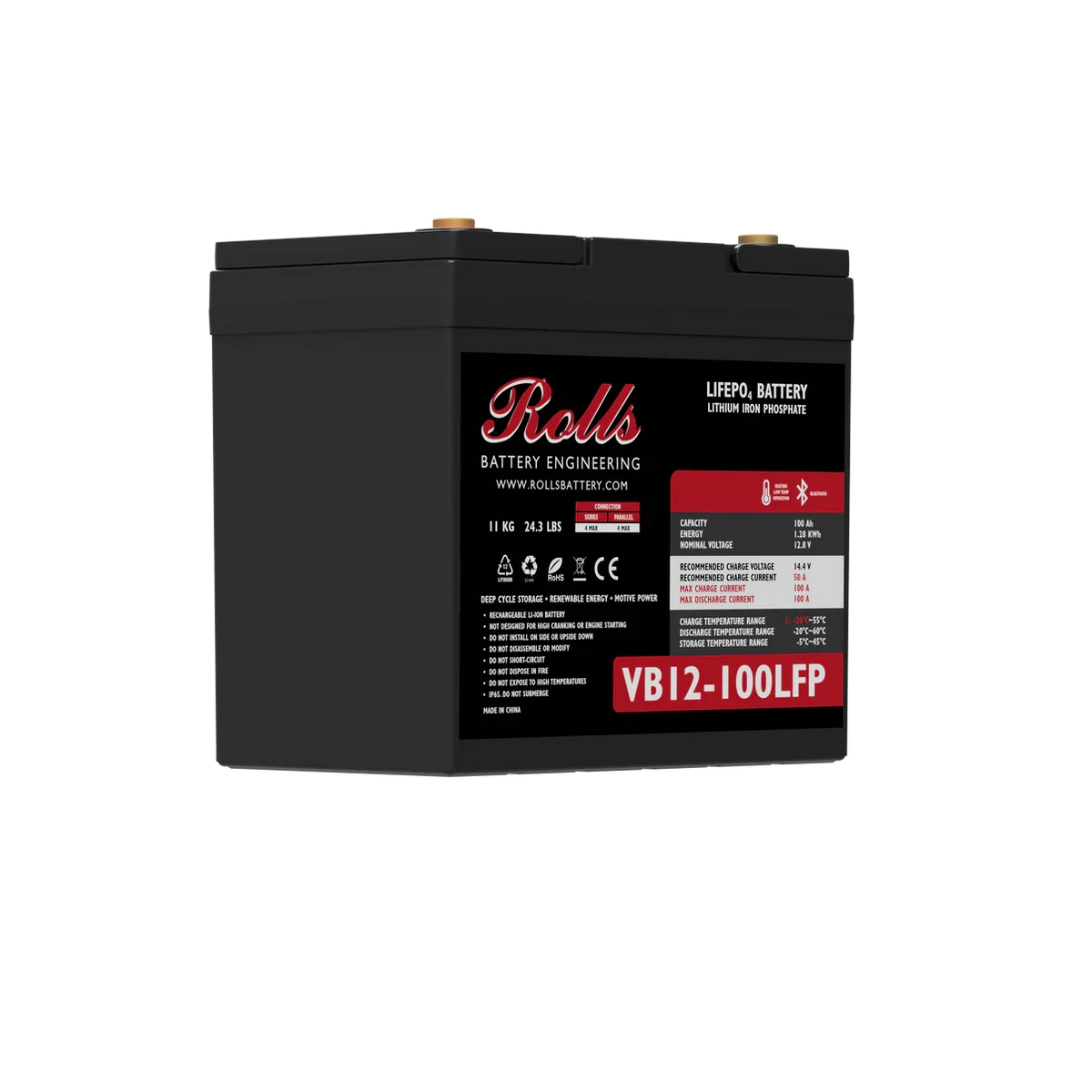

Rolls VB12-100LFP 12V 100Ah LiFePO₄ Battery
Key benefits
- 12V 100Ah LiFePO₄ battery in a standard BCI Group 24 case, ideal as a drop‑in replacement for many VRLA batteries in off‑grid, backup and mobile systems.
- Long service life with an expected 6000 cycles at 80% depth of discharge, helping to reduce replacement and maintenance costs over time.
- Integrated hardware BMS with multiple protection functions plus Bluetooth connectivity and dedicated iOS/Android app for easy monitoring.
Brief description
The Rolls VB12-100LFP 12V 100Ah LiFePO₄ Battery is part of the Rolls VB Series LFP range and is designed as a robust, maintenance‑free alternative to traditional 12V lead‑acid batteries. With a nominal energy of 1.28kWh, up to 6000 cycles at 80% DOD and an IP65‑rated ABS enclosure, it suits small commercial backup systems, telecoms, remote monitoring, mobile power and off‑grid applications. Integrated BMS and Bluetooth connectivity simplify protection, status checks and fleet management in multi‑battery systems.
Key features
- 12.8V nominal, 100Ah rated capacity and 1.28kWh total energy in a compact Group 24 footprint.
- Standard‑size BCI ABS container with integrated top‑mount handles for straightforward VRLA replacement and handling.
- Heating for low‑temperature operation and wide charge/discharge temperature range from -20°C to +55°C.
- Integrated BMS with independent charge and discharge protection, including over‑voltage, low‑voltage, over‑current, short‑circuit and temperature protections.
- Up to 4 in series and 4 in parallel (4S4P at 48V) for modular system building in DC storage banks.
Technical specifications
General
| Series | VB Series LFP |
| Warranty | See Warranty Terms |
| Volts | 12 |
| Design | Grp 24 |
| Terminal Type | M8 |
| Included Hardware | M8 stainless bolts & washers |
| Container | ABS |
| Cover | ABS |
| Handles | Integrated Top Mount |
| Internal BMS Model | RD-RJ4S100A |
| Connectivity | Up to 4S4P (in 48V configuration) |
| Rev. | Rev.#2 | November 2025 |
Charge / Discharge
| Charge Voltage Range | 14.2–14.6V |
| End of Discharge Protection Voltage | 11.2 V |
| Recommended Charge Current (‑20~10°C / ‑4–50°F) | 0.5C 50A |
| Charge Mode | Charge at recommend voltage & current by temperature until charge current drops to ≤ 0.05C (CC,CV) |
| Charge Mode Notes | DO NOT USE TEMPERATURE COMPENSATION; No BTS (Battery Temperature Sensor) |
| Max Continuous Charge Current | 100 A |
| Max Continuous Discharge Current | 100 A |
| Charge Temperature Range | -20~55°C (-4~131°F) |
| Discharge Temperature Range | -20~55°C (-4~131°F) |
| Storage Temperature Range | -20~55°C (-4~131°F) |
Capacity
| Nominal Capacity | 100 AH |
| Total Energy | 1.28 kWh |
| Nominal Voltage | 12.8 V |
Safety
| Cell type | Prismatic LiFePO₄ cells [CB79/3.2V100Ah] |
| Standards | IEC62619(cell), UL 1973 (cell), UN38.3 (cell/pack) |
| Certifications | ROHS (cell), CE system certification, IP65 Rating |
Design
| Container format | Standard-size (BCI) ABS container for easy VRLA replacement |
| Performance | Fast charge/discharge performance |
| Operation | Maintenance-free operation |
| Low temperature feature | Heating for low temperature operation |
| Connectivity feature | Bluetooth Connectivity & dedicated IOS & Android App |
Battery Management System (BMS)
| Type | Integrated hardware BMS inside |
| Protection topology | Independent charge & discharge protection |
| Protection functions | Short-Circuit Protection, Over-Voltage Protection, Low-Voltage Protection, Over-Current Protection, Low-Temperature Protection, Over-Temperature Protection |
Mechanical specifications
| Weight | 10 kg / 22 lbs |
| Length | 260 mm / 10.24" |
| Width | 168 mm / 6.61" |
| Height | 210 mm / 8.27" |
| Height incl. terminals | 215 mm / 8.46" |
| Measurement note | Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. |
Operational limits and configuration
| Expected Cycle Life | 6000 @ 80% DOD |
| Series Connection | 4 UNITS MAX (48V) |
| Parallel Connection | 4 UNITS MAX |
