Features

High-Power Hybrid Energy Solution

• 10,000W continuous output provides reliable power for whole-home backup, cabins, and off-grid applications.

• 120/208V and 120/240V split-phase output supports a wide range of residential and commercial electrical systems.

• Multiple operating modes support grid-tie, off-grid, and hybrid energy configurations.

Advanced Solar & Battery Management

• 12,000W PV input capacity maximizes solar energy harvesting for large-scale systems.

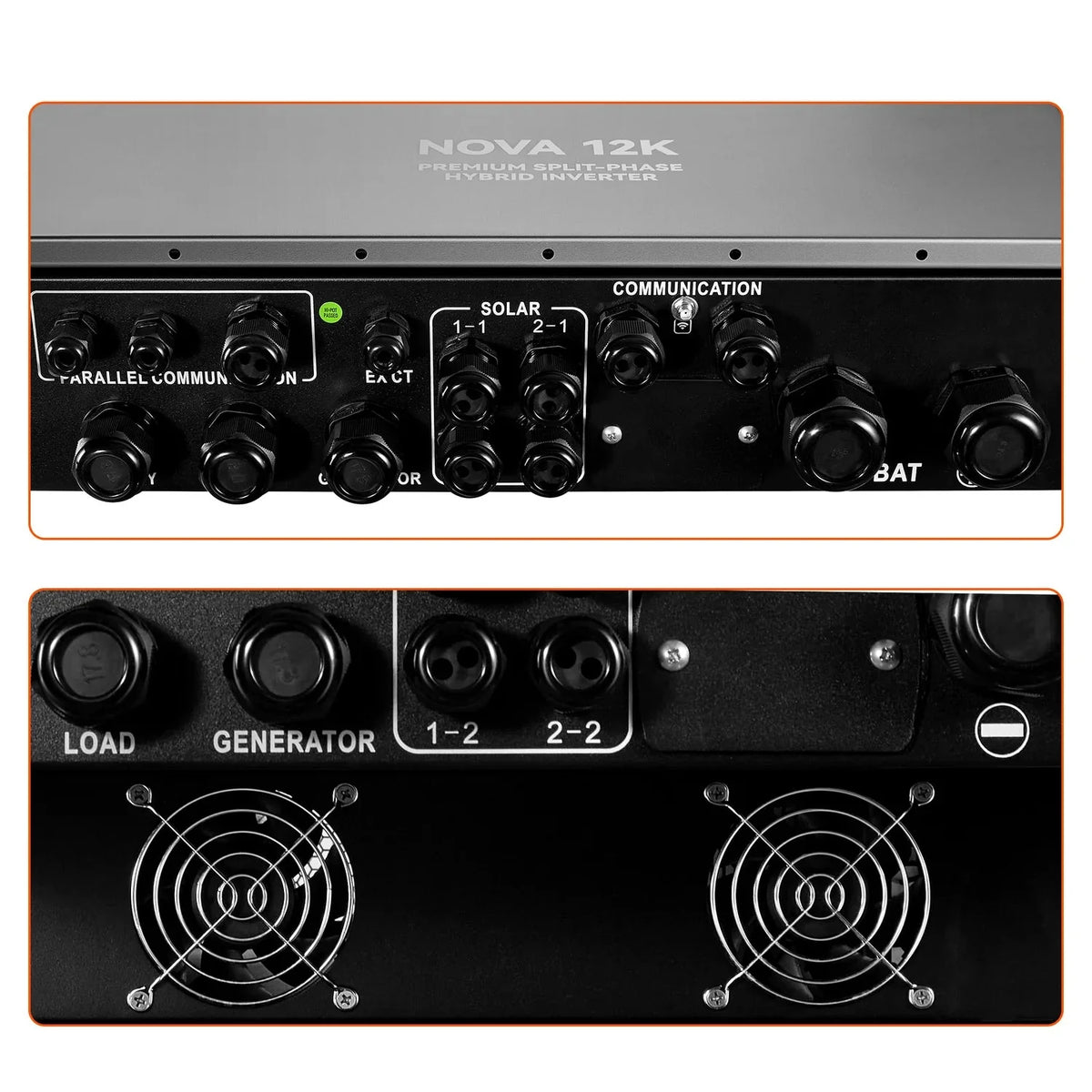

• Dual MPPT inputs (2 × 18A, 30A peak) provide flexible solar array configuration and optimized energy harvesting.

• Supports solar, battery, utility grid, and generator integration for maximum energy flexibility.

Flexible System Expansion & Smart Control

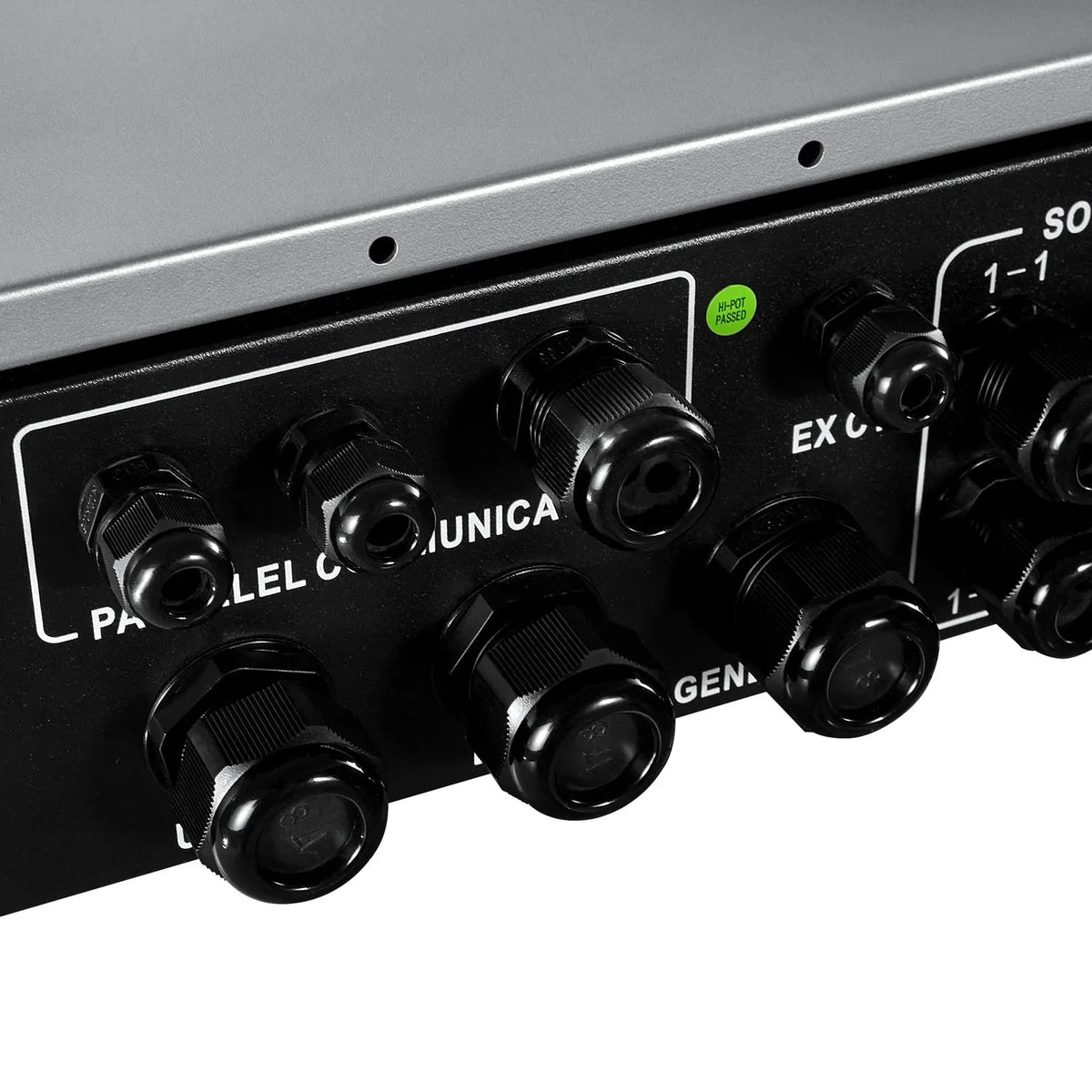

• Parallel connection supports up to 6 units for increased system capacity.

• Built-in WiFi monitoring enables real-time system status tracking through the mobile app.

• RS485 communication supports intelligent BMS integration with compatible lithium batteries.

Reliable Protection & Compliance

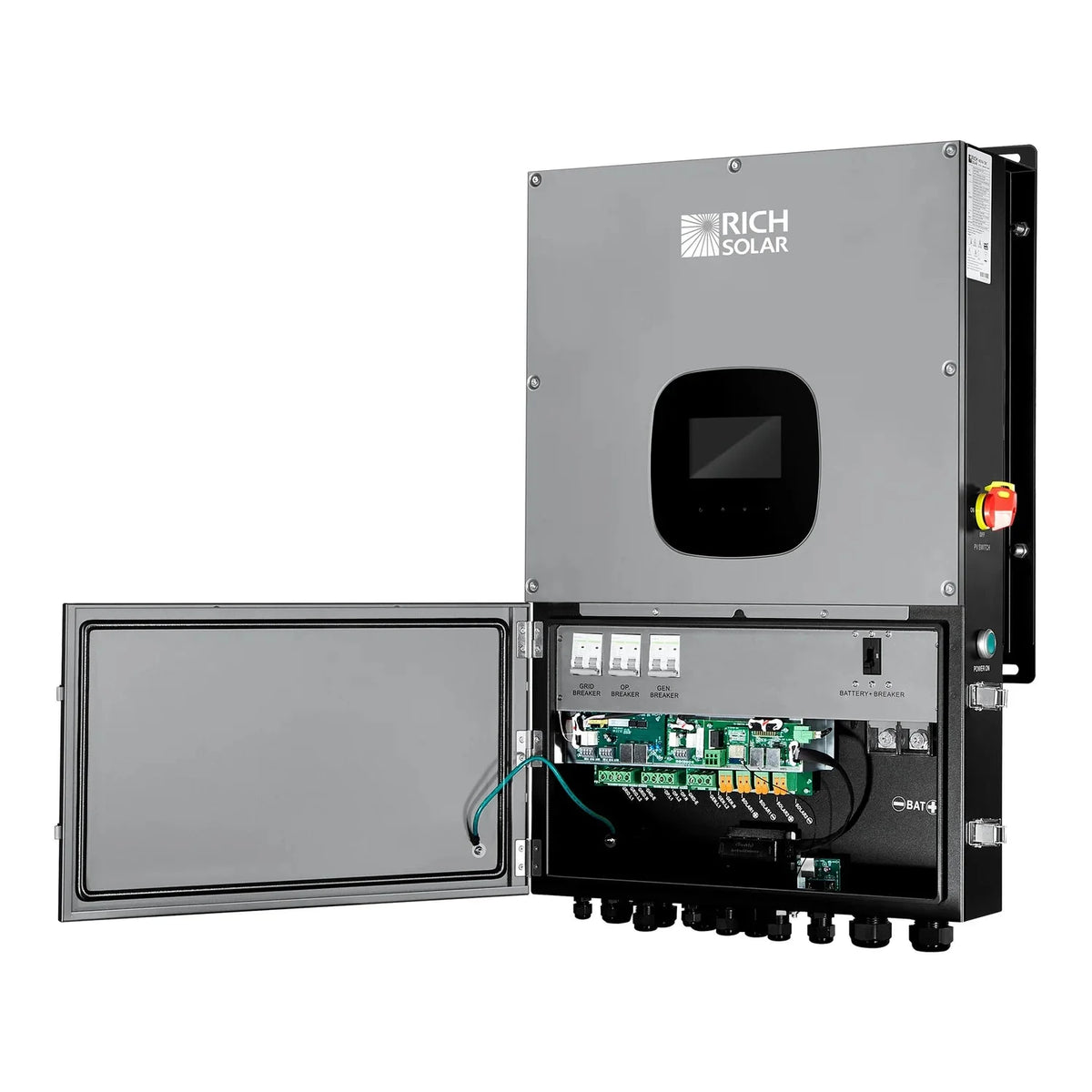

• 300A DC and 60A AC integrated circuit breakers provide built-in overcurrent protection and simplify installation.

• Advanced safety features include AFD (NEC 690.11), RSD (NEC 690.12), ground fault detection (NEC 690.5), and PV input lightning protection.

• Certified to UL 1741SA/SB, CSA C22.2 No. 107.1, and IEEE 1547 to meet North American safety and grid interconnection standards.
