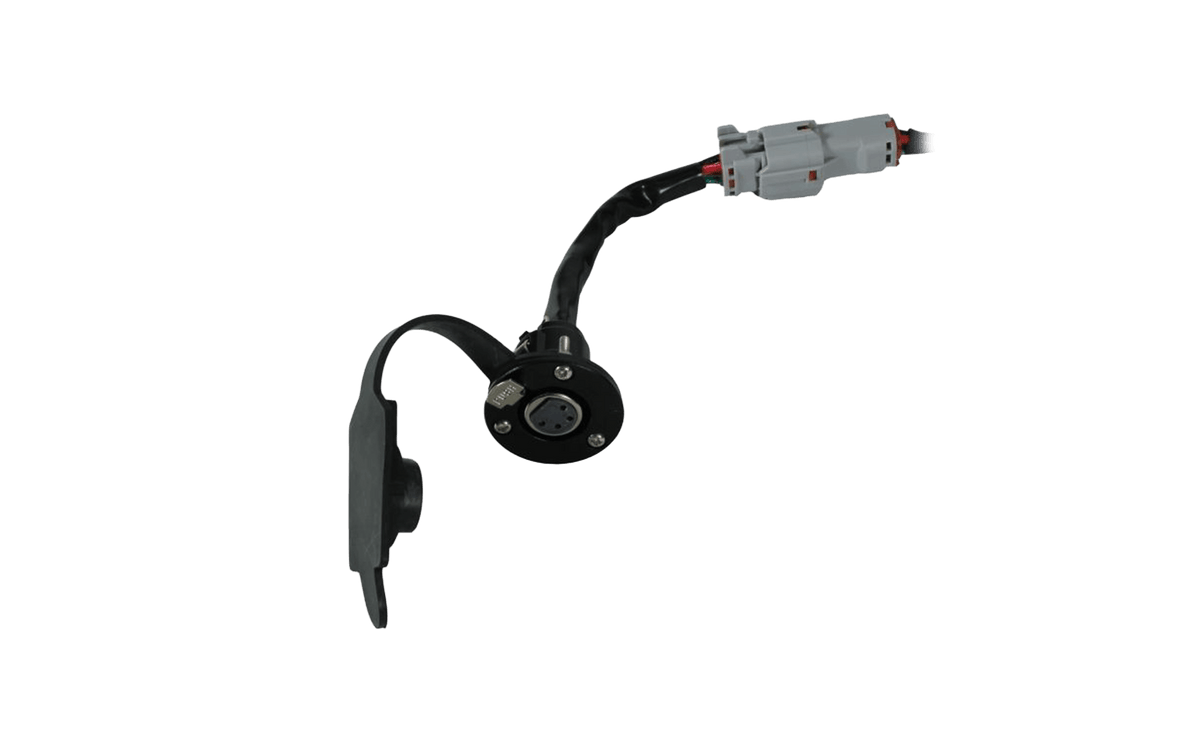

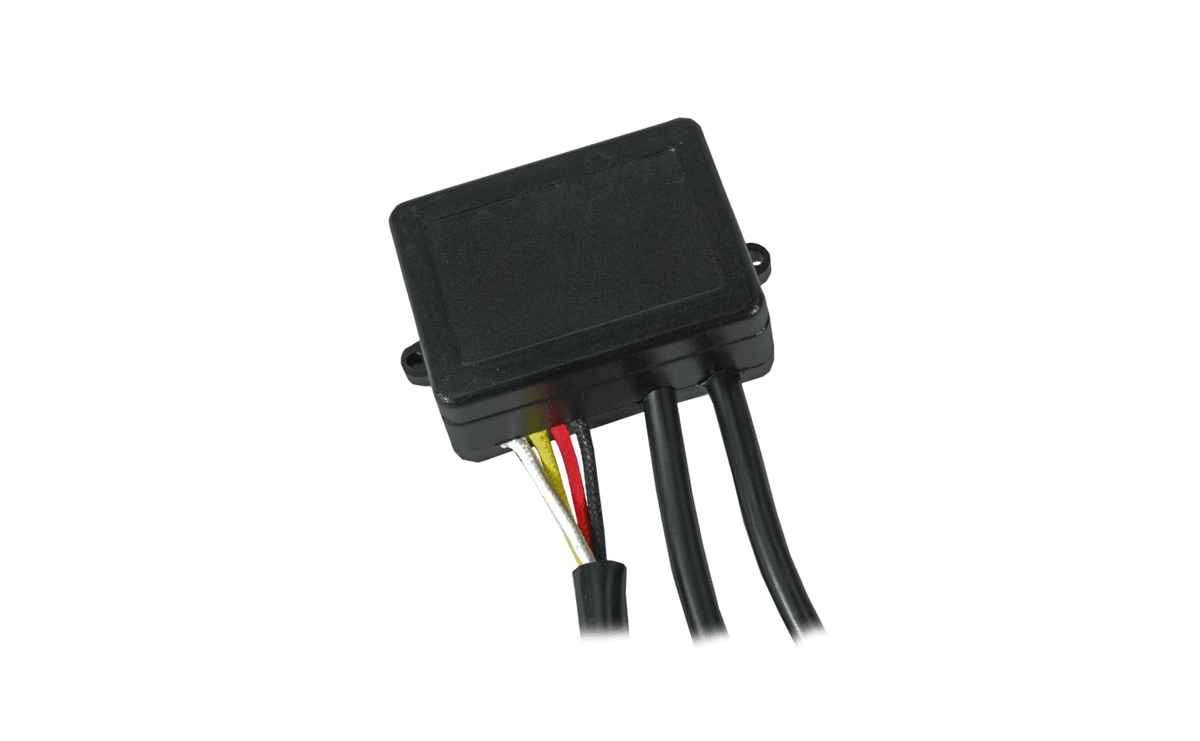

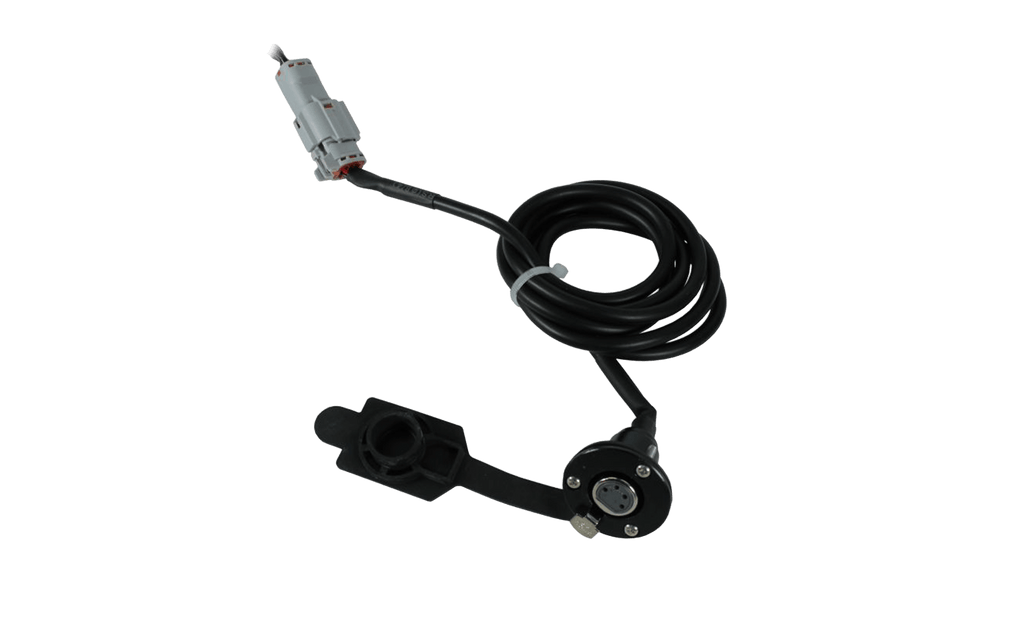

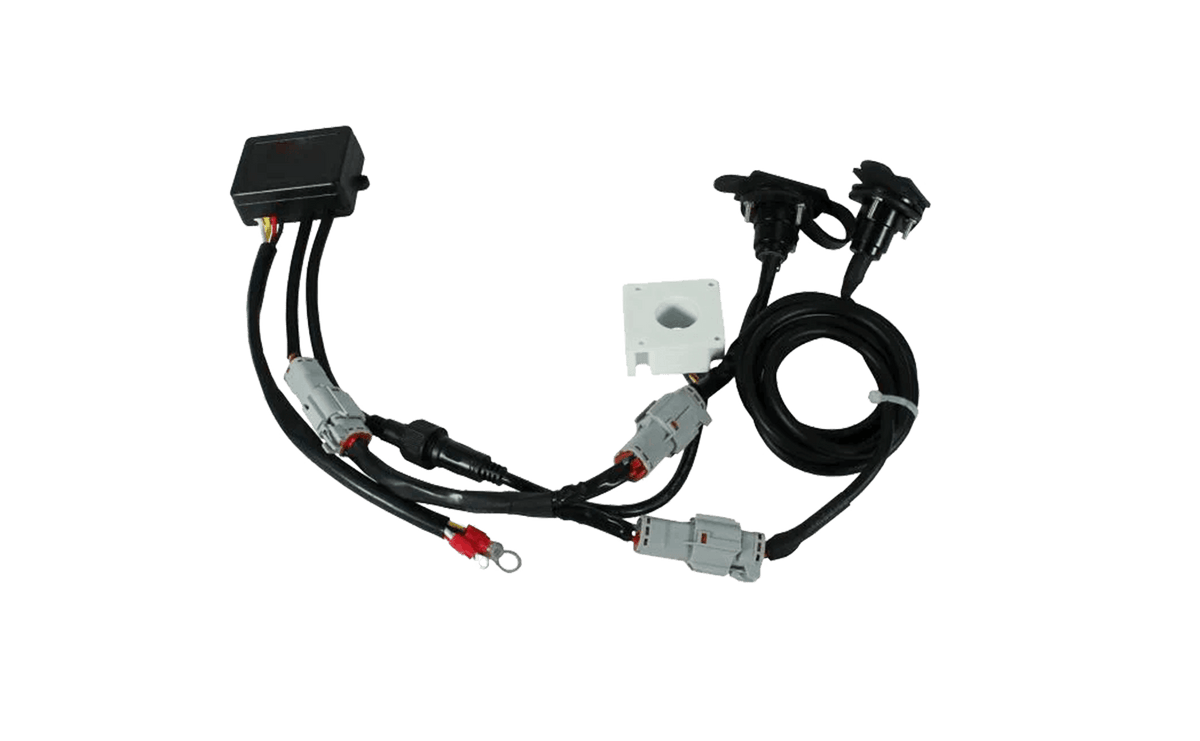

Resettable Overload Protection to suit 200SS24 Warrior Samurai 20000lb 24V Winch

Designed to prevent accidental over loading of the winch and increase the lifespan of the motor, Warrior’s Overload Protector is used as a safety measure to prevent an overload of current on your electric winch.

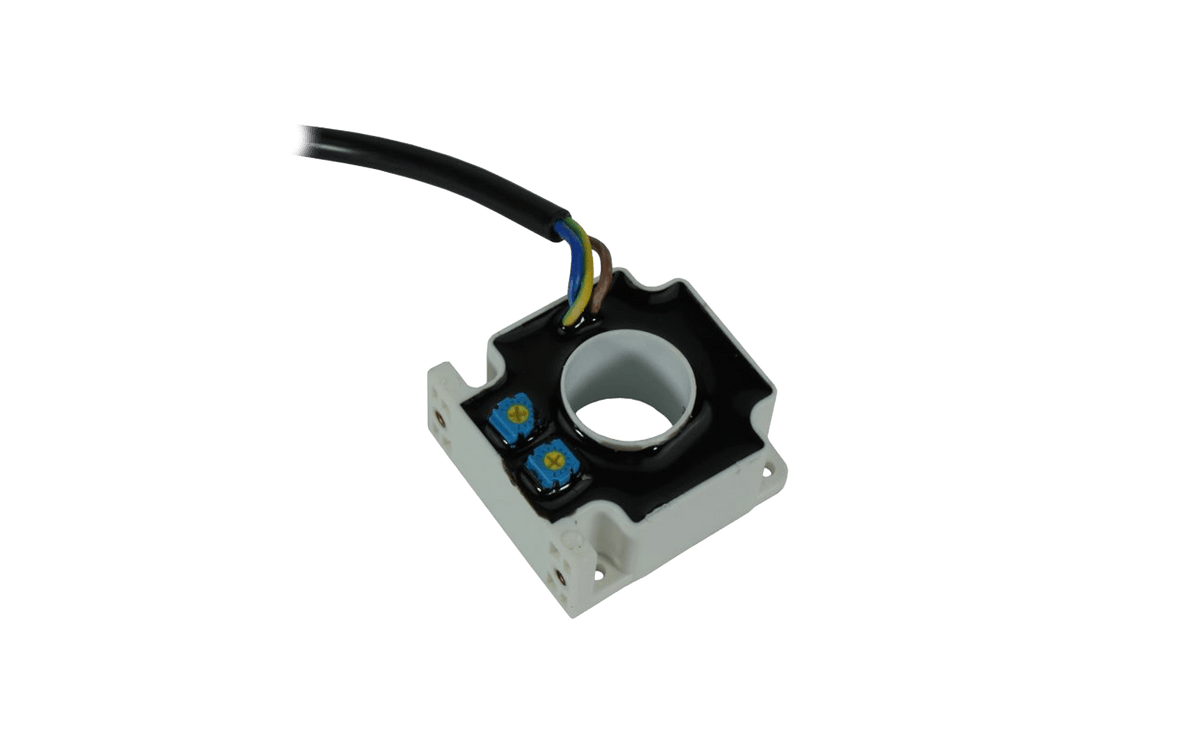

The operation is centred around a Shunt Resistor to detect the electric current. This element is very accurate, responsive and easy to use, whilst offering stable performance and low power consumption.

Warrior strongly recommends using a OLP on any recovery winch as this counts as a safety feature when IN and NOT IN use.

Features:

? Can be used for any winch which uses a HD contactor
? Can use either wireless, remote lead or extension socket or a combination of two to operate the winch
? Resets after around 10 secs
? Very accurate amperage trip
? Small and easy to install
? Waterproof resistor
? 1.5m extension included

Technical Specs:

? Range: 0-450A
? Current detection accuracy: ±5%

Normal working environment conditions:

? Environment temperature: -40 to +45°C
? Relative humidity: <95% RH 25°C

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
