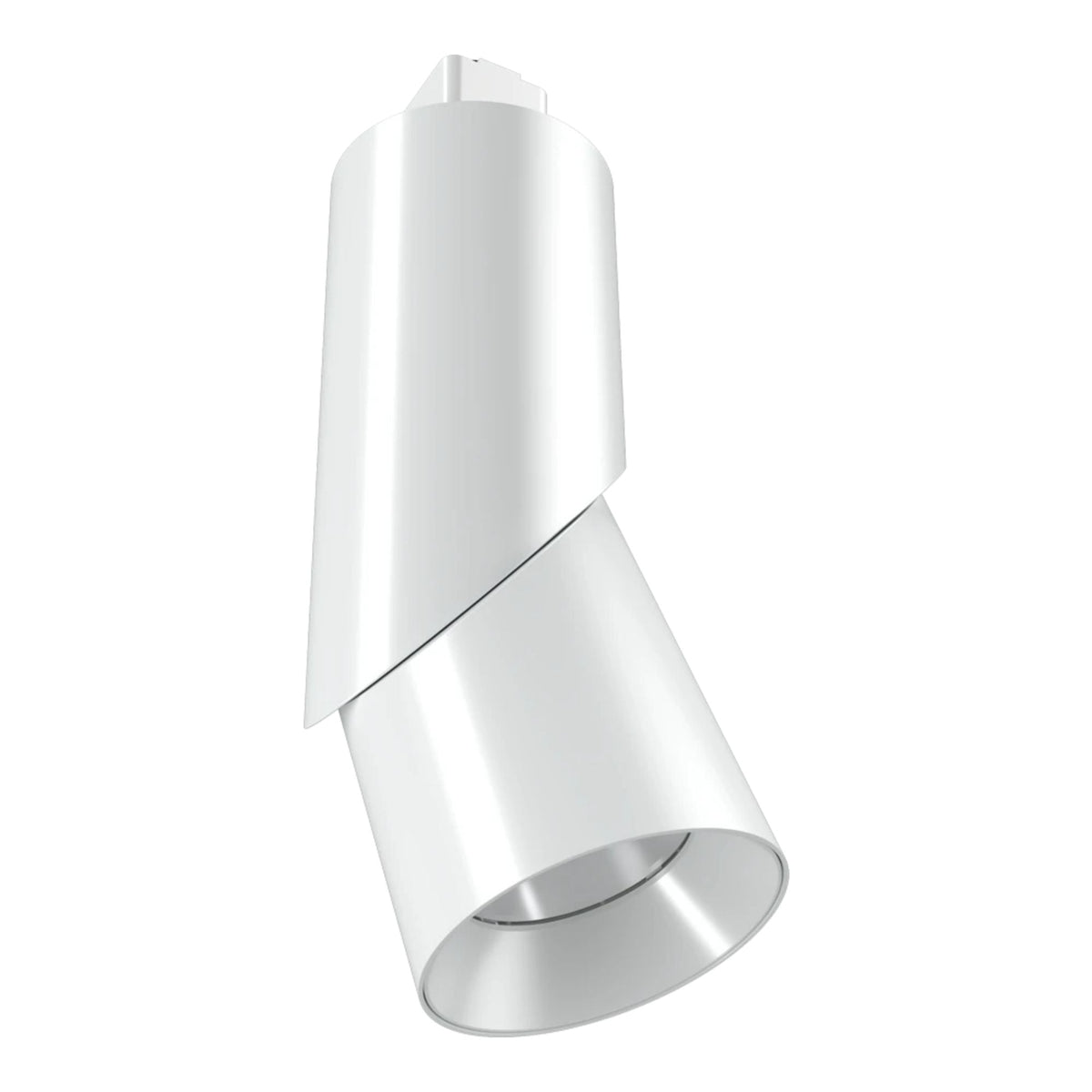

RAB Lighting Pivot Track Head — White & Selectable CCT

The RAB Lighting PIVOTL track head in white is a versatile lighting solution designed for H-Type track systems. With a selectable CCT ranging from 2700K to 5000K, this track head offers flexibility in lighting design. It operates at 120V and is compatible with TRIAC dimmers.

Key Features

• Voltage: Operates at 120V, suitable for standard track lighting installations.

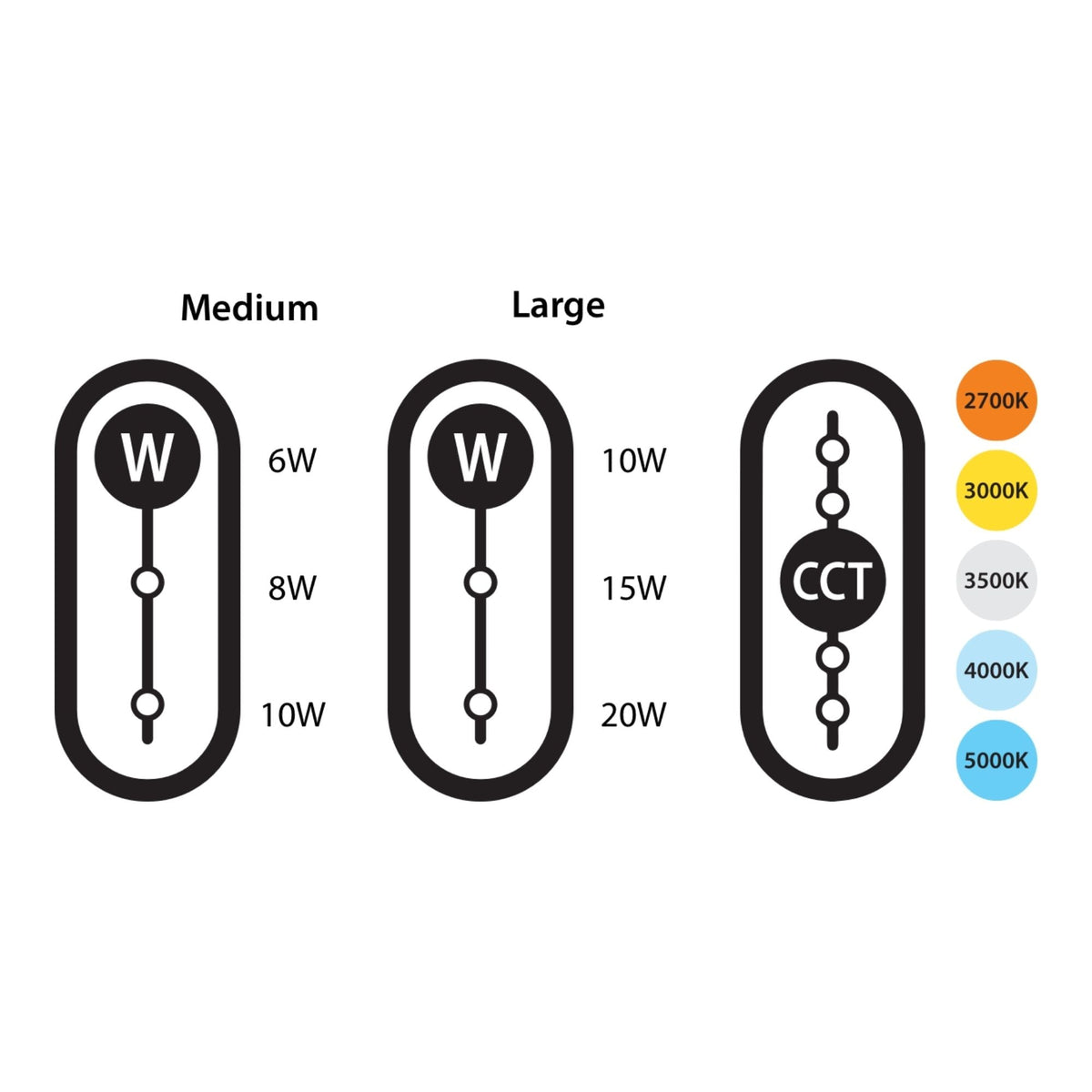

• Wattage: Field adjustable wattage options of 20W, 15W, and 10W.
• Lumens: Provides a high output of up to 1765 lumens.
• CCT: Selectable color temperatures from 2700K to 5000K.
• Beam Angle: 36° optics for precise light distribution.
• CRI: High color rendering index of 94-96 for accurate color representation.
• LED Lifespan: 100,000 hours based on IES LM-80 results and TM-21 calculations.
• Compliance: UL Listed for dry locations.
• Dimming: Compatible with 120V TRIAC dimmers.
• Construction: Durable aluminum housing with a polycarbonate reflector.
• Finish: High-durability white finish.
• Warranty: Backed by a 5-year limited warranty.

Core Design & Adjustability

The track head features a robust aluminum housing with a polycarbonate reflector, ensuring durability and optimal light distribution. It is finished in white for a clean, modern look and is UL listed for dry locations.

LED Illumination & Performance

With a lumen output of up to 1765 and a selectable CCT, this track head provides bright and adaptable lighting. It operates at 20W with a high CRI of 94-96, ensuring excellent color accuracy.

Power, Wiring & Compatibility

Specifically designed for H-Type track systems, the PIVOTL track head operates at 120V and is compatible with TRIAC dimmers, allowing for adjustable light levels.

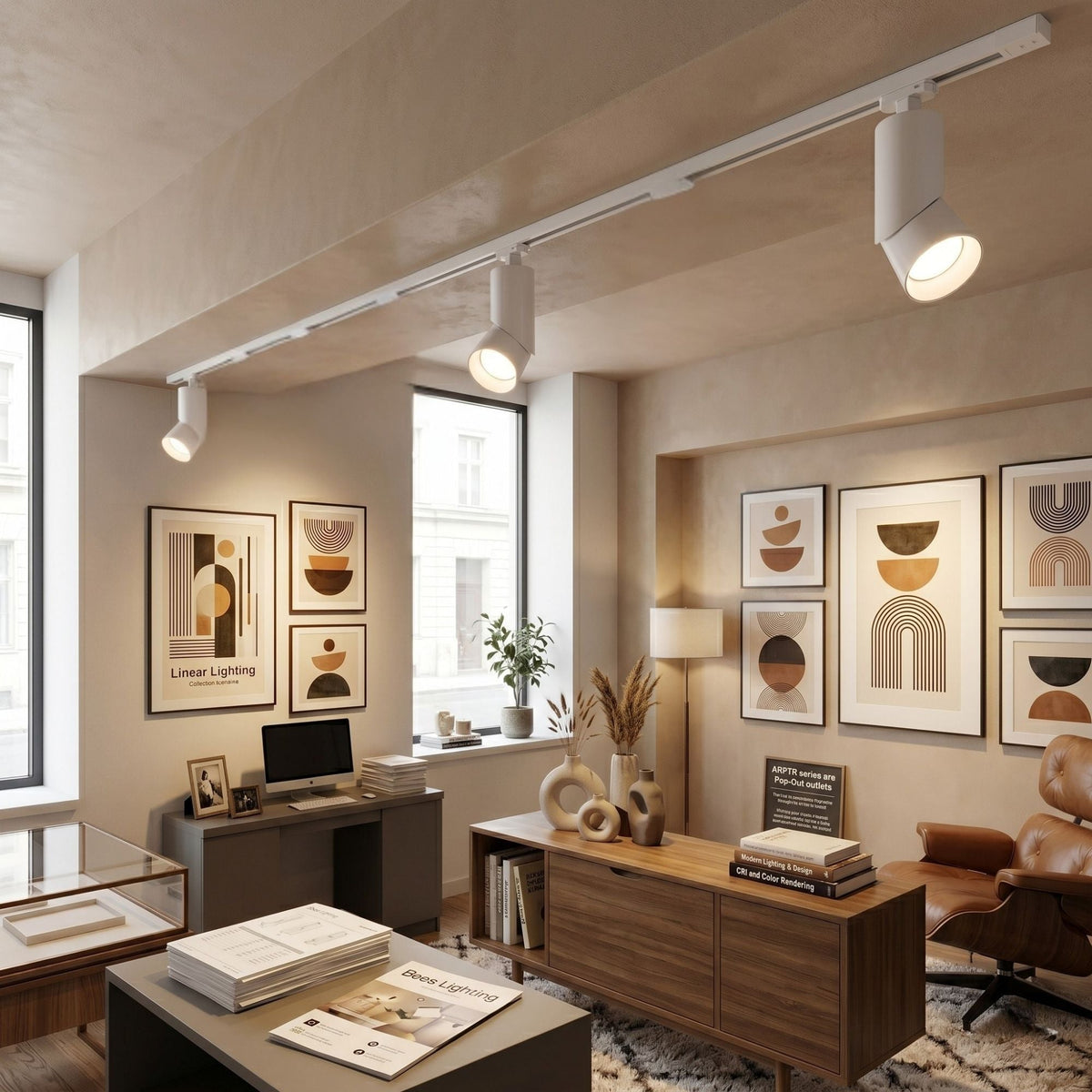

Where This Fixture Works Best

• Retail environments
• Art galleries
• Residential spaces
• Commercial offices
• Showrooms

What's Included

• 1 x RAB Lighting Pivot Track Head
