PYLONTECH US5000-1C 4.8-76.8kWh 48v Solar Battery System (Excl. Brackets)
£421.00
Sale price
£421.00
Regular price
£958.00
Skip to product information
PYLONTECH US5000-1C 4.8-76.8kWh 48v Solar Battery System (Excl. Brackets)
£421.00
Sale price
£421.00
Regular price
£958.00
Shipping calculated at checkout.
PYLON-US5000
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description

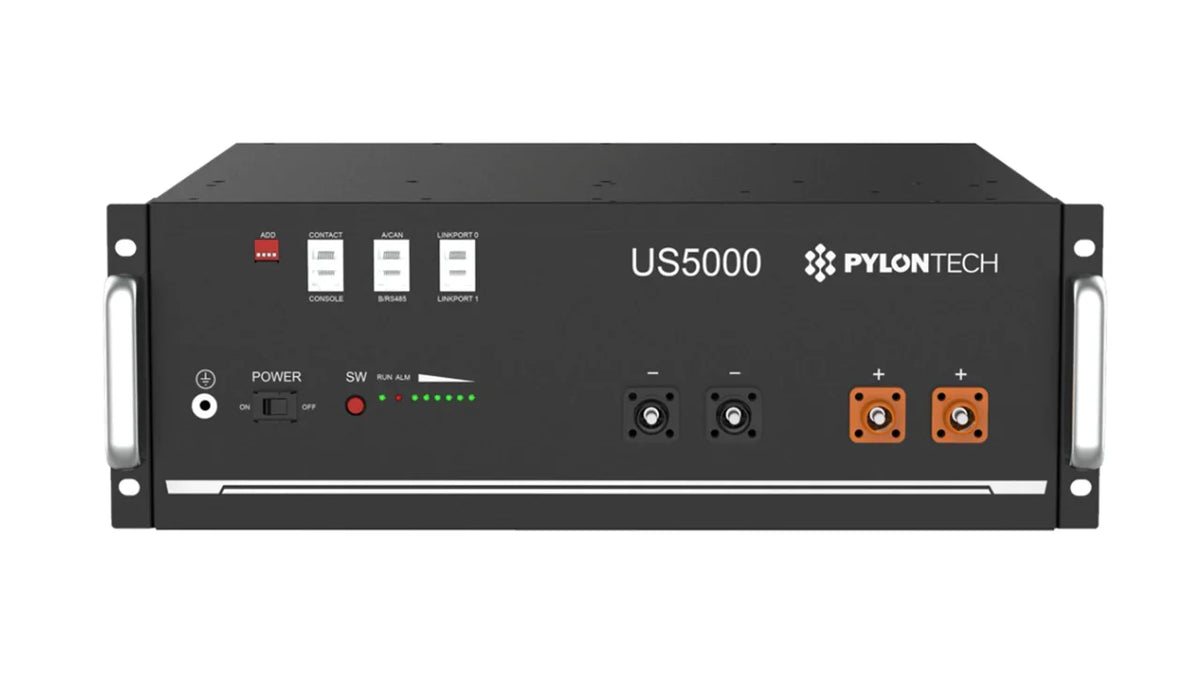

Pylontech US5000-1C Lithium Battery 4.8kWh to 72.96kWh
The Pylontech US5000-1C is one of the most widely used low-voltage lithium batteries for off-grid and residential energy storage. It is a modular system, so capacity can be expanded as needed by adding more batteries in parallel.
You can connect up to 16 units in parallel, giving a total usable capacity of up to 72.96kWh, without needing an additional low-voltage hub.
The built-in Battery Management System (BMS) protects the cells and allows up to 95% depth of discharge, meaning you can use more of the stored energy.
Important: One pair of Pylontech US5000 battery brackets is required for each battery.
Safety and Compliance
When installed in or near residential buildings, the installer must ensure the system complies with PAS 63100:2024, which covers fire protection for battery energy storage systems used in dwellings.
Installation Options
Storage batteries are ideally installed outside living areas and away from rooms used for habitation.
Remote monitoring is available via smartphone or web portal.
Key Features
- Latest and largest battery in the Pylontech US series.

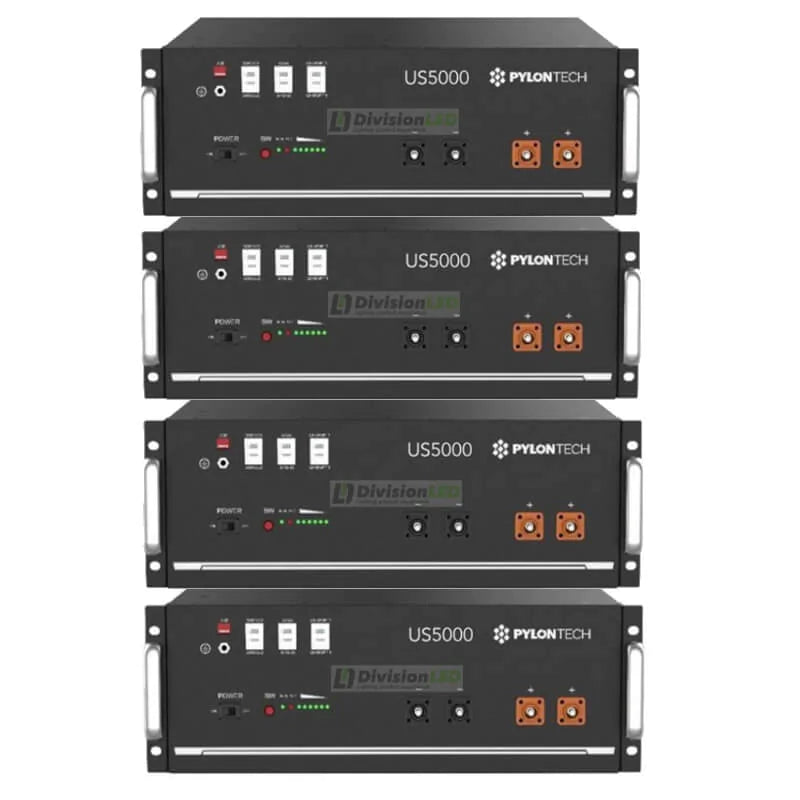

- Modular design with up to 16 batteries in parallel.
- Total usable capacity up to 72.96kWh without an LV hub.
- 95% depth of discharge, giving 4.56kWh usable energy per battery.
- Integrated BMS with RS485 and CAN communication.
- Long cycle life of over 6,000 cycles at 95% DoD.
- 7-year warranty as standard, extendable to 10 years with online registration.
Battery Technology
The US5000-1C uses lithium iron phosphate (LFP) cells, known for their stability and safety. Pylontech’s vertically integrated manufacturing and self-designed BMS protect against abnormal temperature, voltage, current, state of charge (SoC), and state of health (SoH).
This battery is designed specifically for low-voltage 48V systems and allows independent monitoring and management of each battery in the system.
Inverter Compatibility
The Pylontech US5000-1C is compatible with the following single-phase hybrid and AC-coupled inverters:
- Solis RAI 5G 3.0kW AC Coupled Inverter Charger
- Solis 3.0kW, 3.6kW, 4.6kW, 5.0kW and 6.0kW 5G Hybrid Inverters
- Sunsynk ECCO 3.6kW, 5.0kW and 8.0kW
- Sunsynk Max 16.0kW
Delivery
Delivery time: 2–3 working days within the UK. Delivery times may be longer for the Highlands, islands, and Northern Ireland.
Technical Specifications
| Battery Type | Lithium Iron Phosphate (LFP) |
| Origin | China |
| Nominal Capacity | 4.8kWh to 76.8kWh |
| Usable Capacity | 4.56kWh to 72.96kWh |
| Nominal Voltage | 48V |
| Charge / Discharge Current | Recommended 50A, maximum 100A |
| Scalability | Up to 16 units in parallel |
| Design Life | 15+ years at 25°C |
| Communication | RS485, CAN |
| Cycle Life | Over 6,000 cycles at 95% DoD (25°C) |
| Installation Location | Indoor |
| Cooling | Natural |
| Single String Quantity | 16 |
| Operating Temperature | Charge 0°C to +50°C, Discharge −10°C to +50°C |
| IP Rating | IP20 |
| Net Weight | 40.4kg |
| Dimensions | 442 × 420 × 161mm |
What’s in the Box
- 1 × Pylontech US5000-1C 4.8kWh lithium battery
- 1 × User manual
Documents Available to Download
Questions?
If you are unsure about compatibility or installation, call us on 020 8064 0335 or email info@energian.co.uk.
