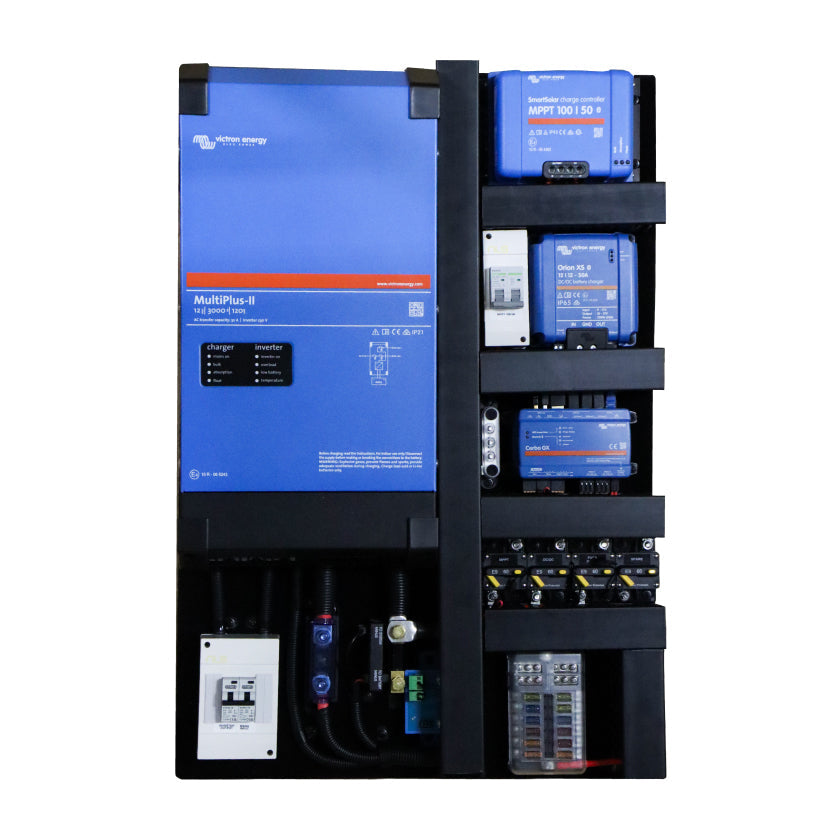

Exotronic Karijini Series Pre-Wired Victron Power Board – Portrait Layout for Professional Van Conversions

All-in-One Pre-Wired Power Solution for Caravans, RVs, and Off-Grid Living

The Exotronic Karijini Series Pre-Wired Victron Power Board delivers a fully integrated, professionally assembled electrical system that eliminates the complexity of DIY wiring. Designed for van conversions, caravans, RVs, marine applications, and off-grid tiny homes, this portrait-oriented board combines Victron Energy’s most trusted components into a single, space-efficient panel. By choosing a pre-wired solution, you reduce installation time, minimise wiring errors, and gain confidence that every connection meets professional standards.

Unlike piecing together individual components, the Karijini Series provides a cohesive system where the inverter, chargers, and monitoring work in harmony. This integration helps prevent common issues such as voltage drop, incorrect fuse sizing, and communication conflicts between devices. The result is a reliable power hub that supports your lifestyle whether you’re parked at a powered site, driving, or harnessing solar energy in a remote location.

Key Victron Components and Benefits

• Victron 3000 VA MultiPlus-II Inverter/Charger: Powers 10 A appliances with pure sine wave output, includes a 120 A mains charger for rapid replenishment from shore power, and features an automatic transfer switch for seamless switching between grid and battery.
• Victron 50 A MPPT SmartSolar Controller: Maximises solar harvest with advanced Maximum Power Point Tracking, connects via a red Anderson plug for quick panel connection, and offers Bluetooth monitoring through the VictronConnect app.
• Victron Orion XS 50 A DC-DC Charger: Provides adaptive three-step charging from the vehicle alternator, extends battery lifespan, and includes a recovery function for deeply discharged batteries. Remote control and firmware updates are available via Bluetooth.
• Victron 300 A SmartShunt Battery Monitor: Tracks state of charge, voltage, and current with high precision, and supports audible alarms to protect against over-discharge.
• Victron Cerbo GX Communication Centre: Centralises system monitoring and control, allows adjustable current limits and relay settings, and is compatible with Ruuvi temperature sensors and Mopeka tank level sensors (sold separately).

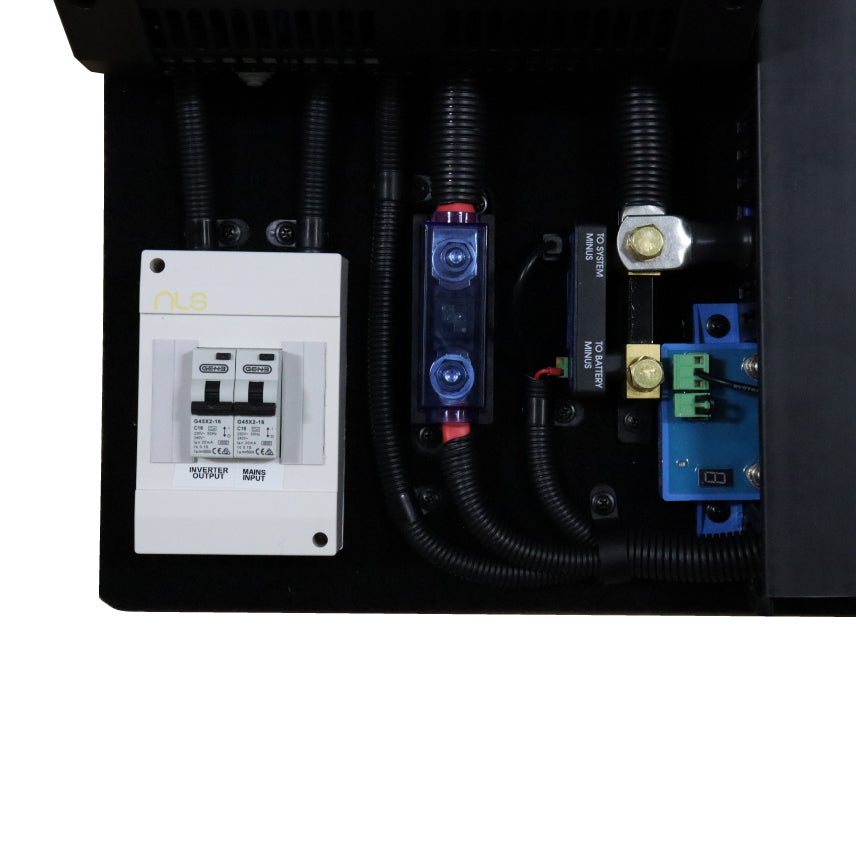

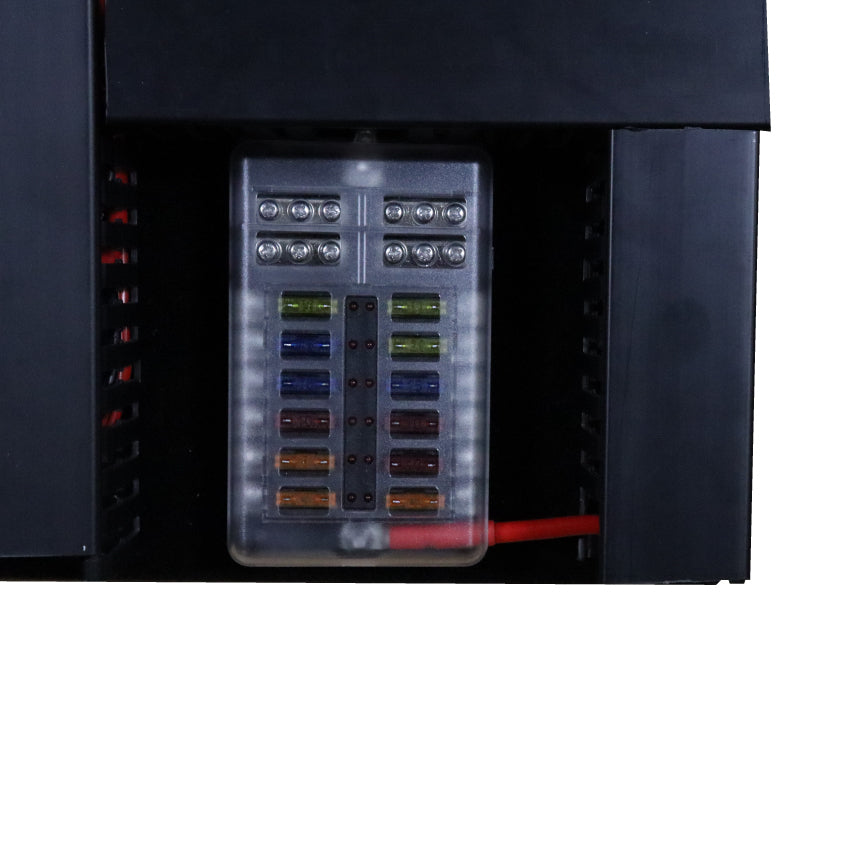

• DC Distribution and Protection: A 12-blade fuse block with Exotronic circuit breakers organises accessory loads, while a 400 A MEGA fuse and 70 mm² insulated power cable ensure safe high-current handling.

Designed for Flexible Installation

The portrait orientation and compact dimensions (780 x 530 x 170 mm) allow the board to be mounted on a wall or under a bed or seat, making efficient use of limited space. All wiring is neatly routed and secured, reducing the risk of chafing or accidental disconnection during travel. Detailed wiring diagrams are included to assist with final connections to batteries, solar panels, and loads.

Built for Australian Conditions

Every component is selected and assembled to withstand the vibration, temperature extremes, and humidity encountered in mobile and off-grid environments. The use of tinned copper conductors, corrosion-resistant terminals, and robust enclosures helps ensure long-term reliability. The pre-wired design also simplifies troubleshooting and future upgrades, as each device is clearly labelled and accessible.

Applications

• Van conversions and campervans
• Caravans and RVs
• Off-grid cabins and tiny homes
• Marine and coastal installations
• Mobile workshops and emergency response vehicles

Ready to Simplify Your Power System?

Equip your build with the Exotronic Karijini Series Pre-Wired Victron Power Board and spend less time wiring and more time exploring. Order today to receive a professionally assembled, tested, and documented power hub that’s ready for your next adventure.
