Description

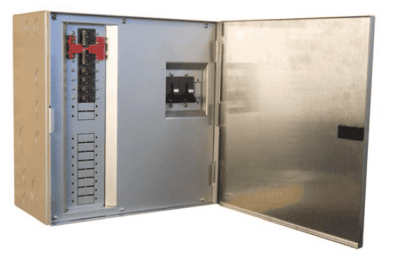

Outback Power GSLC175-PV1-120/240 Load Center for Radian Series Inverters
GSLC175PV1-120/240 -Works with one GS4048A inverter and one fm charge controller, , includes one 175a breaker, , one 80a pv breaker, one 2 pole gfdi 80a breaker, two 500a 50ma shunts and a flexnet dc monitor.
The GS Load Center is available in three different options:
- GSLC - This is a basic or "empty" version of the GSLC, recommended for custom-built or large scale systems. One GSLC per inverter.
- GSLC175-120/240 - Factory prepared with dual 175ADC inverter breakers, dual AC inputs and AC maintenance bypass. Ideal for systems with a single Radian inverter and an AC power source but can be customized in other ways.
- GSLC175PV1-120/240 -Works with one GS4048A inverter and one fm charge controller, , includes one 175a breaker, , one 80a pv breaker, one 2 pole gfdi 80a breaker, two 500a 50ma shunts and a flexnet dc monitor.
- GSLC175PV-120/240 - Factory prepared with dual 175ADC inverter breakers, dual AC inputs, AC maintenance bypass, PV GFDI, and two PV array inputs, FLEXnet DC battery monitor and three shunts. “Plug and play” for systems which have a single Radian inverter and two charge controllers and need battery monitoring.
The GSLC175-PV-120/240 is the "fully loaded" version of the GS Load Center. It has all components already present and needs only to have external wiring and devices added. Two 500A 50mV DC shunts are included.
Holds up to eighteen 0.75"(19mm) wide breakers, two 1.5"(39 mm) wide breakers (included) and one FLEXnet DC (included). Support for optional AC Input-Output-Bypass Assembly. AC breakers are rated from 10-60 amps of AC current. New double pole 50 amp breaker is available to support 120/240V input and loads.
| Model | Continuous | Battery | AC out volts/ | No load draw | Charger amps | AC surge | Weight (lbs) | Item code |
| GS8048 | 8000 | 48 VDC | 120/240 60HZ | 30 W | 115 A | 12000 W | 125 | 030-04039 |
| GS Load Centers | ||||||||
| GSLC | GS Load Center with inverter bars, breaker bus, shunt, neg, ground, neutral, and PV pos bus bars | 053-02250 | ||||||
| GSLC175-120/240 | GS Load Center with all items above plus 2 main 175 A breakers, AC IO/Bypass, and 6 AC bus bars | 053-02251 | ||||||
| GSLC175-PV-120/240 | GS Load Center with all items above with 3 shunts, FNDC, 2 pole GFDI, and dual PV input breakers | 053-02252 | ||||||
| GS Load Center Accessories | ||||||||
| GS-IOB-120/240 VAC | GS AC input/output/bypass kit split phase 120/240 VAC for single inverter only | 053-07818 | ||||||
| GS-SBUS | DC shunt bus for GS load center | 053-00130 | ||||||
| STBB-BLACK | Short bus bar kit with black Insulators for GS load center | 053-00132 | ||||||
| STBB-RED | Short bus bar kit with red Insulators for GS load center | 053-00133 | ||||||
| STBB-WHITE | Short bus bar kit with white Insulators for GS load center | 053-00134 | ||||||
| PNL-50D-AC-120/240 | Circuit breaker, 50 A, 120/240 VAC, 2 pole, panel mount for GSLC (takes two 3/4" spaces) | 053-17004 | ||||||
| PNL-175-DC | Circuit breaker, 175 A, 125 VDC, 1 pole, main DC breaker for GS inverter (2 required per inverter) | 030-04329 | ||||||
