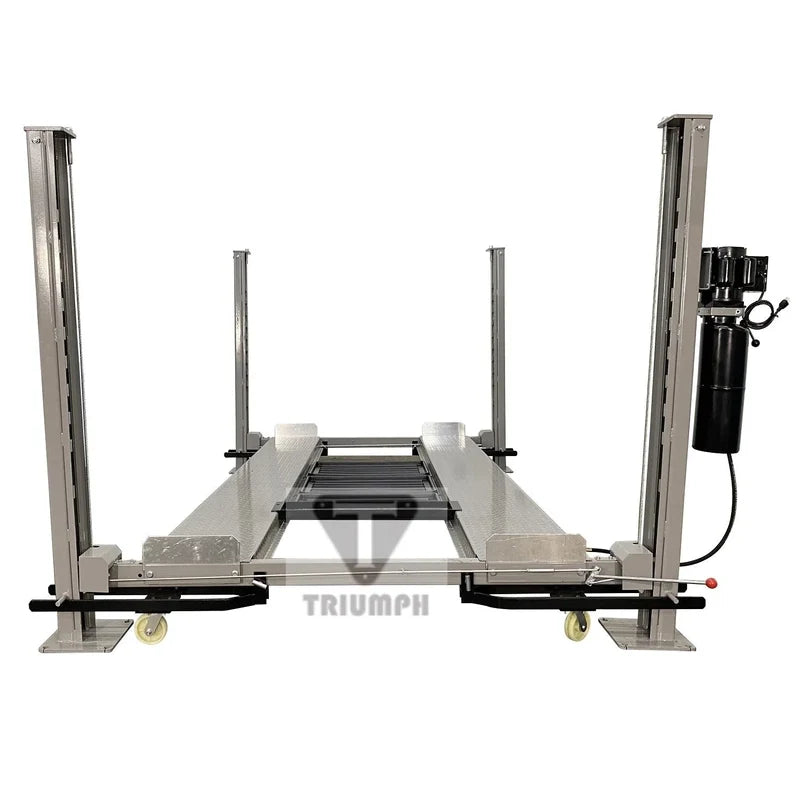

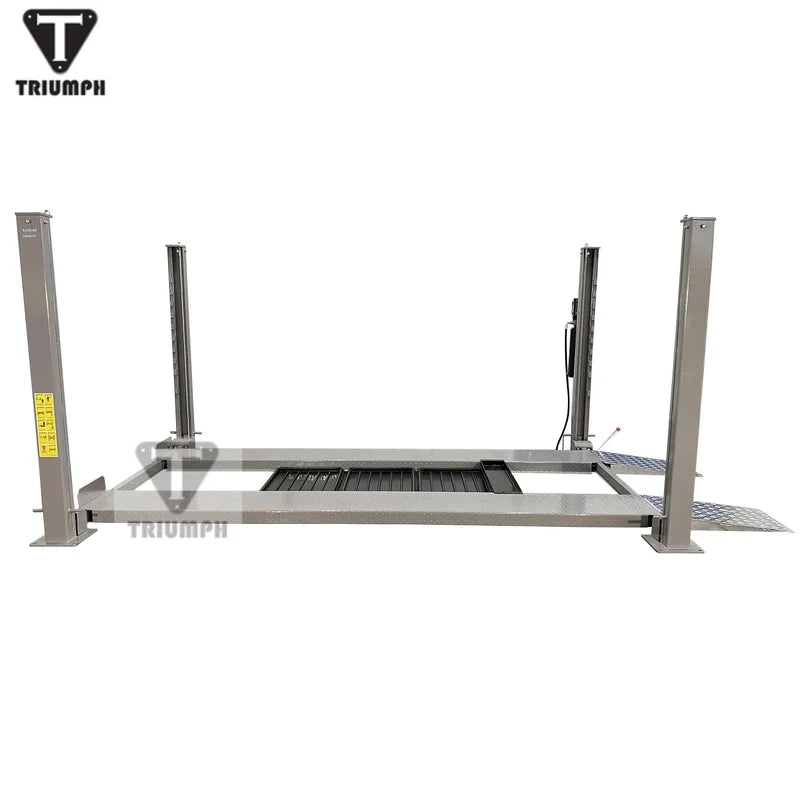

The Triumph NSS-8 is an 8,000-lb four-post lift built for two jobs: parking a second vehicle overhead to reclaim floor space, and raising a car to a comfortable working height for service. It runs on standard 110V power, rolls anywhere in the shop on its included caster kit, and drives on from either end over aluminum approach ramps. The default finish is grey.
Automatic safety locks engage at 10 positions as the lift rises, and a single-point release lowers all four corners together when you are ready to bring the vehicle down. Raised to its full 72-inch lift height, the NSS-8 clears enough room to store one vehicle beneath another, and three drip trays sit between the runways to keep fluids from the top vehicle off the car below. The four-post design has been in service for more than 20 years.
Features
Four-post design — a stable, freestanding platform that works equally well for overhead vehicle storage and for raising a car to service height.
Automatic 10-position safety locks — locks engage as the lift rises, and a single-point release drops all four corners together. The lock bars run on 5/16-inch steel lock rods.
Aluminum approach ramps — drive on from either end; the ramps fold down for loading and up out of the way once the vehicle is on the runways.
Steel-tank power unit — a steel hydraulic oil reservoir and a UL-listed power plug, wired for 110V service.
Included caster kit — reposition the lift anywhere in the garage without disassembly.
Jack tray — holds a bottle jack or floor jack so you can raise one end of the vehicle for wheel and brake work while it sits on the lift.
Three drip trays — sit between the runways to catch fluids and keep the vehicle below clean when you stack two cars.
5/16-inch steel lock rods and the folding aluminum approach ramps.Column-mounted power unit with a steel oil tank and UL-listed plug.
What's Included
Caster kit for moving the lift
Steel jack tray
Three plastic drip trays
Aluminum approach ramps
Installation manual and cable-routing guide
Included accessories: three plastic drip trays, a steel jack tray, and the caster kit.
Specifications
Triumph NSS-8 Specifications
Capacity
8,000 lbs
Lifting Height
72"
Overall Height
84"
Overall Length (without ramps)
175"
Overall Length (with ramps)
195"
Overall Width
106"
Drive-Through Width
93"
Runway Length
165"
Runway Width
18"
Between Runways
37"
Height Under Runway
69"
Lowered Height
5"
Locking Positions
10
Base Plate Size
12" x 12"
Lock Release
Single point
Lift Time
40 seconds
Voltage
110V
Shipping Weight
1,600 lbs
Warranty
Triumph backs the NSS-8 with a 1-year parts warranty.
FAQ
How does the NSS-8 ship, and will the driver unload it?
Your lift ships by LTL freight on a 48-foot semi. Plan to unload it yourself with a forklift, tractor, Bobcat, or similar equipment — the driver does not unload it, and liftgate service is not available for auto lifts. If you cannot unload at your location, the lift can be routed to the carrier's nearest freight terminal for pickup with a trailer or moving van. You schedule the delivery appointment directly with the freight company; contact sales@mygaragesupplies.com or call 307-381-1810 if you need help arranging terminal pickup.
Can I store one vehicle above another?
Yes. At its full 72-inch lift height the NSS-8 raises one vehicle high enough to park a second underneath, and the three drip trays between the runways keep fluids from the top vehicle off the car below.
What power does it need?
The power unit is wired for 110V service.
Can I get it with a 220V power unit?
Yes. Choose the 220V voltage option above; the price difference is shown on the page, and Triumph ships the lift with a 220V power unit in place of the standard 110V unit.
Can I move the lift after it is assembled?
Yes. The included caster kit lets you roll the lift to a new spot in the garage without taking it apart.
