Features

Hybrid Power

• 6,500W pure sine wave inverter with 13,000W surge capacity delivers reliable power for homes, cabins, RVs, and off-grid applications.

• Supports solar, battery, utility, and generator integration for flexible energy management.

• Three load modes—Utility Grid First, Solar First, and SBU Priority— provide flexible power management for different applications.

• Supports parallel operation with up to 6 units for expanded system capacity and split-phase applications.

Solar & Battery Management

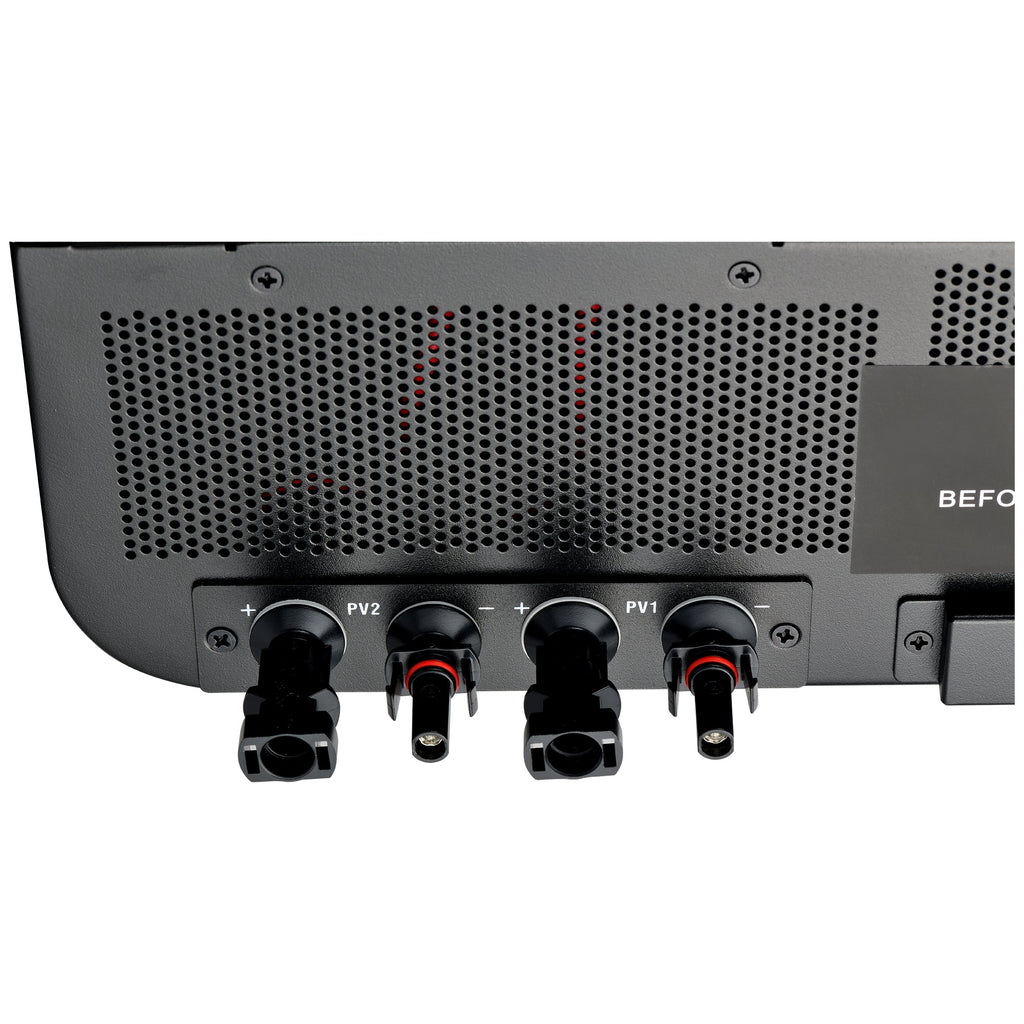

• Built-in dual 120A MPPT charge controllers support up to 8,000W PV input for maximum solar harvesting.

• Three charging modes—Solar First, Solar & Utility, and Only Solar— provide flexible charging options for different energy scenarios.

• Compatible with AGM, Gel, Flooded, and lithium batteries for flexible energy storage.

Smart Monitoring & Control

• Built-in Wi-Fi monitoring enables remote system monitoring through the RICH SOLAR mobile app.

• 5" LCD touchscreen with RGB status lights provides intuitive system monitoring and configuration.

• Reserved BMS communication port supports RS485, CAN-BUS, and RS232 connectivity.

Reliable Protection

• Comprehensive protection against overload, over-temperature, and short circuit for safe and reliable operation.

• UL 1741 certified for trusted safety and compliance.

• Replaceable fan design and built-in anti-dust kit improve long-term reliability and simplify maintenance.

Specifications

Maximum PV

• Input Power: 8000W (4000W × 2)

• Solar Charger Type: MPPT

• MPPT Operating Voltage Range:  90V DC–450V DC

• Maximum PV Open Circuit Voltage: 550V DC

• Maximum PV Input Current: 18A x 2

AC Input

• Input Voltage Waveform: Sinusoidal (Utility or Generator)

• Nominal Input Voltage: 120V AC

• Maximum AC Input Voltage: 150V AC

• Max AC Input Current: 60A

• Nominal Input Frequency: 50Hz / 60Hz (Auto Detection)

• Transfer Time: 10ms (UPS) / 20ms (Appliances)

• Efficiency (Line Mode): >95%

AC Output

• Rated Output Power: 6500VA / 6500W

• Surge Power: 13,000VA

• Output Voltage: 120V AC ±5%

• Output Waveform: Pure Sine Wave

• Peak Efficiency: 91%

• Transfer Time: 10ms (UPS) / 20ms (Appliances)

• No Load Power Consumption: <75W

Battery & Charger

• Nominal DC Input Voltage: 48V DC

• Maximum Charge Current: 120A

• Bulk Charging Voltage: 58.4V DC (Flooded) / 56.4V DC (AGM / Gel)

• Float Charging Voltage: 54V DC

• Overcharge Protection: 66V DC

General

• Communication Interface: USB, RS232, RS485, Wi-Fi, Dry Contact

• Operating Temperature: 14°F to 104°F

• Dimensions: 6.2 × 19.8 × 20.9 in

• Net Weight: 44 lb
