SunSaver 10A, 24V Charge Controller
Morningstar, LVD Model

The SunSaver is a very reliable charge controller and uses the same battery charging algorithm as the ProStar and offers many of the advantages of the ProStar for smaller systems, at a reduced cost. Constant voltage pulse width modulation (PWM) charging is a proven advance compared to the common on/off PV regulators. SunSavers are field-selectable for sealed or flooded batteries. A rugged anodized aluminum case and epoxy encapsulated electronics ensure durability and longevity. A temperature compensation sensor in the charge controller varies full charge voltage with temperature. LVD Model, LED Charging, 24V, 10 LVD Amps. 5-year warranty. Dimensions: 6" x 2.2" x 1.3".

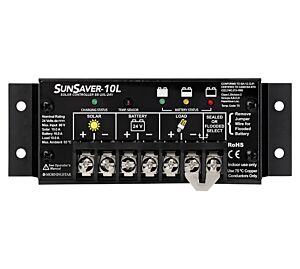

MorningStar SunSaver SS-10L-24V Charge Controller
Rated Solar Current: 10 Amp
Rated Load Current: 10 Amp
System Voltage: 24 Volt
Includes Low Voltage Disconnect

Detailed Description:

The MorningStar SunSaver line of controllers (8 models in all) have built-in temperature compensation, they are epoxy encapsulated, but are not outdoor rated since they have an exposed front mounted 7 position terminal strip. Units are available for 12 or 24V systems ranging in amperage capacity from 6-20 amps. The regulating voltage is adjustable for sealed or flooded batteries by simply removing/installing an included metal jumper between terminals 6 and 7. A green "charging" LED is standard on all SunSaver units while the units with the optional low voltage disconnect (LVD) for a DC load also have a red LED to indicate when the load has been disconnected to prevent the battery from being over discharged. Each terminal can accept up to two #10 AWG wires. It's dimensions are 6" x 2.2" x 1.3" and it weighs 8 oz.

Morningstar’s SunSaver is the world’s leading small solar controller for both professional and consumer applications.

SunSaver's Techonology Provides:

• Exceptional Reliability
• PWM Battery Charging
• Consistent High Quality

The SunSaver’s advanced design delivers outstanding performance and value. The SunSaver’s low cost is made possible by Morningstar’s unique approach to design and manufacturing:

• Automated production
• ISO 9002 quality programs
• Latest power electronic technologies
• Latest control and logic technologies
• High volume manufacturing

Features

• Eight versions available 12 and 24 volts 6, 10 and 20 amps
• 100% solid state
• Series design (not shunt)
• True 0 to 100% PWM duty cycle
• Setpoint accuracy to 35 mV
• Rated for 25% overloads
• Fully encapsulated in epoxy potting
• Marine rated terminals / anodized case
• Temperature compensation
• Sealed / Flooded battery select
• No need to derate
• Parallel for 40 amps or more
• Green charging / Red LVD indicators
