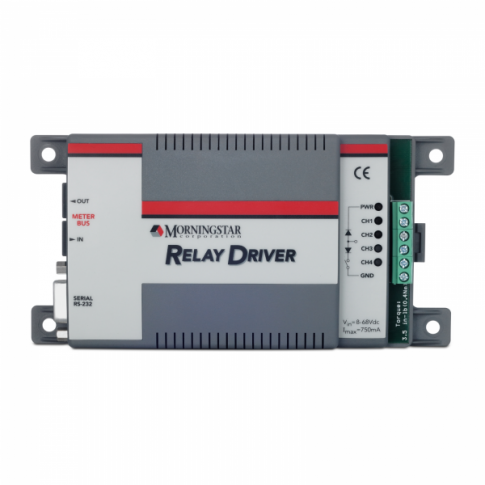

MorningStar RD-1 Relay Driver with Auto GenStart Function
This innovative versatile-application Morningstar Relay Driver is a highly flexible and fully programmable logic relay module, capable of switching appliances on/off or sending signals and generating alarms when a predefined event occurs.
A truly versatile product, this relay driver can be used in a wide range of applications and scenarios, such as:
- Monitoring battery voltage: When the battery is full, excess solar energy can be directed to power a fridge or water heater.
- Monitoring battery voltage: When the battery is too low, the driver can start a generator or mains battery charger to top it up or disconnect any loads (low voltage disconnect).
- Performing staged low voltage disconnect: Ensures the most critical loads stay on for longer.
- In a wind power system: Diverts wind turbine power to a dump load when the battery is full.
- Enhancing wind turbine efficiency: Routes output through a voltage boost converter at low RPMs but uses the output directly at high RPMs.
- Activating cooling or battery fans based on temperature.
- Controlling motion sensors.
- Controlling water level pumps.
- Managing pressure release valves.
- Controlling space heating or cooling.

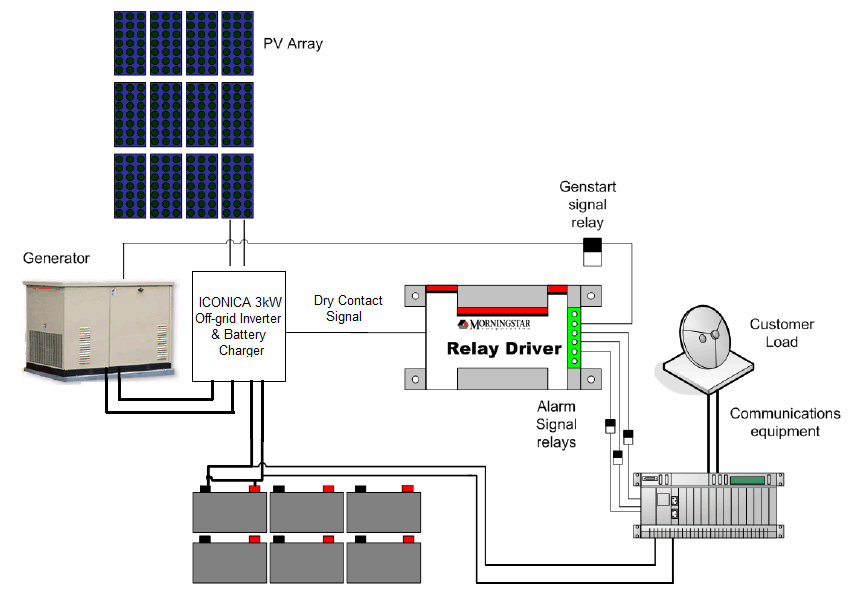

The built-in GenStart function offers advanced generator control with up to three channels, programmed to start a generator based on specific events. While it functions as a standard on/off dry contact generator control for small, simple generators, in this mode, the relay driver can also manage advanced generators with a 3-wire control system. In such setups, the driver generates various signals required by the generator, such as: Run, Pre-crank (Pre-Heat), Crank (Momentary Run), Load, Stop, etc., each with different durations, sequences, and delays relative to each other.
Specifications:
- Number of channels: 4
- Nominal system voltage: 12V / 24V / 36V / 48V
- Operating voltage: 8V - 68V
- Maximum channel current: 750 mA
- Self-consumption: < 20 mA
- Transient surge protection: 1500W / channel
- Temperature sensor range: -40°C to +85°C
- Communication ports (opto-isolated): RJ-11 metre bus connections, 9-pin serial RS-232
- Terminal size: 2.5mm²
- Operating temperature: -40°C to +45°C
- Storage temperature: -55°C to +85°C
- Dimensions: 163 x 81 x 33 mm
- Weight: 0.2kg
Delivery: Free of charge.
This product is covered by a 5-year warranty.
Documents for download:
Morningstar RD-1 Relay Driver User Manual
Morningstar RD-1 Relay Driver Datasheet
Morningstar RD-1 Relay Driver Product Overview
Morningstar RD-1 Relay Driver Applications Guide
Morningstar RD-1 Relay Driver - Using for Load Control
Morningstar RD-1 Relay Driver - Networking and Communications
