Scalable Solar Networking with the Morningstar RSC-1 Adapter

The Morningstar RSC-1 is a specialised serial communication adapter designed to bridge RS-232 and EIA-485 networks. Standard RS-232 connections are strictly point-to-point and limited to very short distances, which presents a challenge in expansive off-grid or industrial solar setups. By converting these signals to EIA-485, this adapter overcomes those limitations. It allows you to network up to 128 Morningstar products on a single, continuous communication bus. This capability is essential for large-scale solar installations where charge controllers and accessories must communicate over extended distances across a facility or compound. Furthermore, EIA-485 differential signalling is highly resistant to electrical noise, ensuring reliable data transmission even in harsh industrial environments.

Seamless Integration Using Modbus Protocol

All data transmitted through this communication bus utilises the industry-standard Modbus protocol. Chosen specifically for its highly robust architecture and exceptional compatibility, Modbus ensures reliable data exchange with a wide variety of third-party monitoring equipment. Whether you are integrating off-grid solar controllers into an existing industrial control system or a complex Supervisory Control and Data Acquisition (SCADA) network, this adapter provides a highly dependable data bridge. Every compatible Morningstar device features its own detailed Modbus specification, allowing system integrators comprehensive access to specific operational parameters, historical data, and real-time telemetry.

Versatile Network Configurations for Advanced Solar Systems

This adapter facilitates sophisticated network topologies that enable advanced control and centralised monitoring. Typical configuration scenarios include:

• Networking several TriStar and TriStar-MPPT solar charge controllers for synchronised battery charging and unified system monitoring.
• Adding PC Meterbus Adapters (MSC) into multi-device networks to convert RJ-11 outputs for broader system compatibility.
• Integrating Relay Drivers to manage automated load control, generator starting, and alarms within a larger networked system.
• Connecting remote standalone power systems directly to central industrial SCADA monitoring platforms for real-time site oversight.

Engineered for Reliable Industrial Installation

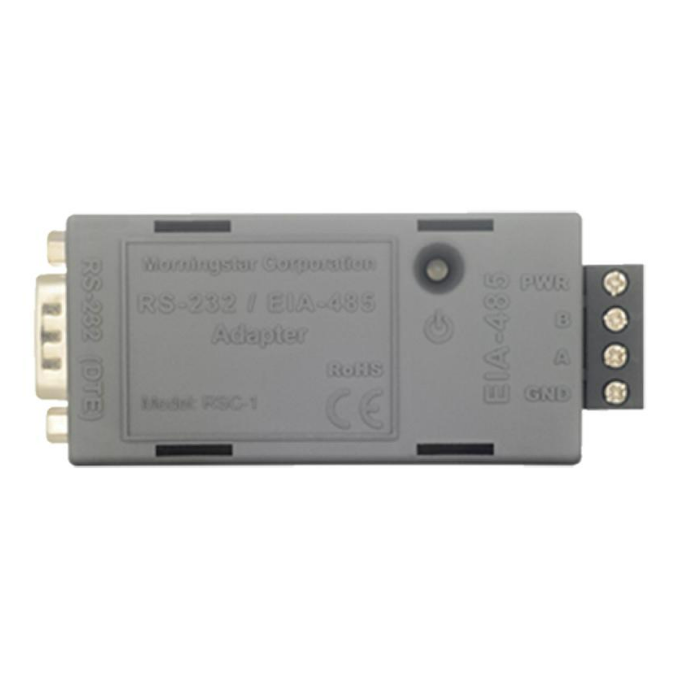

Built to simplify both initial installation and ongoing maintenance, the hardware includes a removable four-position EIA-485 terminal block. This intelligent design enables secure, hard-wired connections to the communication bus while allowing the main unit to be quickly detached without unwiring the entire network. An integrated status LED provides immediate visual feedback for power and data transmission diagnostics, significantly reducing troubleshooting time during commissioning. For clean and secure mounting inside electrical enclosures or switchboards, the adapter features moulded tabs that snap directly onto any standard 35mm DIN rail.

Key Features

• Converts standard RS-232 to EIA-485, supporting up to 128 networked devices on a single bus
• Facilitates long-distance communication far exceeding the physical limits of RS-232
• Utilises highly resilient differential signalling to reject electrical noise in industrial settings
• Transmits all data using the robust, widely compatible industry-standard Modbus protocol
• Removable four-position EIA-485 screw terminal ensures secure and straightforward bus wiring
• Standard 9-pin RS-232 DTE connector (male) provides direct compatibility with PCs and serial devices
• Integrated status LED allows for rapid communication monitoring and system diagnostics
• Moulded attachment tabs designed for rapid, secure mounting to standard 35mm DIN rails
• Includes a low-profile RS-232 ribbon cable to facilitate easy connection in tight spaces

Complete Your Off-Grid Communication Network

Enhance the monitoring, automation, and control capabilities of your remote power system. Add the Morningstar RS-232 to EIA-485 adapter to your installation today and achieve comprehensive, reliable oversight of your critical off-grid and industrial solar assets.
