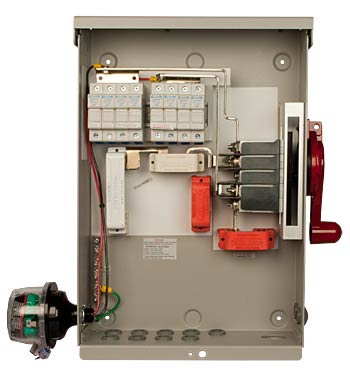

Midnite Solar MNPV8HV-Disco Nema 3R Combiner w/ Disconnect Switch
£465.00
Sale price
£465.00
Regular price
Skip to product information
Size: 18.5"L x 14"W x 4.6"D
Boxed: 24"L x 19"W x 6"D
Weight: 16 Lbs
* Convertible configuration (field configurable)
* Eight strings combined for up to 160 Amps single 230 Amp/600V single pole disconnect)
* 4 + 4 positive strings, separate PV+ and PV- for use with 2 inverters (2 pole 115 Amp disconnect)
* Four strings positive, four strings minus for use with non-isolated inverters (2 pole 115 Amp disconnect)
* Disconnect has built in shunt trip with positive feedback
* Birdhouse compatible
* Load Break Rated
* Optional PV connected power supply
* Optional AC connected power supply for redundancy
* Nema 3R aluminum enclosure (no rust, won’t turn to dust)
* 90o C connections
* MNSPD600 Lightning Arrestor included
* 1/2" strain reliefs and hole plugs included
* See thru deadfront & color coded busbar guards included
* Fuseholders included
* 15a/600v fuses included
* Meets NEC 2011
Midnite Solar MNPV8HV-Disco Nema 3R Combiner w/ Disconnect Switch
£465.00
Sale price
£465.00
Regular price
Shipping calculated at checkout.
053-02993
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Midnite Solar MNPV8HV-Disco Nema 3R Combiner w/ Disconnect Switch
MNPV8HV Disco 3R PV Disconnecting Combiner, 5 poles, 80 or 160 amp busbars depending on how they are configured. Switch is a 100 amp load break rated or 175 amps load break rated depending on configuration
NEW! MidNite Solar MNPV Combiners with disconnect switch
The MidNite Disco line of PV combiners with disconnects incorporates NEC 2011 requirements. The disconnect handle is bright red for visibility and can be locked in the off position. Several models can be configured for bi-polar or ungrounded inverters where both the positive and negative legs of the array need circuit protection (maximum output current is split also). Models are available for 150 VDC, 300 VDC, 600 VDC, or 1000 VDC arrays. All of the combiners are made from powder coated aluminum for corrosion and sunlight resistance for long life in harsh conditions. A clear see-through dead front is supplied with all disco combiners. Models are available with either NEMA 3R or NEMA 4X ratings. Many of these come with a shunt trip disconnect that enables the MNDiscoPSB to trip the disconnect remotely. An MNSPD-600 is included standard with many of these combiners. See the table below for options are that available or included.Size: 18.5"L x 14"W x 4.6"D
Boxed: 24"L x 19"W x 6"D
Weight: 16 Lbs
* Convertible configuration (field configurable)
* Eight strings combined for up to 160 Amps single 230 Amp/600V single pole disconnect)
* 4 + 4 positive strings, separate PV+ and PV- for use with 2 inverters (2 pole 115 Amp disconnect)
* Four strings positive, four strings minus for use with non-isolated inverters (2 pole 115 Amp disconnect)
* Disconnect has built in shunt trip with positive feedback
* Birdhouse compatible
* Load Break Rated
* Optional PV connected power supply
* Optional AC connected power supply for redundancy
* Nema 3R aluminum enclosure (no rust, won’t turn to dust)
* 90o C connections
* MNSPD600 Lightning Arrestor included
* 1/2" strain reliefs and hole plugs included
* See thru deadfront & color coded busbar guards included
* Fuseholders included
* 15a/600v fuses included
* Meets NEC 2011
| MidNite PV combiners without disconnect | ||||||||||
| Model | PV source circuit options | Output circuits | Maximum | MNPV combiner dimensions | Weight | Birdhouse | Item | |||
| Max # | Max # | Max # | Max # | Max | ||||||
| MNPV3 | 3 | -- | 2 | 1 | 60 | #1/0 | 10.5 x 4.9 x 3.4 | 2 | -- | 053- |
| MNPV6 | 6 | -- | 4 | 2 | 120-80¹ | #1/0 | 12.7 x 7.9 x 3.4 | 4 | -- | 053- |
| MNPV6- | -- | 3 | -- | 1 | 120 | #1/0 | 12.7 x 7.9 x 3.4 | 4 | -- | 053- |
| MNPV12 | 12 | -- | 10 | 2 | 200 | #2/0 | 14.7 x 12.2 x 3.5 | 6 | -- | 053- |
| MNPV12- | -- | 6 | -- | 2 | 168 | #2/0 | 14.7 x 12.2 x 3.5 | 6 | -- | 053- |
| MNPV16 | -- | -- | 16 | 1 | 240 | 250mcm | 20.7 x 16.2 x 3.5 | 12 | -- | 053- |
| MNPV16- | 24 | -- | -- | 1 | 240 | 250mcm | 20.7 x 16.2 x 3.5 | 12 | -- | 053- |
| MNPV16- | -- | 12 | -- | 1 | 240 | #2/0 | 20.7 x 16.2 x 3.5 | 12 | -- | 053- |
| MidNite PV combiners with disconnect | ||||||||||
| MNPV4HV Disco 3R Basic | -- | -- | 4 | 1 | 80 | #1/0 | 15.4 x 18.4 x 5 | 8 | No | 053- |
| MNPV4HV Disco 3R Deluxe | -- | -- | 4 | 1 | 80 | #1/0 | 15.4 x 18.4 x 5 | 10 | Opt/Yes | 053- |
| MNPV6 Disco | 6 | -- | -- | 2 | 120 | #1/0 | 12.7 x 7.9 x 7.5 | 6 | No | 053- |
| MNPV6-250 Disco | -- | 3 | -- | 1 | 120 | #1/0 | 12.7 x 7.9 x 7.5 | 6 | No | 053- |
| MNPV6HV | -- | -- | 6 | 1 | 125 | #2/0 | 20.8 x 17.3 x 5.8 | 614 | Opt/Yes | 053- |
| MNPV8HV | -- | -- | 8 | 2 | 160 | #2/0 | 23.4 x 19.3 x 5.4 | 16 | Opt/Yes | 053- |
| MNPV8HV | -- | -- | 8 | 2 | 160 | #2/0 | 23.4 x 19.3 x 5.4 | 18 | Opt/Yes | 053- |
| MNPV16HV | -- | -- | 16 | 2 | 230 | 350mcm | 23.5 x 26 x 5.8 | 27 | Opt/Yes | 053- |
| MNPV36 600 | -- | -- | 36 | 2 | 330 | 2x-350 mcm | 32.7 x 29.5 x 7 | 45 | Opt/Yes | 053- |
| MNPV36 1000 | -- | -- | 36 | Bi-polar | 100 dual | 2x-350 mcm | 32.7 x 29.5 x 7 | 46 | Opt/Yes | 053- |
| MidNite PV combiners with Arc-fault disconnect | ||||||||||
| MNPV24HV | -- | -- | 24 | 1 |
| |||||
