Description

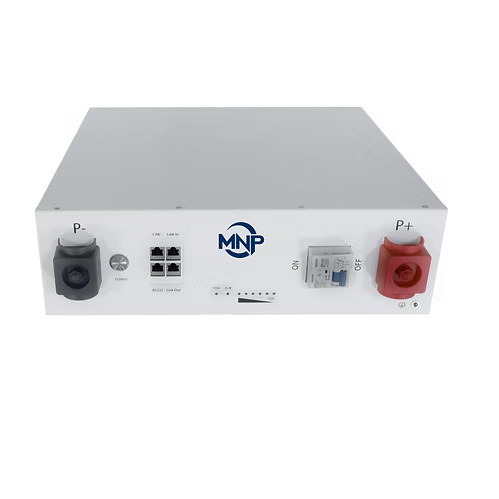

The MidNite Solar MNPowerflo5 is a 5.12kWh, 51.2V lithium iron phosphate server rack battery built with EVE A+ grade cells for residential, commercial, and industrial energy storage applications requiring long-cycle-life, scalable 48V power.
Key Features:
- EVE A+ Grade LFP Cells with 6,000-Cycle Life: Built with the same A+ grade lithium iron phosphate cells used in electric vehicles, the MNPowerflo5 delivers a 15-year design life and 6,000 cycles at 25°C — the longest design life in the industry — backed by a 10-year warranty.
- Scalable Up to 81kWh: Up to 16 units can be connected in parallel for a maximum system capacity of 81.92kWh, making the MNPowerflo5 suitable for small residential systems and large commercial installations alike.
- Plug-and-Play MidNite AIO Integration: Battery automatically assigns addresses with no dip switch programming required, automatically identifies the inverter protocol, and communicates with the MidNite AIO inverter in closed-loop — guaranteed not to lose communication from future firmware updates.
- Multi-Level BMS Protection: Integrated battery management system provides multi-level protection for safe operation across all conditions, with remote BMS firmware upgrades available via the MidNite AIO inverter and monitoring through the MidNite Pro app.
- UL Certified & Broadly Compatible: Certified to UL 1973, UL 9540A, and UL 9540, and compatible with all 48V inverters that support LFP using the standard PYLON protocol for maximum system flexibility.
The MNPowerflo5 is designed for a wide range of applications including residential backup power, commercial energy storage, off-grid systems, grid-tie, and self-consumption installations. Its CAN/RS485/RS232 communication interfaces provide flexible integration options, and each battery can be individually monitored via the MidNite Pro app or optional software for complete system visibility.
The rack-mount form factor installs in a standard server rack enclosure and pairs with the MN15-12KW-AIO all-in-one inverter for a complete, integrated energy storage solution. Natural convection cooling requires no fans or active cooling components, reducing maintenance and noise in indoor installations.
Technical Specifications
| Specification | Details |
|---|---|
| Weight | 96.5 lbs (43.8 kg) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy | 5,120Wh (5.12kWh) |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Cell Grade | EVE A+ Grade |
| Cycle Life | 6,000 cycles @ 77°F (25°C), 0.5C/0.5C |
| Operating Voltage | 46.4~57.6V |
| Nominal Charging Current | 75A |
| Nominal Discharging Current | 75A |
| Max. Discharging Current | 100A |
| Communication Interfaces | CAN / RS485 / RS232 |
| Protocol Compatibility | PYLON |
| Scalable | Up to 16 units in parallel (81.92kWh max) |
| Environment | Indoor (Type 1) |
| Charging Temperature | 32°F to 122°F (0°C to 50°C) |
| Discharging Temperature | -4°F to 122°F (-20°C to 50°C) |
| Storage Temperature | 14°F to 113°F (-10°C to 45°C) |
| Altitude | Maximum 9,843 ft (3,000 m) |
| Cooling Method | Natural Convection |
| IP Rating | IP20 |
| Dimensions (L x W x D) | 17.7 x 17.4 x 5.2 in (450 x 444 x 133 mm) |
| Installation | Rack Mount |
| Design Life | 15 Years |
| Certifications | UL 1973, UL 9540A, UL 9540 |
| Warranty | 10 Years |
