Midnite MNE175XW (Epanel to mount under one XW inverter)

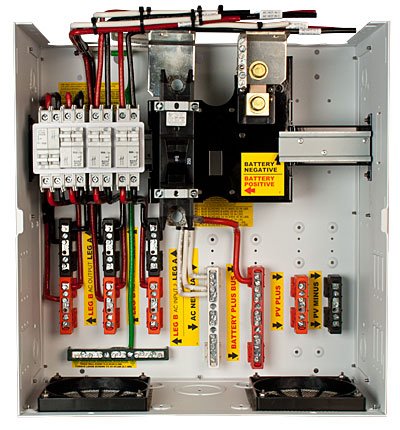

The XW inverter is mounted directly above the E-Panel. It comes with a 175-amp inverter battery breaker, AC inputs for generator and utility, knockouts for up to 7 DIN rail mount breakers and 6 panel mount breakers and a 500-amp shunt. Massive tin-plated copper bus bars connect to the XW’s battery terminals. There are bus bars for AC inputs, AC output, neutral, ground, PV + in, PV- in, Bat +, Bat-, covered by a metal dead-front behind the reversible door. Charge controllers mount to either side or both sides at once for dual controllers. The AC bypass can be configured as input and output on/off as well as AC bypass. The XW MPPT controller requires no mounting bracket. MX60, MF80 and Classic require right or left E-Panel charge controller mounting brackets. A right-hand bracket is included. The color-matched enclosure is 16" wide, 18" tall, 8" deep and weighs 42 pounds.

Features: inverter battery breaker, 2 separate 60 amp AC inputs for generator and utility, 60 amp AC bypass switch, knockouts for up to seven din rail mount DC, DCGFP63 or AC breakers and 12 panel mount or DC-GFP80 breakers. Massive tin plated copper bus bars directly connect to the XW’s battery terminals, bus bars for AC inputs, AC output, neutral, ground, PV + in, PV- in, Bat +, Bat-, 500 amp shunt, metal dead front behind the reversible door, Charge controllers mount to either side or both sides at once for dual controllers. AC bypass can be configured as input & output on/off as well as AC bypass. The XW MPPT controller requires no mounting bracket. FM60, FM80 and Classic require Right or Left E-Panel charge control mounting brackets. Right hand bracket furnished standard.
