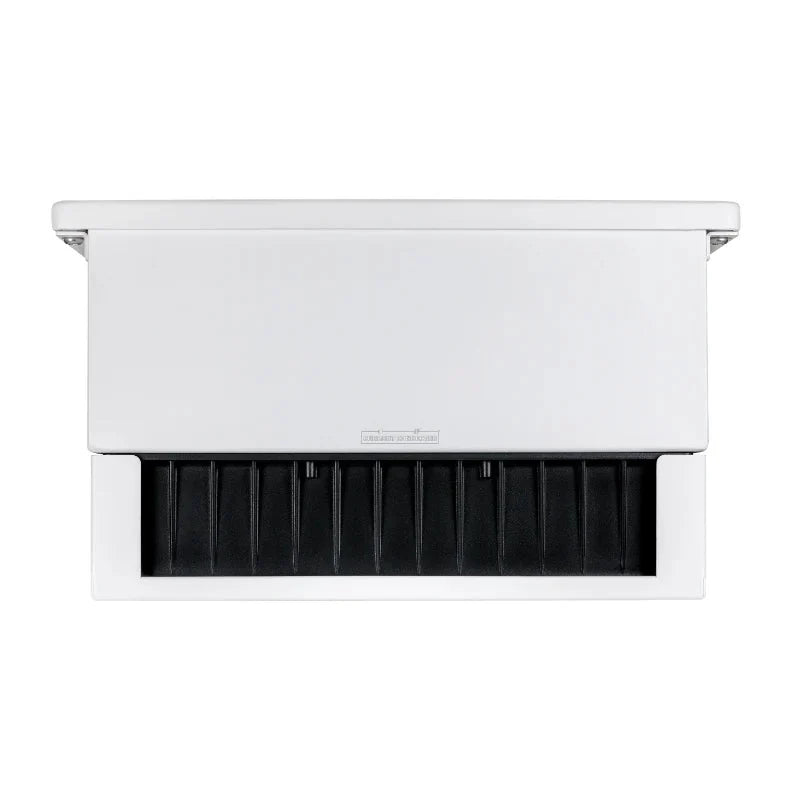

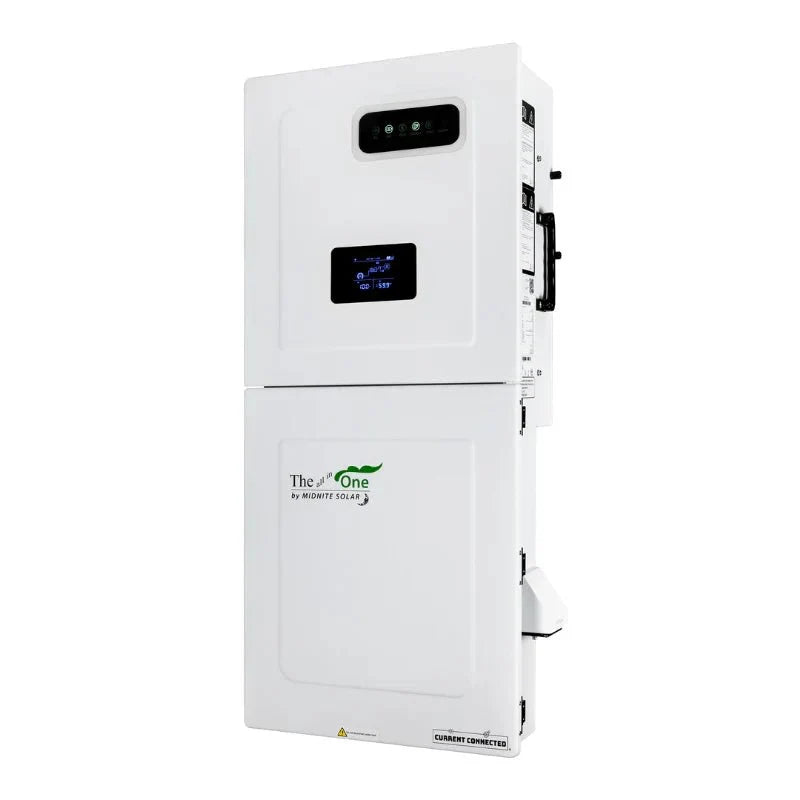

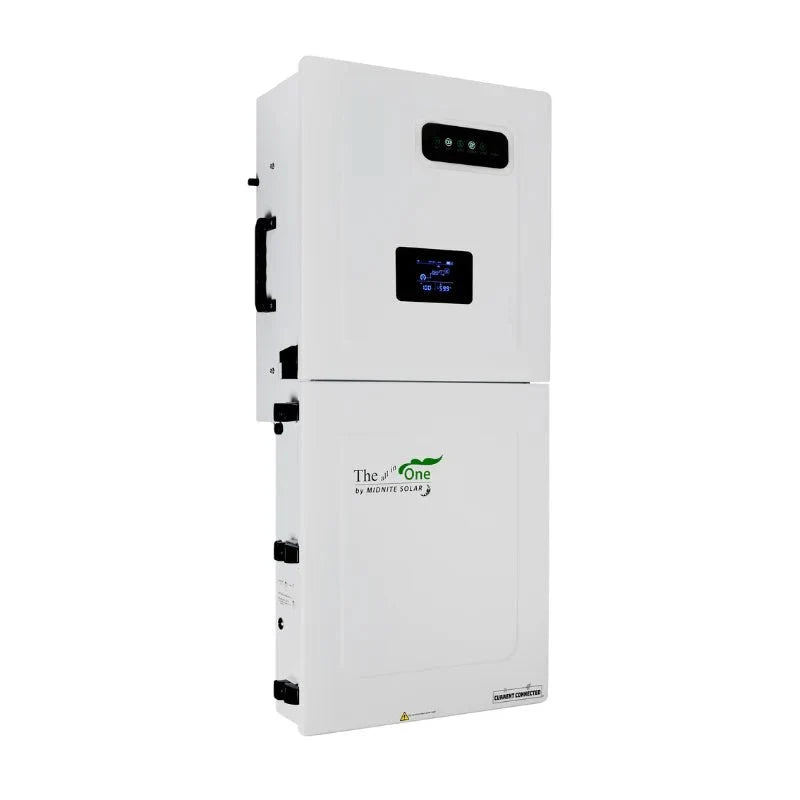

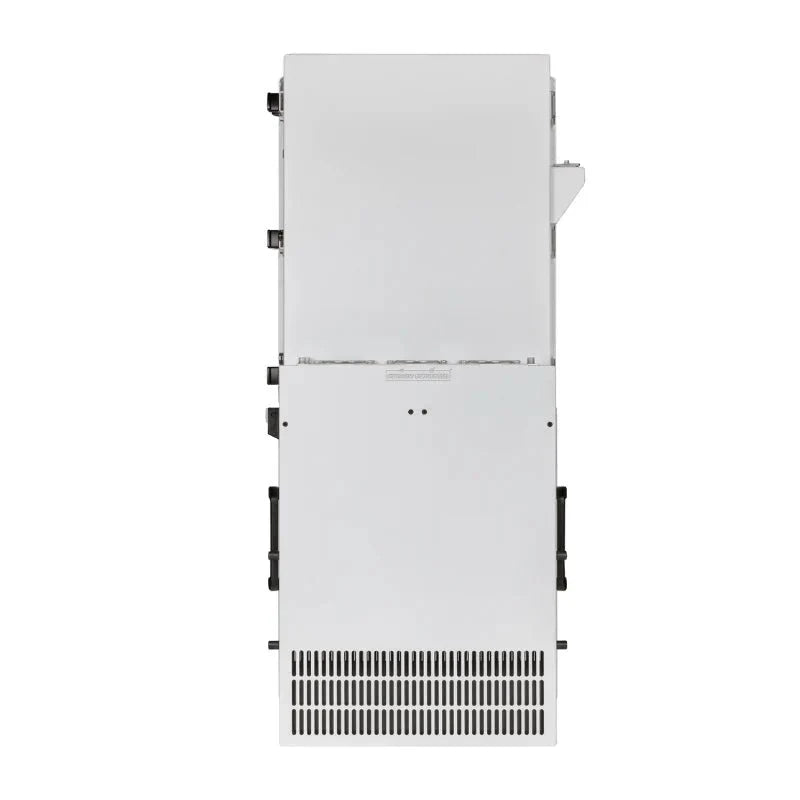

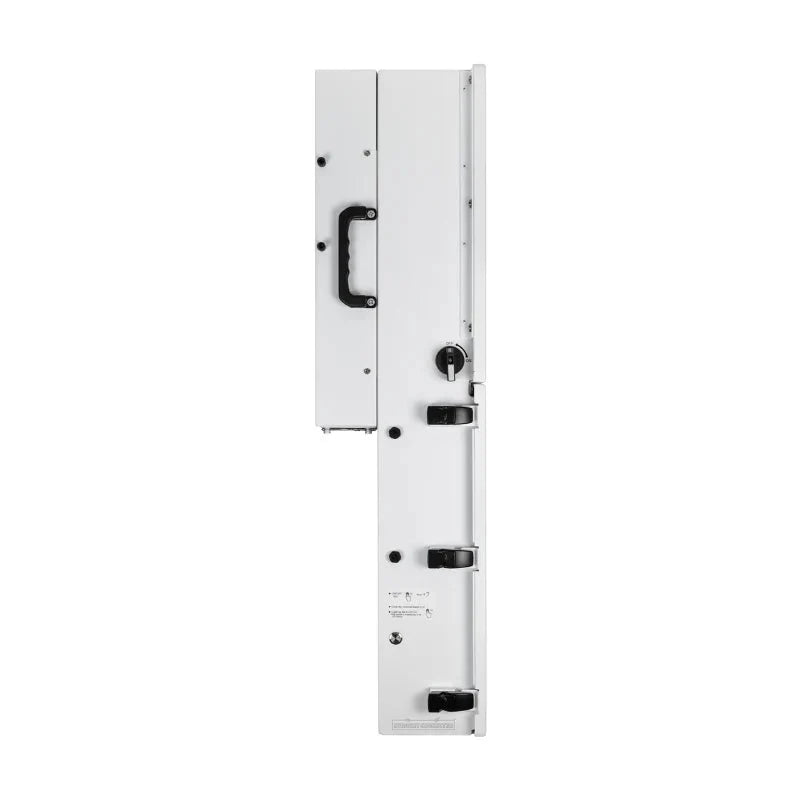

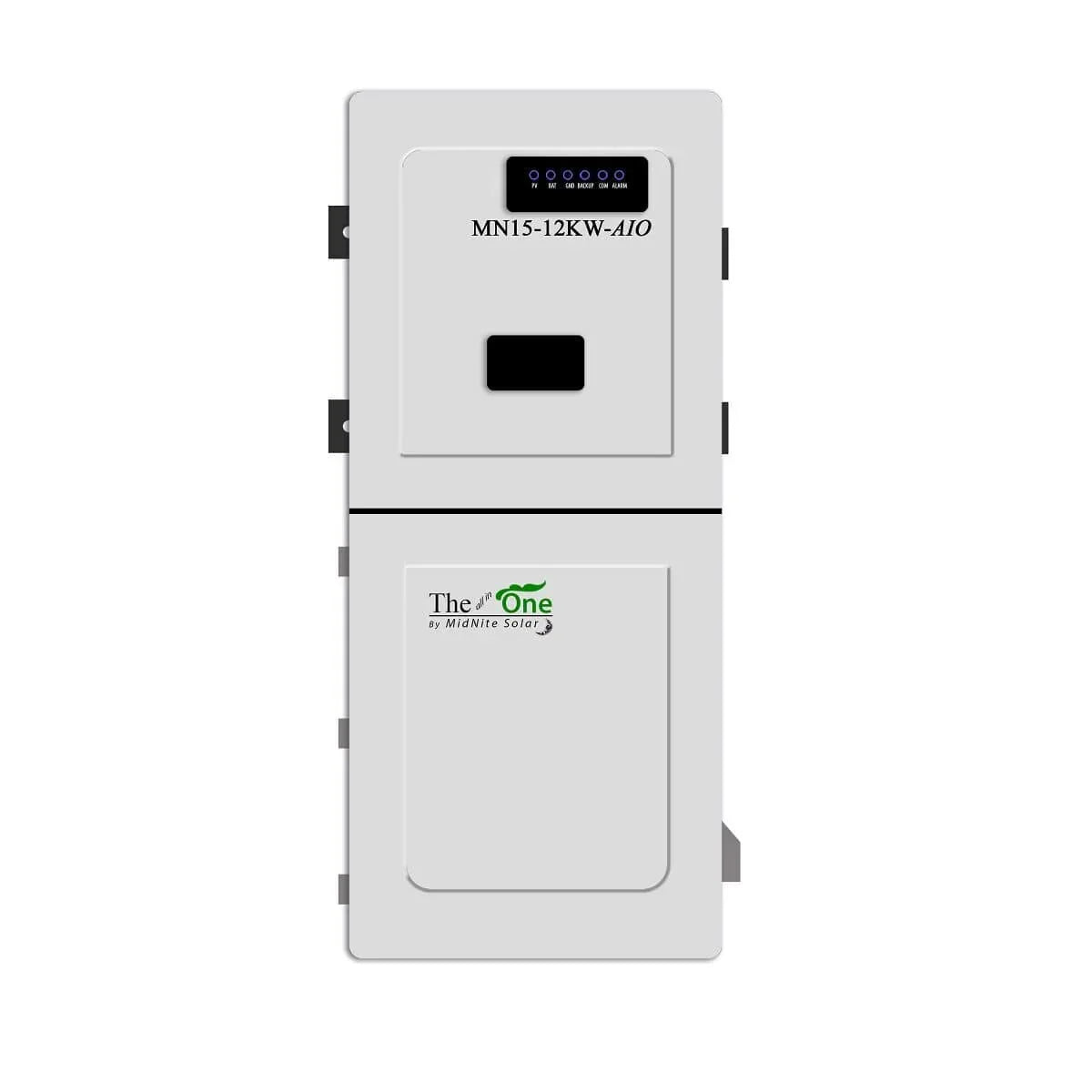

The new MidNite Power MN15-12KW-AIO All-in-One inverter is a testament to innovation coming from a company that you have known and trusted for many years as an industry leader. The MidNite All-in-One (AIO) is an 11,400 watt system that features three powerful MPPT charge controllers and three 120/240VAC programmable outputs that can be utilized for load shedding or opportunity loads. The MidNite AIO employs features not found in other AIO inverters following the MidNite legacy of providing industry shaping products.

The AIO’s 3 integrated 120/240VAC outputs can replace an external programmable distribution box saving you thousands in installation costs. Heavy use loads can be controlled based on user defined parameters. The MidNite AIO provides customizable settings to tailor your system perfectly to your electrical needs, a flexibility not offered by any existing All-in-One inverter on the market. The AIO’s 3 MPPT inputs are capable of utilizing the full 600VDC allowed by the NEC. Most All-in-One inverters only have an MPPT window up to 500VDC. The AIO takes advantage of the full allowable 600VDC allowing you more powerful arrays to meet your usage demands.

Real time monitoring and control through our web based app allows you to view your system online or view the inverters performance from the built in display. MidNite Power is committed to providing innovative reliable products to the solar industry with ongoing adaptations based on customer demand.

Features:

• 30A, 50A & 60A 120/240VAC branch circuit breakers with programmable relays for load shedding and AC inputs for generator and AC coupling

• Three 15A and One 20A 120VAC load breakers

• UL1741SB sell to grid, self consumption with CT’s or Off-Grid mode

• Residential and commercial applications

• Up to 200% oversizing allowed with 3 MPPTs

• Supports up to 30A PV input current

• Supports AC coupling

• Supports self-consumption

• Works with our standard MNBTS Battery Temp Sensor (not included)

• Arc Fault, Ground Fault, and Rapid Shutdown included

• 100A AC pass through with input and output breakers for NEC compliance

• All AC and DC breakers are Magnetic Hydraulic allowing for 100% continuous duty

• 250A CBI Magnetic Hydraulic battery breaker

• Supports 40-64VDC Lithium or Lead-acid battery

• Maximum battery charge/discharge current of 210A

• Stable Output Power

• Continuous 100% AC power (11.4kW with PV, 10kW without PV)

• Unbalance load surge kicks butt

• Supports 120/240/208VAC connections

• Seamless backup transition (<10ms)

• Stackable up to 9 units

• Standby generator connection for whole-home back up

• Remote configuration and upgrade
