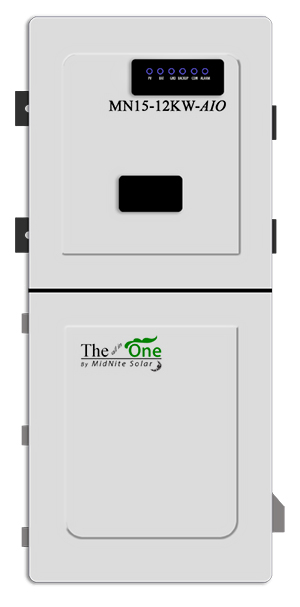

The MidNite Power MN15-12KW-AIO All-in-One Inverter is a high-performance, integrated energy solution designed for both residential and commercial applications. This 11,400-watt system combines advanced solar charging, battery management, and power conversion into a single, easy-to-use unit. With cutting-edge MPPT charge controllers, a high PV voltage capacity, and programmable AC outputs, this inverter provides unmatched efficiency, flexibility, and reliability for your solar energy needs.

Key Features:

• Integrated MPPT Charge Controllers – Three Maximum Power Point Tracking (MPPT) charge controllers optimize solar energy harvest, supporting up to 15,000W of PV input for maximum efficiency.
• High PV Voltage Compatibility – Supports up to 600VDC PV voltage, allowing for more powerful and cost-effective solar array designs.
• Programmable 120/240VAC Outputs – Three customizable outputs for load shedding and opportunity loads, ensuring critical systems receive uninterrupted power.
• Comprehensive Safety Features – Includes Arc Fault, Ground Fault, and Rapid Shutdown capabilities to enhance system safety and compliance.
• Remote Monitoring and Control – Access real-time system performance data via the built-in display and web-based app, allowing for convenient remote management.

Product Overview

The MidNite Power MN15-12KW-AIO redefines energy independence with a powerful and all-in-one solar and battery inverter. Designed to simplify installation, operation, and energy management, this inverter reduces system complexity while delivering high-efficiency performance. Whether you're powering a home, an off-grid cabin, or a commercial facility, this unit is built to handle demanding energy needs with ease.

Optimized Solar Energy Harvesting

With its three MPPT charge controllers, the MN15-12KW-AIO ensures your solar system captures the maximum amount of sunlight possible. These controllers allow for a wide operating voltage range (70V–550V), enabling better performance even in fluctuating weather conditions. The ability to oversize up to 200% (15,000W PV input power) makes it a top-tier choice for solar energy optimization.

Smart Load Management

This inverter’s three programmable 120/240VAC outputs allow users to manage their energy intelligently. Load shedding capabilities help prioritize critical loads, while opportunity loads can be optimized for cost efficiency and battery longevity. Whether you need uninterrupted power for essential appliances or want to maximize your battery’s lifespan, the MN15-12KW-AIO provides the flexibility to tailor energy distribution to your needs.

High PV Voltage for Greater Efficiency

Supporting up to 600VDC PV voltage, this inverter allows for the design of high-powered solar arrays with longer strings. This not only reduces wiring complexity and costs but also enhances overall system efficiency by allowing for fewer electrical losses and improved solar capture.

Advanced Safety Features

MidNite Solar has built industry-leading safety features into the MN15-12KW-AIO, ensuring maximum protection for both users and equipment. The inverter includes:

• Arc Fault Protection – Detects and mitigates dangerous electrical arcs.
• Ground Fault Protection – Prevents accidental grounding issues.
• Rapid Shutdown Compliance – Ensures the system meets National Electrical Code (NEC) requirements for emergency shutdowns.

These features make it one of the safest inverters available, ideal for installations where safety compliance is a priority.

Seamless Integration & Expandability

This all-in-one inverter is designed for easy integration with both lithium-ion and lead-acid batteries (40V–64V), providing flexible energy storage options. Additionally, its scalable design supports up to nine stacked units, making it suitable for small residential setups to large-scale commercial applications.

Real-Time Monitoring & Control

The built-in display and web-based monitoring system make it simple to track real-time energy usage, battery status, and solar input. Whether you're at home or away, you can remotely monitor and adjust system settings for optimal performance.

Technical Specifications
