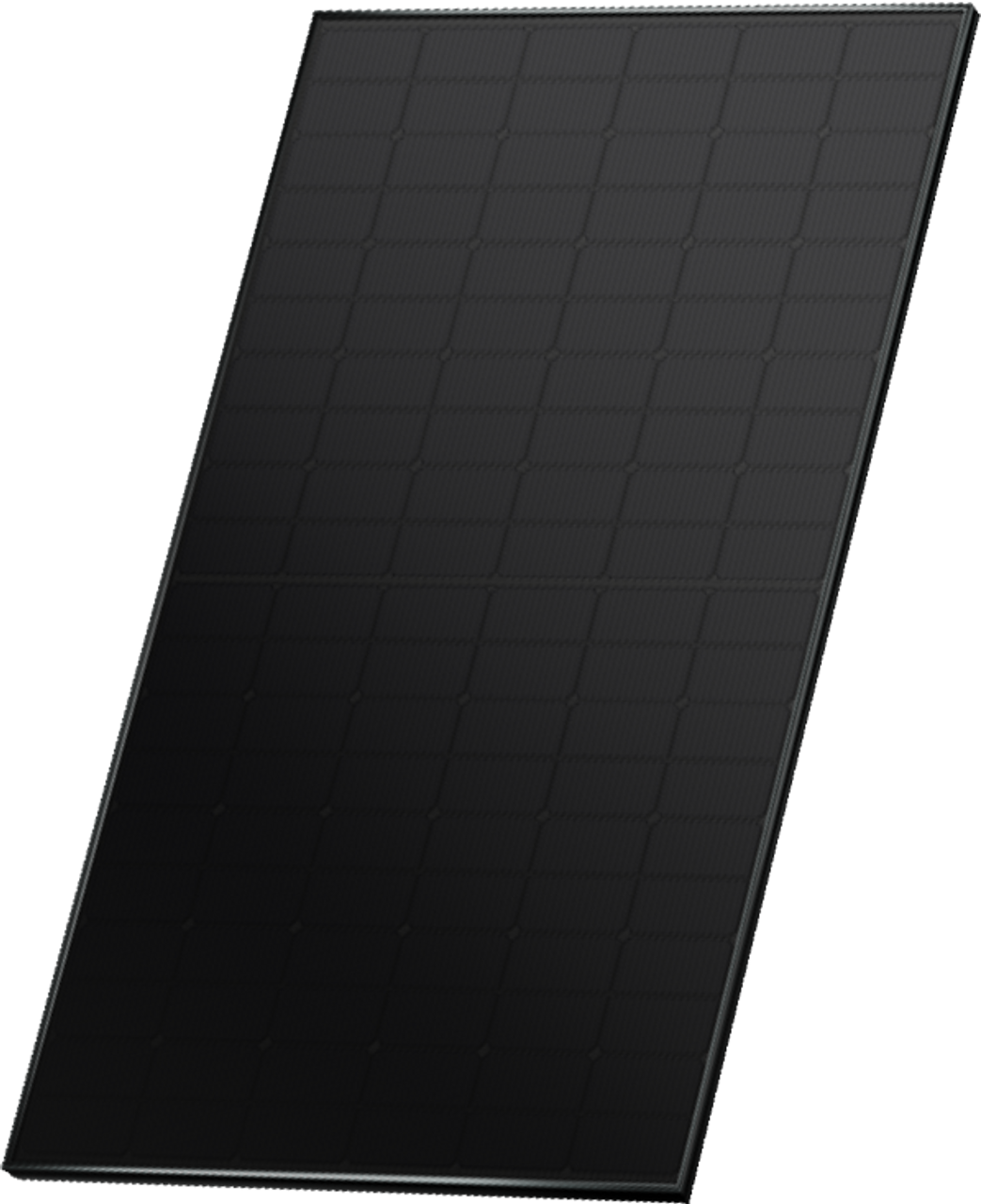

30x Meyer Burger 375W 120 Half-Cell Mono Solar Panel | MB_B120AyB_375
£2,061.00
Sale price
£2,061.00
Regular price
Skip to product information
30x Meyer Burger 375W 120 Half-Cell Mono Solar Panel | MB_B120AyB_375
£2,061.00
Sale price
£2,061.00
Regular price
Shipping calculated at checkout.
MB_B120AyB_375-P
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Meyer Burger Black is a premium heterojunction solar panel engineered for maximum energy yield and elegant rooftop aesthetics, made in Germany and designed in Switzerland.
Key Features
- Heterojunction Cell Technology (HJT) with SWCT® — Patented SmartWire Connection Technology delivers superior cell stability, high breakage resistance, and outstanding low-light performance.
- Industry-Leading Temperature Coefficient — A -0.259%/K power temperature coefficient means significantly less output loss on hot days compared to conventional panels.
- 25-Year Product & Performance Warranty — Guaranteed to retain 92% output at year 25, outperforming standard industry warranty benchmarks.
- 100% Renewable Energy Manufacturing — Produced lead-free using exclusively renewable energy, meeting the highest sustainability standards.
- Compact M6 Format — At 1767 x 1041 x 35mm, the panel offers maximum layout flexibility and easy handling for residential rooftop installations.
Certified to IEC 61215:2016 and IEC 61730:2016, the Meyer Burger Black also carries Salt Mist and PID resistance certifications, ensuring long-term durability across demanding environments.
The black anodized aluminum frame and full black backsheet deliver a sleek, uniform appearance perfectly suited for sophisticated residential architecture.
Achieving efficiencies up to 20.4% at STC with a -0W/+5W power tolerance, the HJT cell structure combines amorphous and crystalline silicon layers to minimize recombination losses.
Technical Specifications
| Specification | Per Panel | Per Pallet (30 Panels) |
|---|---|---|
| Model | MB_B120AyB_375 | — |
| Power Output | 375 Wp | 11,250 Wp (11.25 kW) |
| Efficiency | 20.4% | — |
| Open Circuit Voltage (Voc) | 42.2V | — |
| Maximum Power Voltage (Vmpp) | 35.7V | — |
| Short Circuit Current (Isc) | 8.5A | — |
| Maximum Power Current (Impp) | 7.9A | — |
| Power Tolerance | -0 / +5W | — |
| Pmax Temp. Coefficient (γ) | -0.259%/K | — |
| Voc Temp. Coefficient (β) | -0.234%/K | — |
| Isc Temp. Coefficient (α) | +0.033%/K | — |
| NMOT | 44 ± 2°C | — |
| Operating Temperature | -40 to +85°C | — |
| Dimensions | 1767 x 1041 x 35mm | — |
| Weight | 43.4 lbs | 1,302 lbs |
| Front Cover | Tempered Solar Glass, 3.2mm Anti-Reflective | — |
| Back Cover | Black Water-Barrier Backsheet | — |
| Frame | Black Anodized Aluminum | — |
| Cell Type | 120 Half-Cells, Mono n-Si HJT with SWCT® | — |
| Junction Box | 3 Diodes, IP68 Rated | — |
| Cable | 4mm² PV Cable, 1.2m Length | — |
| Max. System Voltage | 1000V | — |
| Overcurrent Protection Rating | 20A | — |
| Max. Test Load (+/-) | 6000 / 4000 Pa | — |
| Safety Class | II | — |
| Panels per Pallet | — | 30 |
| Pallet Dimensions (W x L x H) | — | 1050 x 1780 x 1300mm |
| Certifications | IEC 61215:2016, IEC 61730:2016, IEC 62804, IEC 61701, MCS 010 & MCS 005 | — |
