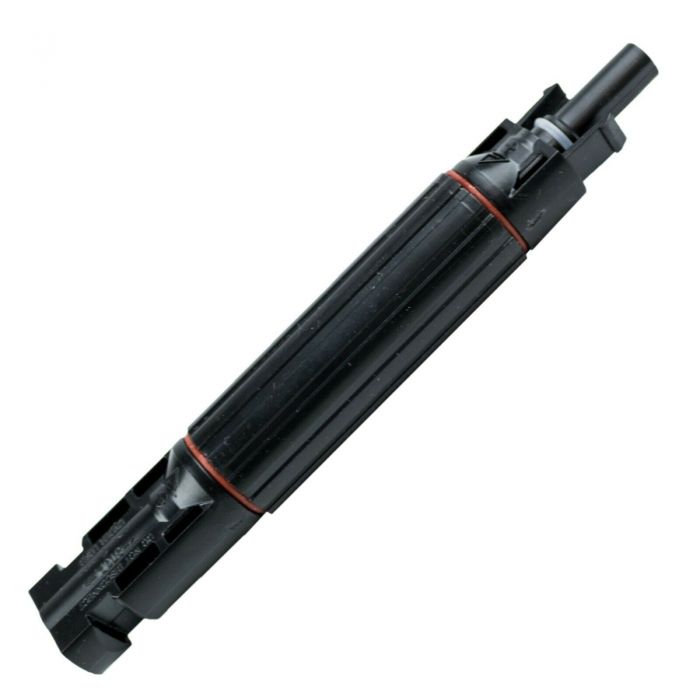

MC4 20 Amp 1000V In-line Fuse Link

Ensure the safety and efficiency of your photovoltaic (PV) system with our high-quality MC4 20 Amp 1000V In-line Fuse Link. Designed to provide reliable overcurrent protection, this in-line fuse is essential for maintaining the longevity and performance of your solar power installations.

Key Features:

• High Voltage and Current Ratings: Supports up to 1000V DC and 20A, making it suitable for a wide range of solar applications.

• Robust Protection: Encased in a durable, IP68-rated housing, ensuring excellent resistance against dust and water ingress.

• Efficient Performance: Crimped fuse connection minimizes energy loss and heat generation, enhancing overall system efficiency.

• Easy Integration: Compatible with standard MC4 connectors, facilitating quick and secure connections within your PV setup.

• UL Listed: Certified for safety and reliability, meeting stringent industry standards.

Product Overview:

Our MC4 20 Amp 1000V In-line Fuse Link is engineered to deliver superior overcurrent protection for your solar power systems. The crimped fuse connection ensures a stable and long-lasting link, outperforming conventional clip-in fuse holders by reducing contact resistance and preventing potential hotspots.

The IP68-rated housing offers exceptional durability, safeguarding the fuse against environmental factors such as dust, moisture, and UV exposure. This robust construction ensures reliable performance even in harsh outdoor conditions, making it an ideal choice for both residential and commercial solar installations.

Designed for seamless integration, this in-line fuse link is compatible with standard MC4 connectors, allowing for straightforward installation without the need for specialized tools. The 10 AWG (6 mm²) cable cross-section accommodates common solar cables, ensuring a secure and efficient connection within your PV system.

Safety is paramount in any electrical system, and our in-line fuse link meets rigorous industry standards. It is UL listed (file number E474445), providing assurance of its quality and reliability. The fuse holder is designed to accommodate 10x38 mm fuses, offering flexibility to suit various system requirements.

Applications:

This in-line fuse link is suitable for a variety of solar power applications, including:

• Residential Solar Installations: Protects home solar panels and inverters from overcurrent damage.

• Commercial PV Systems: Ensures the safety and efficiency of large-scale solar power plants.

• Off-Grid Solar Setups: Provides reliable overcurrent protection for standalone solar energy systems.

Installation Guidelines:

Installing the MC4 20 Amp 1000V In-line Fuse Link is straightforward:

1. Disconnect Power: Ensure the solar system is powered down before installation.

2. Verify Compatibility: Confirm that the fuse link's voltage and current ratings match your system's specifications.

3. Connect Inline: Integrate the fuse link into the positive or negative line of your PV circuit using the MC4 connectors.

4. Secure Connections: Ensure all connections are tight and secure to prevent accidental disconnection.

5. Test the System: After installation, power up the system and verify proper operation.

Technical Specifications:

Invest in the MC4 20 Amp 1000V In-line Fuse Link to enhance the safety and efficiency of your solar power system. With its robust design, reliable performance, and compliance with industry standards, it is the ideal choice for protecting your valuable PV installations.
