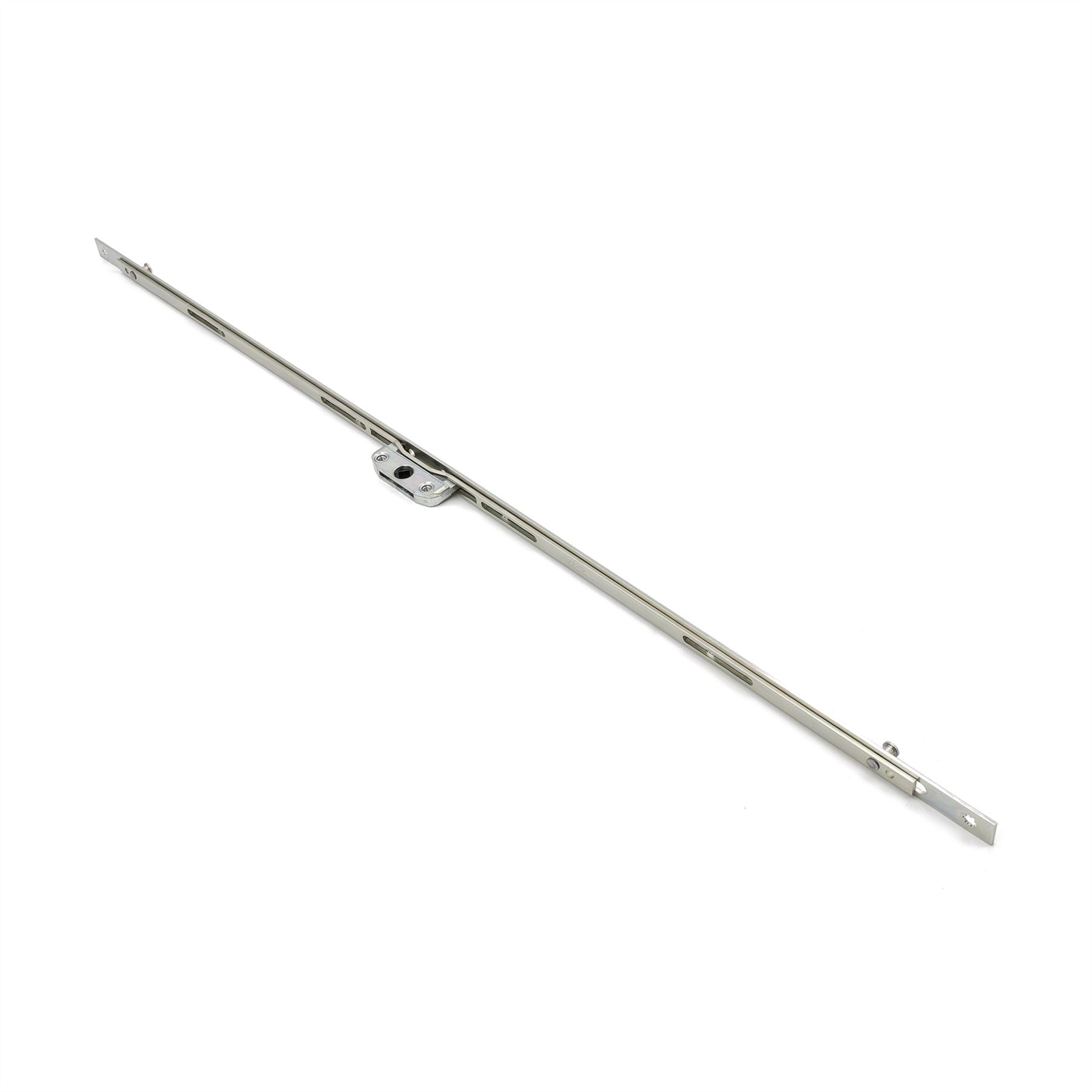

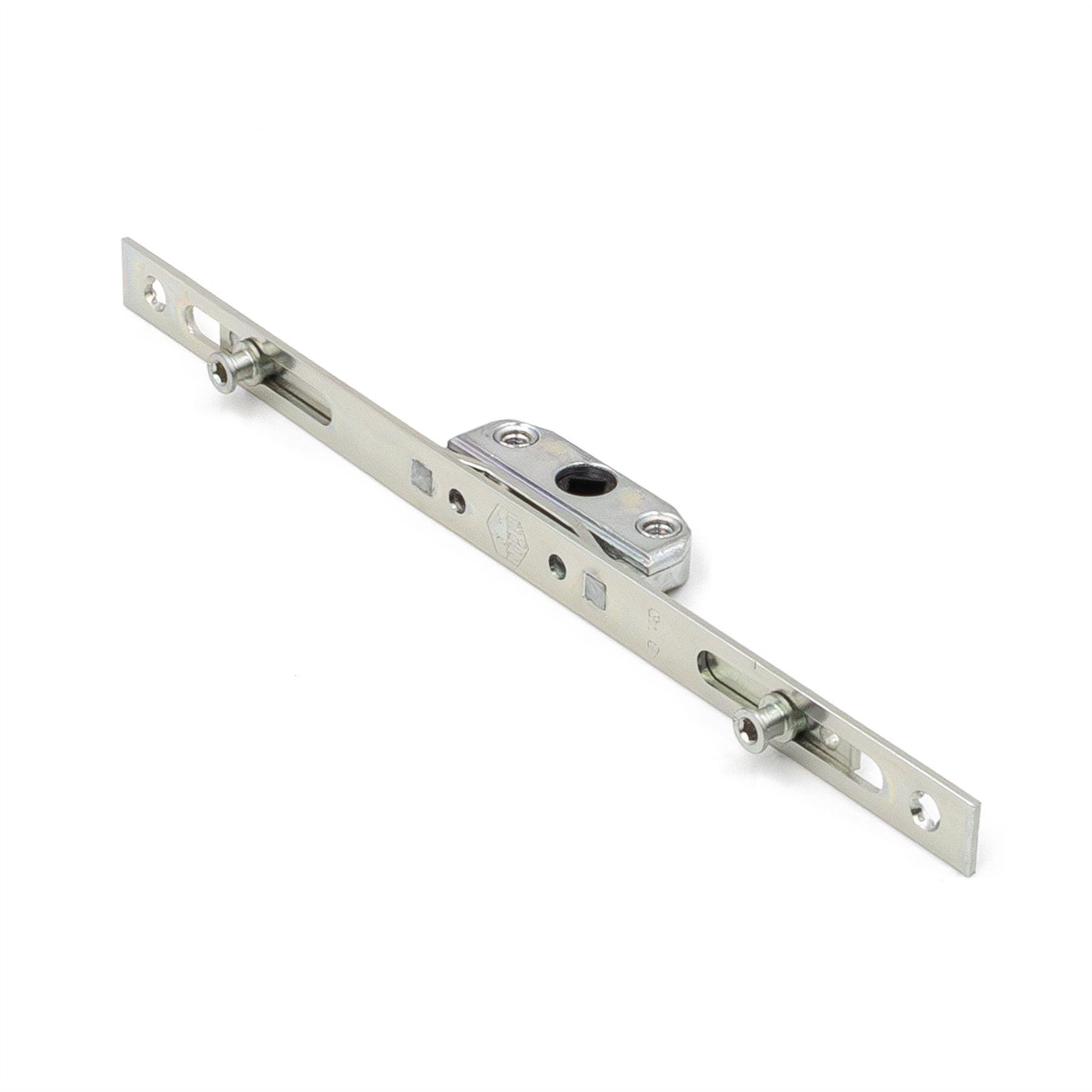

Inline Espagnolette Window Lock from MACO

(Choice of 20mm or 22mm backset, and length)

Smooth, reliable operation with 10-year warranty!

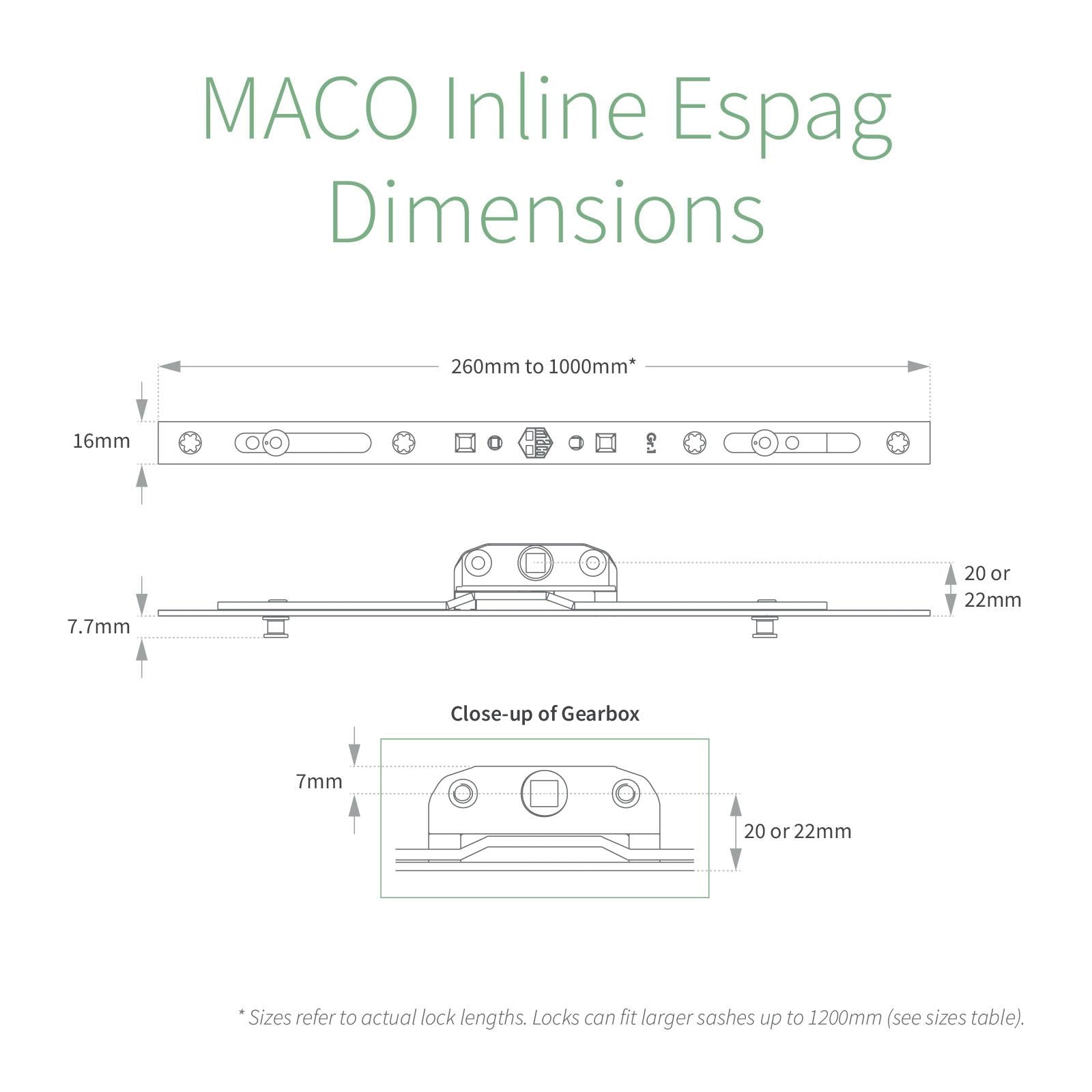

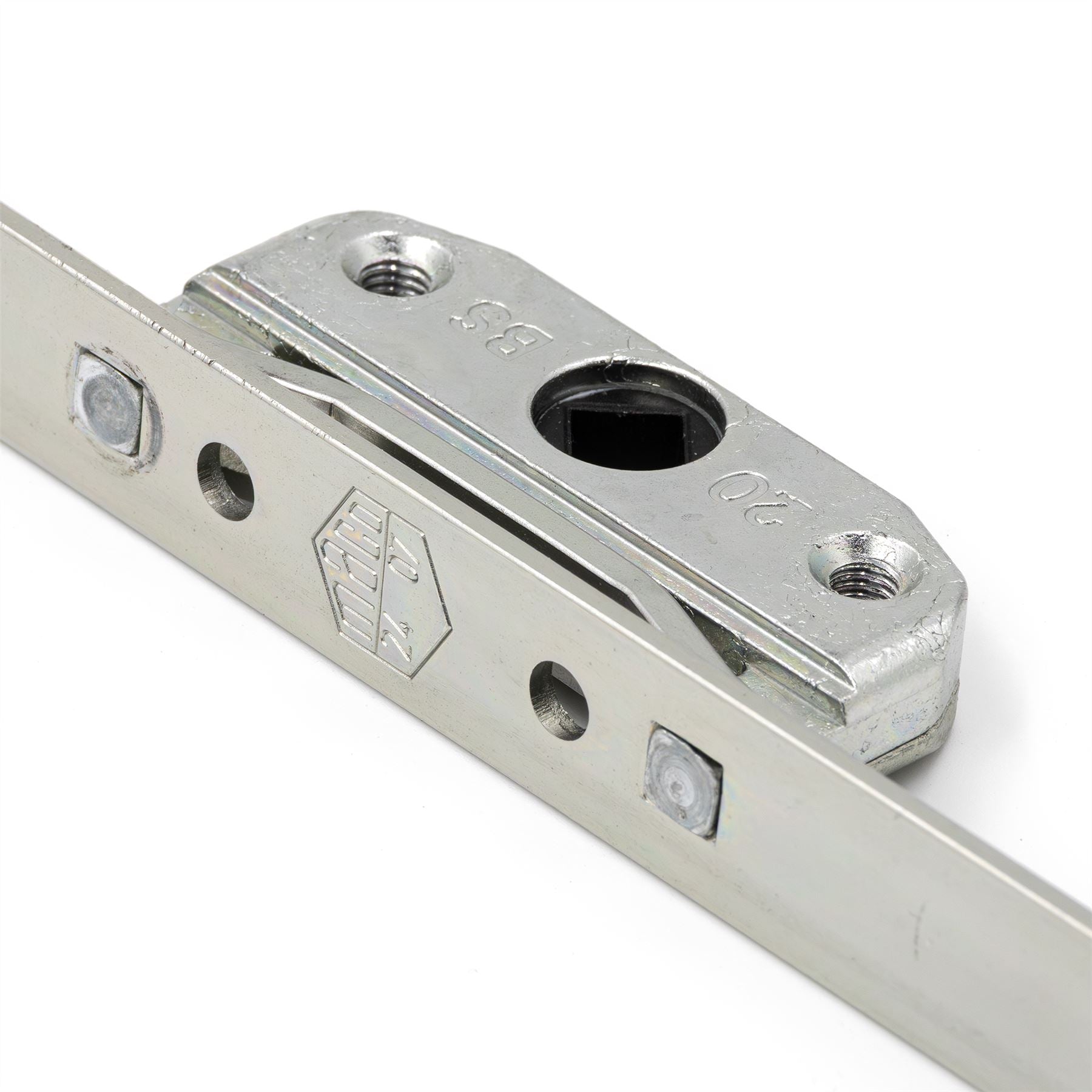

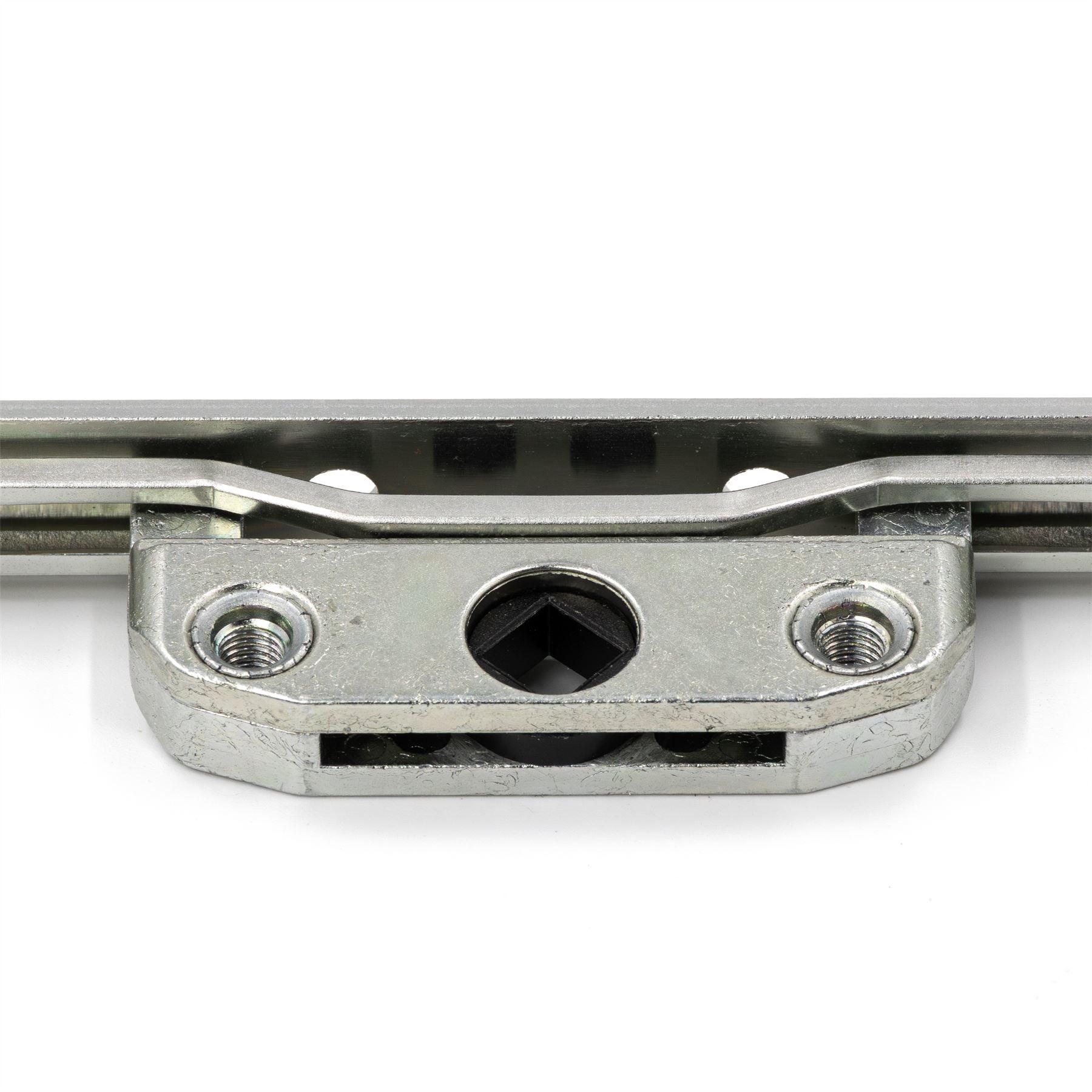

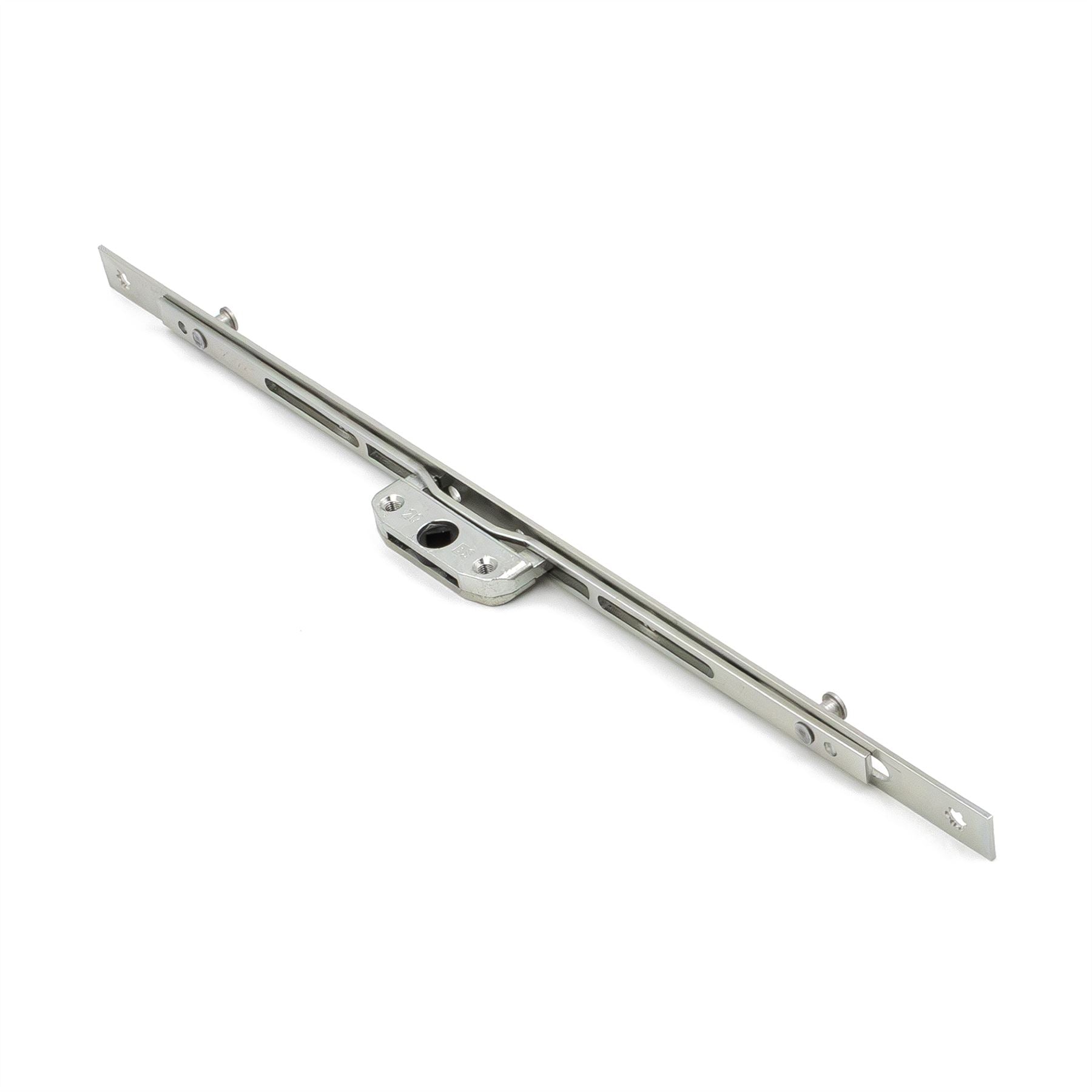

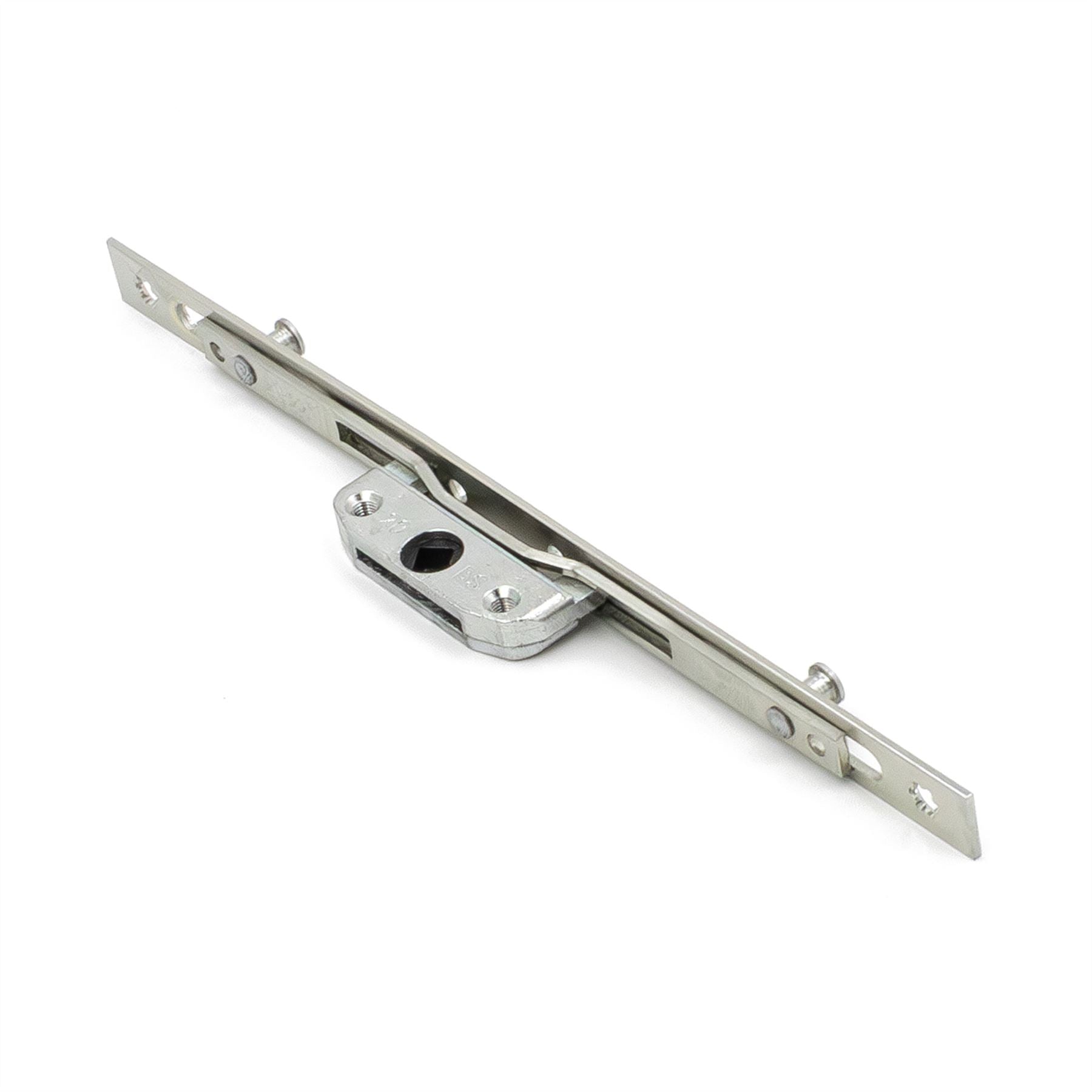

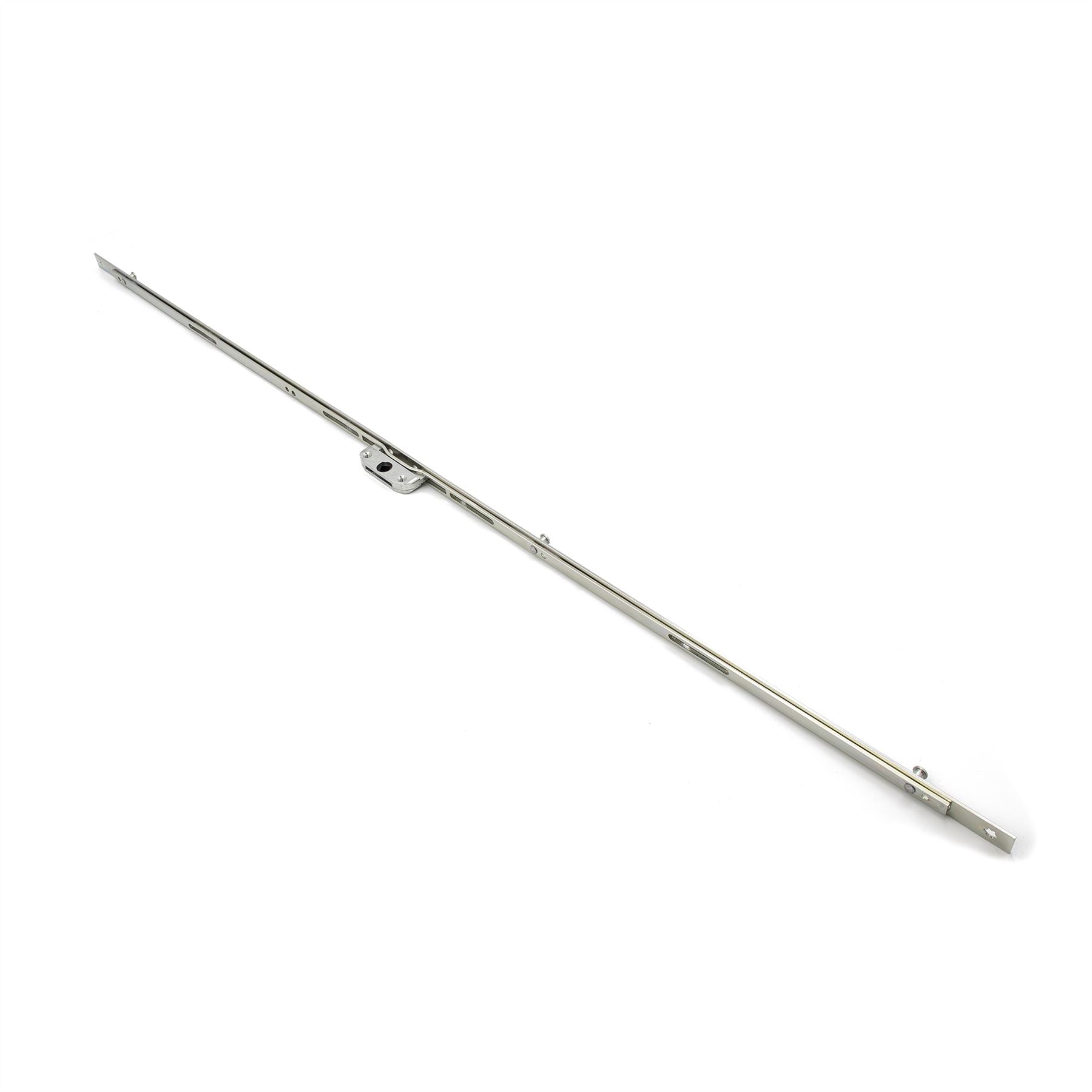

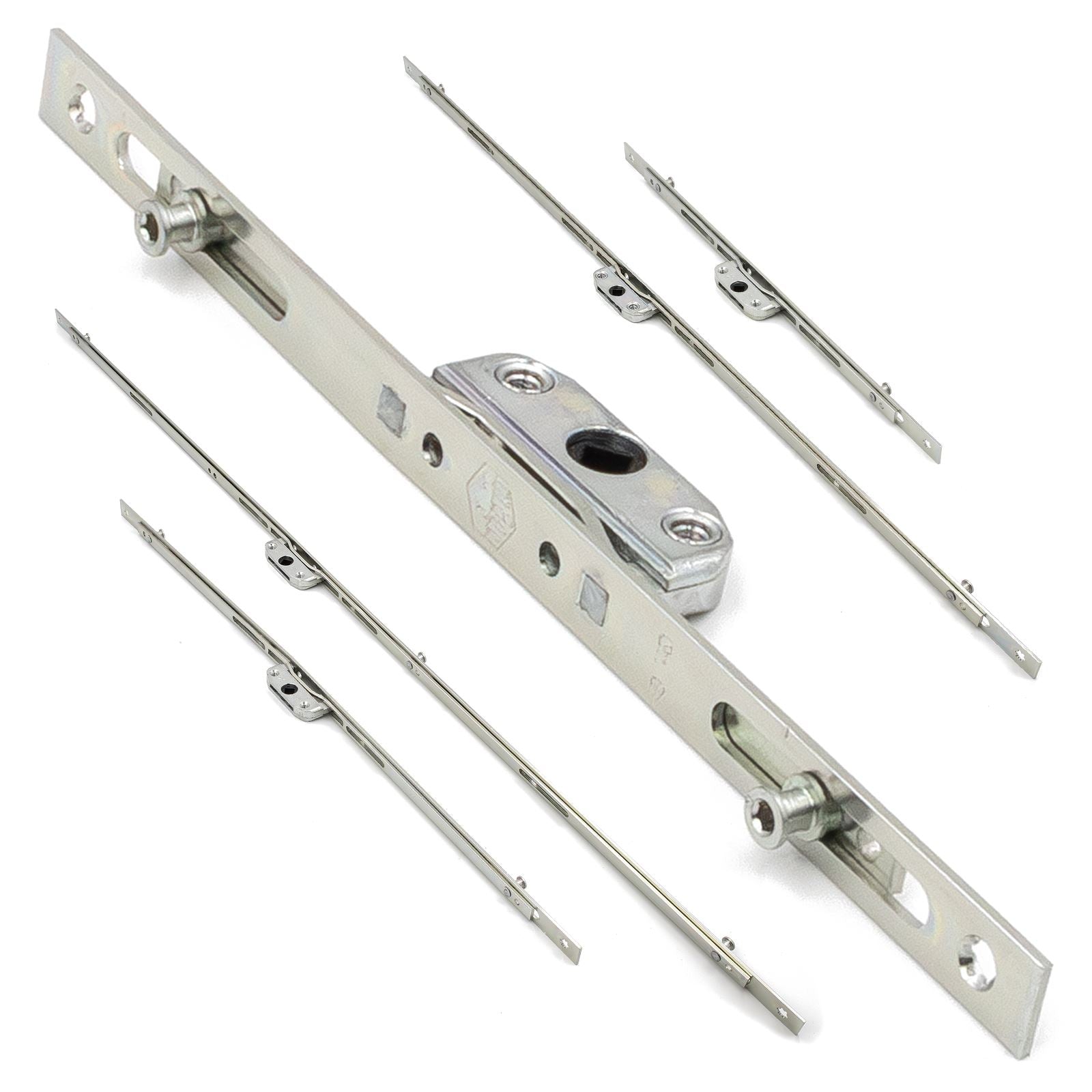

Premium, multi-point espagnolette window lock with inline gearbox, and adjustable mushroom cams. Designed for side and top-hung, outward-opening PVCu, aluminium and timber windows, the MACO inline espag is available with 20mm or 22mm backset, and choice of length to accommodate sash rebates up to 1199mm.

Steel faceplates ensure strength and durability, and the 7.7mm roller mushroom cams with 19mm travel, slide into frame keeps with ease to hold the window sash securely. Compatible with most espagnolette handles, and fitting windows with 16mm eurogroove, the MACO Inline Esgap, with its backset and length options, is suitable for a variety of window sash sizes.

Features & Benefits

• Multi-Point Locking - increased window security
• Smooth Operation - reduced friction for long service life
• Corrosion Resistant - salt spray tested up to 240 hours

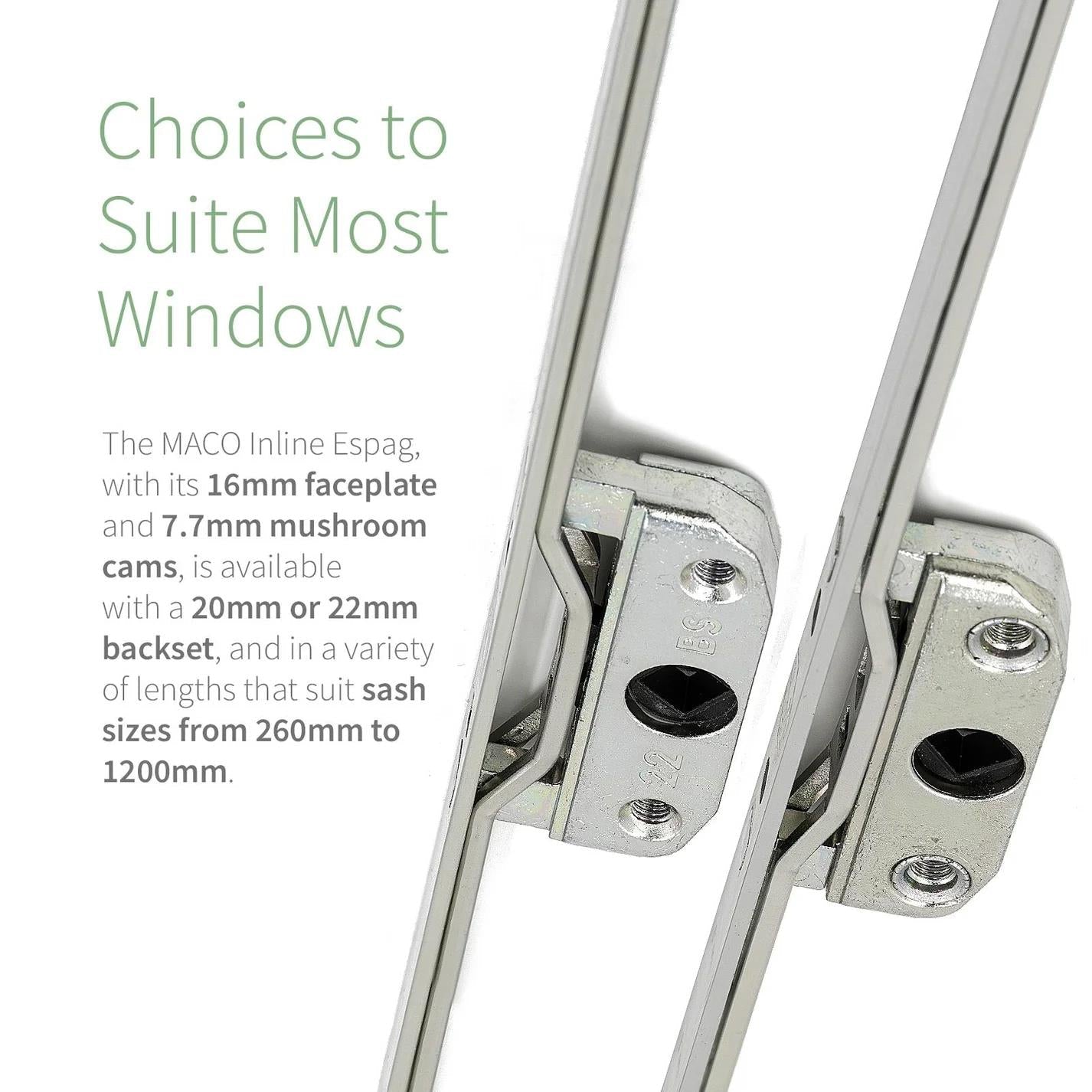

• Popular Backset Options - common 20mm and 22mm sizes
• Widley Compatible - suitable for all 16mm eurogrooves

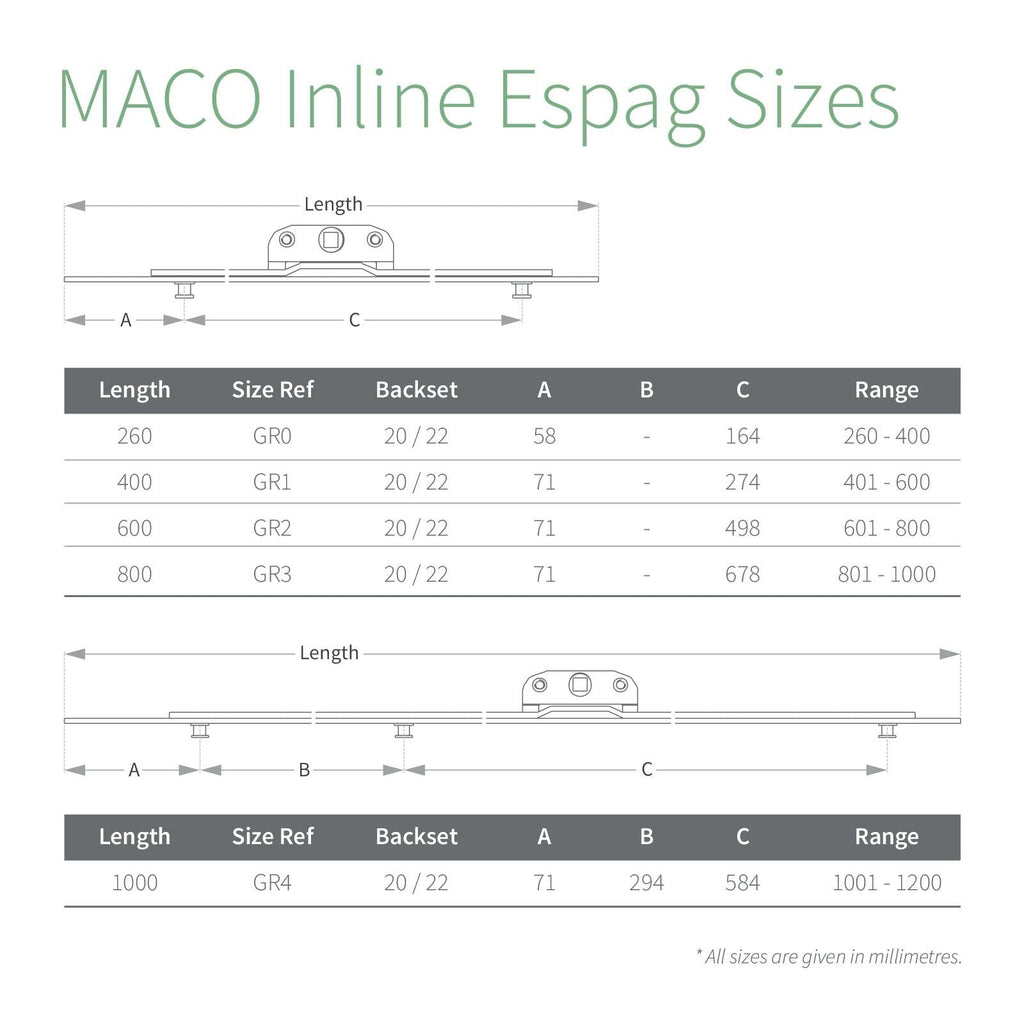

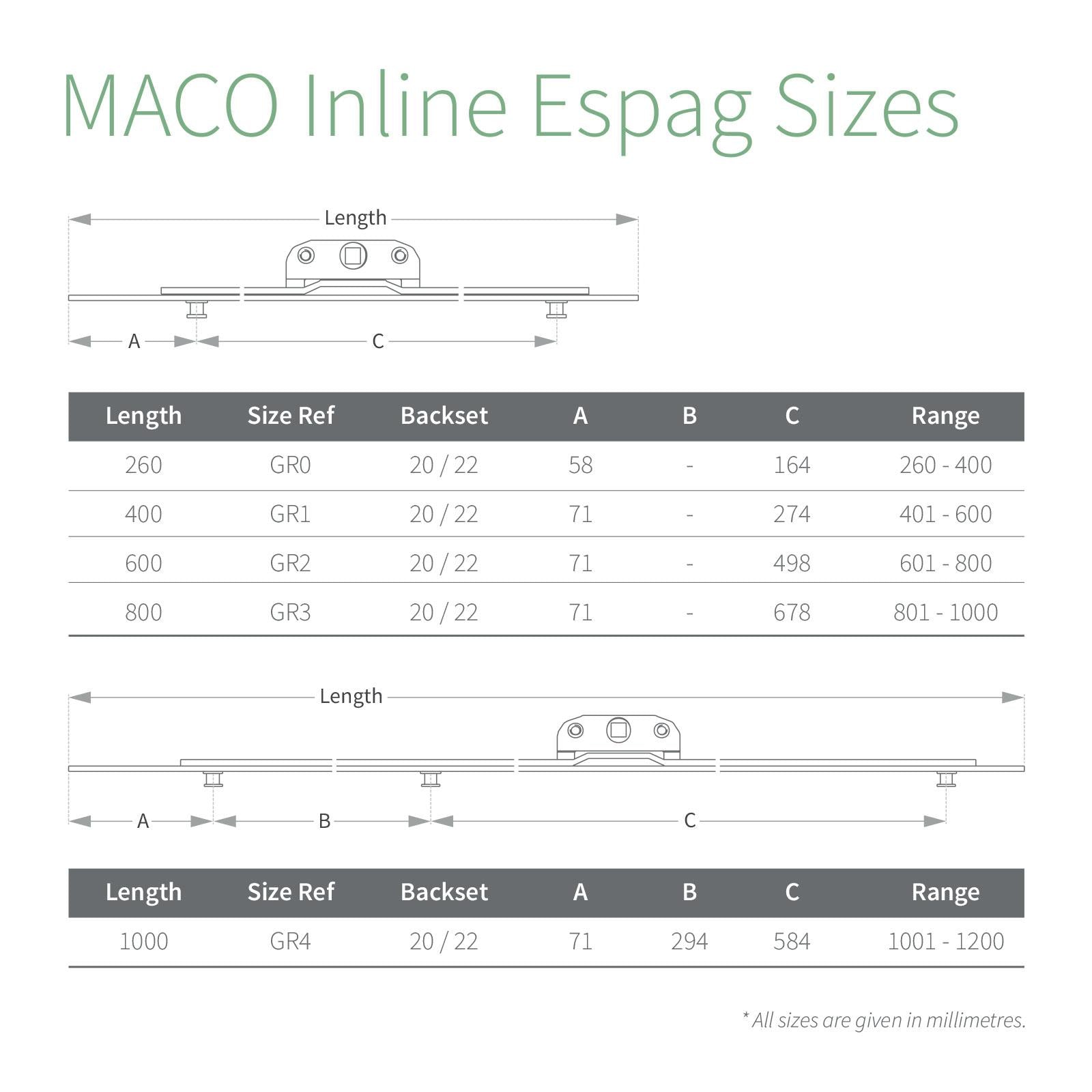

• Fits Various Window Sizes - ranges from 260mm to 1200mm

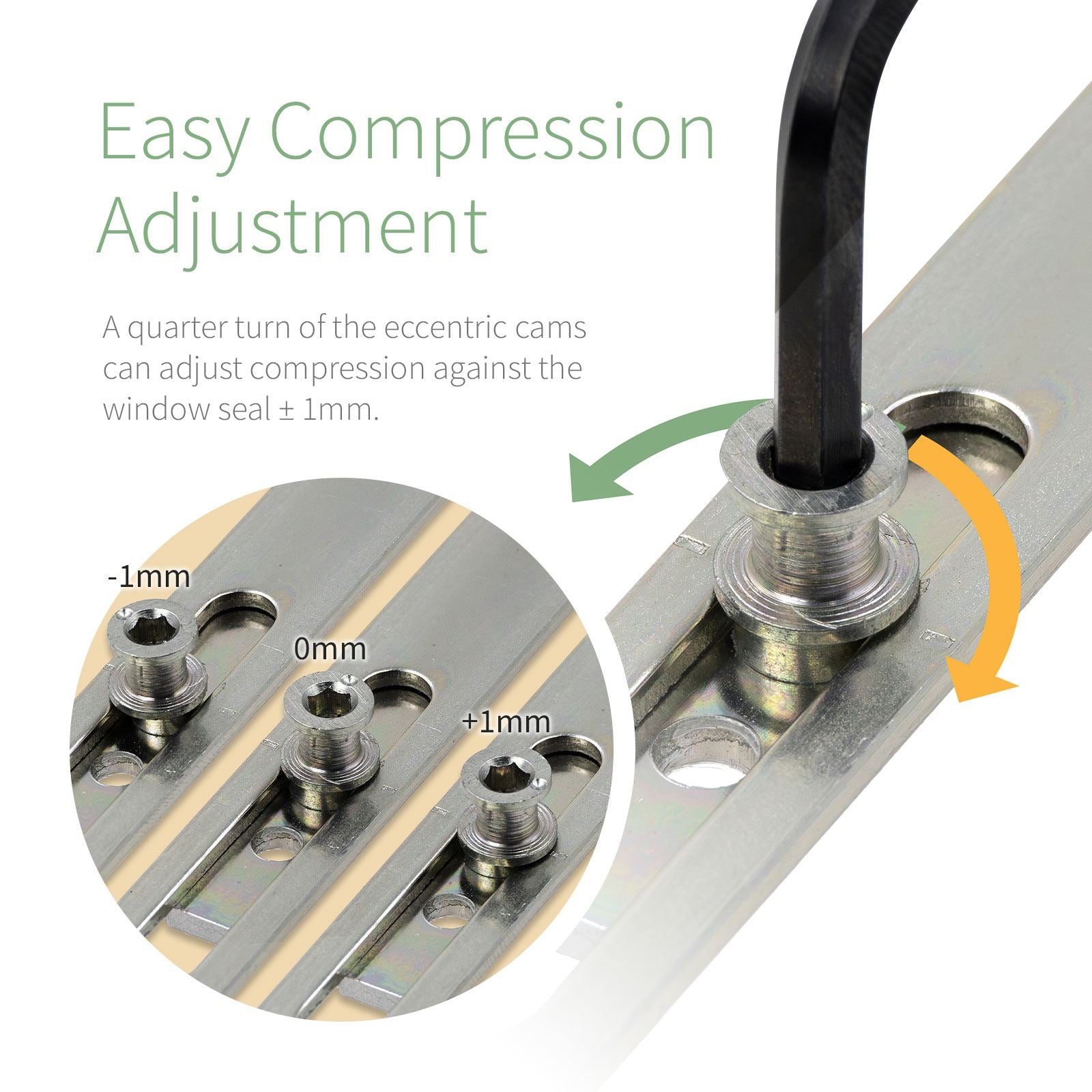

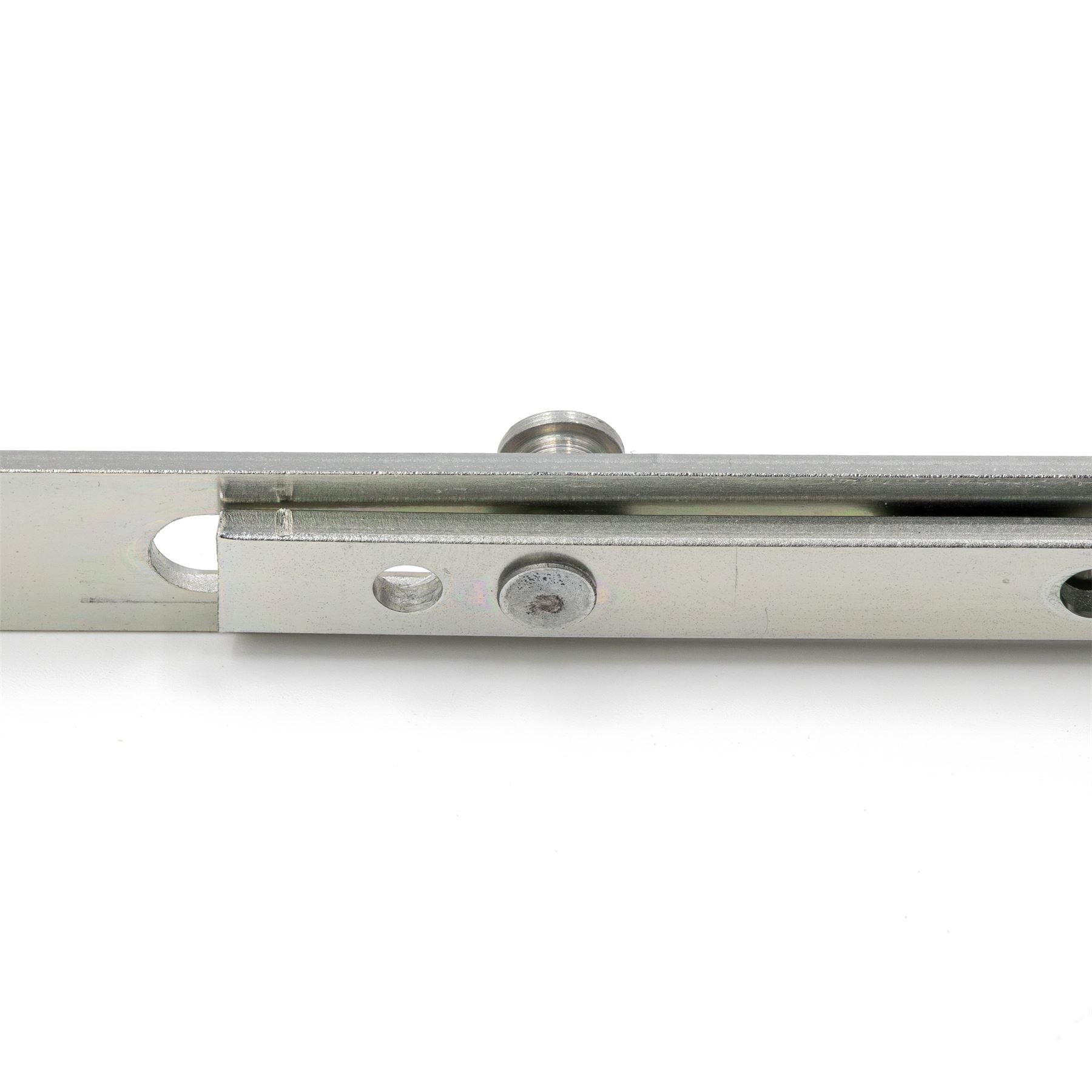

• Eccentric Mushroom Cams - easy compression adjustment
• Easy Installation - saves time and requires no special tools
• 10-Year Warranty - long-term reliability and performance

Ideal for new build and retro fit applications in non-vulnerable locations, such as second storey windows and above, where shootbolt or bidirectional locking security isn’t required.

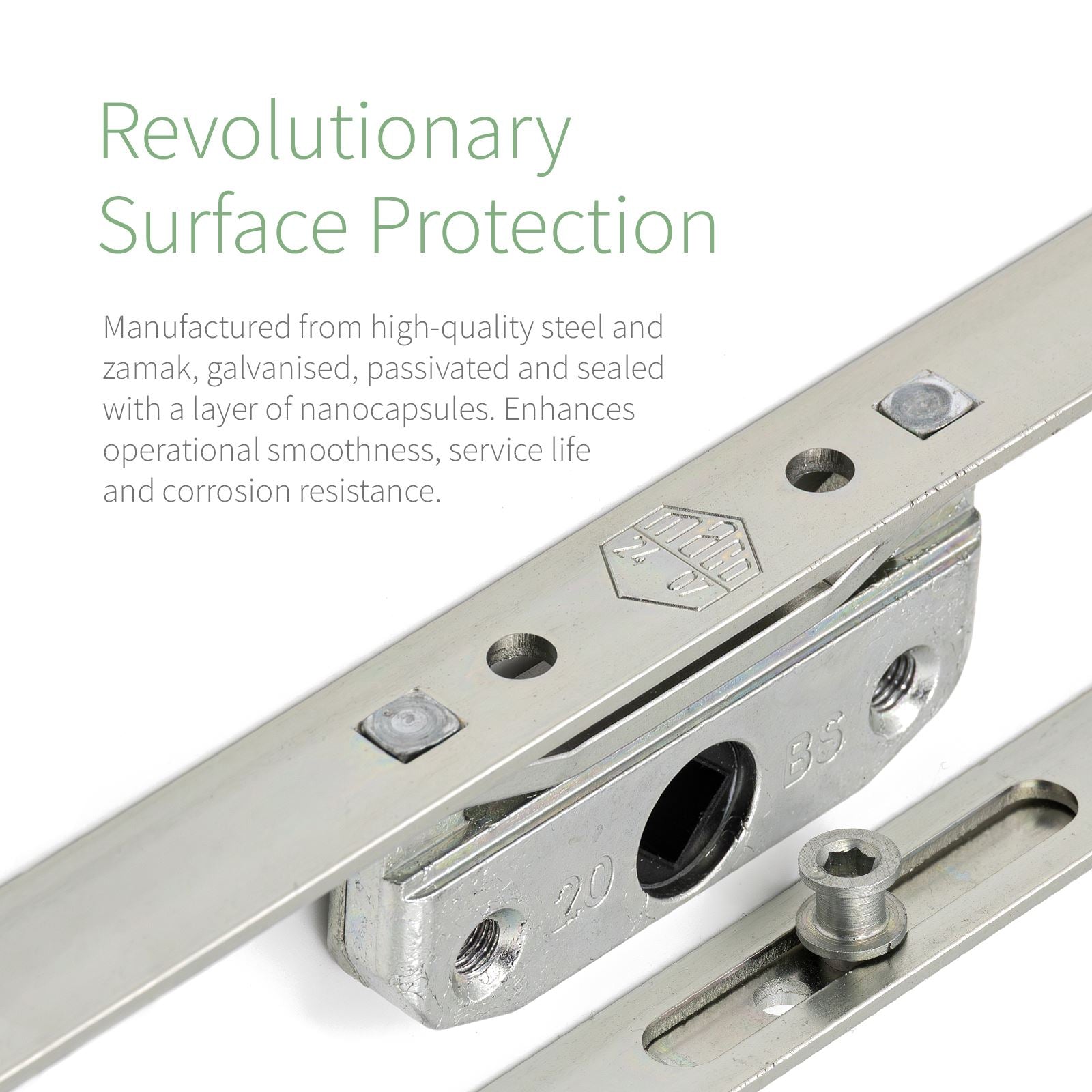

Did you know? MACO Inline Esgap are manufactured from high-quality steel and Zamak, then galvanised, passivated and sealed with a layer of nanocapsules. This unique and revolutionary surface protection enhances operational smoothness, service life and corrosion resistance.
