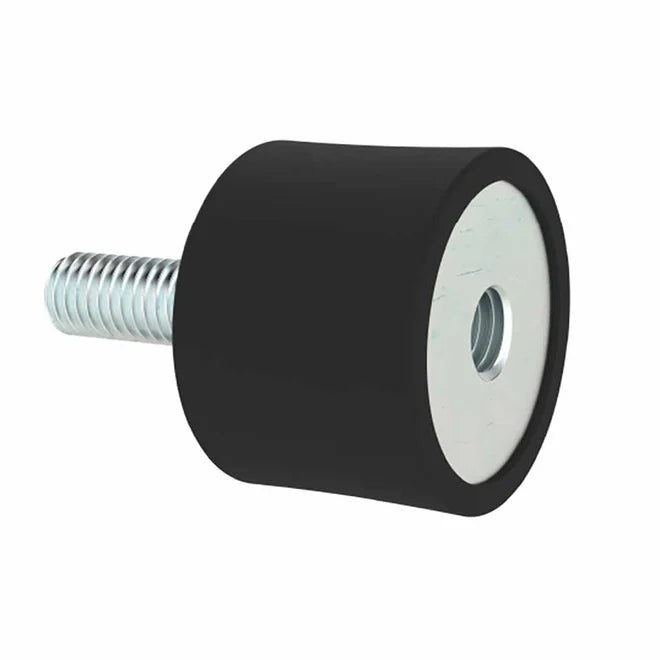

The Seal Extrusion Company – M8 x 30 x 30 Anti-Vibration Mount (Male-Female Thread)

High-quality rubber anti-vibration mounts designed for machinery, pumps, compressors, generators, and industrial equipment. Built with natural rubber and zinc-plated steel threads, these mounts reduce vibration, absorb shock, and minimise noise.

✅ Technical Specifications:

• Weight: 0.04kg

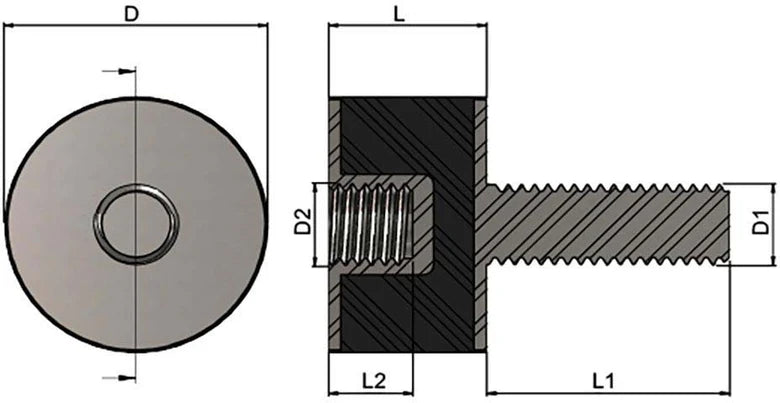

• Diameter (D): 30mm

• Height (L): 30mm

• Thread Size: M8 (Male thread length 23mm, Female thread depth 8mm)

• Material: BZP steel thread/plate with black natural rubber

• Hardness: 55 Shore A

📊 Load Ratings:

• Max Compressive Load (MCL): 42.8kg

• Deflection @ MCL (DMCL): 3.9mm

• Max Shear Load (MSL): 19.5kg

• Deflection @ MSL (DMSL): 7.8mm

• Operating Temperature Range: -30°C to +80°C

🔧 Common Applications:

• Machinery and equipment isolation

• Generators, pumps, compressors

• HVAC units, motors & workshop tools

• Engineering and automotive use

• Marine and industrial installations

📦 Ordering Information:

• Priced per mount – enter the quantity required in the QTY box
