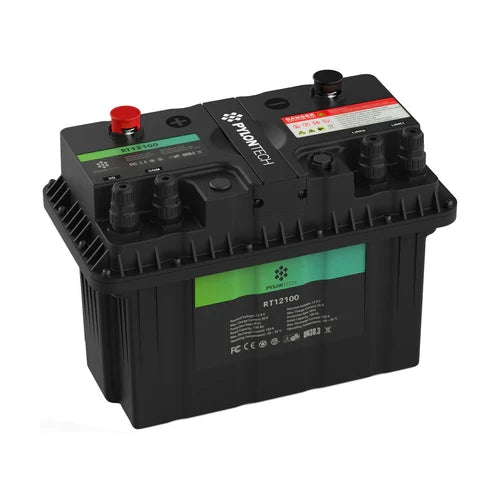

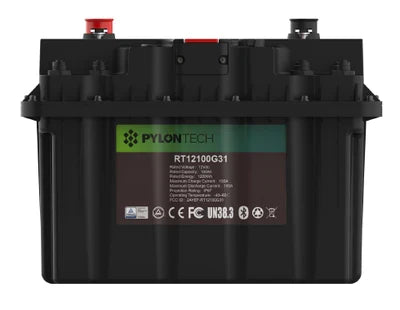

Lithium Battery | Pylontech | RT12100G31 IP67 12V 100Ah (1280Wh)
£614.00
Sale price
£614.00
Regular price
Skip to product information
Lithium Battery | Pylontech | RT12100G31 IP67 12V 100Ah (1280Wh)
£614.00
Sale price
£614.00
Regular price
Shipping calculated at checkout.
PYL.RT12100G31
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description
The Pylontech 12V Series are developed all-purpose lithium ion battery modules, With the cutting edge LFP (Lithium iron Phosphate) cell, embedded BMS (Battery Management System) and mechanical design, Pylontech RT12V Series product provides inherent safety, extreme high reliability and zero maintenance.
Comparing to the same capacity lead-acid based batteries, it has more than twice of the usable capacity, more than 3 times of the life cycle, but only about 40% of the weight. It is a prefect replacement to the lead acid based batteries in the applications such as marine, RV, golf carts and solar storage. RT12V Series product will bring you the perfect experience in different applications.
Auto-Balance Multiple Batteries in Parallel
Connects multiple batteries in parallel safely without internal non-uniformity issues.
Expandable up to 4 series and 4 parallel for up to 48V 400Ah
Customise your system. 16 units can be scaled in a variety of series and parallel such as 4 Series 4 Parallel, 2 Series 8 Parallel, 1 Series 16 Parallel.
Specifications
| Nominal Voltage (V) | 12 |
| Charge Voltage (V) | 14-14.4 |
| Nominal Capacity (Wh) | 1280 (100AH) |
| Usable Capacity (Wh) | 1152 (90AH) |
| Dimension (mm) | 325*226*173.5 |
| Weight (Kg) | 13 |
| Recommended Charge/Discharge Current (A) | 100 |
| Peak Charge/Discharge Current | 200A (30sec) |
| Communications | RS485,CAN |
| Series Connection Allowed | 4s |
| Parallel Connection Allowed | Up to 16P @ 12V Up to 8P @ 24V Up to 4P @ 48V |
| Working Temperature/ ℃ Charge | -0°C to +60ºC |
| Working Temperature/ ℃ Discharge | -20°C to +60ºC |
| Shelf Temperature/ ℃ | -40°C to +60ºC |
| IP rating of enclosure | IP67 |
| Cooling type | Natural |
| Design life | 10+ Years (25℃/77℉) |
| Cycle Life | >6,000 25℃ |
| Authentication Level | SAE J930, SAE J1455, UL1973, IEC62619, FCC, CE, Bluetooth SIG, UN38.3 |
Please see more details in the 'Data Sheets' tab.
