HPC Fire Linear Torpedo Flat Fire Pit Kit (Hi/Lo Electronic Ignition)

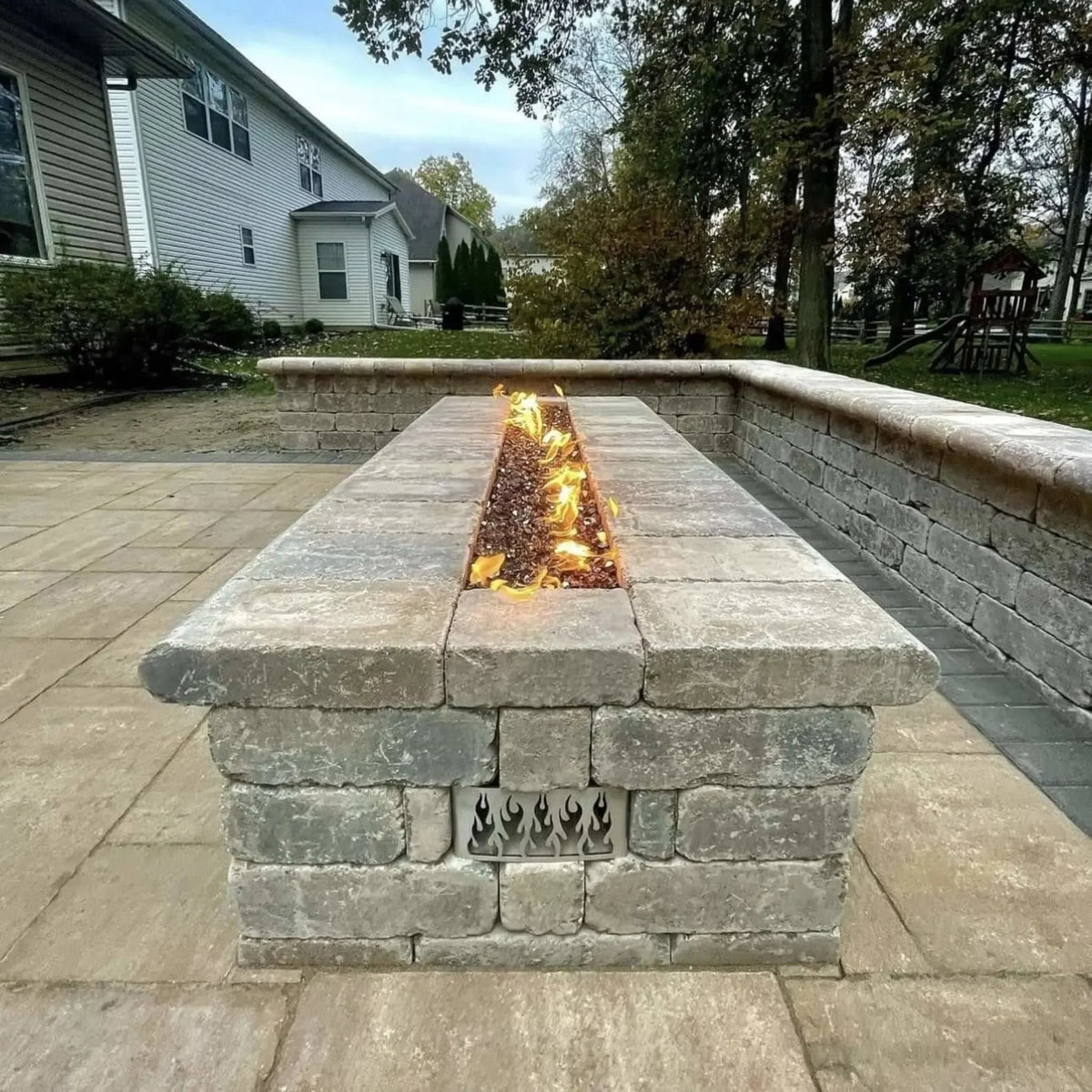

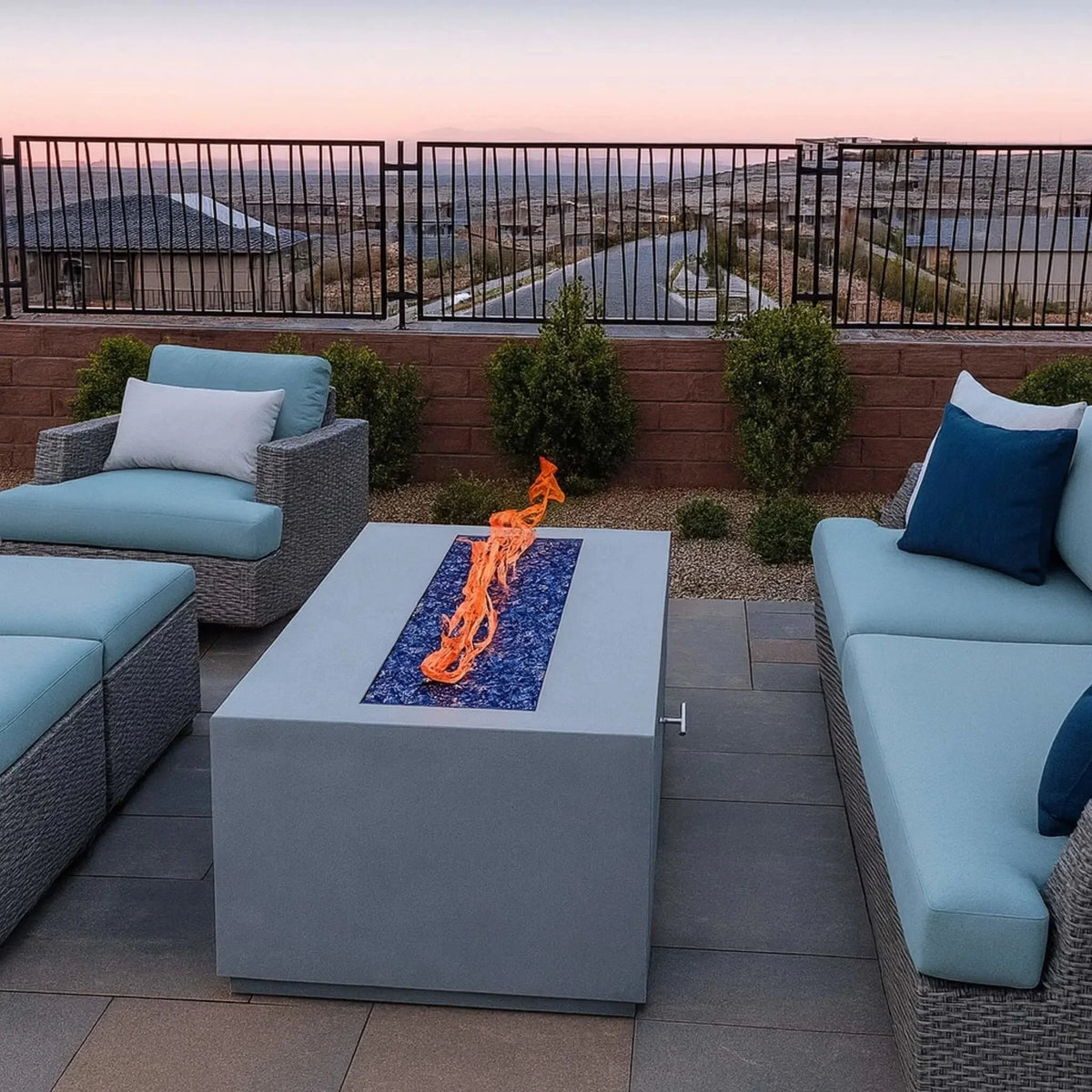

The Linear Torpedo Flat Hi/Lo Electronic Ignition Fire Pit T-Burner Kit by HPC Fire (SKU: TOR-25X8SSEI-L-HI/LO Series) is a commercial-grade, smart-automated outdoor gas fire feature insert manufactured by Hearth Products Controls (HPC). Masterfully engineered for high-end modern rectangular fire tables, long linear stone dividers, or minimal landscape borders, this premium system ditches the traditional drop-in trough recess for an ultra-low-profile flat narrow plate (pan) design.

This flagship configuration integrates HPC's high-velocity Torpedo Nozzle technology with an advanced Hi/Lo Electronic Ignition (EI) system, granting you variable flame calibration and smart two-way telemetry control right from your outdoor furniture.

High-Velocity Torpedo Nozzles & Linear T-Burner Geometry

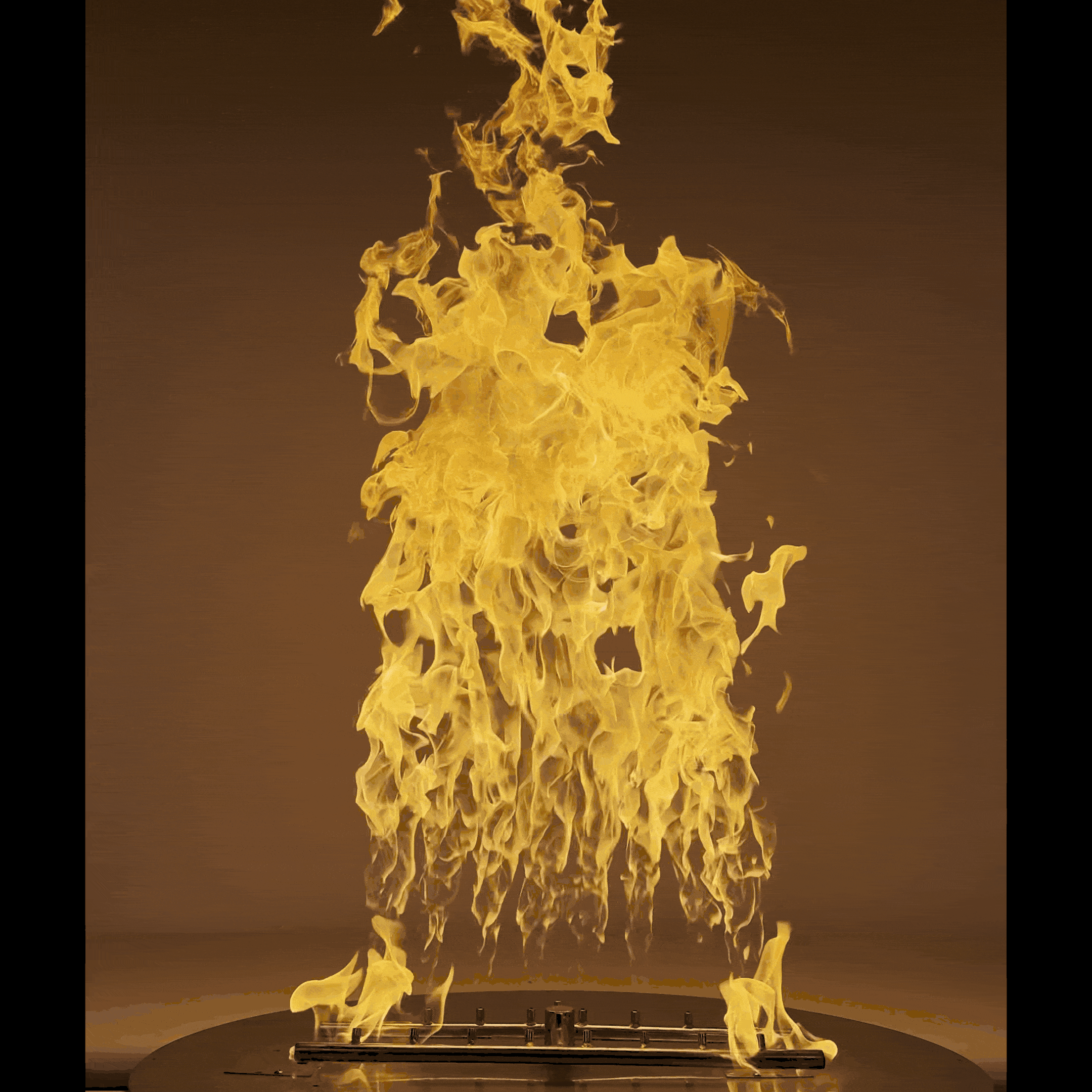

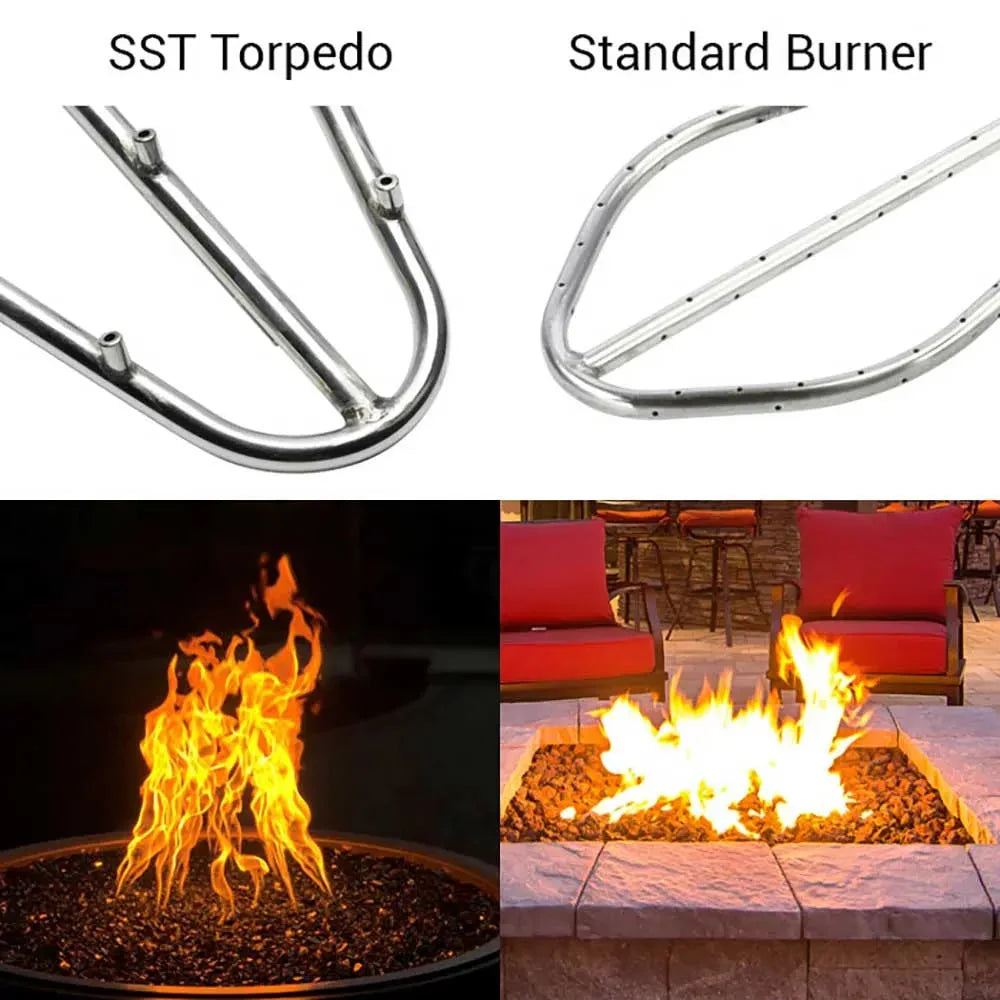

• Roaring Torpedo Flame Booster: Torpedo configurations swap standard drilled burner ports for precision-engineered, heavy-duty brass nozzles. These specialized jets dramatically increase gas-to-oxygen velocity, throwing extra-tall, robust, roaring flames that replicate the visual presence, organic motion, and intense heat radiation of an authentic wood bonfire.

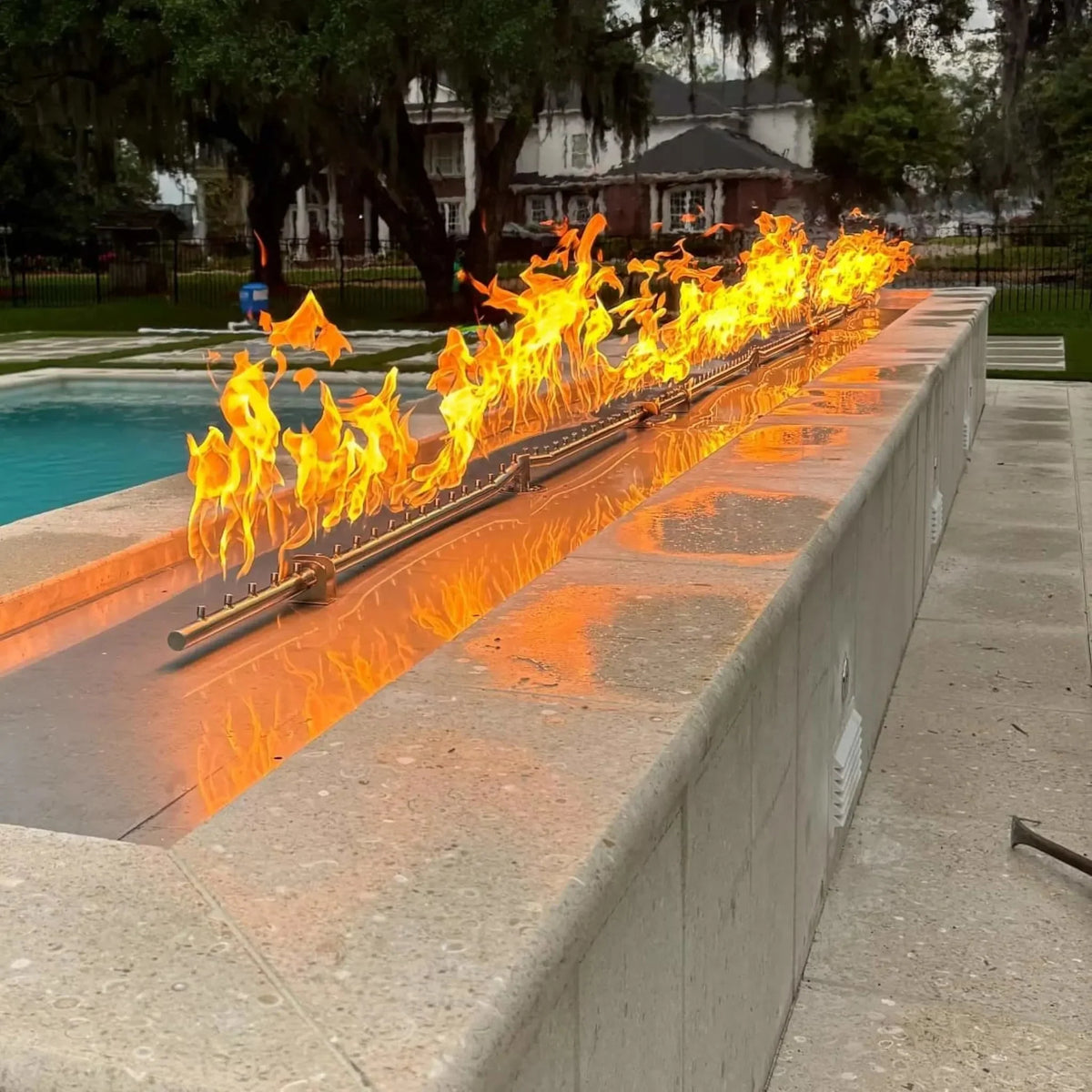

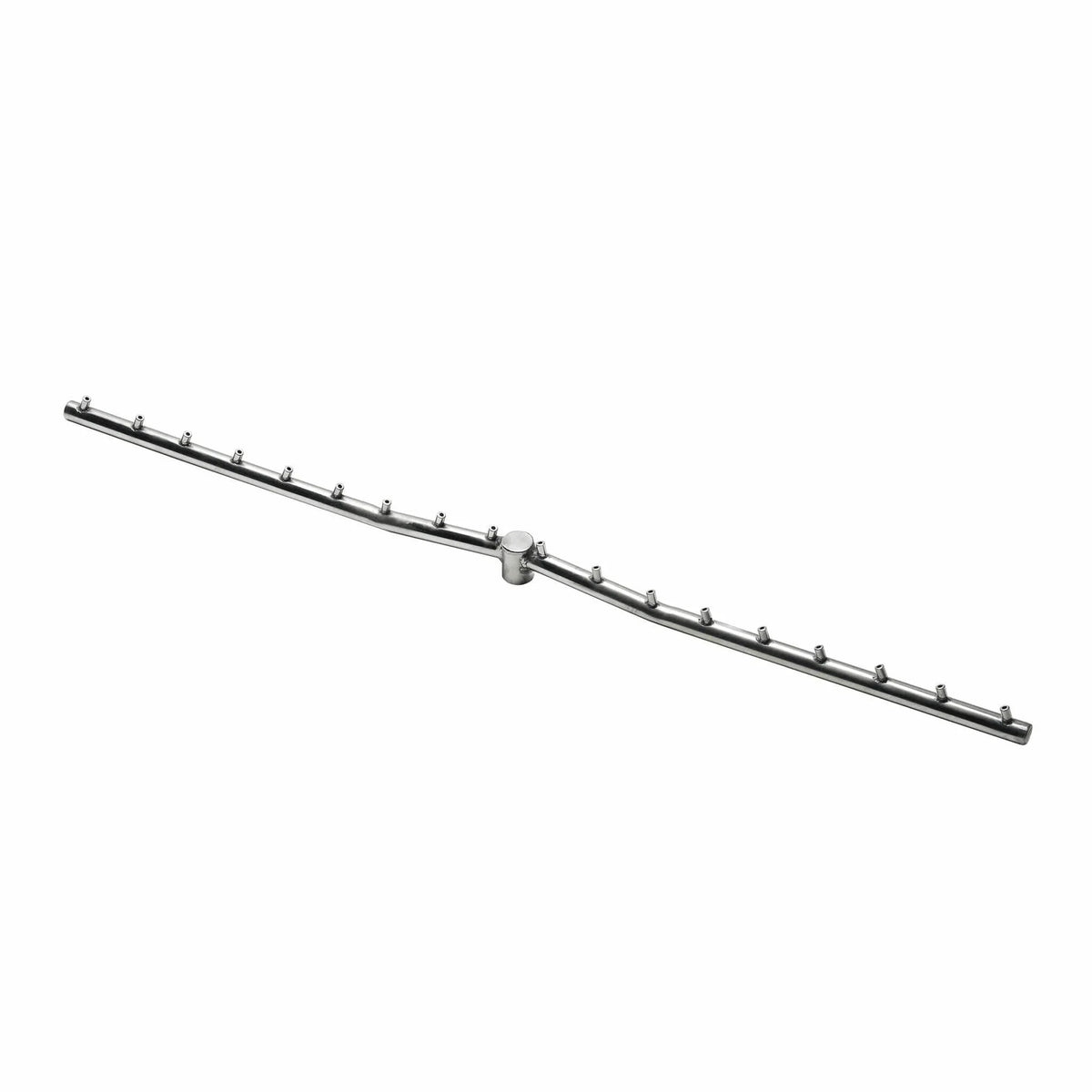

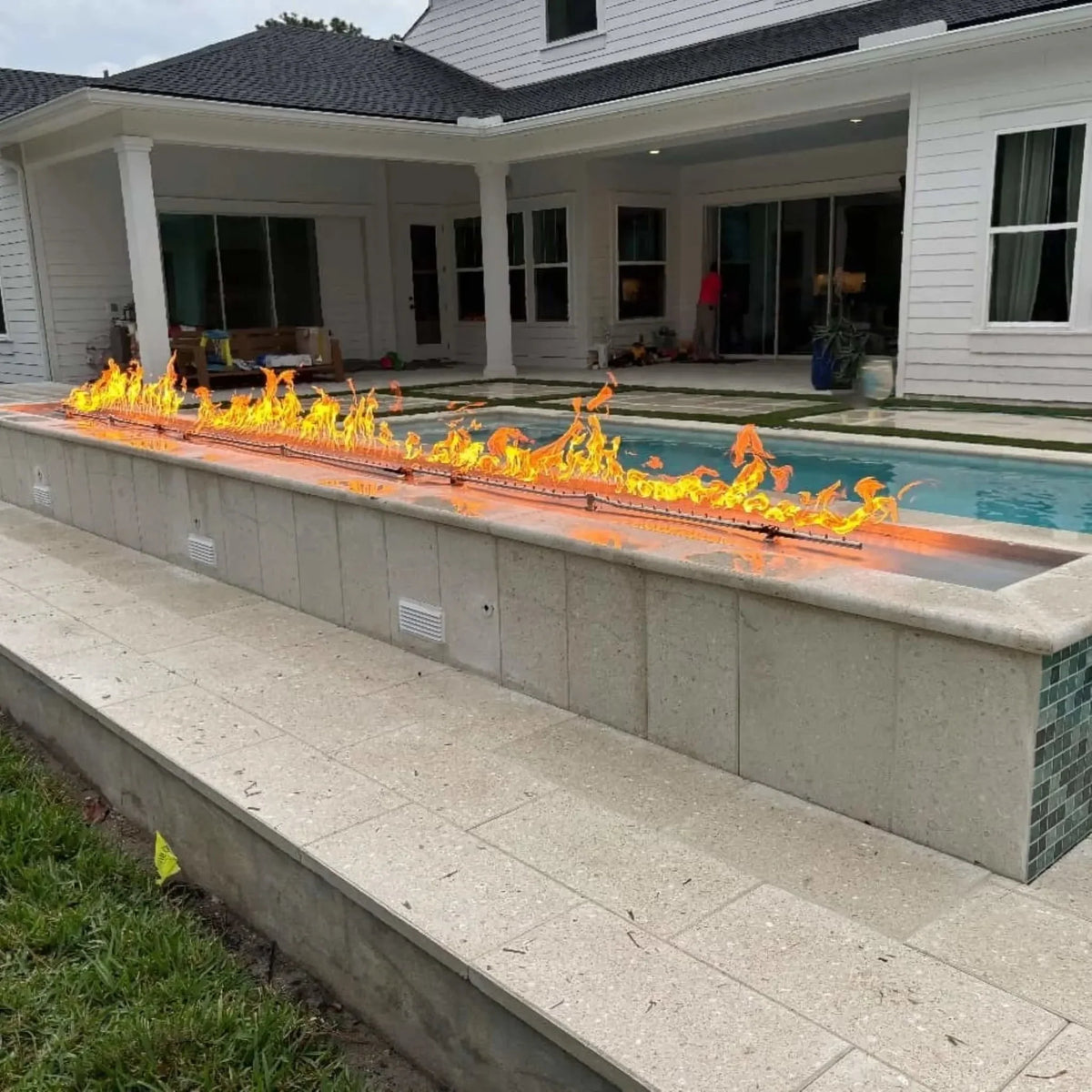

• Wall-Of-Fire Linear T-Burner: Features a heavy-gauge center-line pipe rail burner. By firing high-velocity flames uniformly across a long straight track, it maximizes spatial visual depth across narrow rectangular layout dimensions, ensuring zero cold sections along your fire line.

• Ultra-Low-Profile Flush Flat Pan: Precision-crafted from thick commercial-grade 304 stainless steel, the flat narrow plate sits perfectly flush across your enclosure's top opening. It is outfitted with integrated weep holes for quick water drainage and a specialized raised center burner hub to prevent moisture or pooling rainwater from traveling down into the primary gas orifice.

Advanced Hi/Lo Ignition & Smart Telemetry

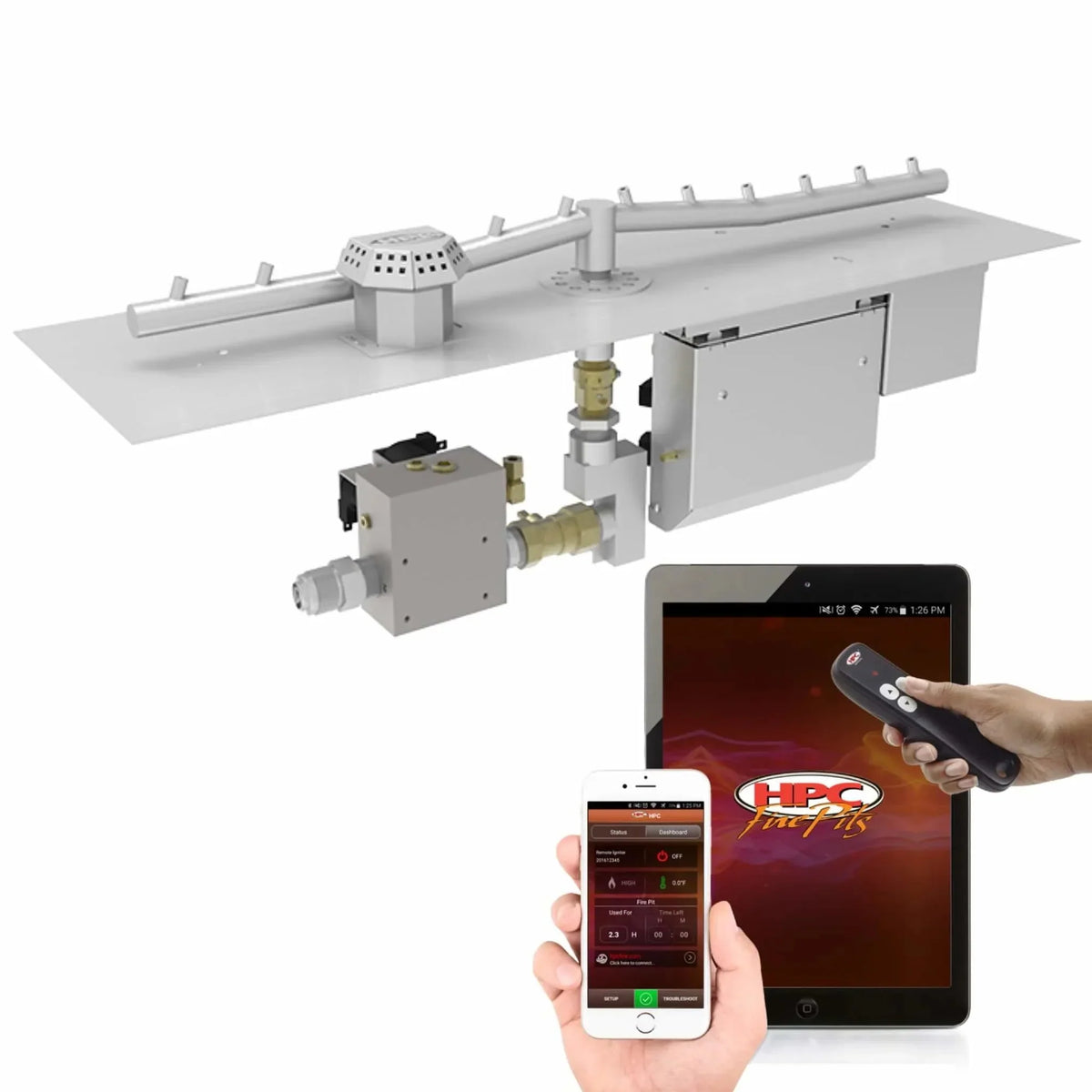

• Two-Way Bluetooth App Connectivity: Outfitted with an integrated smart internal antenna inside a weather-sealed lower control box, the system seamlessly pairs with the proprietary, free HPC Fire smartphone app (iOS and Android). This allows you to safely light or extinguish your fire pit from up to 20 feet away, program countdown sleep timers, track real-time operations, and run system diagnostics straight from your smart device.

• 45% Variable Flame Height Turndown: Includes a dedicated handheld smart remote control. While baseline gas fire pits only provide static on/off limits, the Hi/Lo electronic module features a variable fuel track. You can select "HI" mode for roaring heat or dial the flames back down by 45% to lower gas consumption and generate an intimate, soft ambient glow.

• Hot Surface Ignition (HSI) & Auto-Relight Protection: Uses a highly durable hot surface igniter paired with an advanced pilot flame loop and internal thermocouple. The safety module constantly monitors the active flame path. If a sudden storm draft or gust of wind blows out the flame, the gas valve instantly closes to prevent pooling, then initializes a safe, immediate automatic re-ignition sequence.

• Overheat Diagnostic Auto-Shutoff: Integrated internal thermal diagnostics continuously monitor control box operating vitals. If improper fire media nesting or poor base cavity ventilation causes heat to spike, the system triggers an emergency shutoff to protect the internal electronic boards.

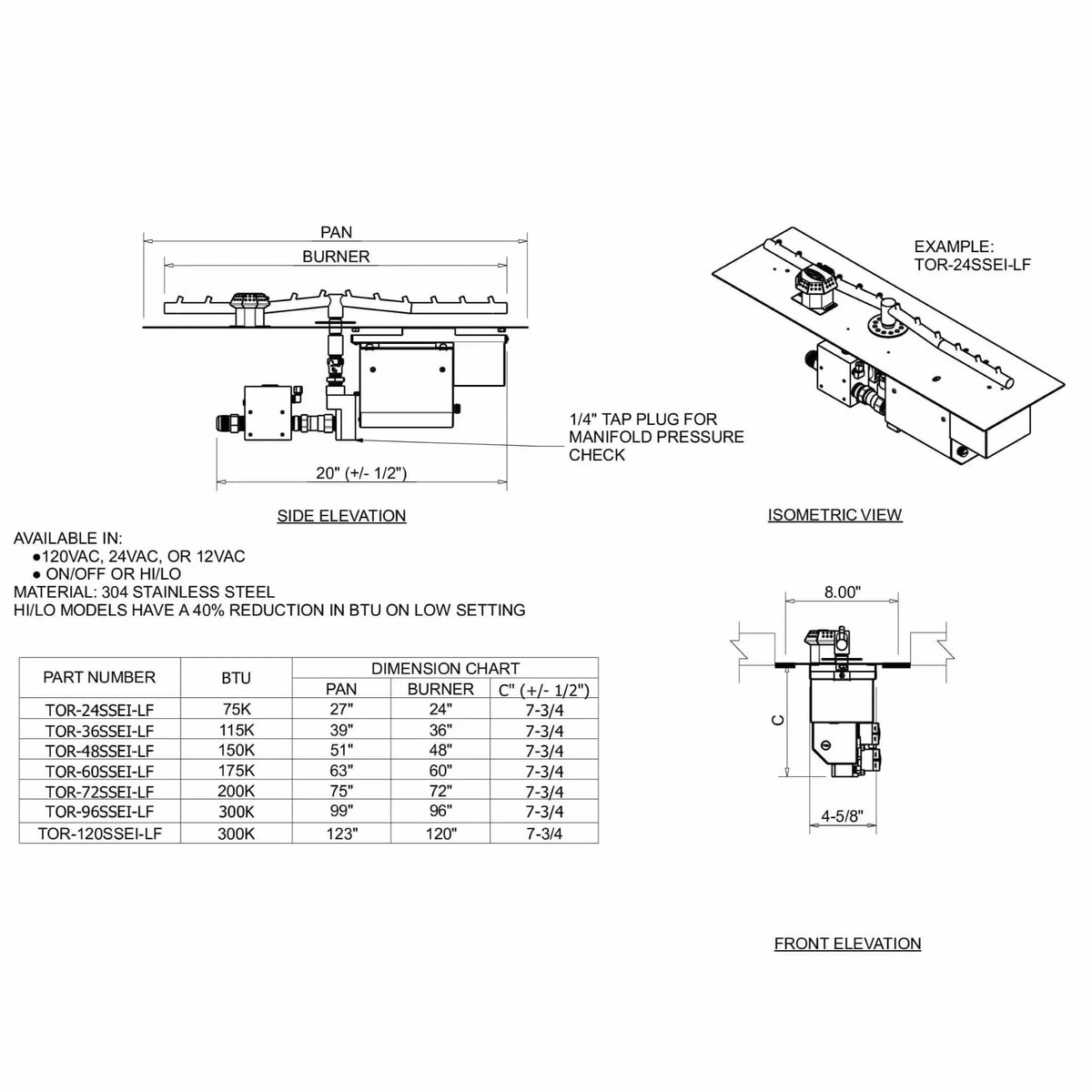

Technical Specifications & Sizing Scaling

• Linear Flat Pan Length Profiles & Heat Range Capacities (Dependent on Selection):

  • 25" x 8" Flat Pan (with 24" T-Burner Hub): Up to 75,000 BTUs (Holds approx. 20 lbs of fire glass)

  • 37" x 8" Flat Pan (with 36" T-Burner Hub): Up to 115,000 BTUs (Holds approx. 30 lbs of fire glass)

  • 49" x 8" Flat Pan (with 48" T-Burner Hub): Up to 150,000 BTUs (Holds approx. 40 lbs of fire glass)

  • 61" x 8" Flat Pan (with 60" T-Burner Hub): Up to 175,000 BTUs (Holds approx. 40 lbs of fire glass)

  • 73" x 8" Flat Pan (with 72" T-Burner Hub): Up to 200,000 BTUs (Holds approx. 50 lbs of fire glass)

  • 97" x 8" Flat Pan (with 96" T-Burner Hub): Up to 300,000 BTUs (Holds approx. 60 lbs of fire glass)

  • 121" x 8" Flat Pan (with 120" T-Burner Hub): Up to 300,000 BTUs (Holds approx. 60 lbs of fire glass)

• Dedicated Fuel Utility Options: Factory-built, safety-tested, and serialized precisely for either Natural Gas or Propane Gas HARDLINE configurations. Propane models feature integrated safety orifice meshes to keep debris out.

• Power Supply Track Options: System mechanics require dedicated electricity. Selectable at purchase for either standard residential 120 VAC (equipped with a 3-prong outdoor-grounded GFCI plug cord) or a low-voltage 24 VAC track (ideal for pool zones; requires an external step-down transformer box, sold separately).
