Description

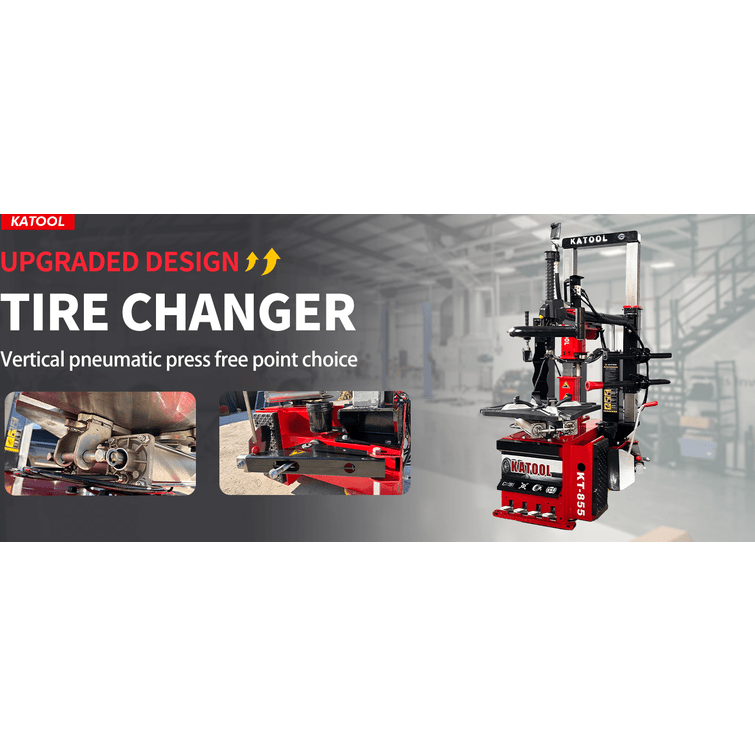

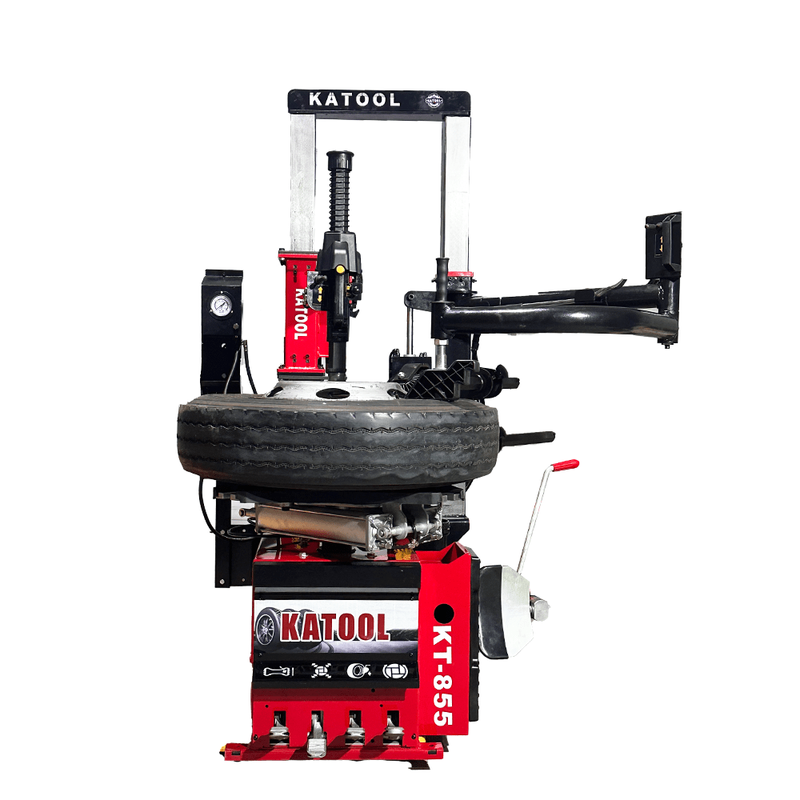

The Katool KT-855 Vertical Tire Press Changer is a robust and efficient solution for automotive workshops, designed to handle a wide range of tire sizes with precision and ease.

Features

• Automatic Measurement Ruler: Facilitates the automatic input of A and D values, streamlining the tire-changing process.

• Durable Construction: The machine's body is constructed with 3mm thick steel, providing high strength, solid welding, and minimal vibration for enhanced stability.

• Integrated Pressure Sensor Support: Features an all-in-one design with 8mm thick bottom and side boards, ensuring stable and precise sensor operation.

• High-Quality Motor: Equipped with a top-level motor featuring pure copper winding, offering more power, rapid heat dissipation, a low defect rate, and an extended lifespan.

• Reinforced Shaft Thread: The φ36mm shaft thread undergoes quenching treatment, resulting in high strength and durability.

• Advanced Computer Board: Utilizes advanced welding technology, making it moisture-proof, dustproof, and anti-static, thereby extending its operational life.

• Versatile Balance Modes: Provides various balance modes tailored to different rim types, ensuring precise balancing outcomes.

• User-Friendly Calibration: Incorporates built-in fault diagnosis and a self-calibration program with double-sided calibration, eliminating the need for memory parameters and simplifying operation.

• Unit Selection Flexibility: Allows selection between Ounce/Gram and MM/Inch units for measurement versatility.

• Stable Power Supply: Features a high-quality integrated power board, ensuring stable and reliable performance.

• Optional Wheel Guard: Offers an optional wheel guard for added safety and protection.

• Extended Shaft: Includes a longer shaft to accommodate wider wheels, enhancing its versatility.

Specifications

• Maximum Tire Diameter: 38 inches (980mm)

• Maximum Tire Width: 12 inches (325mm)

• Outer Clamping Range: 12 to 24 inches

• Inner Support Range: 14 to 28 inches

• Tire Shovel Pressure: 2500 KG

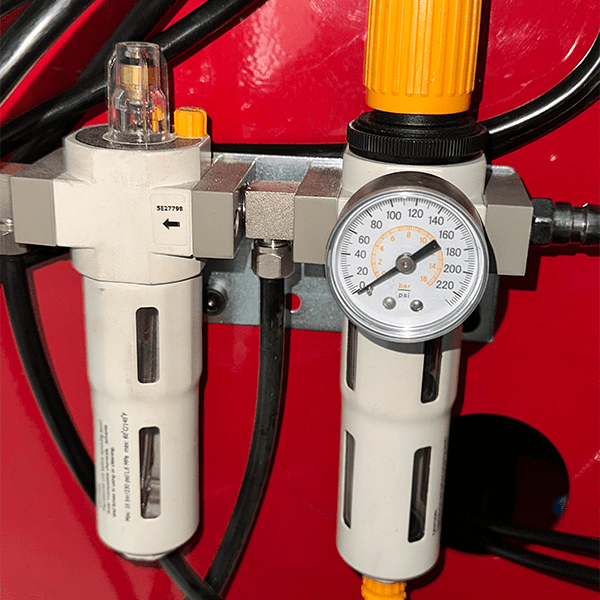

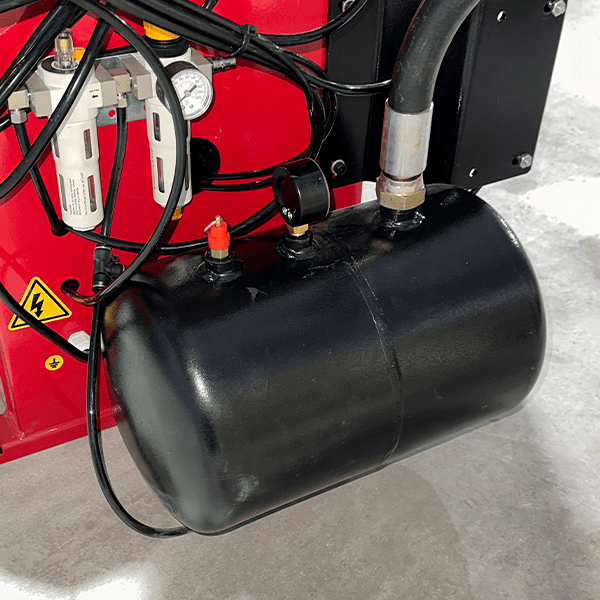

• Air Source Pressure: 0.8-1.0 Mpa

• Voltage: 110V/60Hz

• Power: 1.5KW

• Frequency: 60Hz

• Full Load Current: 4.7A

• Noise Level: Less than 70dB

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
