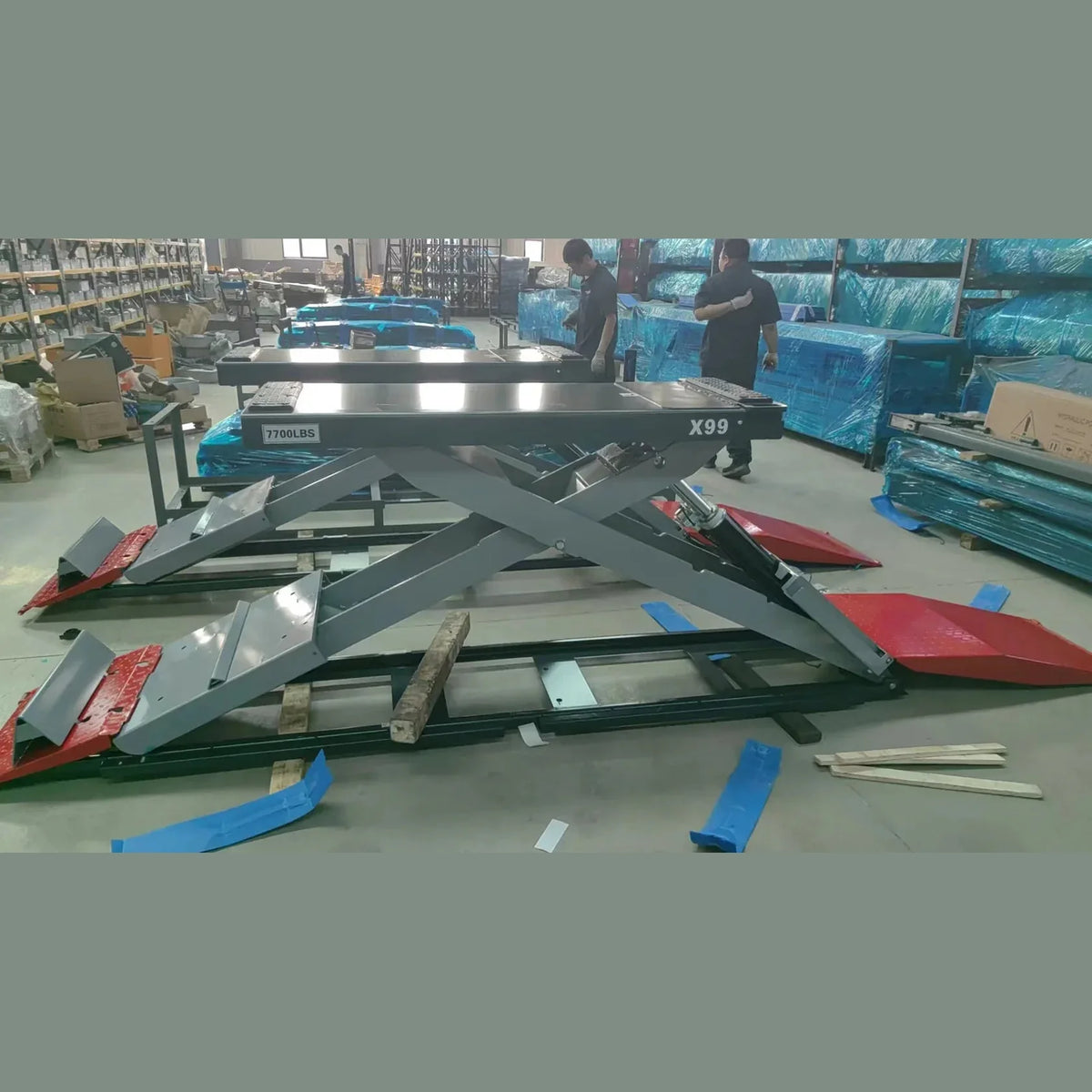

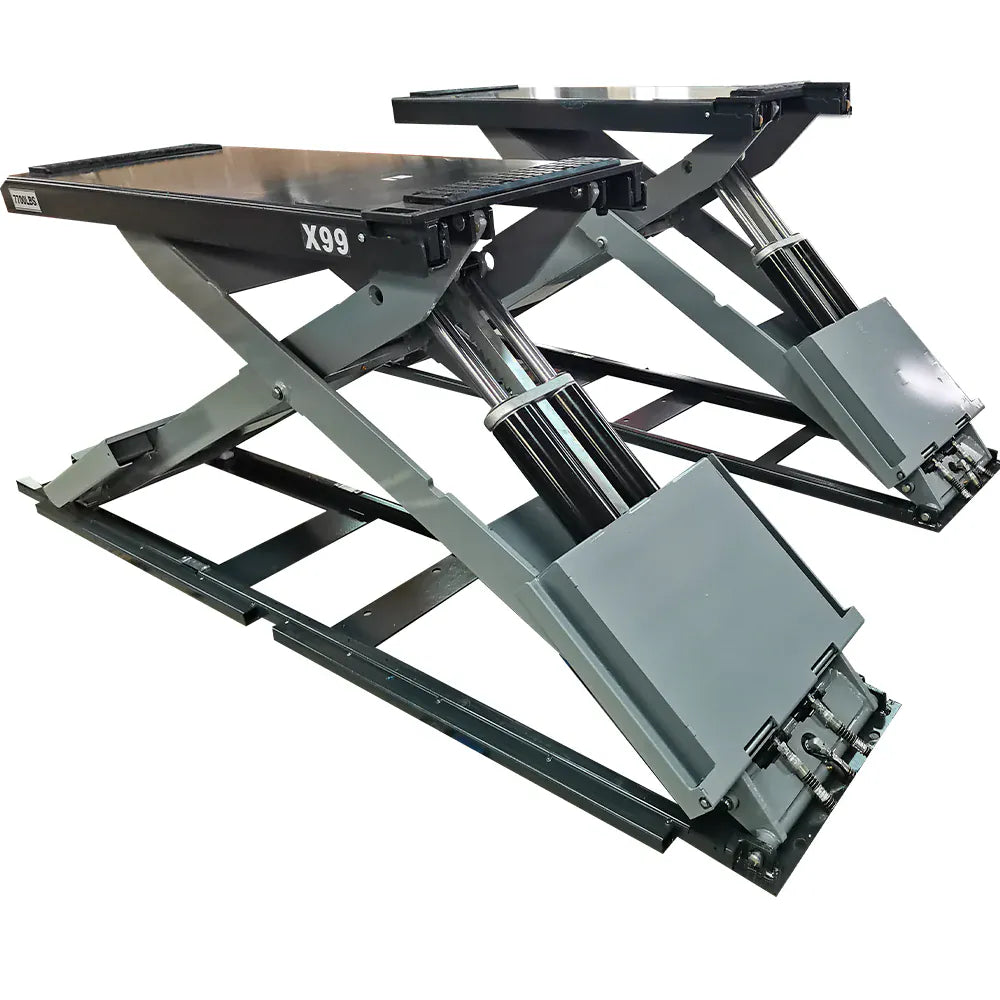

76" of lift travel and 7,700 lb capacity for cars, SUVs, and light trucks.

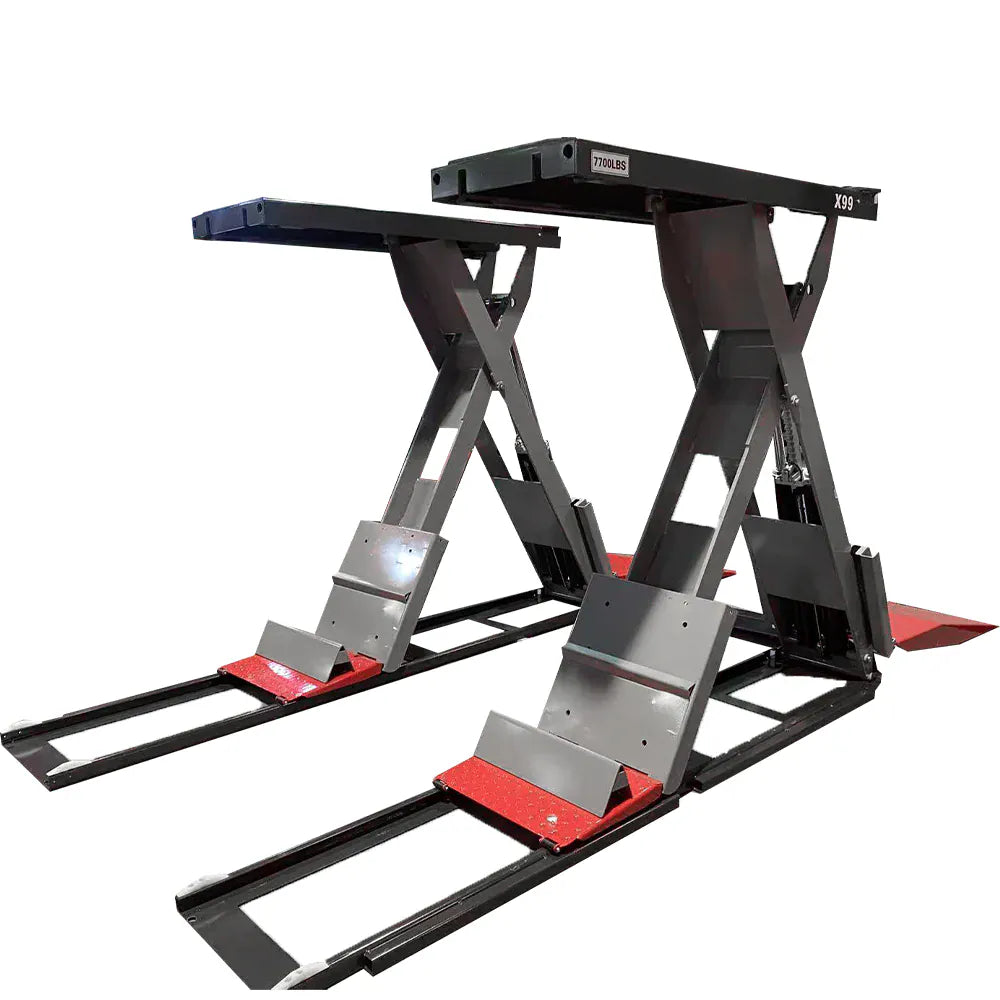

Dimensional reference (lift shown with approach ramps deployed).
Katool KT-X99 Full-Rise Scissor Lift — 7,700 lb Capacity, 76" Lift Height
£2,377.00
Sale price
£2,377.00
Regular price
Shipping calculated at checkout.
KT-X99
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description
The Katool KT-X99 is a heavy-duty full-rise hydraulic scissor lift built for professional service shops, collision centers, tire bays, and serious enthusiasts who need full undercarriage access without the column footprint of a two-post lift. Rated at 7,700 lb capacity with a 76" maximum lift height, the X99 raises cars, SUVs, and light trucks high enough to stand and work beneath comfortably — the difference between a stooped-over mid-rise and a true full-rise.

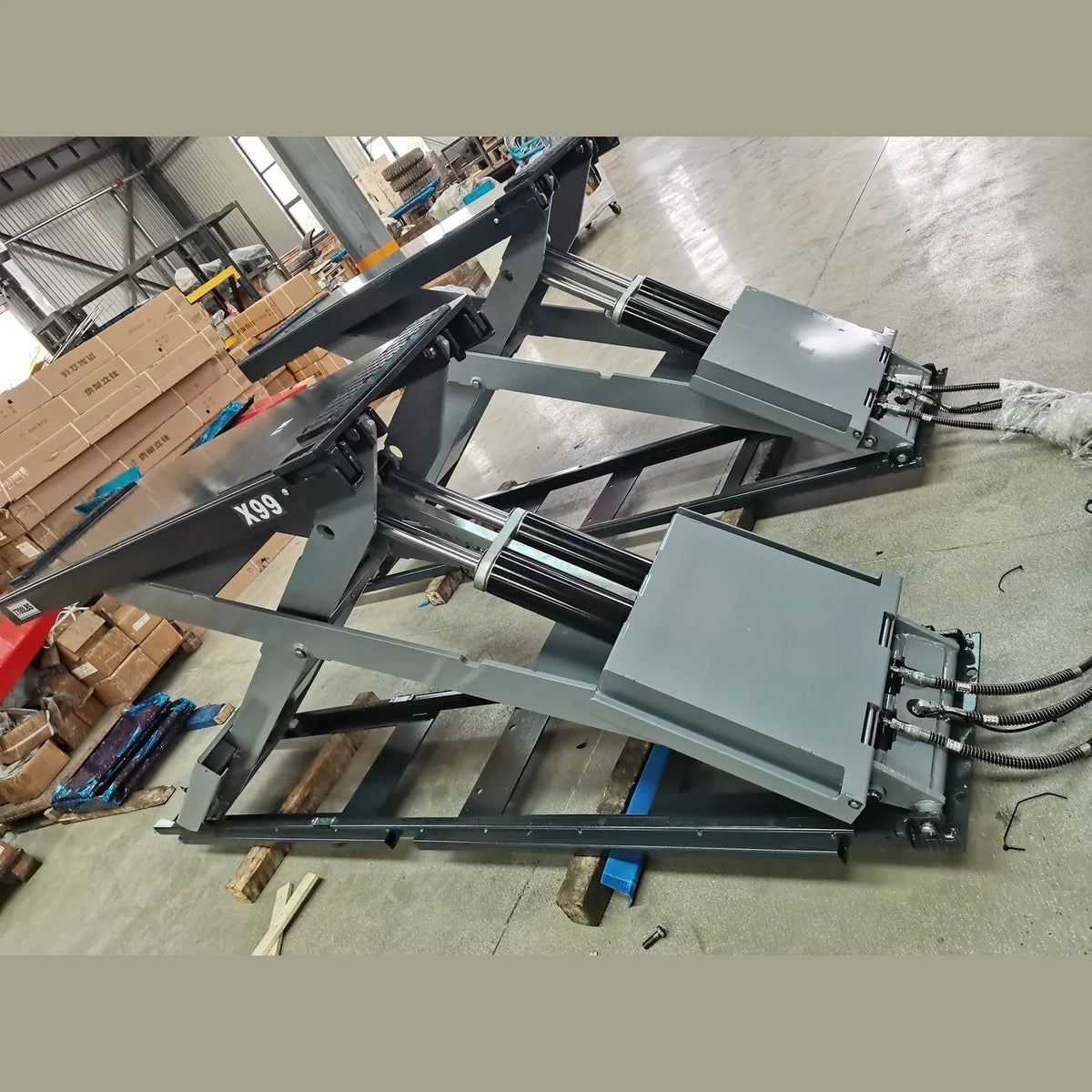

The drive-on platforms sit at 4.5" low-profile when fully retracted, so vehicles roll on without long external ramps fighting low aero. A 2.0 HP electric-hydraulic power unit drives the cylinders at 2,200 PSI for a 30–40 second raise/lower cycle. Multi-position mechanical safety locks hold the lift at any working height, and the welded high-strength steel frame is finished in rust-resistant powder coat (grey and red).
Features
- 7,700 lb (4,082 kg) lifting capacity — covers passenger cars, SUVs, and most light trucks
- 76" maximum lift height — full-rise travel for upright work on exhaust, brakes, suspension, and drivetrain
- 4.5" minimum drive-on height — low-profile decks accept low cars without external ramps
- Hydraulic power — 2.0 HP motor, 2,200 PSI working pressure, ~30–40 second cycle
- Multi-position mechanical safety locks — positive engagement at multiple working heights
- 110V / 220V electric supply (single-phase standard; three-phase optional)
- Welded high-strength steel construction with rust-resistant powder-coat finish
- Anti-slip platform texture for technician footing while loading
- CE Certified
Specifications
| Katool KT-X99 Full-Rise Scissor Lift Specifications | |
|---|---|
| Lift type | Hydraulic full-rise scissor lift |
| Rated capacity | 7,700 lb (4,082 kg) |
| Maximum lift height | 76" |
| Minimum drive-on height | 4.5" |
| Overall length | 78" |
| Overall width | 52" |
| Platform width | 48" |
| Platform thickness | 1.25" |
| Lift cycle time | ~30–40 seconds raise/lower |
| Power supply | 110V / 220V (single-phase standard; three-phase optional) |
| Motor power | 2.0 HP |
| Operating pressure | 2,200 PSI (151.7 bar) |
| Safety locks | Multi-position mechanical safety lock system |
| Frame construction | High-strength welded steel |
| Finish | Powder-coat (grey & red), rust-resistant |
| Shipping weight | ~1,250 lb (567 kg) |
| Package dimensions | 84" L × 56" W × 28" H |
| Certifications | CE Certified |
| Warranty | 1-year parts / 3-year structural |
Shipping & Logistics
The Katool KT-X99 ships via freight at approximately 1,250 lb in a single crate measuring 84" L × 56" W × 28" H.
