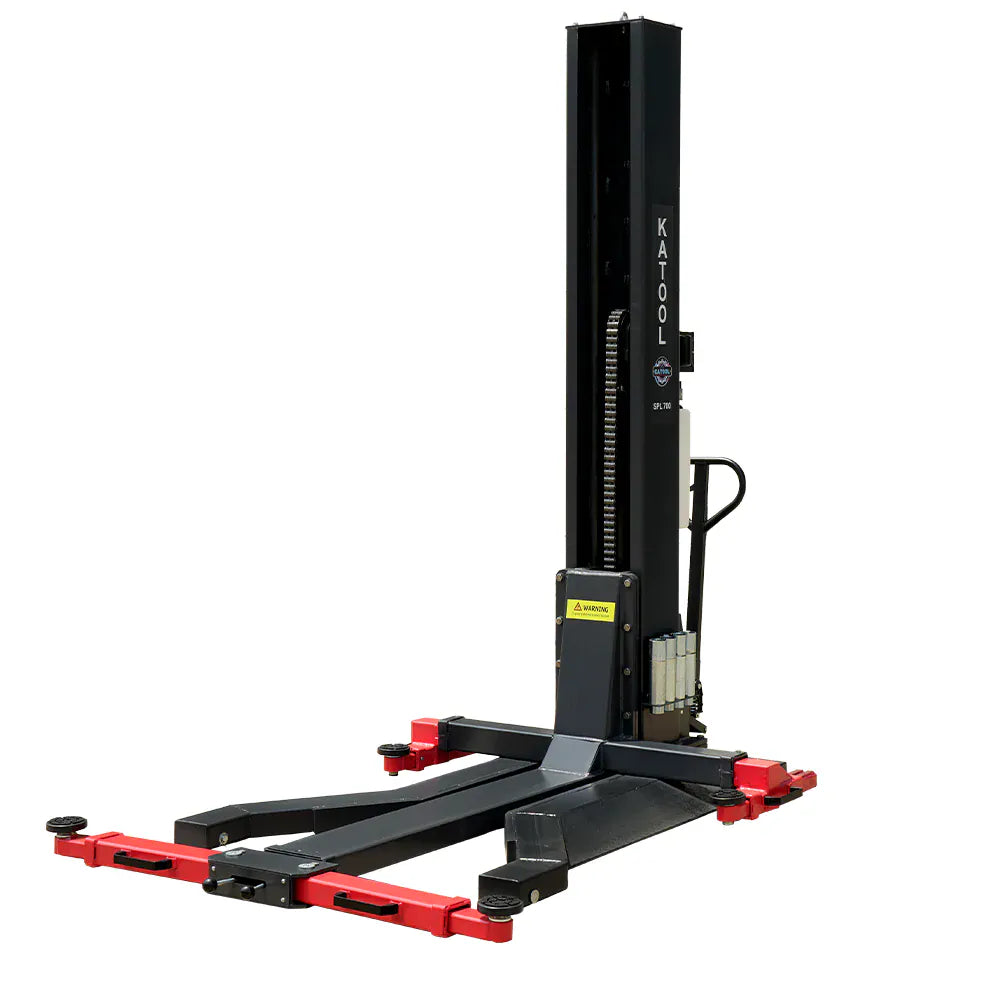

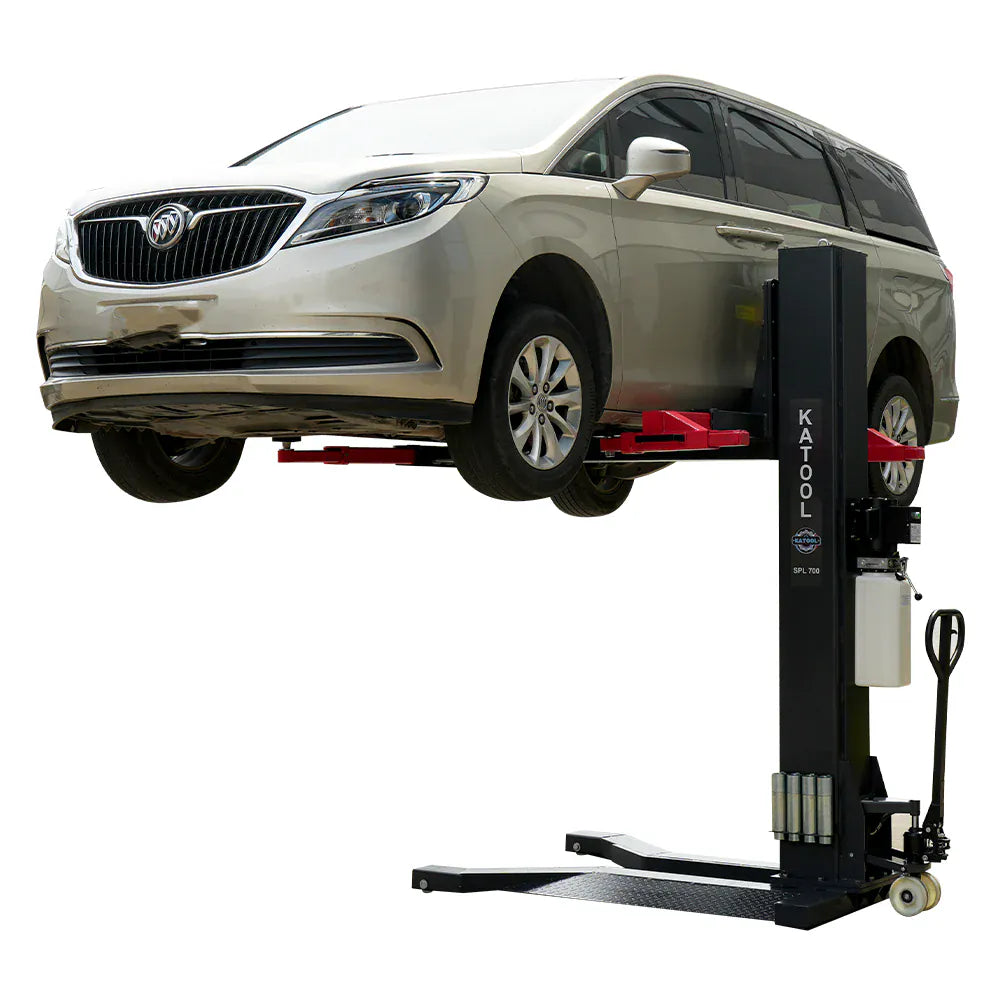

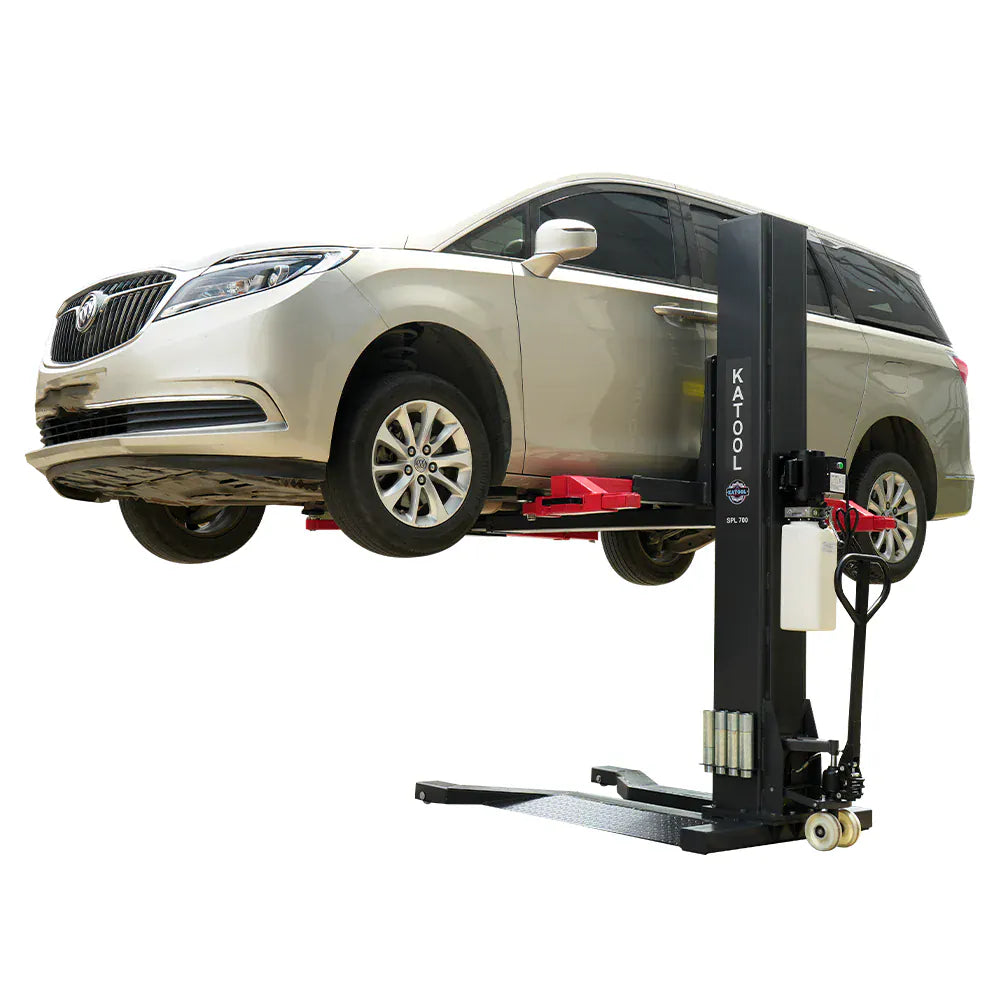

The Katool KT-SPL700 is a portable 7,000 lb single post vehicle lift built for shops, home garages, and mobile technicians who work in tight spaces. The single-column design opens up access to all four wheels and the full undercarriage, which is what makes it useful for tire, brake, suspension, and exhaust work where you need clear access without committing the floor space of a two-post or four-post lift.
Power runs off a standard 110 V single-phase circuit on a 30-amp breaker, so the lift drops into most home and small-shop electrical setups without a service upgrade. The lifting pad reach is fully adjustable across a wide range of vehicle widths, and the unit ships with eight stackable truck adapters — four at 2.75" and four at 6" — to set pad height for trucks and vans.
Overall footprint — 103" tall × 69" wide.
Mobility is built in: a pair of caster wheels and an integrated pump handle let one technician roll the lift between bays. The diamond-plate drive-on platform keeps the operator clear during loading, and an automatic safety lock engages at every lift position. Initial offloading from the freight truck requires a forklift — the unit ships at roughly 1,900 lbs.
Dimensions

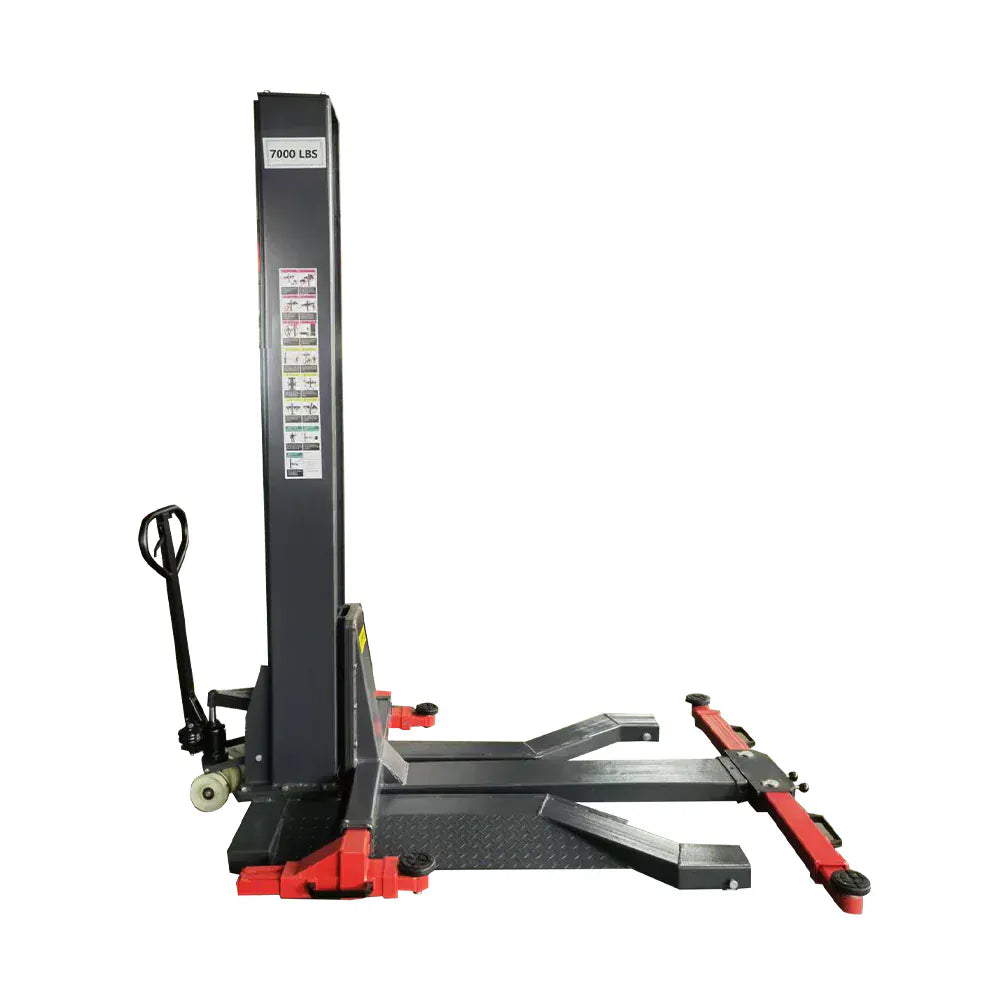

Side view — overall height 102 3/4", max lift 71 2/3".Top view — arm reach ranges and full pad-distance spread.
Features
7,000 lb (3,175 kg) lifting capacity — sized for sedans, SUVs, and light trucks
71 2/3" max lifting height with 68" clearance under the pads
Single-post design clears all four wheels and the full undercarriage at once
Drive-on diamond-plate platform with low-profile arms for low-clearance vehicles
Adjustable lifting pad reach for sedans through full-size light trucks
110 V single-phase, 30 A — runs on standard garage power, no service upgrade

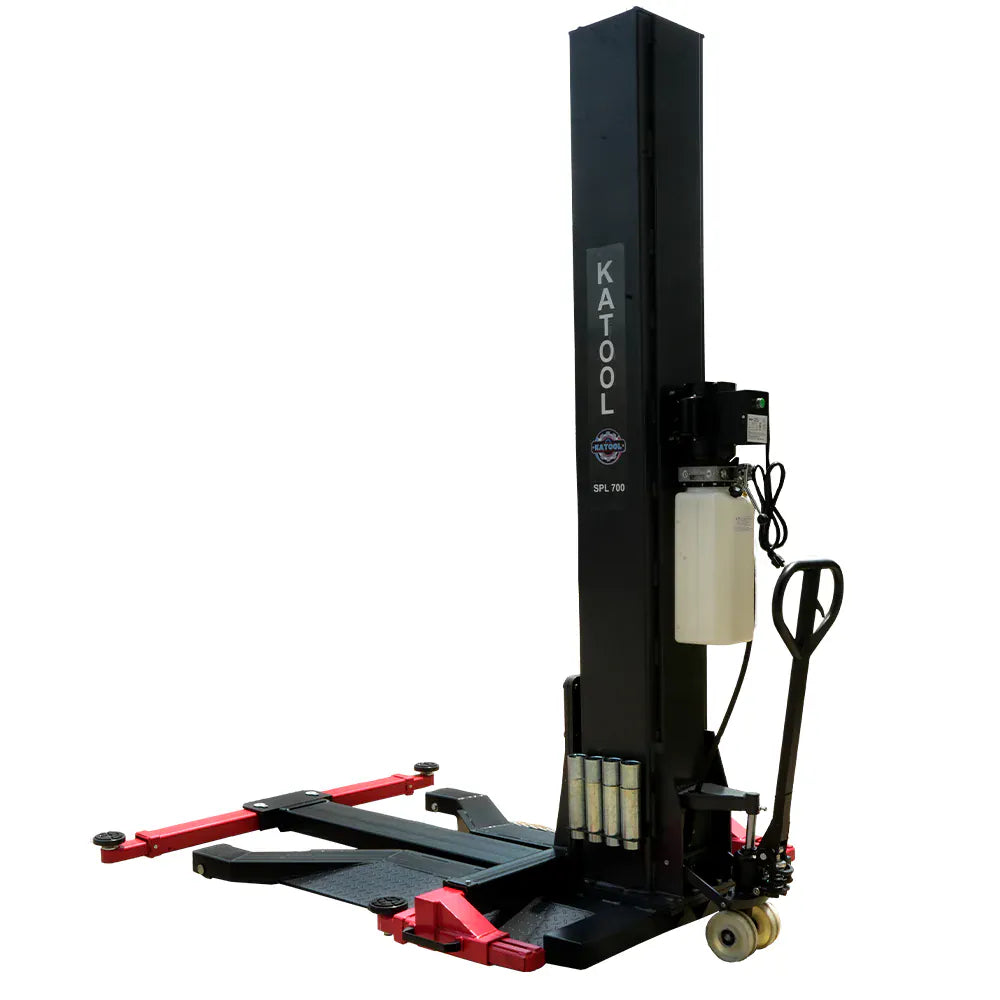

Caster wheels and integrated pump handle for repositioning by one technician
Automatic safety lock engages at every lift position

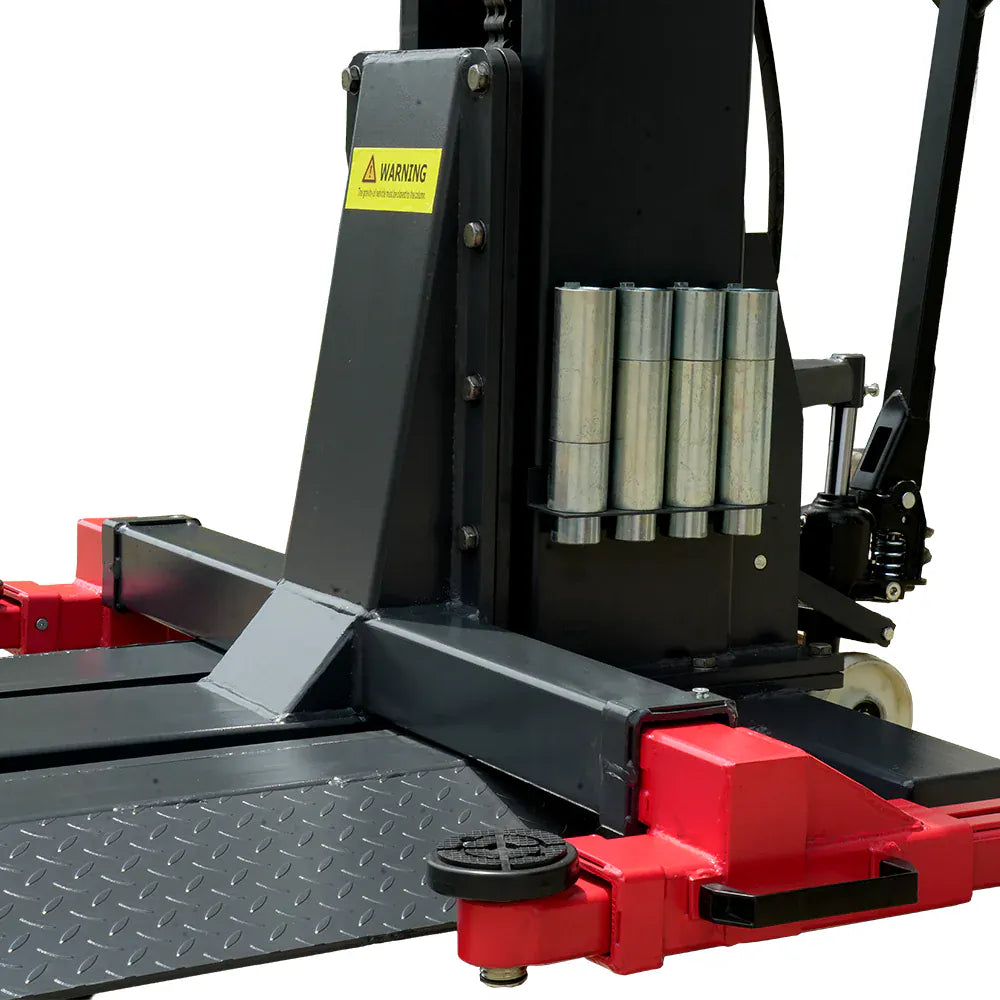

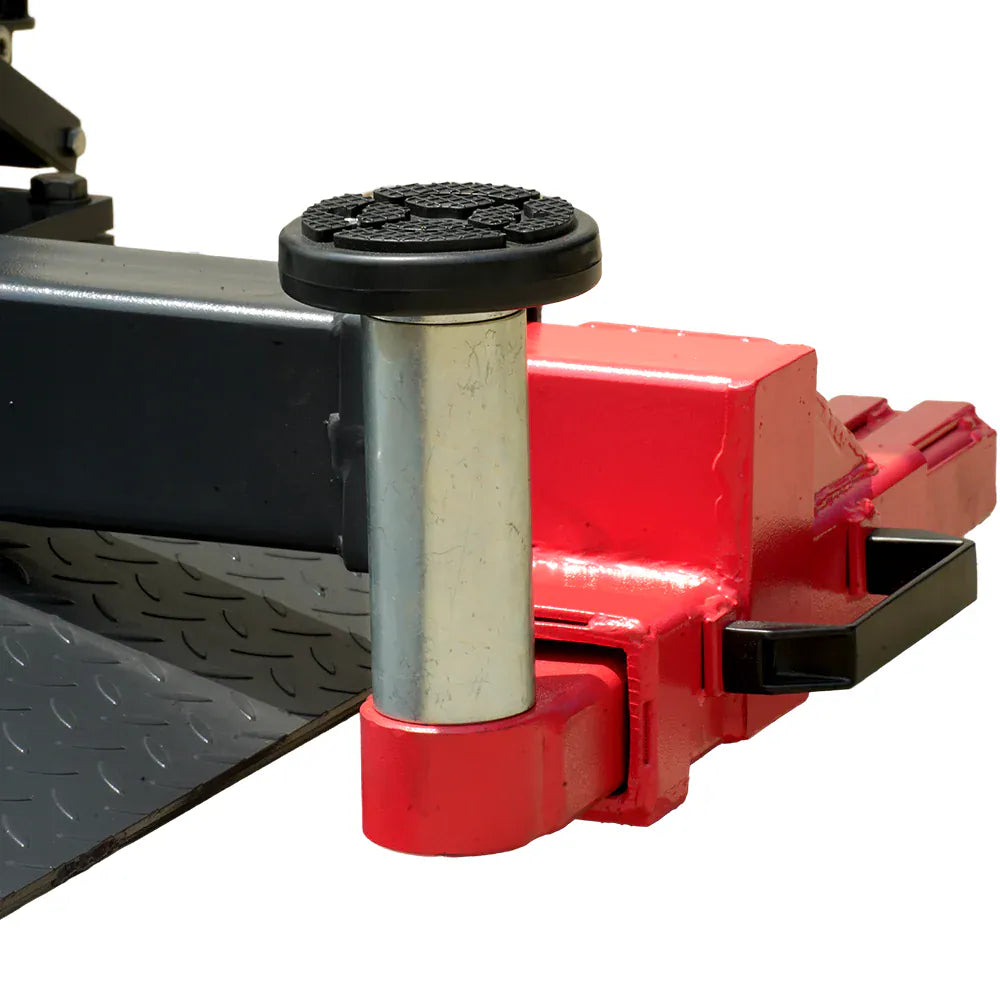

Includes (4) 2.75" and (4) 6" stackable truck adapters; 2" peg size
Hydraulic operation; AW32 or AW46 fluid (3–5 gal) sold separately
