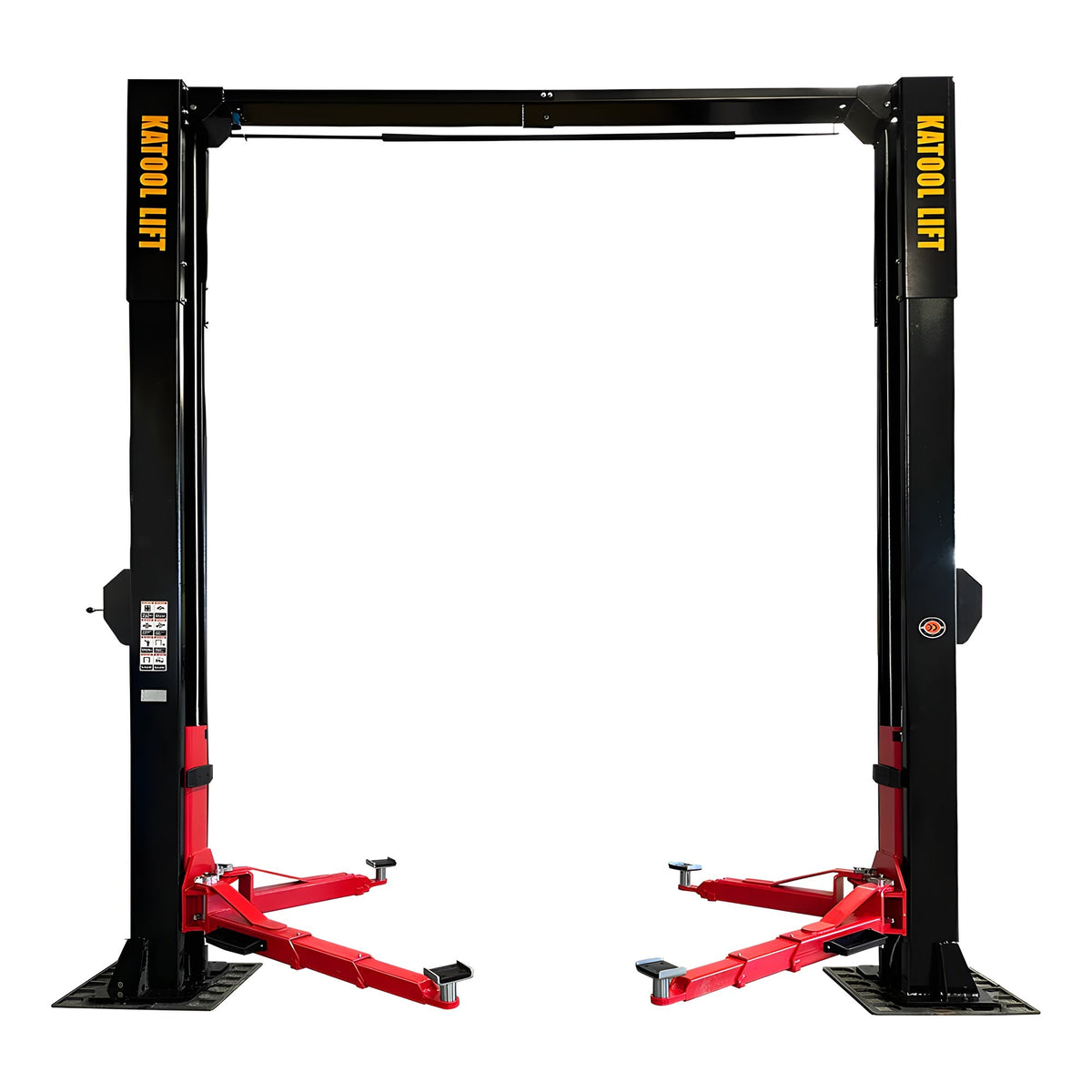

The Katool KT-M150D is a commercial-grade 15,000 lb capacity two post lift built for fleet shops, truck service bays, and high-volume garages working on heavier vehicles than a 10,000-class lift can safely handle. The symmetric column geometry centers the load between the posts, and a direct-drive cylinder system replaces traditional chain-over-sheave lifting for smoother cycles and fewer wearing parts.
A single-point lock release consolidates the descent control into one lever — both columns disengage together, so the operator never has to walk the lift to release each side. The lifting frame is fabricated from Q235 and Q245 structural steel, and the standard arm hardware ships with stacking adapters (round pads plus stacking sleeves) for picking up trucks, vans, and vehicles with high frame rails.
Direct-drive cylinder, mounted in-column.
The KT-M150D rises to a 72.83" maximum lifting height and clears 116" between columns, with an overall height of 176.8". A 3 kW (4 HP) motor running on 220V / 60 Hz drives the hydraulic system, and the manufacturer specifies a minimum 6.5" of 3,000 PSI concrete for installation — verify your slab before scheduling.
Ships via freight.
Features
15,000 lb lifting capacity — sized for trucks, vans, and commercial fleet vehicles
Direct-drive cylinder system — smoother cycles and fewer wearing parts than chain-over-sheave designs
Symmetric two-post geometry — load centers between the columns for balanced lifting
Single-point lock release — one lever disengages both columns for controlled lowering
72.83" max lifting height — undercar clearance for stand-up service
Q235 / Q245 structural steel column and lifting-frame fabrication

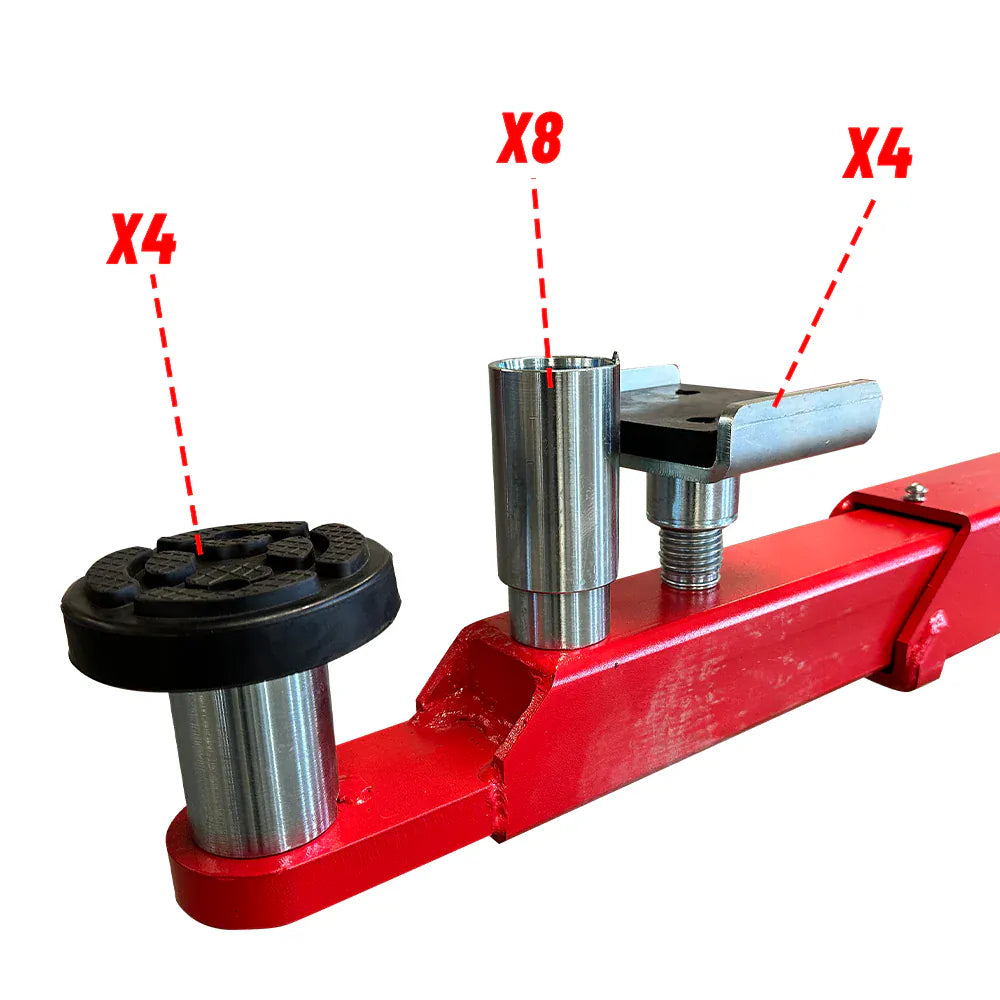

Standard adapter kit included — round pads and stacking sleeves with the arms
Specifications
Katool KT-M150D Specifications
Lifting capacity
15,000 lbs
Maximum lifting height
72.83"
Overall height
176.8"
Drive-thru clearance
116"
Motor
4 HP / 3 kW
Voltage
220V / 60 Hz
Design
Symmetric two-post
Drive type
Direct drive
Construction material
Q235 / Q245 structural steel
Concrete requirement
6.5" minimum, 3,000 PSI
Verify slab thickness and PSI before installation. Concrete requirement is set by the manufacturer; new concrete must cure at least 28 days, and the lift is designed for indoor installation on a level slab only.

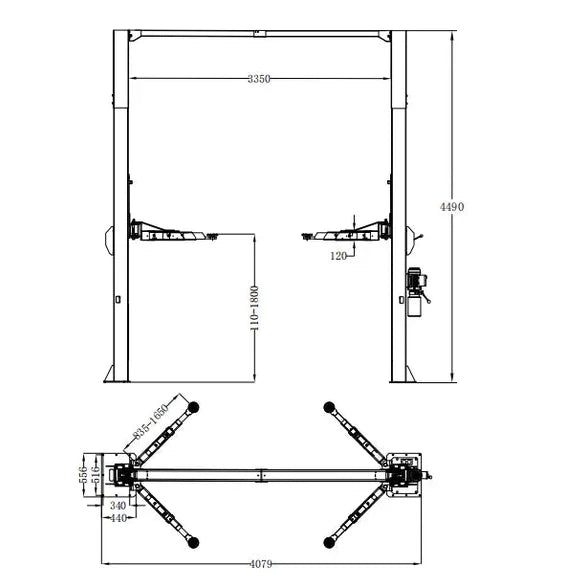

Engineering dimensional drawing (millimeters).
Warranty
Katool covers the KT-M150D with a limited one-year (12-month) warranty on all parts against product defects — including cylinders, power units, motors and electronics — with replacement parts provided at no cost, free shipping included. As a vehicle lift it also carries an additional three-year (36-month) warranty on structural components. Claims require the original order number and purchase from My Garage Supplies or a registered vendor; labor is not included. Contact sales@mygaragesupplies.com or call 307-381-1810 to start a claim.
