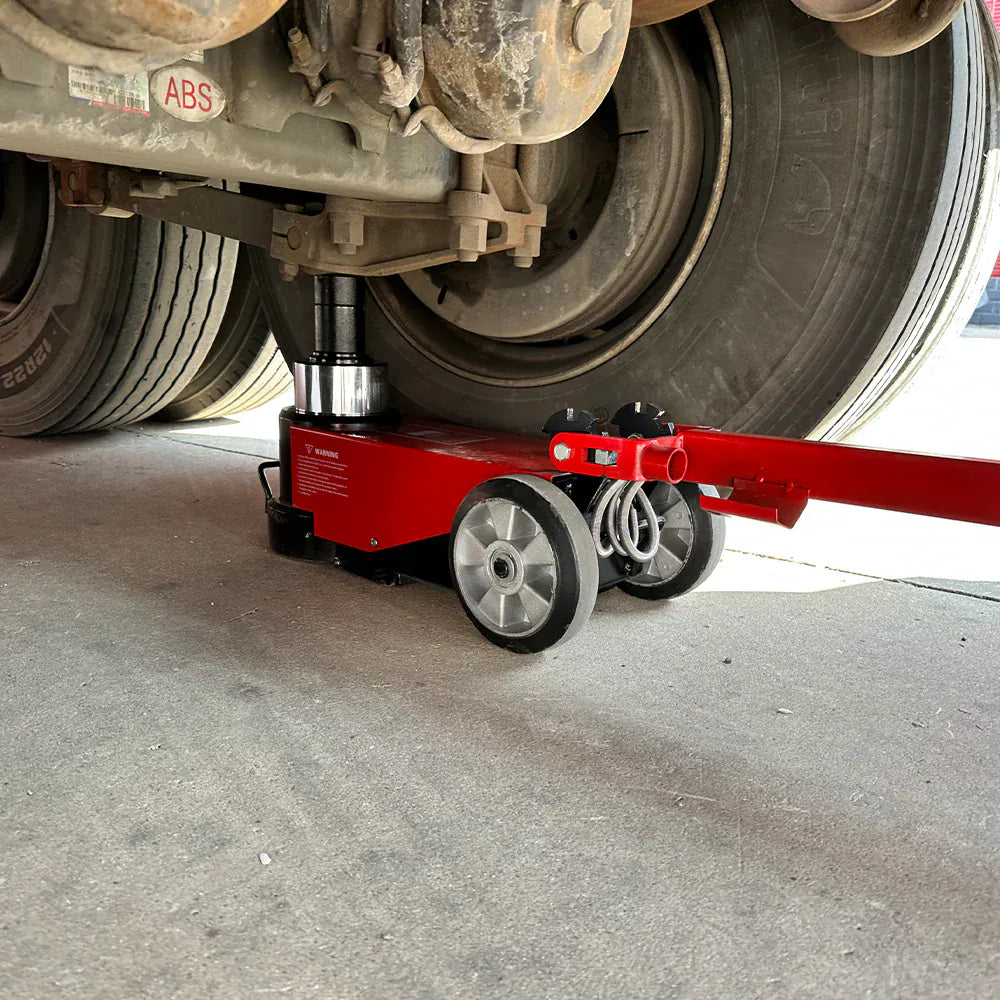

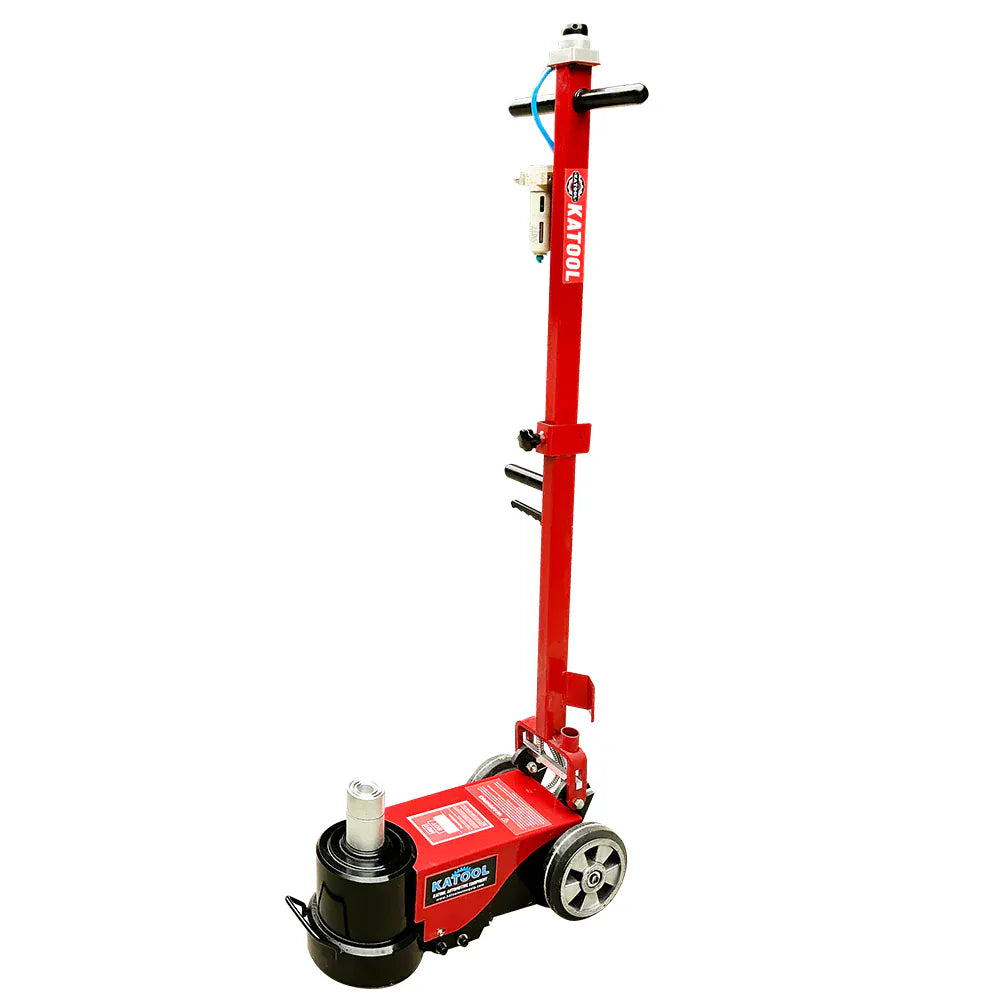

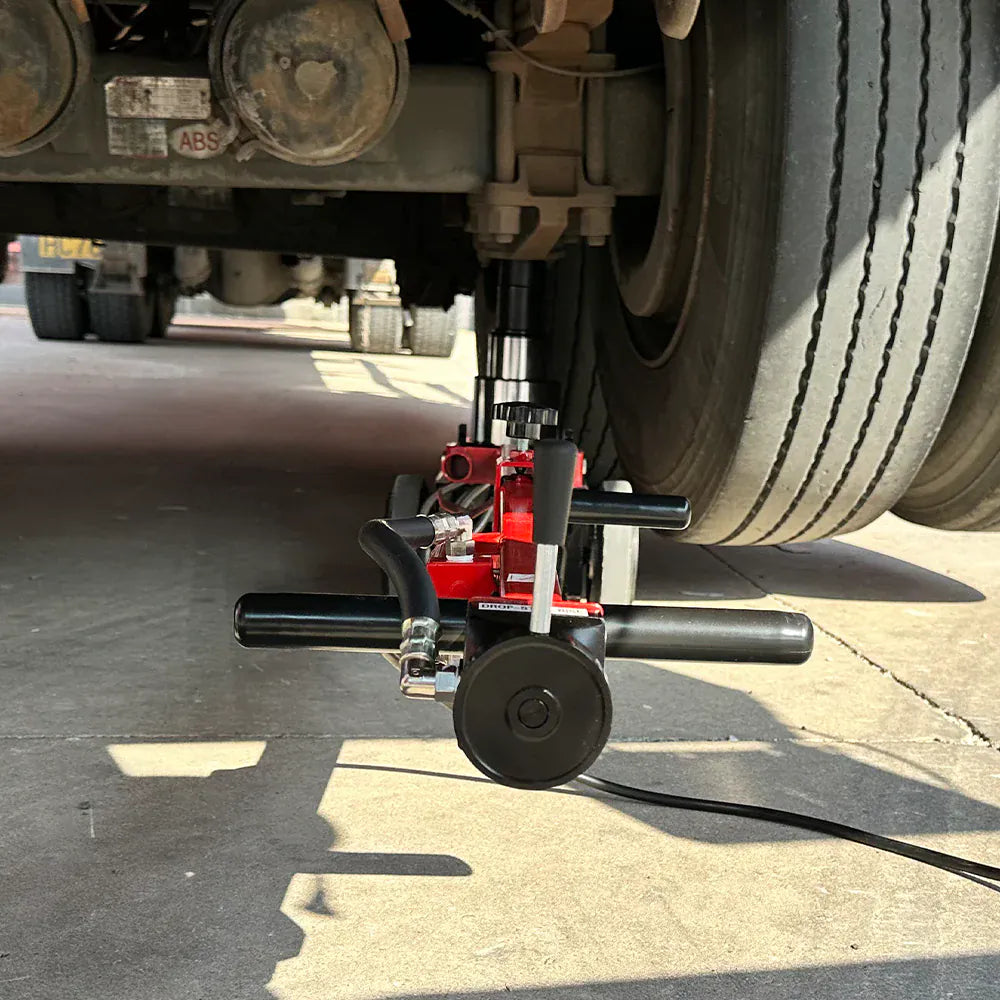

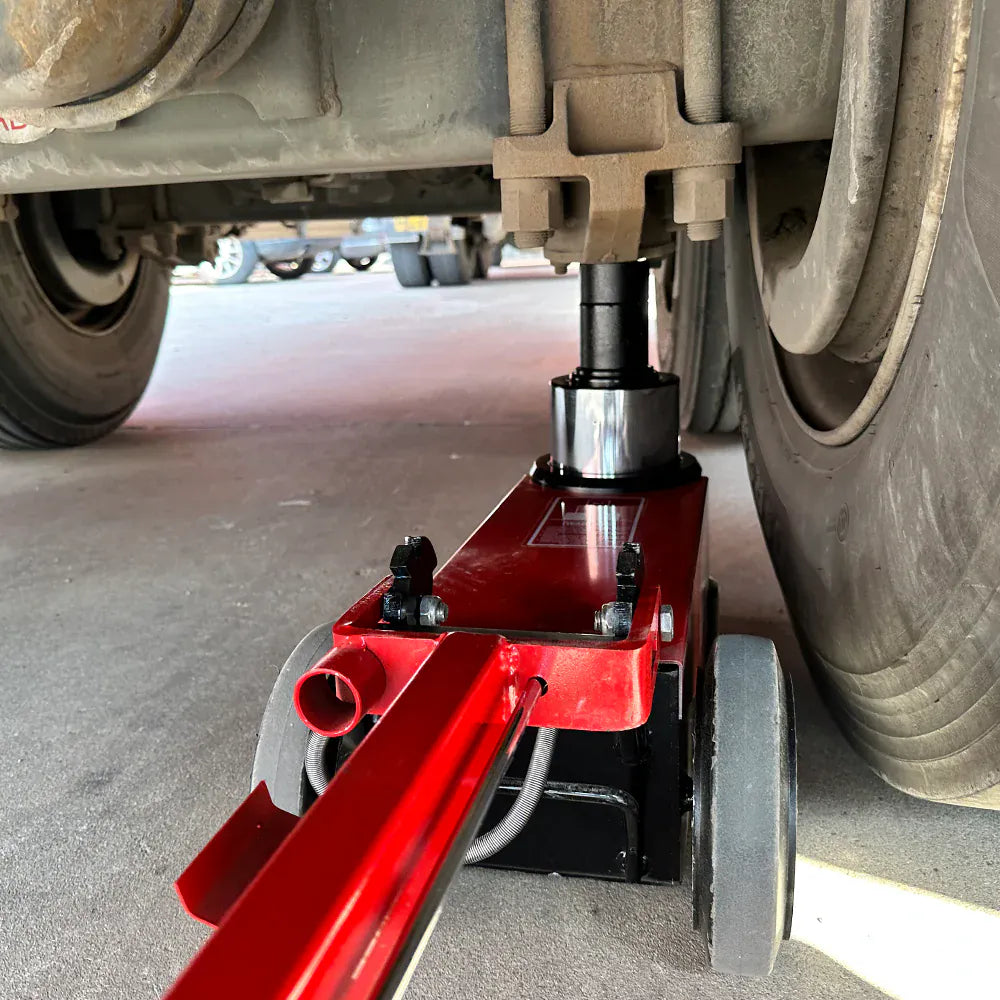

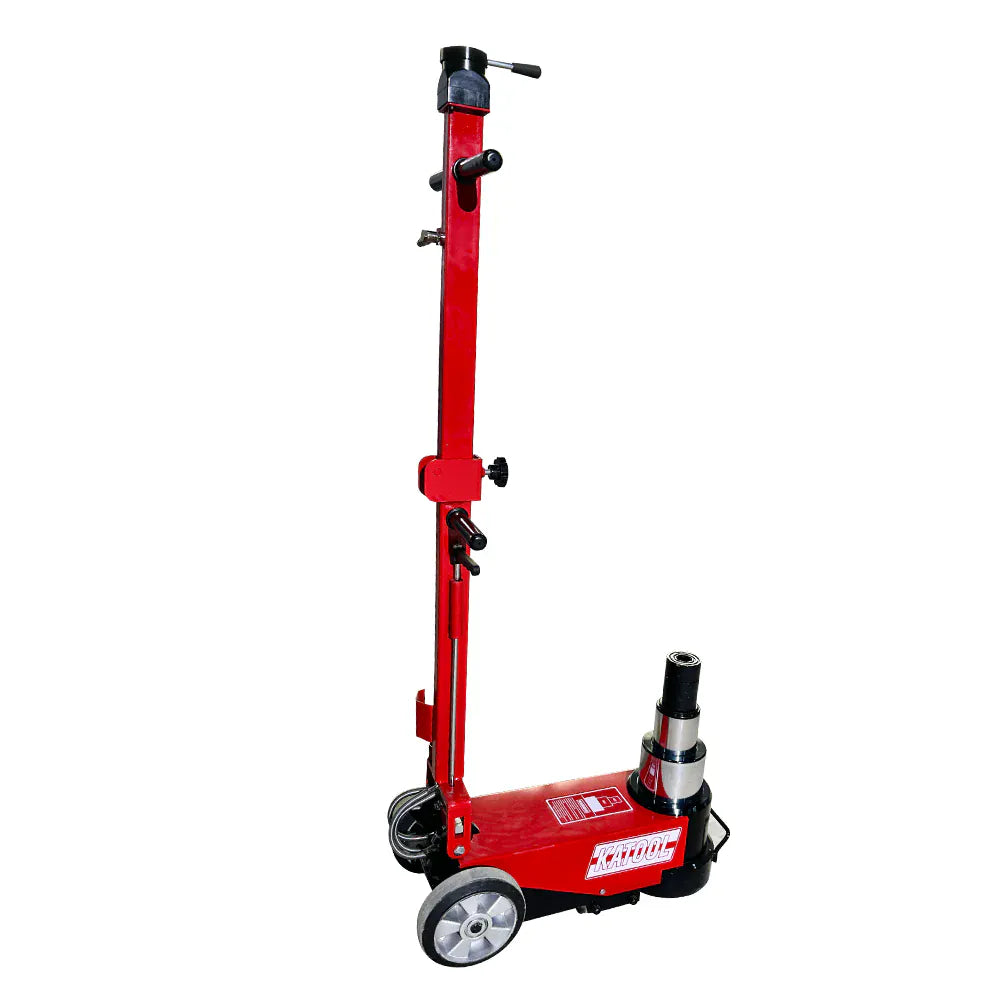

The Katool KT-J80T is an air-actuated hydraulic service jack rated at 80 tons, built for heavy commercial vehicles — class 7 and 8 trucks, buses, agricultural tractors, and industrial equipment. The jack runs entirely on shop compressed air: a single trigger handle delivers controlled lift, and the system retracts the ram automatically when the trigger releases.
The two-stage telescoping ram pulls double duty. The lower-travel stage handles the full 80-ton rating; at higher extension the outer stage lifts loads up to 40 tons. Working range runs from a 7.6" minimum height to a 14.5" maximum lift height, suiting most heavy-truck jack-pad clearances. The chrome-plated ram, integrated air filter / oil-water separator on the supply line, and foldable carry handle keep the unit easy to roll between bays without dragging shop debris into the air system.
Features
80-ton lifting capacity (40-ton stage at full extension; 80-ton stage at lower travel)
Air-actuated hydraulic operation runs entirely on shop compressed air
Two-stage telescoping chrome-plated ram
Single-trigger control with automatic return

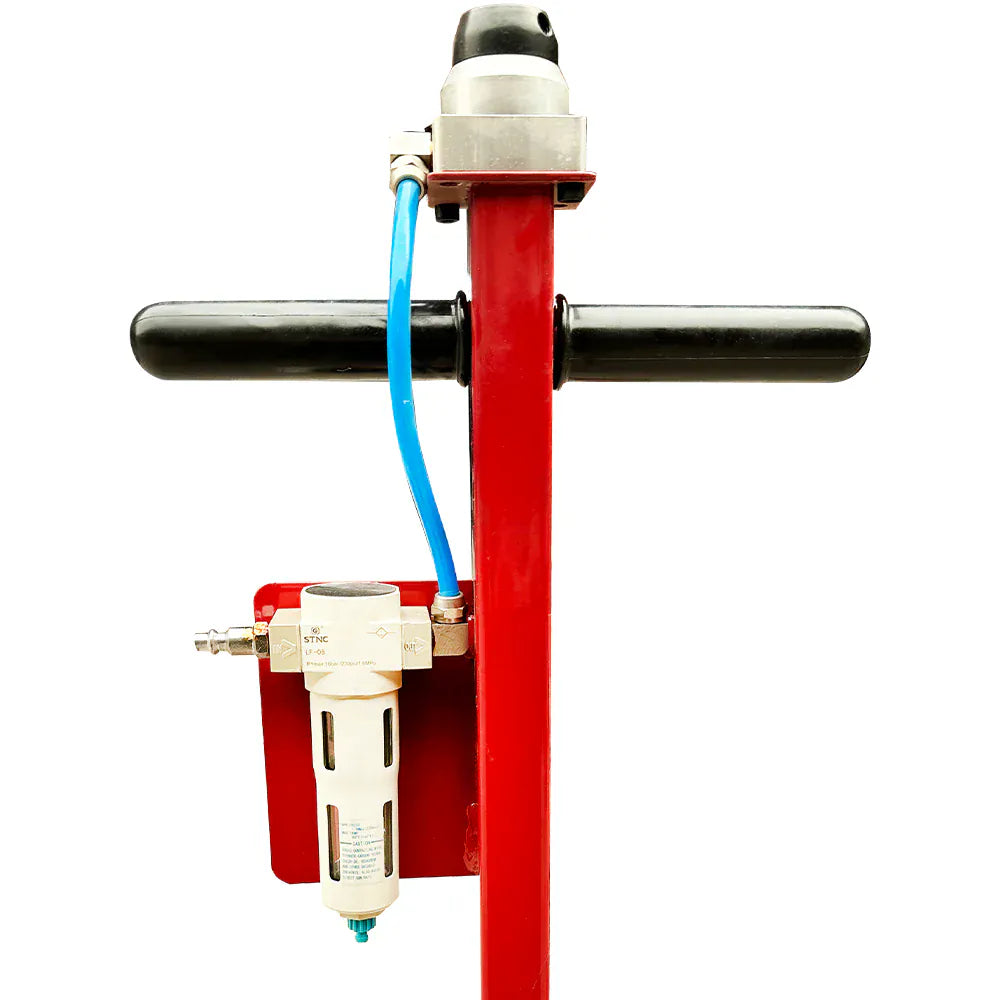

Integrated air filter / oil-water separator on the supply line
Foldable carry handle for storage and transport
Built-in wheels and positioning handle for shop mobility

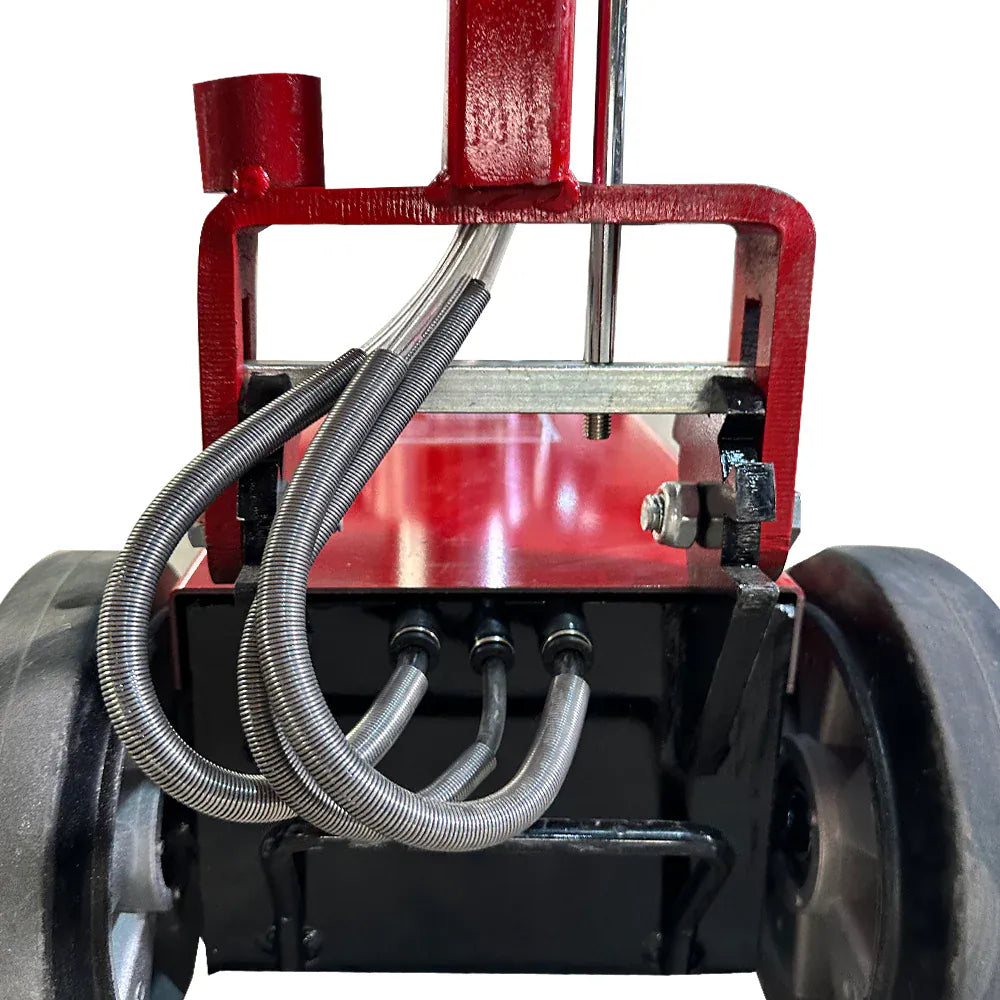

Heavy-duty welded steel frame and chassis
Low 7.6" minimum height for tight under-vehicle access

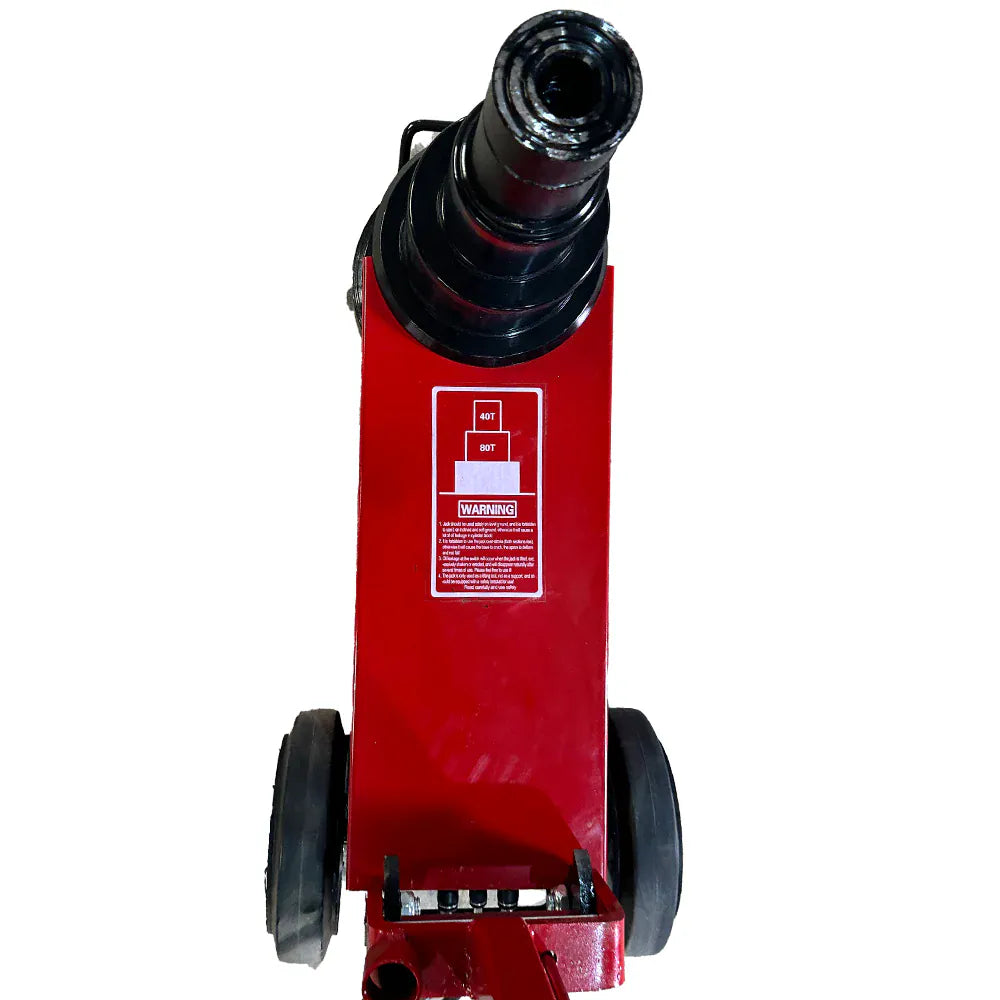

Two-stage ram: 40-ton stage at full extension, 80-ton stage at lower travel.
Specifications
Katool KT-J80T 80 Ton Air/Hydraulic Truck Jack Specifications
Model
KT-J80T
Product Type
Air/Hydraulic Service Jack
Lifting Capacity
80 tons
Two-Stage Capacity
40 tons at full extension; 80 tons at lower stage
Minimum Height
7.6" (195 mm)
Maximum Lift Height
14.5" (370 mm)
Lift Stroke
~6.9" (175 mm)
Ram
Chrome-plated steel, two-stage telescoping
Operation
Pneumatic (air-actuated hydraulic) with automatic return
