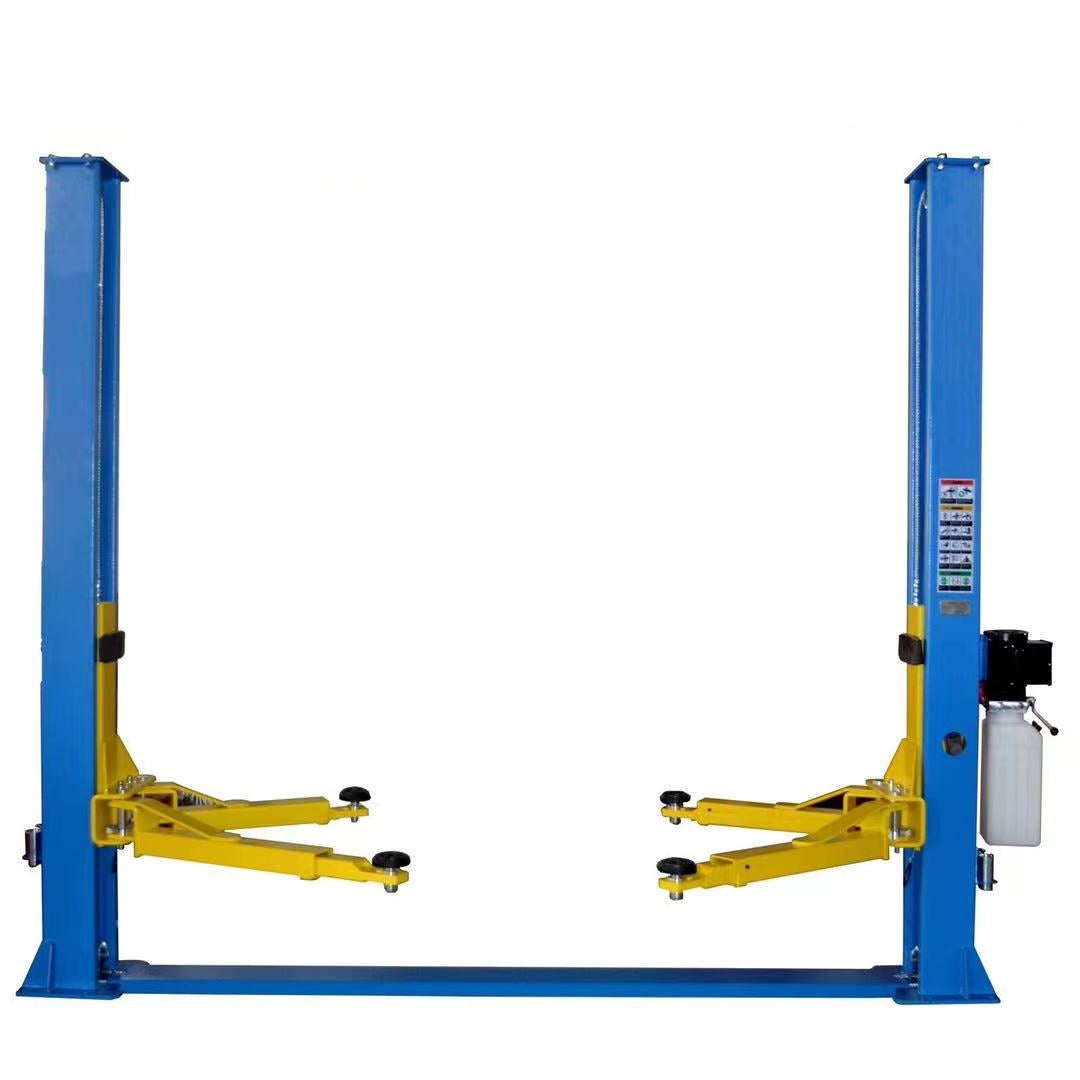

KATOOL KT-H105 10000 lbs. Floor Plate Two Post Lift
Warehouse Pickup
£1,004.00
Sale price
£1,004.00
Regular price
Skip to product information
KATOOL KT-H105 10000 lbs. Floor Plate Two Post Lift
£1,004.00
Sale price
£1,004.00
Regular price
Shipping calculated at checkout.
KT-H105
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Katool KT-H105 Floor Plate Two Post Lift – Heavy-Duty Power. Shop-Ready Performance.
Built to handle the demands of busy auto shops and serious DIYers, the Katool KT-H105 Floor Plate Two Post Lift is your reliable lifting solution for vehicles up to 10,000 lbs. With its sturdy base plate design, dual hydraulic chain-drive cylinders, and symmetric arm configuration, this lift offers dependable strength, smooth performance, and long-lasting durability.
CE Approved and Certified, the KT-H105 exceeds global safety benchmarks, passing both 115% dynamic and 150% static load testing. Equipped with dual manual safety releases, rubber door guards, and screw-on lifting pads, it delivers both operator safety and vehicle protection. The included +100mm extension adaptors make it easier to lift trucks, SUVs, and larger-frame vehicles.
With its low-profile arms and a powerful 220V hydraulic system, this floor plate-style lift is a perfect fit for shops that require clear top-space access without compromising lifting power.
⚠ Important: This lift must be installed on a concrete surface that is at least 5.9 inches thick (150mm) and rated for 3000 PSI. Failure to meet this requirement may result in improper operation or serious injury.
| Product Features |
|---|
|
 |  |
| Product Specifications | |
|---|---|
| Lifting Capacity | 10,000 lbs / 4,500 kg |
| Max. Lifting Height | 70.8 in / 1,800 mm |
| Minimum Height | 3.9 in / 100 mm |
| Overall Height | 110.9 in / 2,818 mm |
| Overall Width | 140.4 in / 3,565 mm |
| Outside Column Width | 124.8 in / 3,170 mm |
| Inside Column Width | 110.2 in / 2,800 mm |
| Drive-Through Clearance | 98.4 in / 2,500 mm |
| Front Arm Reach (Min–Max) | 29.5–46 in / 750–1,170 mm |
| Rear Arm Reach (Min–Max) | 35.4–58.2 in / 900–1,480 mm |
| Motor | 220V / 60Hz / 1PH / 2.2kW |
| Net Weight | 1,256 lbs / 570 kg |
