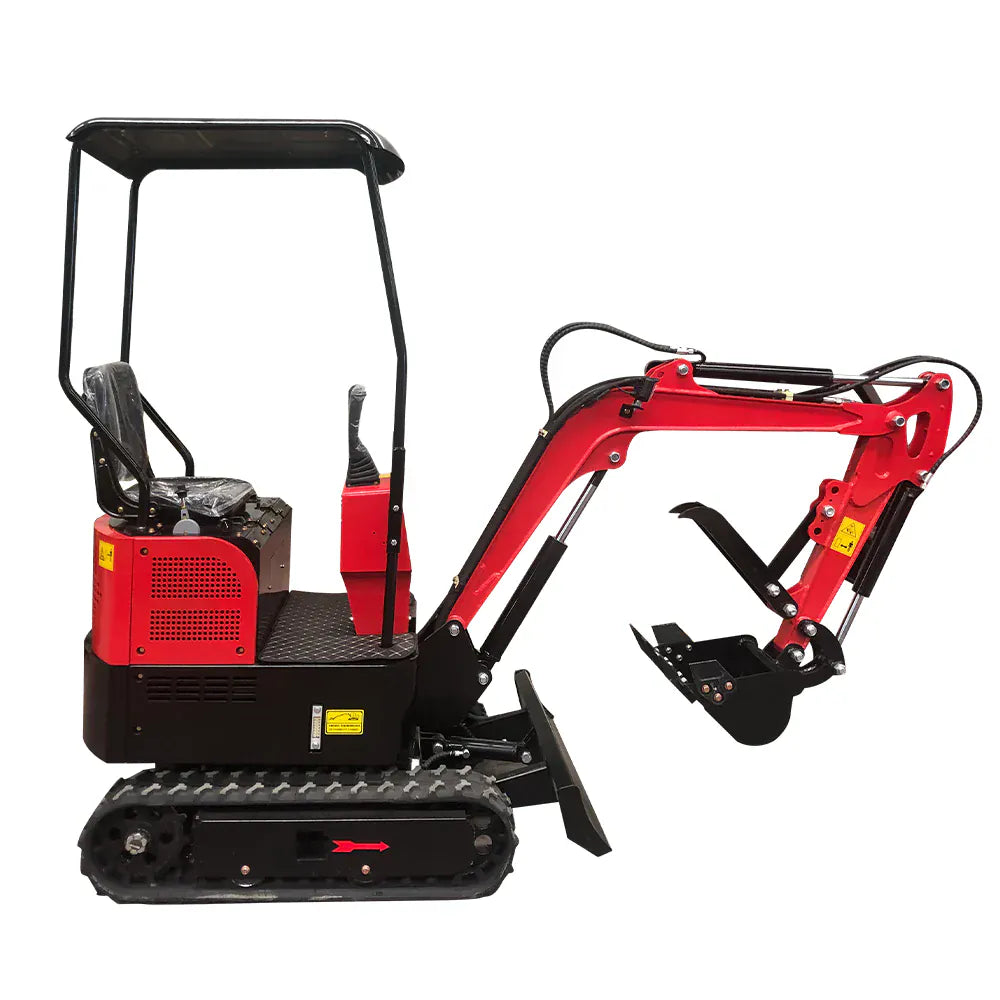

The Katool KT-EX20 is a compact crawler-track mini excavator built for property owners, landscapers, and light construction crews who need controlled digging power in tight access areas. It runs on a Briggs & Stratton gasoline engine instead of diesel, which simplifies starting and field maintenance for owners who don't keep a diesel-equipped fleet.
Operating weight stays under 3,000 lbs (1,785 lbs as published in supplier marketing), so the machine moves between sites on a standard pickup-and-trailer combo. The frame uses Q235 and Q245 structural steel, and a mechanical thumb is included on the boom for grabbing rocks, brush, root balls, and demolition debris that a bare bucket can't hold.
Major components — canopy, seat, joystick, rubber crawler tracks, welded dozer shovel, boom, bucket, and mechanical thumb.
Features
Briggs & Stratton gas engine — gasoline-fueled power unit; predictable starts and parts availability at hardware and small-engine shops
Mechanical thumb included — clamps loads against the bucket for moving rocks, logs, brush, and demolition debris without a separate attachment purchase
Hydraulic crawler tracks — rubber-track design for traction on soil, gravel, turf, and uneven terrain
Q235 / Q245 structural steel — low-alloy carbon-steel grades used across construction-equipment frames
Welded dozer shovel at the front for backfilling, leveling, and bracing the machine during digging
Operator canopy and seat for overhead and weather protection during longer work sessions
Compact footprint under 3,000 lbs — fits on a standard car-hauler trailer behind a half-ton truck
Briggs & Stratton gas engine — pull-start, easy field service.
Hydraulic cylinder layout
The KT-EX20 uses dedicated cylinders for each major movement — boom lift, arm extension, bucket curl, and dozer-shovel articulation — plus a thumb cylinder for clamping action against the bucket.
Boom cylinder — drives the main lift arm.Arm cylinder — extends and retracts the dipper arm.Bucket cylinder (top) and mechanical-thumb cylinder (bottom).Dozer-shovel cylinder, viewed from underneath the chassis.
Specifications
Katool KT-EX20 Mini Excavator Specifications
Model
KT-EX20
Equipment Type
Mini Excavator
Model Year
2024
Engine
Briggs & Stratton gasoline
Operating Weight
1,785 lbs (under 3,000 lbs)
Bucket Capacity
0.03 m³ (~1.06 ft³)
Undercarriage
Hydraulic crawler tracks
Attachment Included
Mechanical thumb
Frame Material
Q235 / Q245 structural steel
Crate Dimensions
113" L × 43" W × 63" H
Shipping
Private full-truckload freight
Logistics & Shipping
The KT-EX20 ships crated via private full-truckload freight. Crate footprint is 113" × 43" × 63".
