The Katool KT-5DA 3D / 5D wheel alignment machine uses dual industrial cameras and reflective targets to read four-wheel geometry in real time. From a single setup, the system captures toe, camber, caster, thrust angle, steering axis inclination, and track-width and wheelbase differential, then renders the readings on a shop monitor while the technician makes corrections.

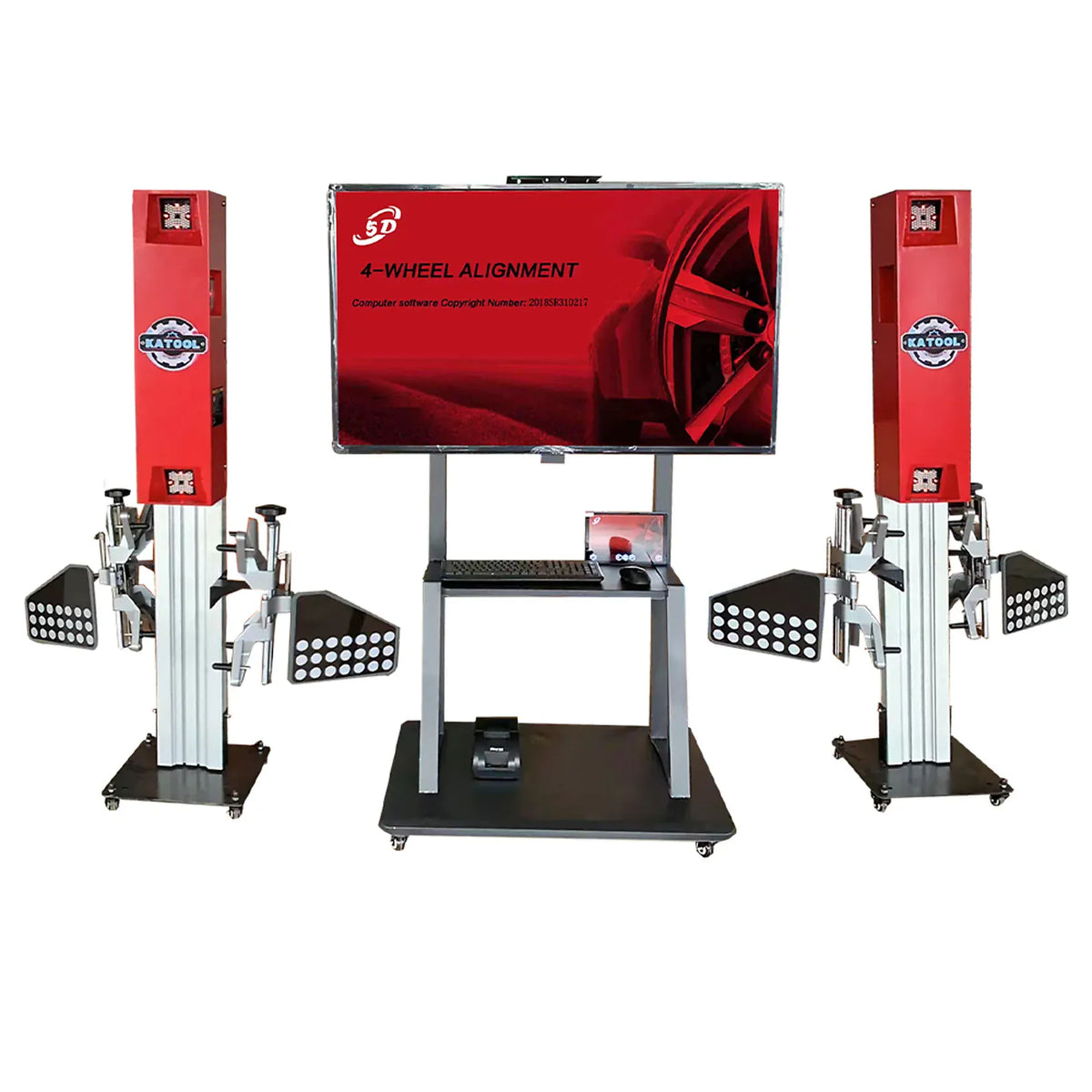

The KT-5DA is a wheeled, two-column rig with an alloy-steel frame finished in red, an integrated keyboard tray, a tablet shelf, and a thermal printer for printing alignment reports. Removable wheel clamps adjust to a wide range of rim sizes and attach without marring the wheel surface. Each camera column rolls on locking casters so the rig can be repositioned between bays.
The software is computer-controlled, runs on a high-definition shop monitor, and supports remote operation via cloud sync — database updates and remote support reach the unit without a service visit. The vehicle database covers most current car and light-truck makes and models, and technicians can save self-added profiles for fleet vehicles or older platforms.
Features

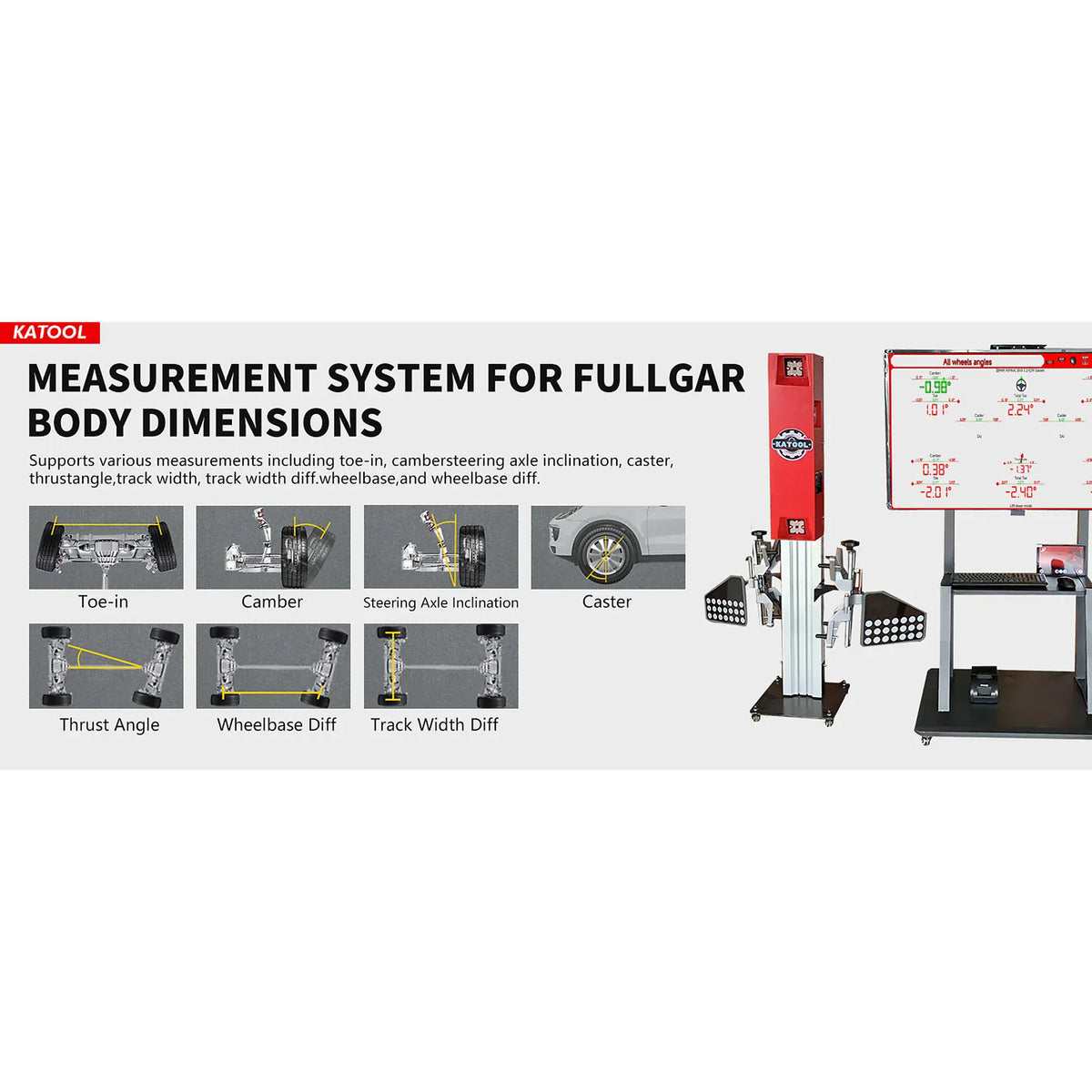

3D / 5D measurement system — captures toe, camber, caster, thrust angle, steering axis inclination, plus track-width and wheelbase differential from a single read.

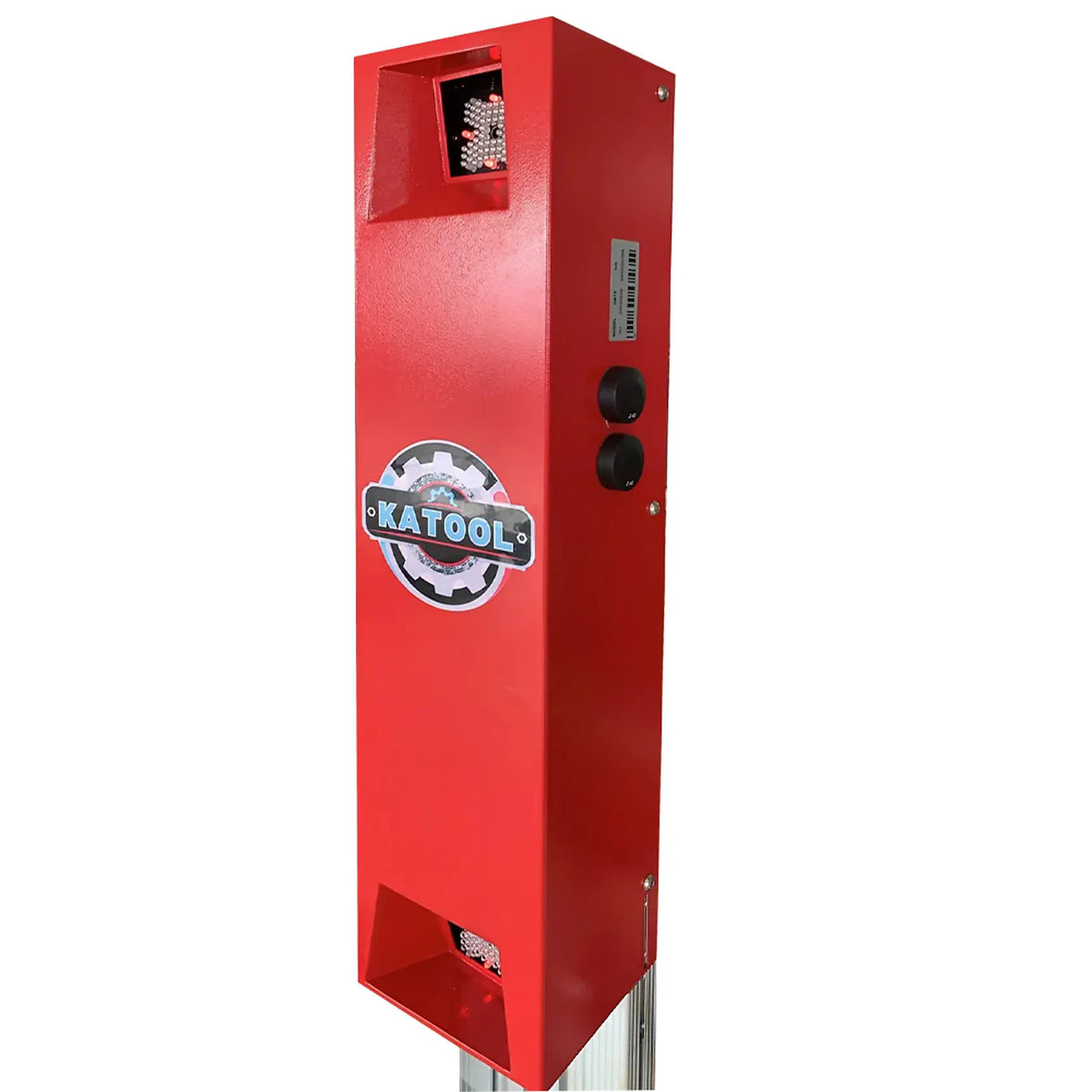

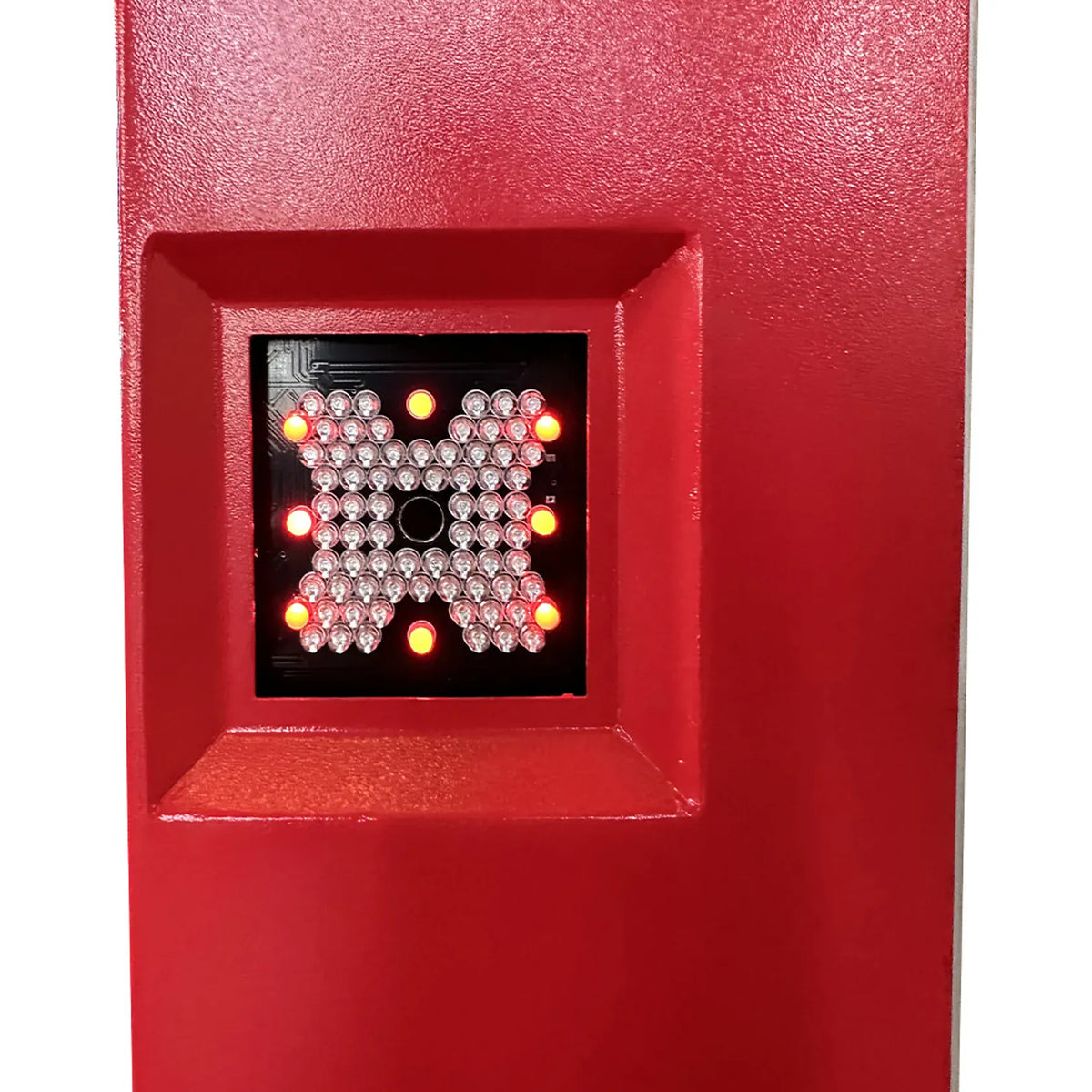

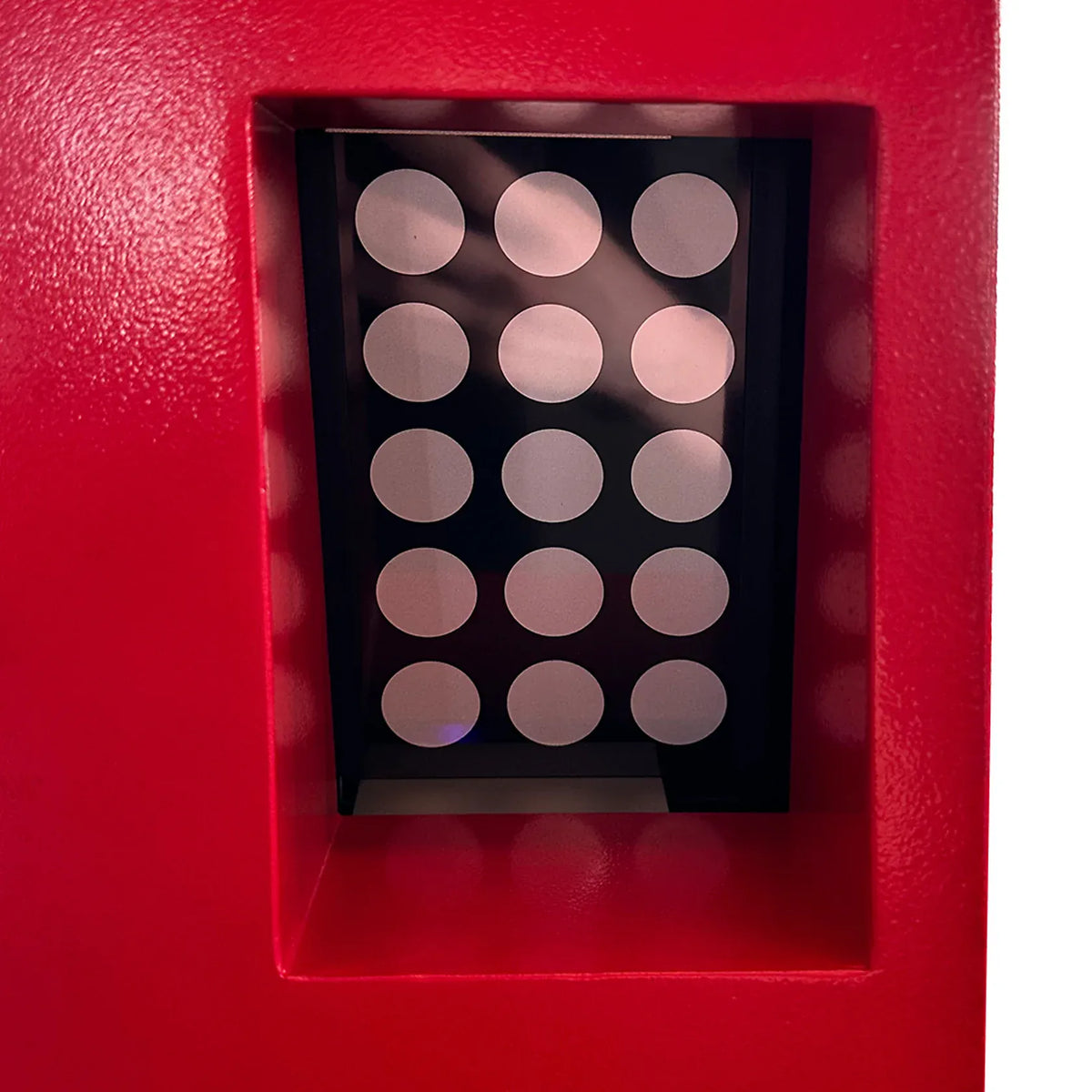

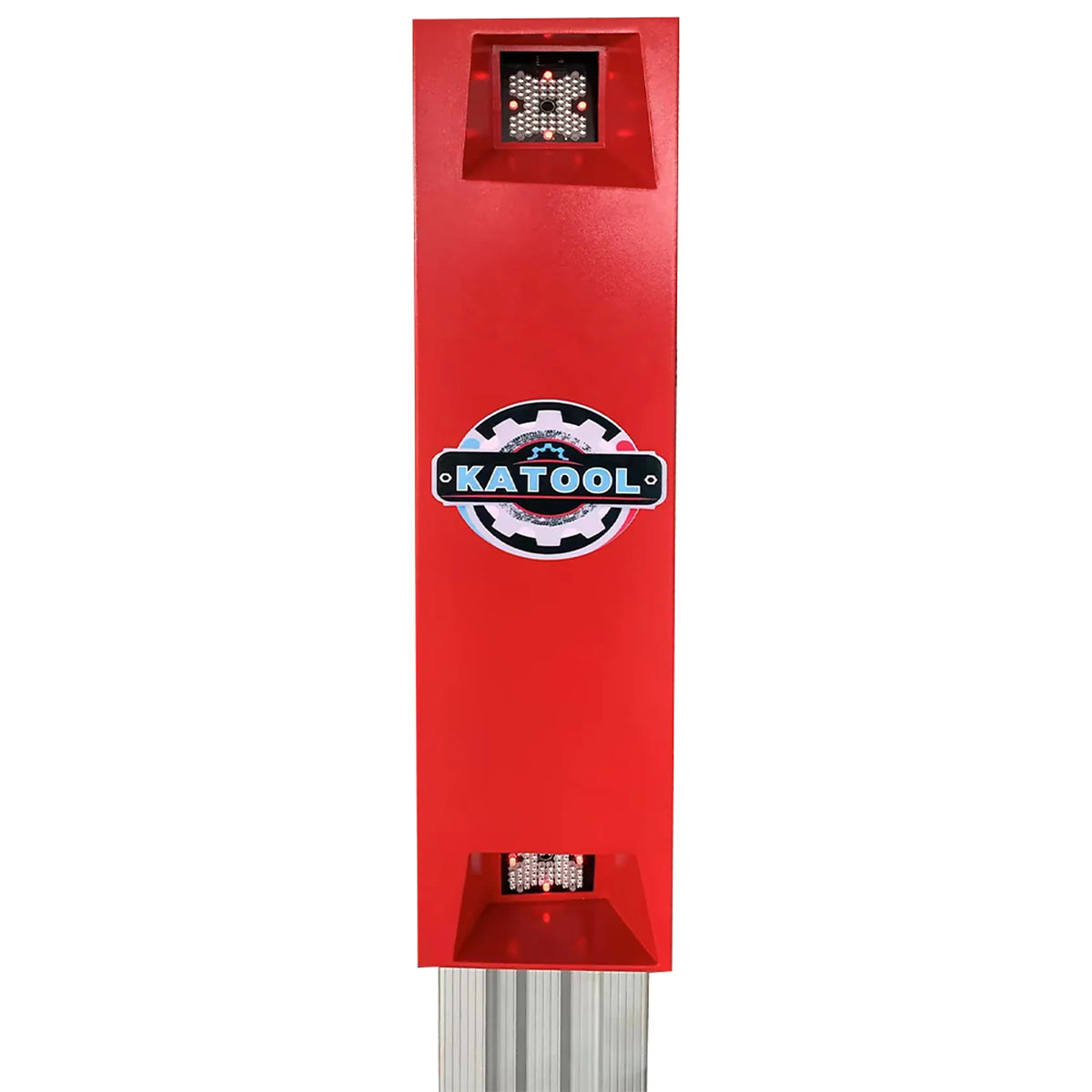

Real-time camera imaging — high-definition lenses on each column track the reflective targets continuously so adjustments show on screen as they happen.

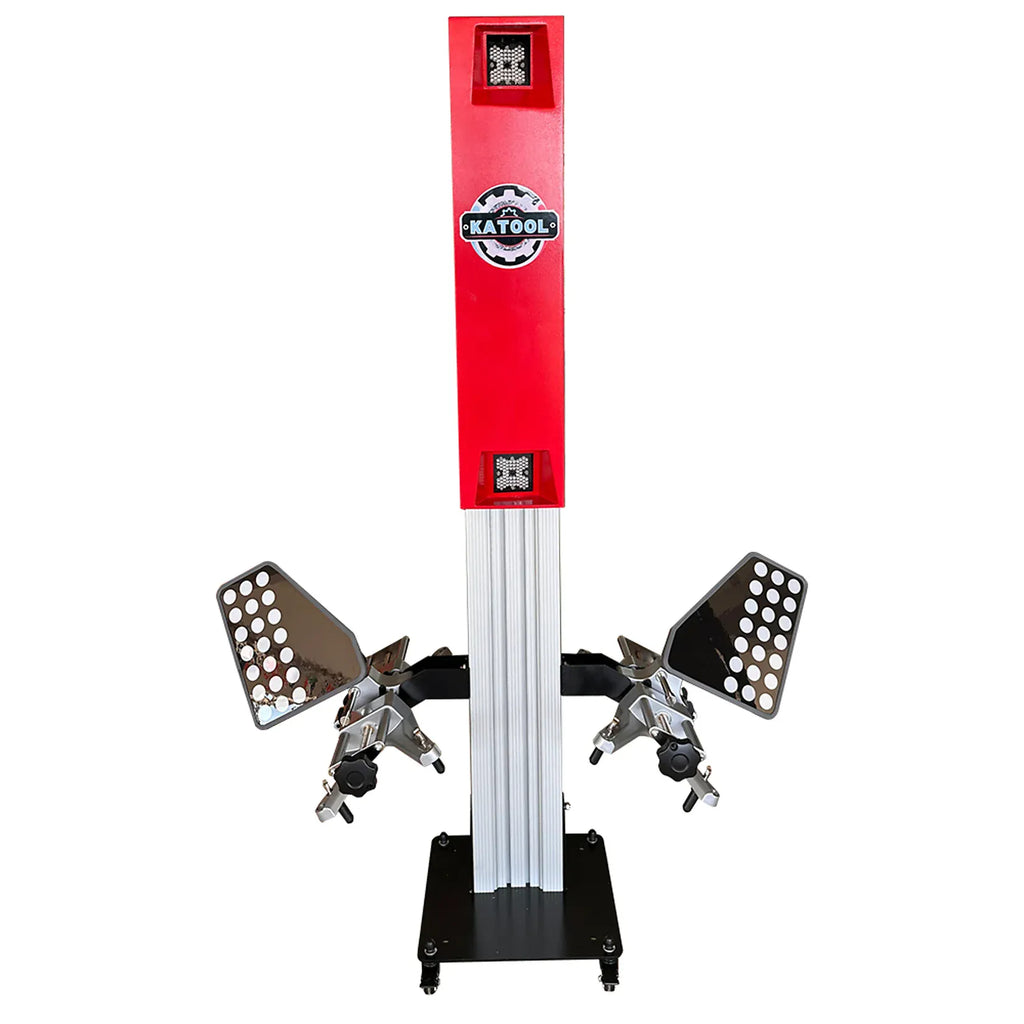

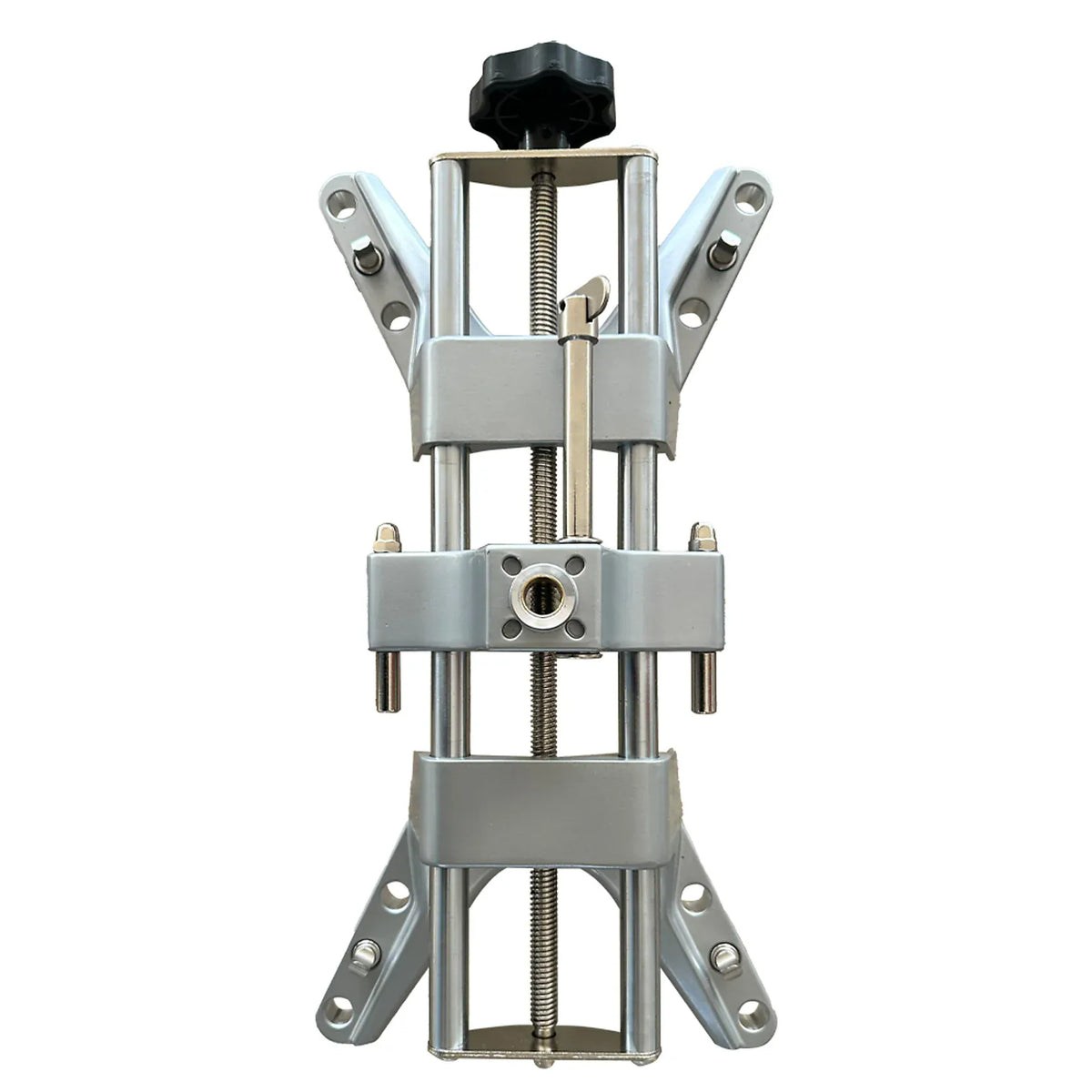

Removable wheel clamps — adjustable spread fits car-to-light-truck rim sizes; attaches without marring the wheel surface.
Cloud-connected software — remote support, online database updates, and tablet/phone status views from a paired mobile device.

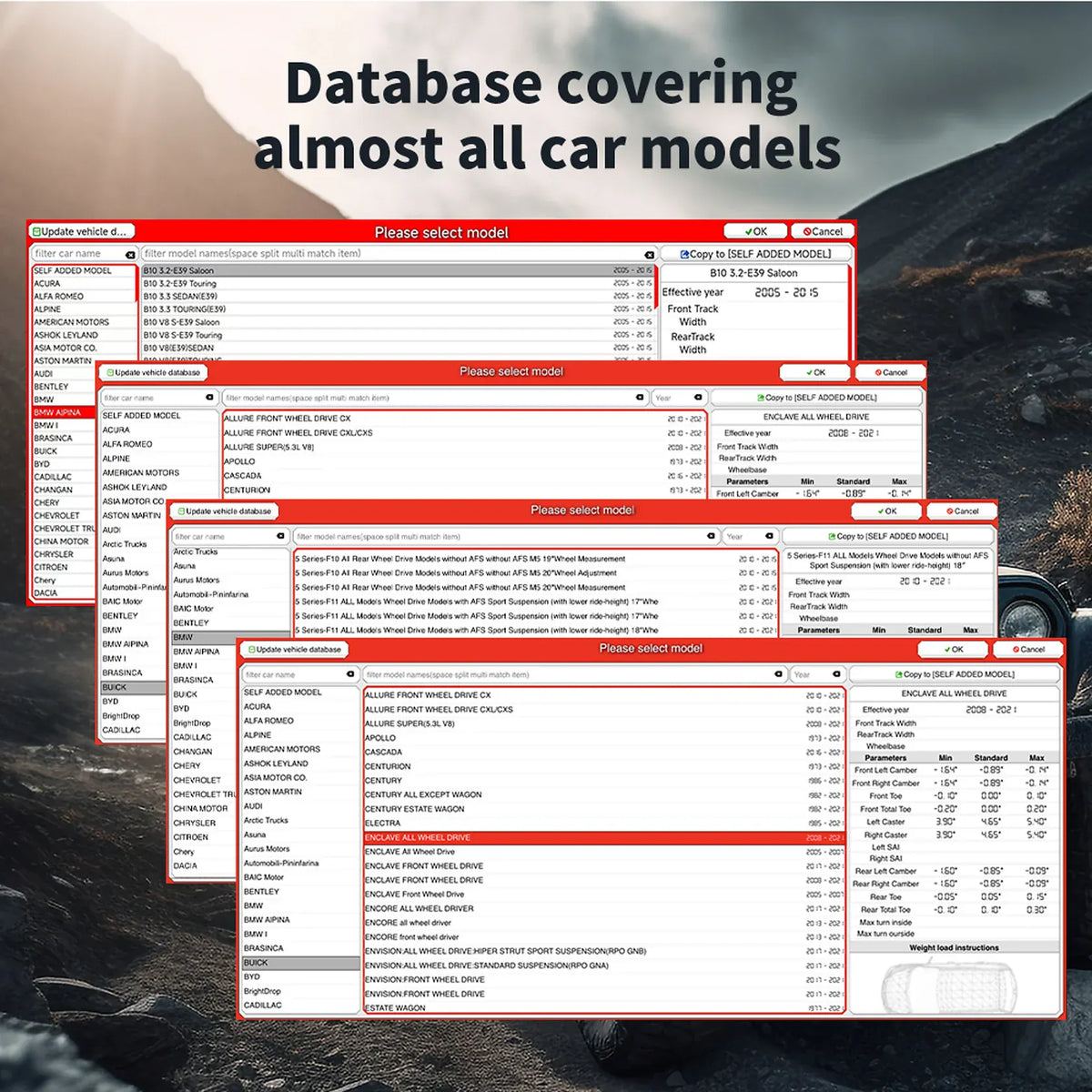

Wide vehicle database — covers current car and light-truck makes and models, with a self-added option for fleet or specialty vehicles.

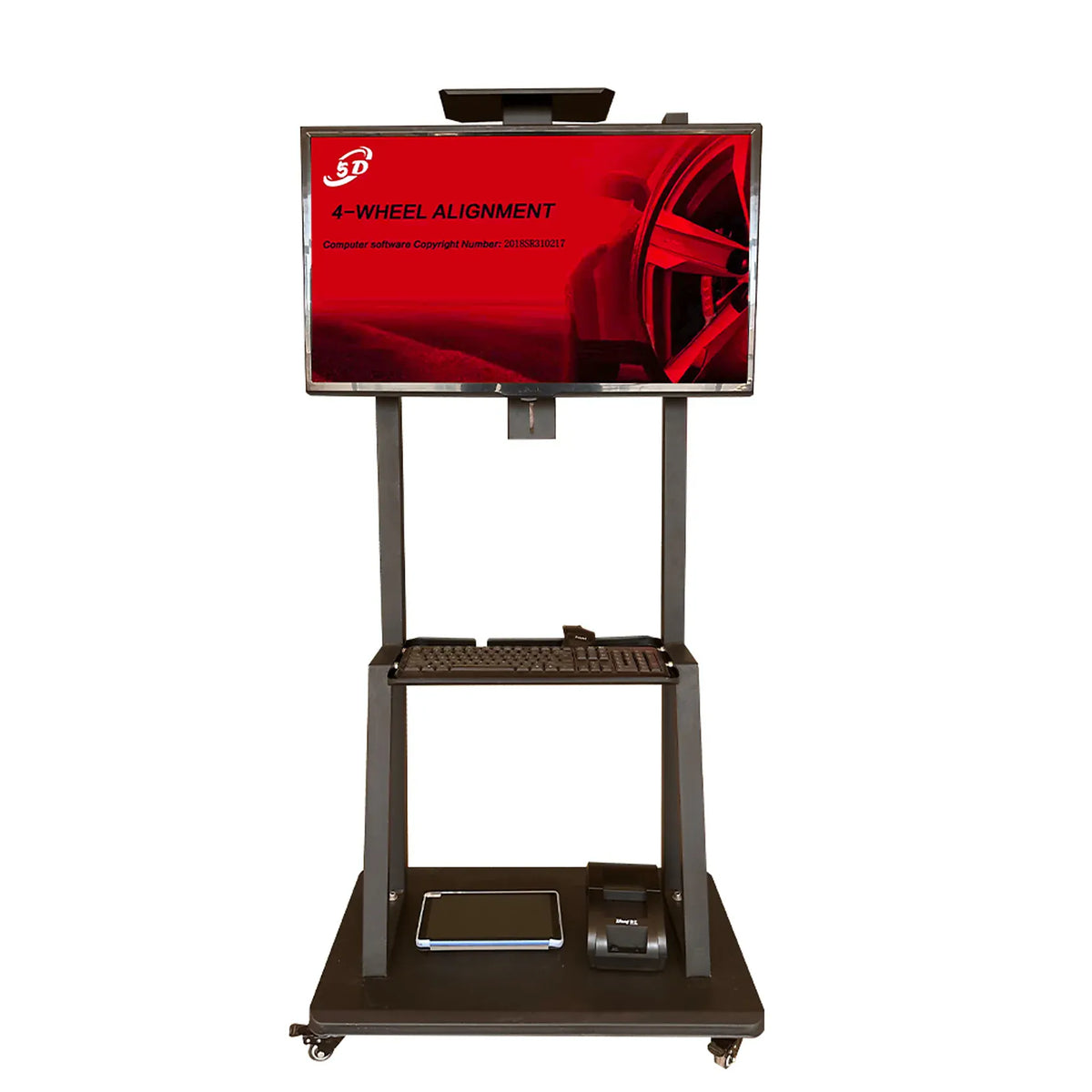

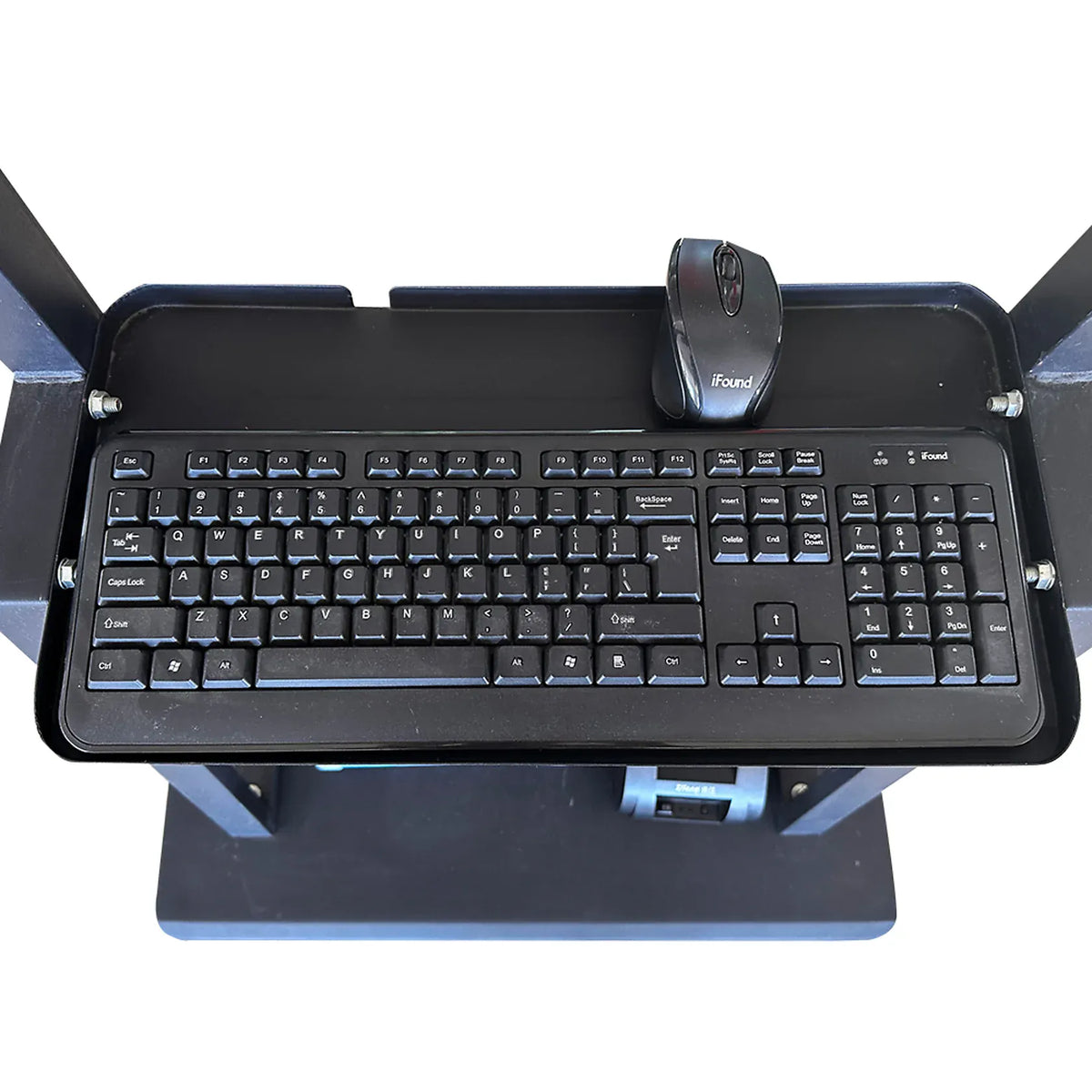

Integrated workstation — wheeled monitor cart with keyboard, tablet shelf, and thermal printer.
Alloy-steel construction — reinforced columns and bases hold calibration in busy shop environments.
Live four-wheel readout: camber, caster, toe, thrust angle, SAI.
