The Katool KT-4M110PA is a four-post alignment lift built for shops and home garages that raise cars, trucks, and SUVs and keep them steady for real work underneath. It carries an 11,000-lb lifting capacity on reinforced heavy-duty steel runways and reaches a maximum height of 84.5 inches, giving most technicians full stand-up clearance for inspections, alignments, maintenance, and detailing.
It arrives as a working package rather than a bare lift. A 7,000-lb rolling bridge jack rides between the runways so you can lift wheels off the platform for brake, tire, and suspension service, and steel approach ramps make drive-on loading straightforward. The lift reaches full height in about 50 seconds, so there is less waiting between jobs. It runs on standard 110V or 220V single-phase power, so it fits a home garage or a professional shop without a special circuit.
Full dimensional drawing in inches for planning your bay.
The KT-4M110PA ships by freight. Arrange unloading before it arrives — a forklift on site is required, or you can pick the shipment up at your local freight terminal. Inspect everything at delivery: if any part arrives damaged, photograph it, note the damage on the delivery receipt, and contact MGS at sales@mygaragesupplies.com or 307-381-1810 so we can make it right.
Features
11,000-lb lifting capacity — reinforced heavy-duty steel runways hold cars, trucks, and SUVs with stable, even support.
84.5-inch maximum lift height — generous stand-up clearance for inspections, alignments, repairs, and detailing.
Included 7,000-lb rolling jack — raise wheels off the runways for brake, tire, and suspension work without leaving the platform.
110V or 220V power — the single-phase power unit sets up for either supply, fitting a home garage or a professional shop.
About 50 seconds to full height — a rapid rise that keeps jobs moving.
Steel approach ramps — sturdy drive-on loading.
Included rolling bridge jack with air-hydraulic foot pump.Pneumatic lock release with in-line air filter and regulator.
What's Included
Katool KT-4M110PA four-post alignment lift
7,000-lb rolling bridge jack
3 drip trays
1 lift tray
Steel approach ramps
Three drip trays sit across the runways to catch fluids.

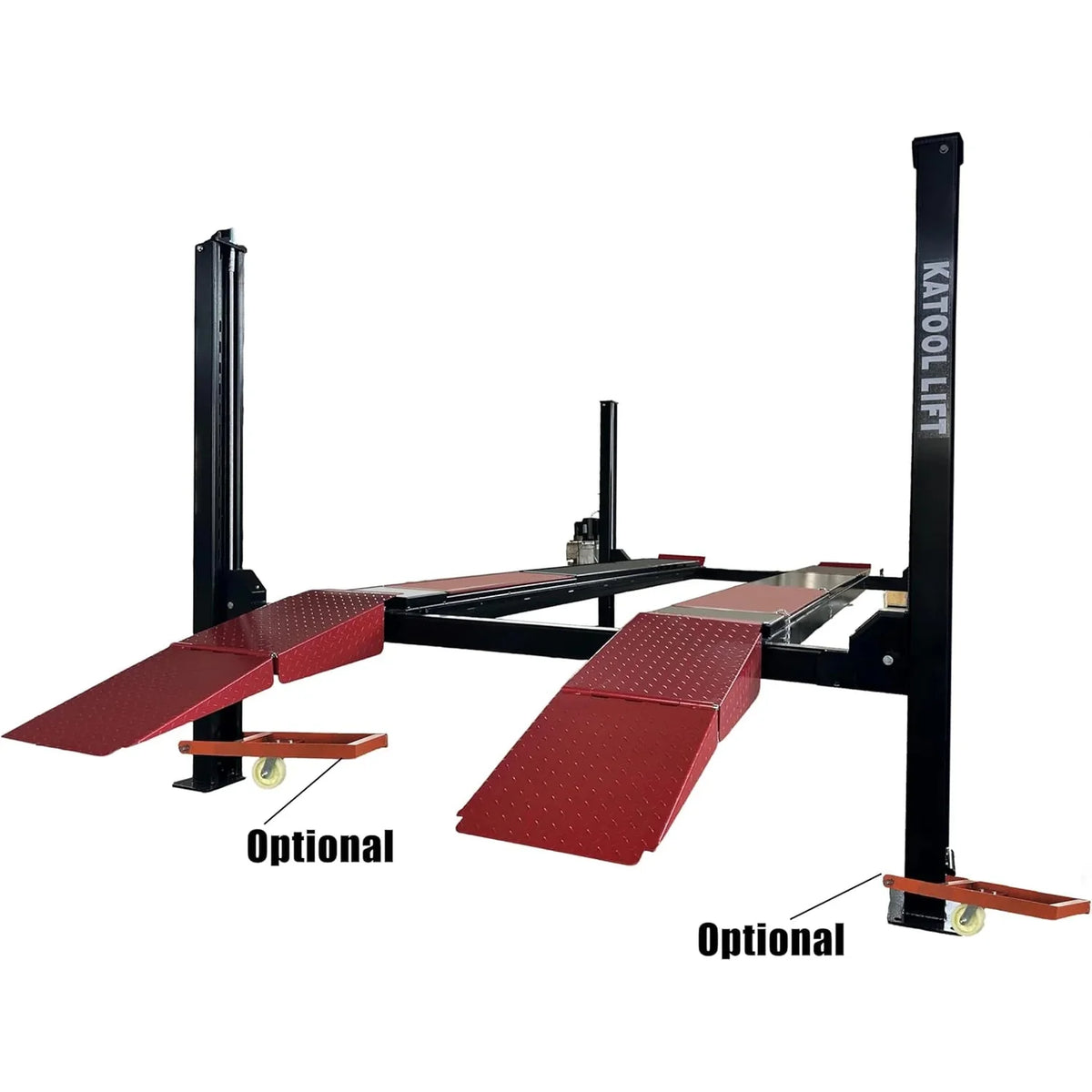

A rolling caster kit for repositioning the lift is available separately and is not part of the standard package.
Specifications
Katool KT-4M110PA Specifications
Model
KT-4M110PA
Lift Type
4-Post Alignment Lift
Lifting Capacity
11,000 lbs
Rolling Jack Capacity
7,000 lbs
Maximum Lift Height
84.5"
Power Requirement
110V or 220V, single-phase
Full Rise Time
Approx. 50 seconds
Lock Release
Pneumatic unlocking
Runway Construction
Reinforced heavy-duty steel
FAQ
What vehicles can it lift?
The KT-4M110PA is rated for 11,000 lbs and is built for cars, trucks, and SUVs. Confirm your heaviest vehicle stays within the rated capacity before lifting.
How much clearance do I get underneath?
Maximum lift height is 84.5 inches, enough room for most technicians to work standing.
Does it come with a rolling jack?
Yes. A 7,000-lb rolling bridge jack is included, along with three drip trays, one lift tray, and steel approach ramps.
What power does it need?
The single-phase power unit can be set up for either 110V or 220V, so it works in a home garage or a professional shop without a special circuit.
How fast does it raise a vehicle?
It reaches full lifting height in about 50 seconds.
Documents
Manual and technical documents available on request.
