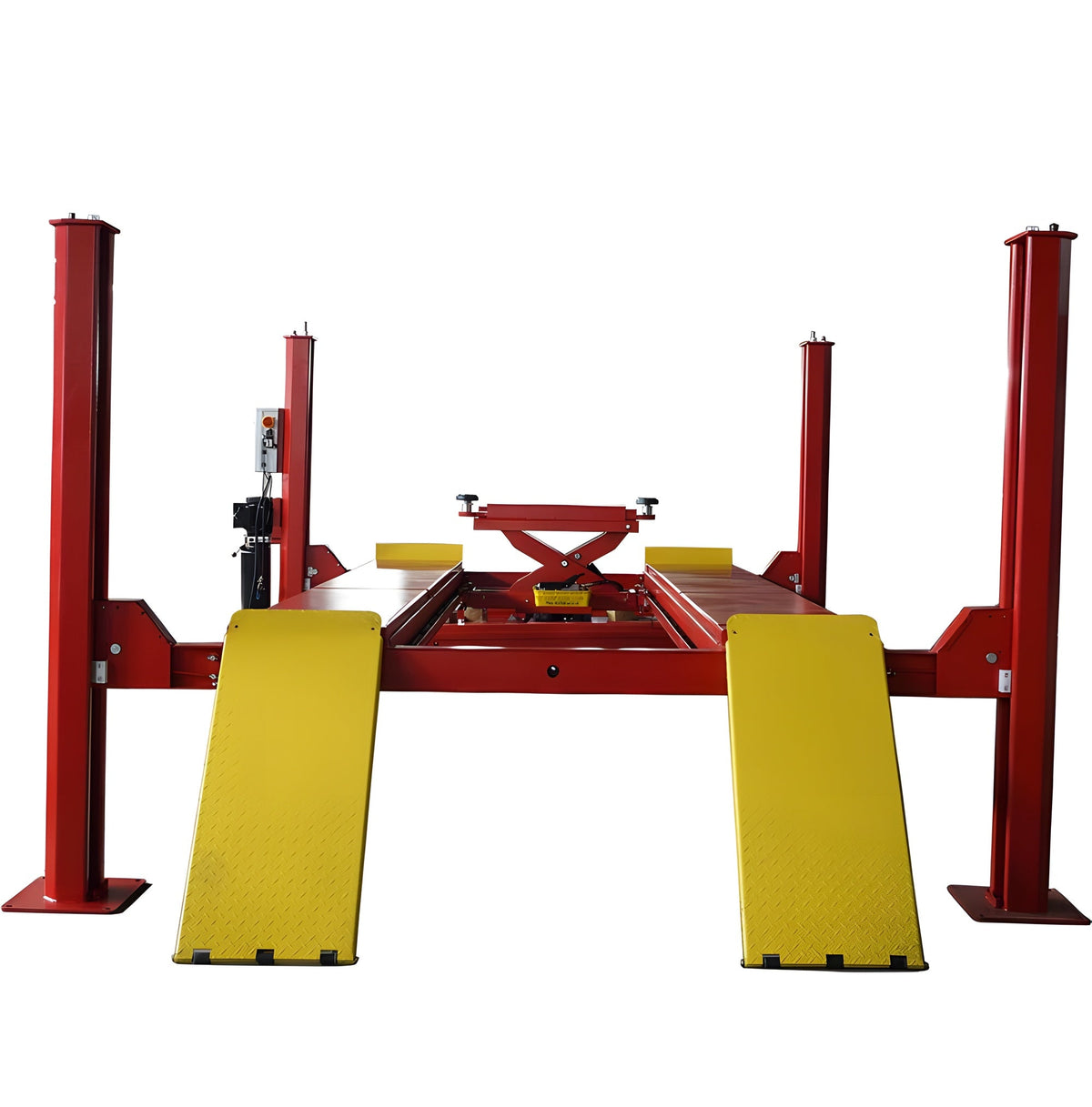

The Katool KT-4H150 is a 15,000 lb capacity four-post alignment lift built for shops that service heavy pickups, commercial vans, and long-wheelbase vehicles that outgrow a standard 9,000 or 11,000 lb lift. It is CE Approved and Certified, built to the 115% dynamic loading standard and tested at 150% static load. The runways are alignment-ready, and a Katool KT-RJ60 6,000 lb rolling jack ships with the lift, so wheels-free work — brakes, tires, suspension — is covered on day one without a separate purchase.

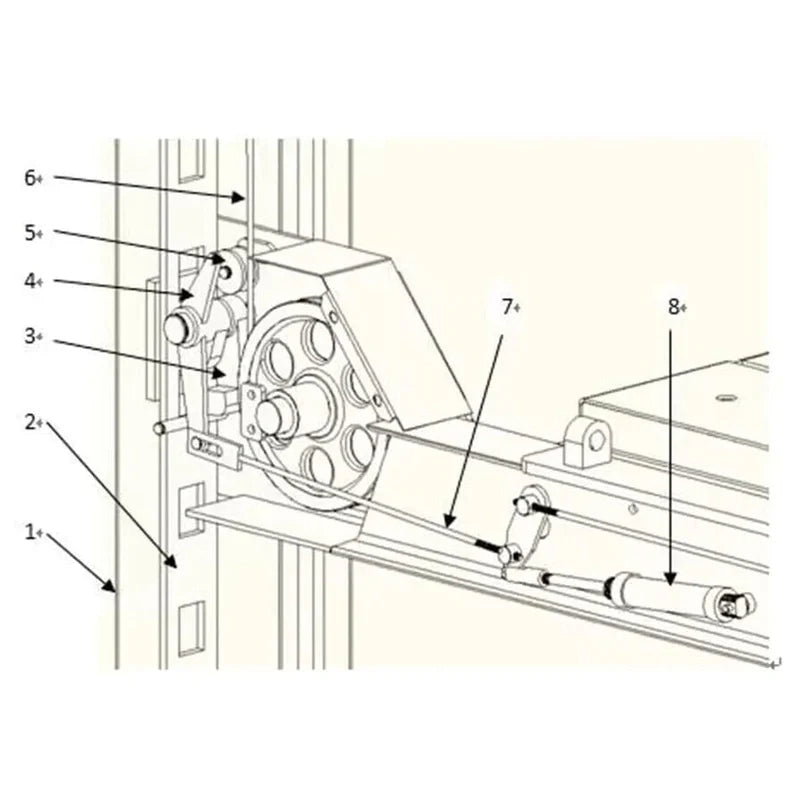

The locking system works continuously rather than at a single catch point: spring-loaded safety locks engage automatically as the runways rise, and a secondary lock system acts as a slack-cable device in the unlikely event of cable failure. Lowering onto locks is handled from one place — a push-button pneumatic control releases all four independent safety locks simultaneously, so there is no walking column to column with a pry bar.

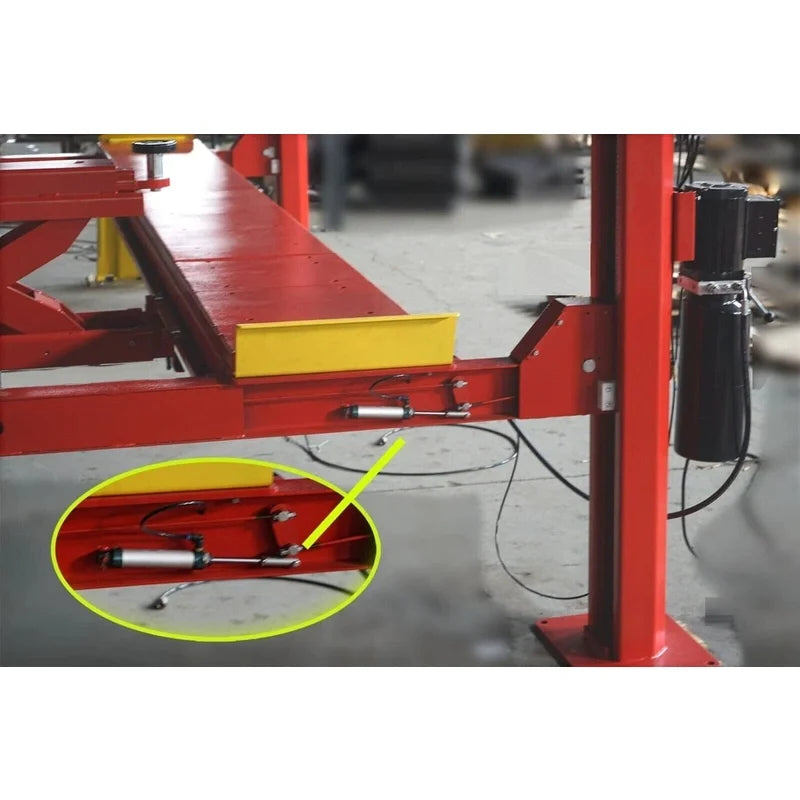

Pneumatic cylinder that releases all four safety locks at once.
For alignment work, turntables are optional — contact MGS to add them to your order. The powerside column can be installed at either side, front or rear, so the lift adapts to your bay layout instead of dictating it. Non-skid diamond-texture ramps and non-slip coated runways handle wet tires and daily traffic.

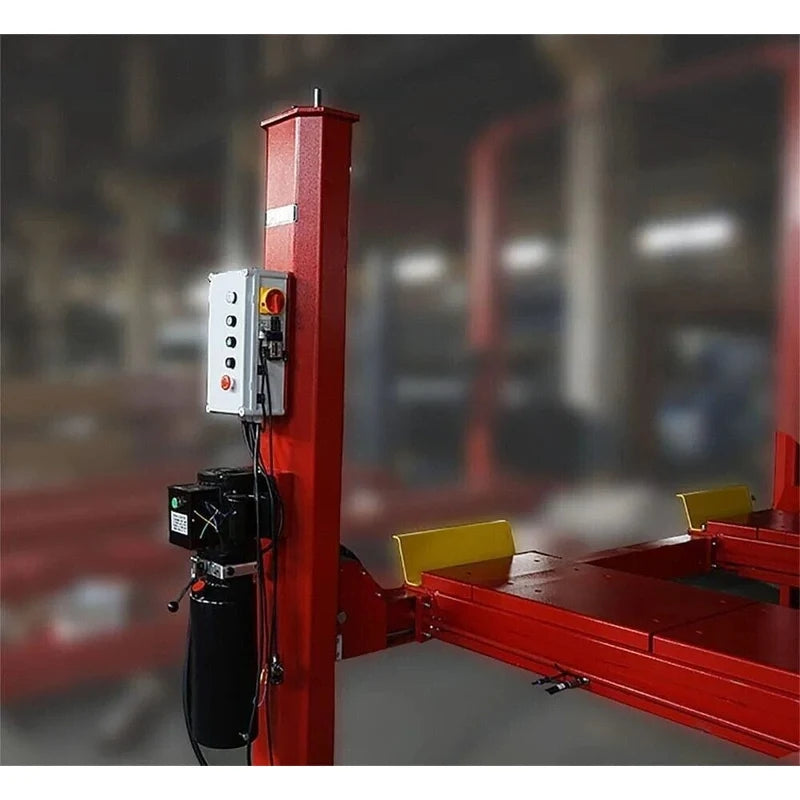

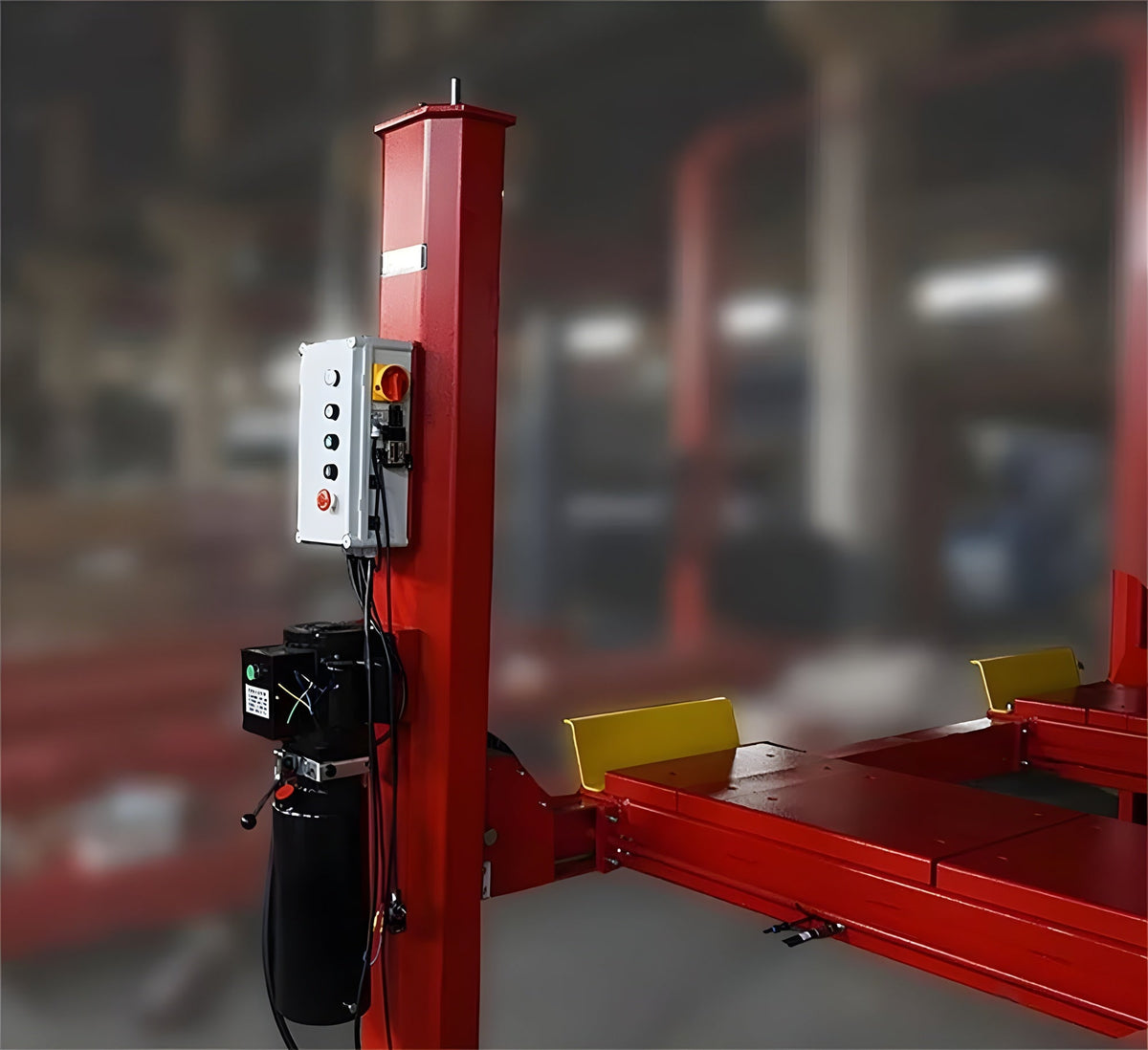

Power comes from a 3 kW hydraulic power unit running on 220V/60Hz single-phase, with a 110V single-phase option available for garages without a 220V circuit.

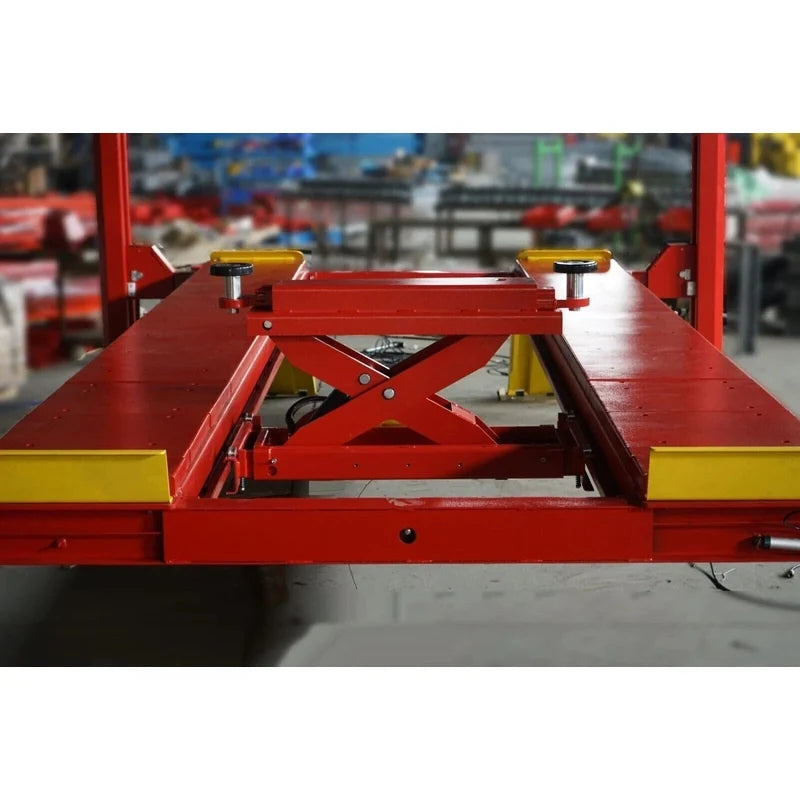

The included 6,000 lb rolling jack rides the runway rails.
Katool's official walkthrough of the KT-4H150:
Concrete requirement: this lift must be installed on concrete at least 3.93 inches (100 mm) thick with a 3,000 PSI rating. Failure to install on proper concrete could result in serious injury or death. Verifying concrete thickness and strength before purchase and installation is the customer's responsibility.
The KT-4H150 is stocked for warehouse pickup in California, Texas, Georgia, Illinois and New Jersey, or ships by freight. Contact sales@mygaragesupplies.com or call 307-381-1810 to confirm availability at your preferred warehouse before ordering.
Features
15,000 lb lifting capacity — covers heavy trucks, vans, and long-wheelbase vehicles.
CE Approved and Certified — 115% dynamic loading standard, 150% static load tested.
Spring-loaded safety locks engage automatically and continuously as the lift rises.
Secondary lock system acts as a slack-cable device in the event of cable failure.
Push-button pneumatic control releases all four independent safety locks simultaneously.
Multiple adjustable locking positions for variable-height work.
Powerside column installs at either side, front or rear.
Non-skid diamond-texture ramps and non-slip coated runways.
Katool KT-RJ60 6,000 lb rolling jack included.
3 kW hydraulic power unit — 220V/60Hz/1PH standard, 110V/60Hz/1PH optional.

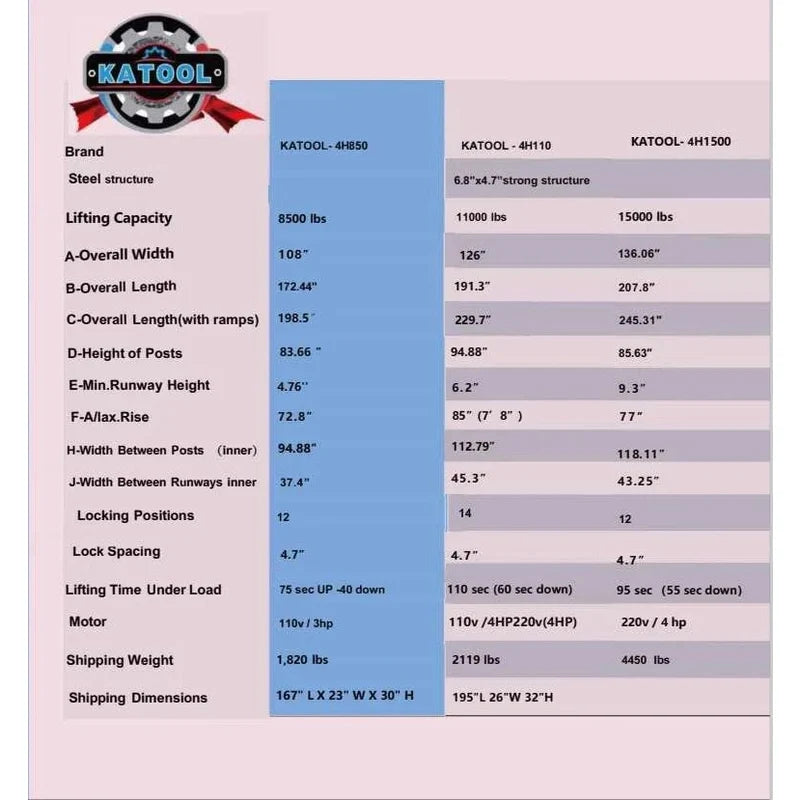

Specifications

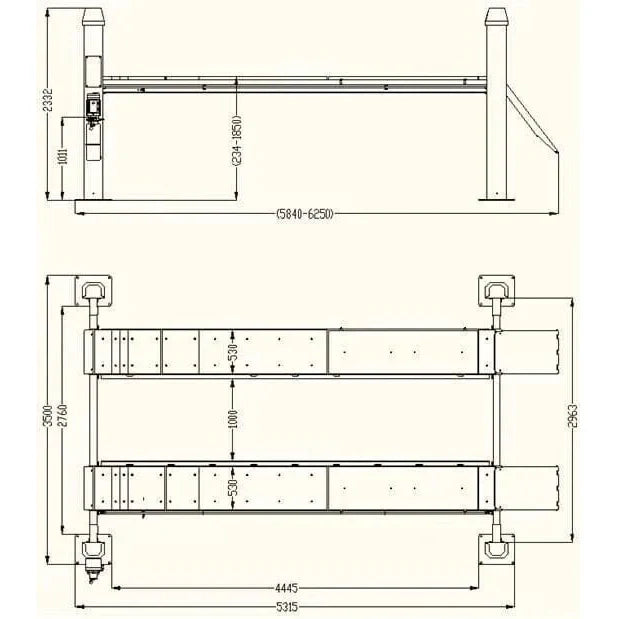

Key installation dimensions, including 99.5-inch drive-thru clearance.
Katool KT-4H150 Specifications
Model
KT-4H150
Lifting capacity
15,000 lbs (approx. 6,803 kg)
Max lifting height
Approx. 76"
Overall width
136.06" (3,456 mm)
Overall length with ramps
245.31" (6,231 mm)
Width between columns
118.11" (3,000 mm)
Height of posts
Approx. 92" (2,332 mm)
Min runway height
9.3" (236 mm)
Drive-thru clearance
99.5"
Locking positions
12, spaced every 4.7"
Materials
Q235 and Q245 steel
Motor / power
3 kW, 220V/60Hz/1PH (110V optional)
Rolling jack capacity
6,000 lbs (approx. 2,721 kg)
Net weight
Approx. 4,850 lbs (2,200 kg)
Safety certification
CE Certified (115% dynamic, 150% static)
Requires concrete at least 3.93" (100 mm) thick, rated 3,000 PSI. Verify before installation.
Warranty
Katool backs the KT-4H150 with a 12-month all-parts warranty covering cylinders, power units, motors, and electronics, plus a 3-year warranty on structural components. Optional 2-year extended warranty plans are available.
Replacement parts are provided free of charge, including shipping.
Claims must fall within the warranty period and are non-transferable.
Labor costs are not included; equipment must not be disassembled before warranty approval.
FAQ
Do I need 220V power, or will 110V work?
The standard configuration runs on 220V/60Hz single-phase. A 110V/60Hz single-phase option is available — specify the 110V configuration when ordering if your garage doesn't have a 220V circuit.
Is the rolling jack included in the price?
Yes. One Katool KT-RJ60 6,000 lb rolling jack ships with every KT-4H150 — it is not an add-on.
Are alignment turntables included?
Turntables are optional. Contact MGS to add them to your order if you plan to do wheel alignments.
What concrete do I need?
Minimum 3.93" (100 mm) thickness with a 3,000 PSI rating. This is a hard safety requirement — verify your slab before purchase and installation.
Can I pick the lift up instead of paying for freight?
Yes. Warehouse pickup is available in California, Texas, Georgia, Illinois and New Jersey — choose the Warehouse Pickup option and confirm stock at your preferred location before ordering.
