Description
KATOOL KT-299U Auto Body Frame Machine – 20-Foot Heavy-Duty Power for Full-Frame Collision Repair
Built for serious shops handling the toughest collision damage, the KATOOL KT-299U Auto Body Frame Machine delivers the size, strength, and precision you need to restore full-frame vehicles with confidence. Measuring over 20 feet long and built with four 360° rotating pulling towers, the KT-299U boasts a 100 KN pulling capacity and can handle up to 7,700 lbs—making it ideal for trucks, SUVs, and large-frame vehicles.
The KT-299U isn’t just muscle—it’s also precision-engineered for efficiency. A special positioning slot system eliminates dead spots for consistent pulling accuracy, while the tilt hydraulic lifting platform and spiral-motion main clamps allow for smooth, secure setup. With high-strength materials like 10mm seamless steel pipe and heat-forged accessories, this machine is designed to thrive under heavy workloads.
Compatible with a standard 220V power supply and only requiring 0.8 MPA air pressure, the KT-299U integrates seamlessly into any collision repair shop. From serious structural corrections to fine frame alignment, this machine offers reliable, repeatable results—day in and day out.
| Key Features |
|---|
| 100 KN Pulling Capacity – Strong enough for major structural frame straightening |
| 20-Foot Platform with 4 Pulling Towers – Accommodates oversized vehicles with full coverage |
| 360° Rotating Pulling Towers – Access damage from any angle |
| Tilt Hydraulic Lifting Platform – Smooth lift for easy vehicle loading and positioning |
| Dead-Spot-Free Positioning Slot – Ensures precise, consistent pulling |

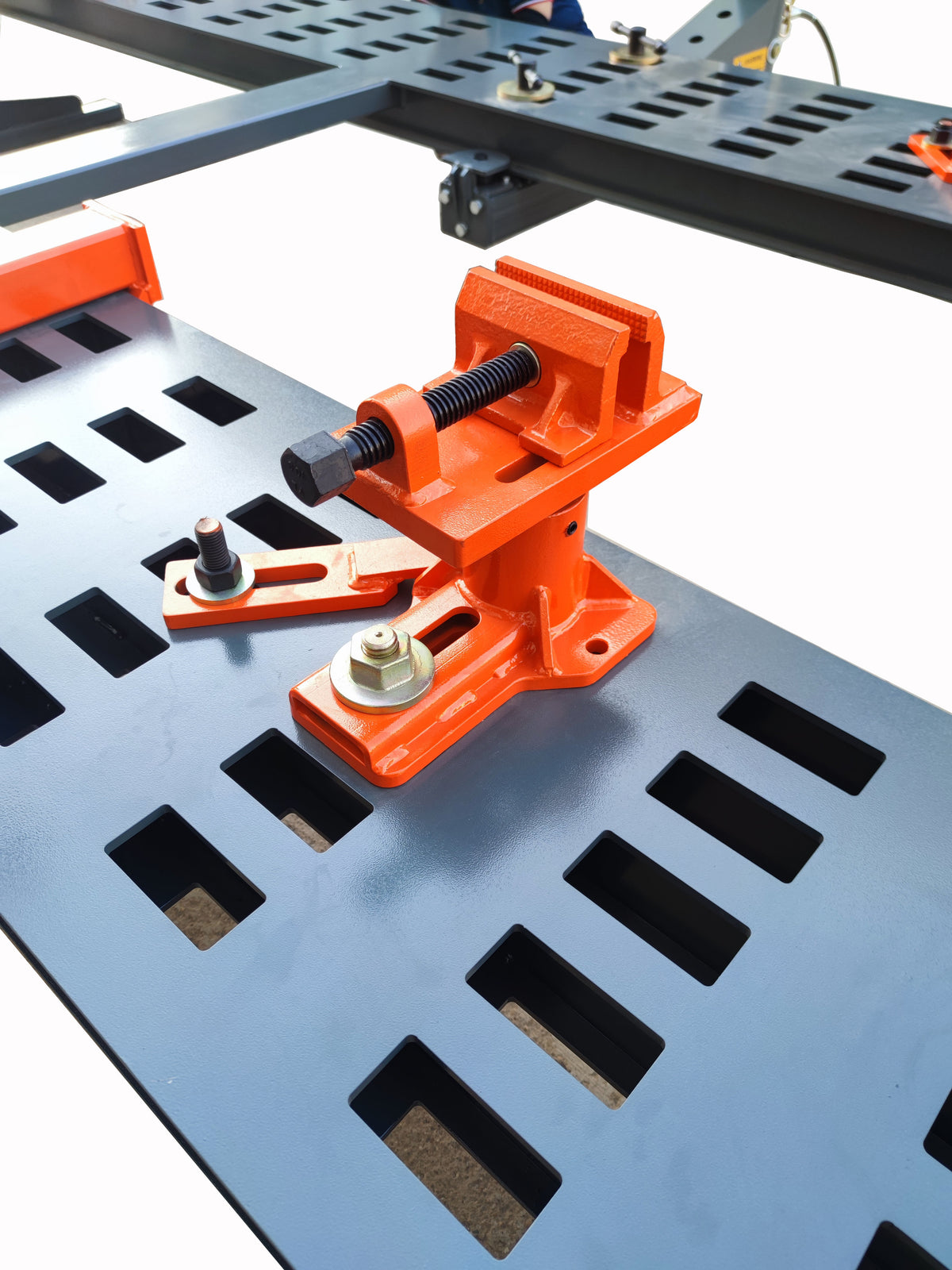

| Spiral-Motion Main Clamps – Secure and adjustable grip every time |
| Heat-Forged Accessories – Built to withstand extreme repair conditions |
| CE Certified & Shop Ready – Works on 220V power with 0.8 MPA air supply |
| 1-Year Warranty – Full coverage on parts and manufacturer defects |
| Specification | Value |
|---|---|
| Length | 256.1 inches |
| Width | 86.68 inches |
| Height Range | 4.3 to 67 inches |
| Pulling Capacity | 100 KN |
| Max Load Capacity | 7,700 lbs (CE Certified) |
| Pulling Radius | 360 Degrees |
| Rated Voltage | 220V |
| Air Supply Required | 0.8 MPA |
| Platform Type | Tilt Hydraulic Lift |
| Tower Material | 10mm Seamless Steel Pipe |
| Clamp Design | Spiral-Movement Main Clamps |
| Accessories | Heat-Forged & CNC Cut |
| Warranty | 1 Year (Parts & Defects) |
