About this item

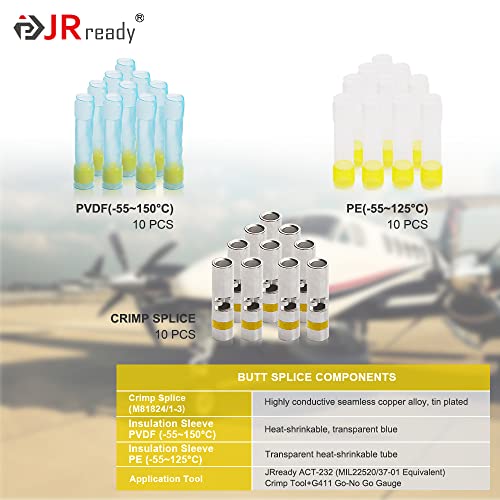

• 【Heat Shrink Connectors Information】JRready sealed Crimp Splices (M81824/1-3 Equivalent ) is a yellow mini seal high-performance butt crimp splices suit for 16-12AWG. It is made of crimp splice（copper alloy, tin plated) ,insulation sleeve including heat-shrinkable PVDF(-55~150°C) ,PE(-55~125°C),immersion-resistant thermoplastic sealing rings.

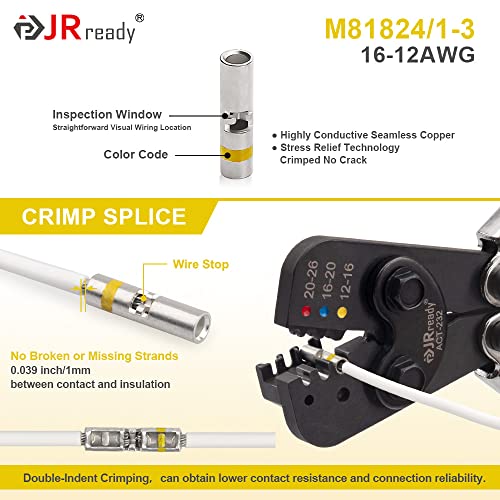

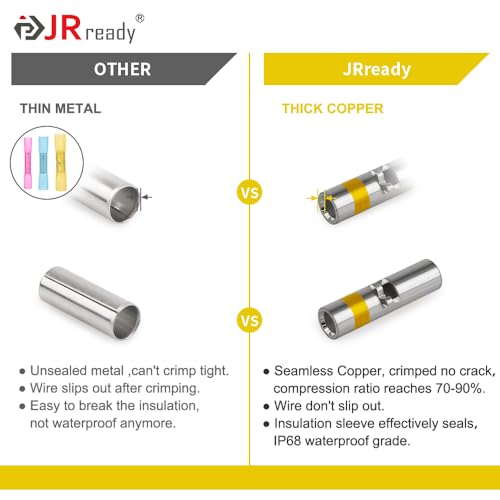

• 【Premium Quality Metal Terminal】Our heat-shrinkable butt connectors are made of highly conductive seamless copper tubes, which are stress relief so that they can be crimped with no crack.These connectors are equipped with a window design that allows straightforward visual wiring location.
• 【Better Watherproof and Sealed】Insulation sleeve is a transparent heat-shrinkable tube that makes it easier to observe the terminals. The hot melt adhesive on both ends of the sleeve effectively seals the contacts and achieves a waterproof rating of IP68.We provide two operating temperatures of insulation sleeve:PVDF(-55~150°C)M81824/1-3 Equivalent（Flame Rating VW-1）*10 pcs-Cable jacket rating 135°C min and PE(-55~125°C)*10 pcs-Cable jacket rating 80°C min .

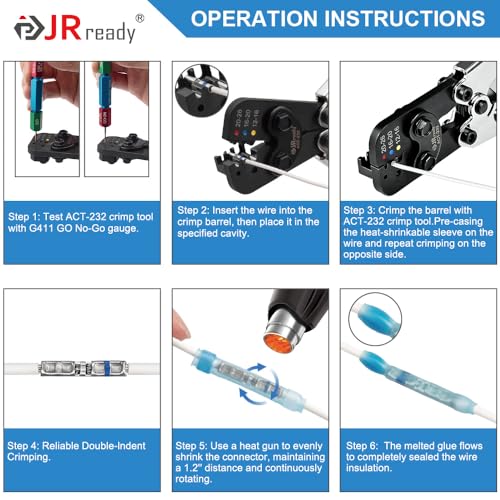

• 【Crimp Tool For Butt Connectors】Solderless Wire Connectors are crimped and heat shrunk to ensure that the wire is securely crimped without slipping，much faster and more convenient than soldering.Use JRready ACT-232(MIL22520/37-01 Equivalent) crimping pliers to guarantee reliable crimping every time,ensure good electrical and mechanical performance.

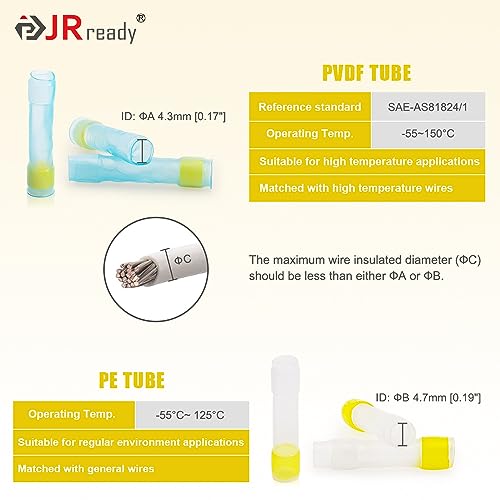

• 【Multi-environmental Application】Our electrical crimp connectors are small,lightweight,better waterproof and seal performance.The PVDF insulation (-55~150°C) meeting the standards of SAE-AS81824/1 is suitable for high temperature applications and can be matched with high temperature wires.PE(-55~125°C) is suitable for regular environment applications and can be matched with general wires.

Overview

• Color: 12#Yellow-10Sets
• Connector Type: Butt Splice
• Contact Material: Copper
• Insulation Material: Polyolefin
• Terminal: Butt Terminal
