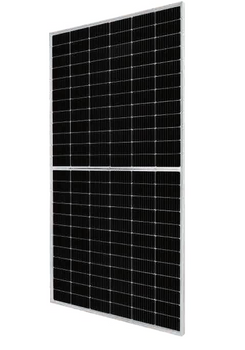

Introducing the JA Solar DeepBlue 3.0 JAM72D30-550/MB — a high-performance 550W bifacial solar panel engineered for superior energy yield and long-term reliability.

Designed with advanced monocrystalline PERC technology and a robust glass-glass construction, this module is ideal for residential, commercial, and utility-scale installations seeking maximum efficiency and durability.

Key Features

• High Power Output

  Delivers up to 550W with a module efficiency of 21.3%, ensuring optimal energy production even in limited space.

• Bifacial Technology

  Captures additional sunlight from the rear side, boosting energy yield by up to 70% compared to monofacial panels.

• Durable Glass-Glass Design

  Features 2.0 mm tempered glass on both sides, providing enhanced resistance to environmental stressors and mechanical loads.

• Enhanced Reliability

  Certified for resistance to PID, salt mist, and ammonia, ensuring consistent performance in diverse environments.

• Extended Warranty

  Comes with a 12-year product warranty and a 30-year linear power output warranty, guaranteeing long-term peace of mind.

Product Overview

The JA Solar JAM72D30-550/MB module incorporates 144 half-cut monocrystalline PERC cells in a 6×24 configuration, optimizing light absorption and reducing resistive losses. Its bifacial design allows for additional energy capture from reflected sunlight, significantly increasing overall power generation. The dual-glass structure not only enhances durability but also improves fire safety and reduces degradation over time.

With a maximum system voltage of 1500V and a robust frame capable of withstanding snow loads up to 5400 Pa and wind loads up to 2400 Pa, this panel is built to endure harsh conditions while maintaining high performance.

Technical Specifications
